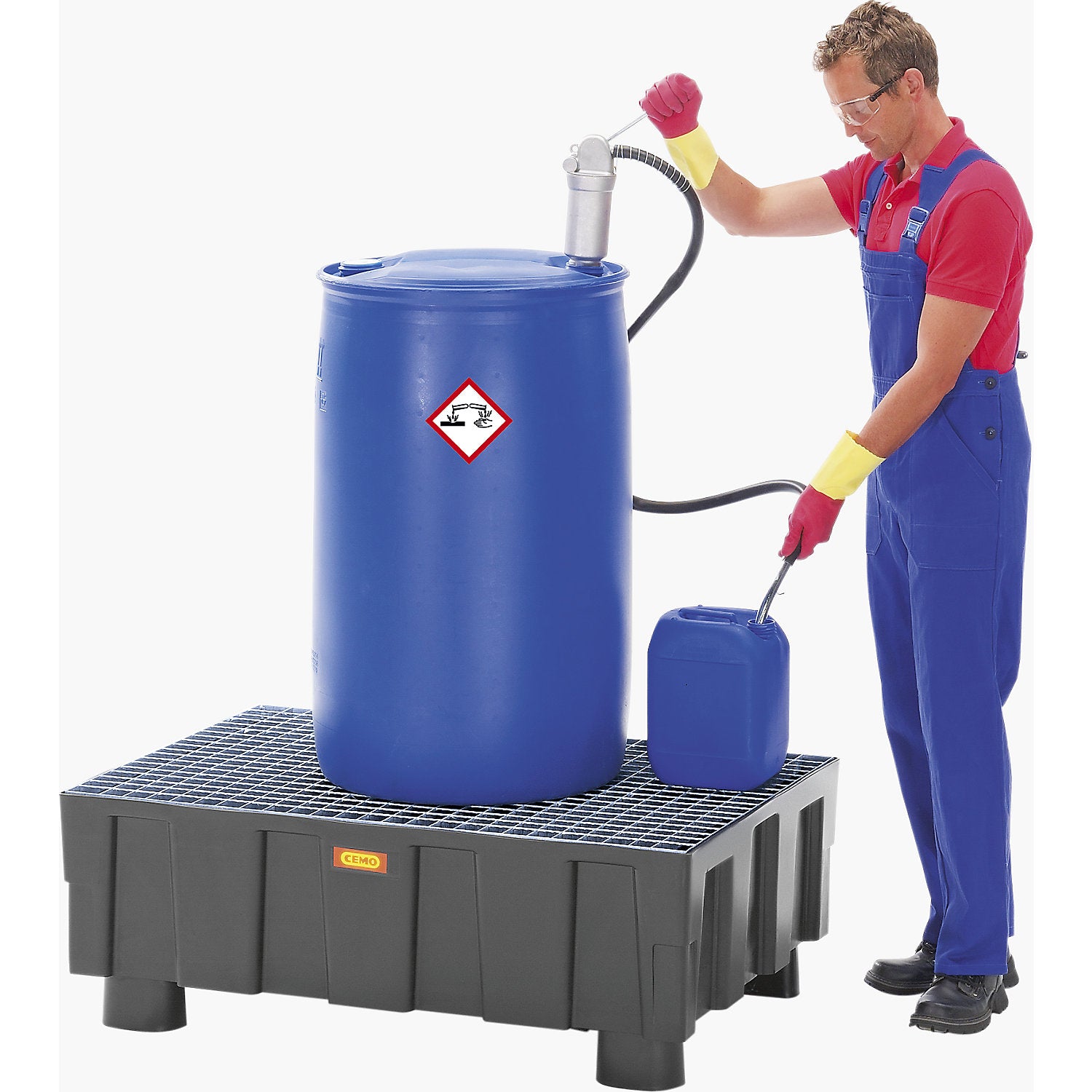

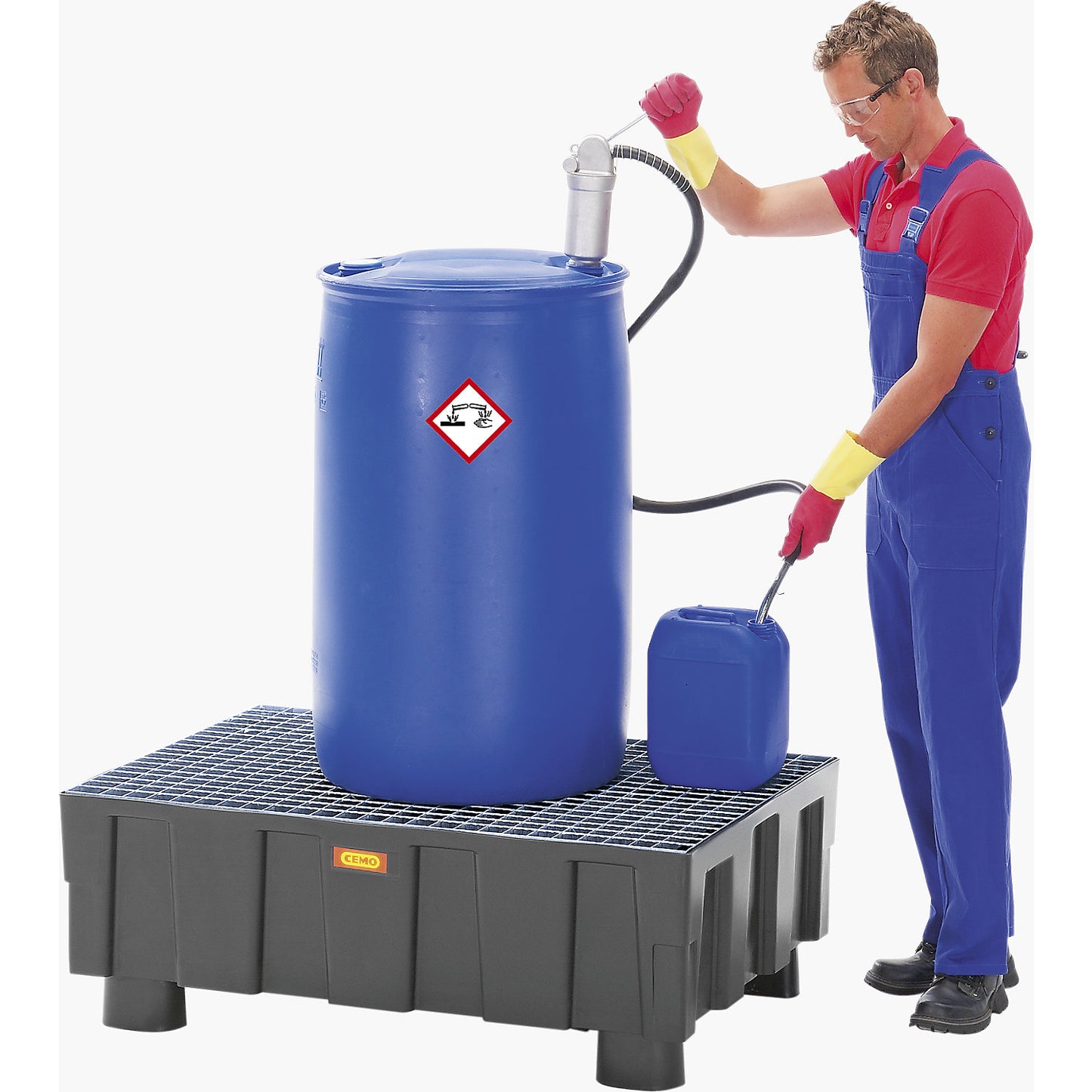

PE sump tray for 200 l drums, with four feet, sump capacity 224 l, with zinc plated steel grate.

Estimated delivery: 52 days

PE sump tray for 200 l drums, with four feet, sump capacity 224 l, with zinc plated steel grate

• Supplied = flat pack
• Type of grate = with zinc plated grate
• Sump capacity = 224 l
• Drum capacity = 2x200 l
• Length = 1205 mm
• Width = 805 mm
• Height = 440 mm
• Colour = black, zinc plated
• Material = polyethylene
• Design of sump tray = with 4 feet
• Max. load = 600 kg
• Test symbol = with general certification from the DIBt (German Institute for Construction Technology) Berlin
• For media = water hazardous dangerous goods, chemicals, acids and alkalis, oils
• Hazard class = for corrosive media such as acids and alkalis
• Customs tariff number = 39259080
• Country of origin = ---
• Gross weight = 34 kg
• Weight = 31 kg
• Sustainability = CO 2 footprint calculated
• Made of highly resistant, robust, durable polyethylene
• In Euro pallet dimensions - for 2 drums (on the grid)
• With general building authority approval
• Standard pallet collars can be attached
• With four feet
• Ideal for storing aggressive media such as acids, alkalis, oils
• The PE sump tray for 200 l drums combines durable HDPE with a high max. load and flexible storage options
• In Euro pallet dimensions, it supports safe drum storage and can be integrated into existing storage structures
• The sump tray is made of exceptionally robust, highly resistant polyethylene
• With a distributed load, it supports up to 600 kg
• Without a grid, it offers space for one 200-litre drum or smaller containers

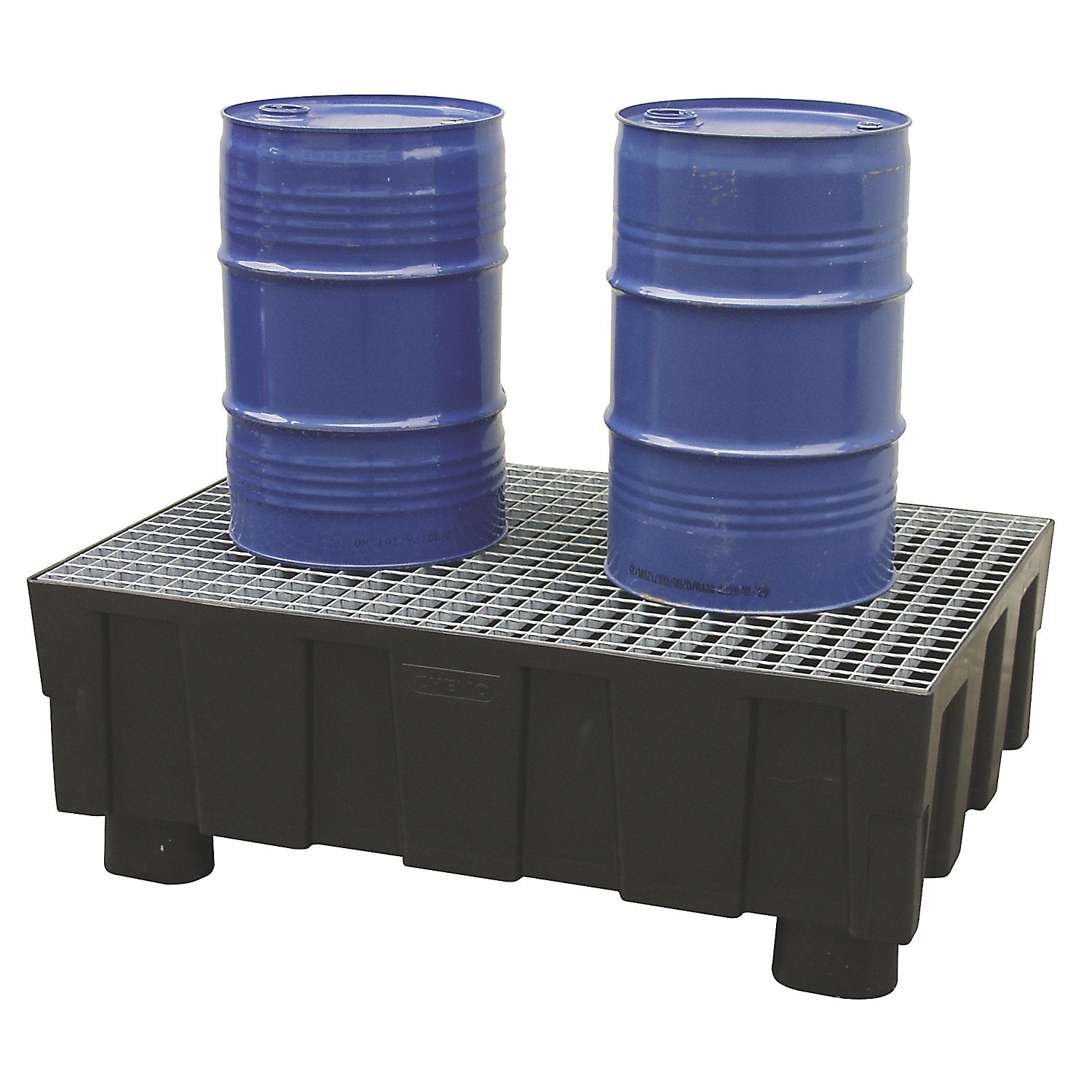

• With a grid, two 200-litre drums, six 60-litre drums or various small containers can be stored
• This makes the tray suitable both for conventional drum storage and as a small container sump tray
• Four sturdy feet ensure stability and make it easy to pick up with industrial trucks
• The PE sump tray can be accessed from four sides
• Depending on the entry side, the distance between the feet is 520 or 760 mm respectively
• This allows it to be flexibly lifted, moved and positioned within the facility
• Integration into existing storage and transport processes is also facilitated
• Standard pallet collars can be attached to the tray
• This allows the available storage space to be adapted to different containers and workflows
• The general building authority approval supports safe use in commercial environments
• The PE sump tray retains escaping liquids in a controlled manner
• This protects floors and adjacent work areas from contamination
• Structured storage also facilitates the inspection of containers and supports operational safety requirements
• This product is ideal for storing aggressive media such as acids, alkalis and oils
• Max. load max. 600 kg (distributed load)
• Without grid for 1 x 200-litre drum or small containers
• With grid for 2 x 200-litre drums, 6 x 60-litre drums or small containers.
