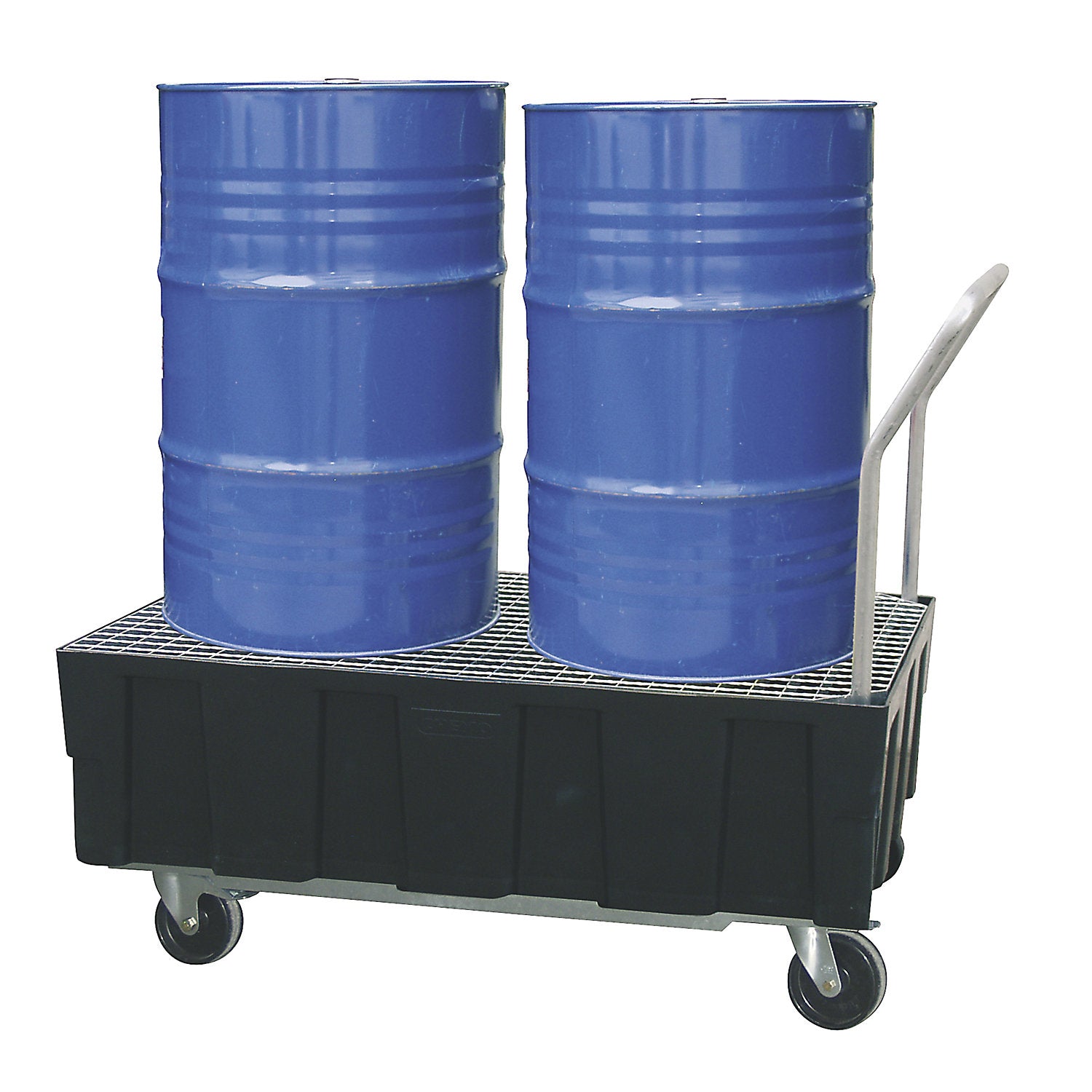

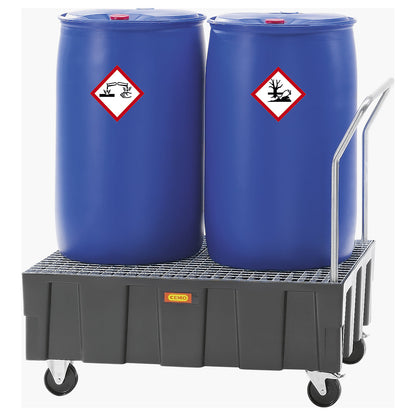

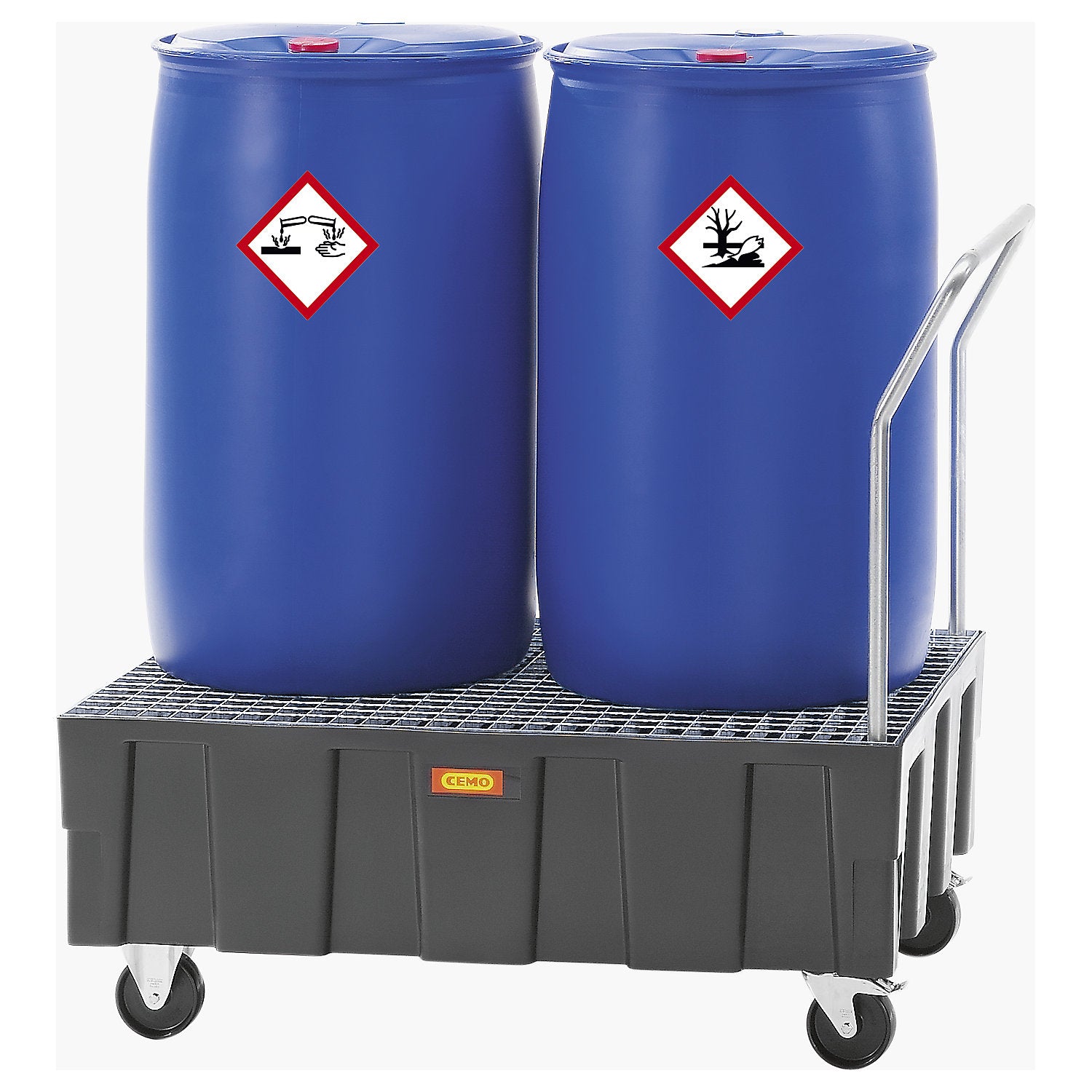

PE sump tray for 200 l drums, mobile using push handle, sump capacity 224 l, with zinc plated steel grate.

Estimated delivery: 52 days

PE sump tray for 200 l drums, mobile using push handle, sump capacity 224 l, with zinc plated steel grate

• Supplied = flat pack
• Type of grate = with zinc plated grate
• Sump capacity = 224 l
• Drum capacity = 2x200 l
• Length = 1290 mm
• Width = 805 mm
• Height = 490 mm
• Colour = black, zinc plated
• Material = polyethylene
• Max. load = 600 kg
• Test symbol = with general certification from the DIBt (German Institute for Construction Technology) Berlin
• For media = water hazardous dangerous goods, chemicals, acids and alkalis, oils
• Hazard class = for corrosive media such as acids and alkalis
• Feature = mobile
• Customs tariff number = 39259080
• Country of origin = ---
• Gross weight = 42 kg
• Weight = 37 kg
• Sustainability = CO 2 footprint calculated
• Made of highly resistant, robust, durable polyethylene
• In Euro pallet dimensions - for 2 drums (on the grid)
• With general building authority approval
• Standard pallet collars can be attached
• Mobile sump tray
• Ideal for storing aggressive media such as acids, alkalis, oils
• The PE sump tray for 200 l drums combines robust HDPE quality with mobile flexibility
• In Euro pallet dimensions, it is suitable for safe drum storage and can be moved easily around the premises thanks to its push handle and castors
• The sump tray consists of particularly resilient, highly resistant and durable polyethylene
• With a distributed load, it carries up to 600 kg
• Without a grid, the tray offers space for one 200-litre drum or several smaller containers

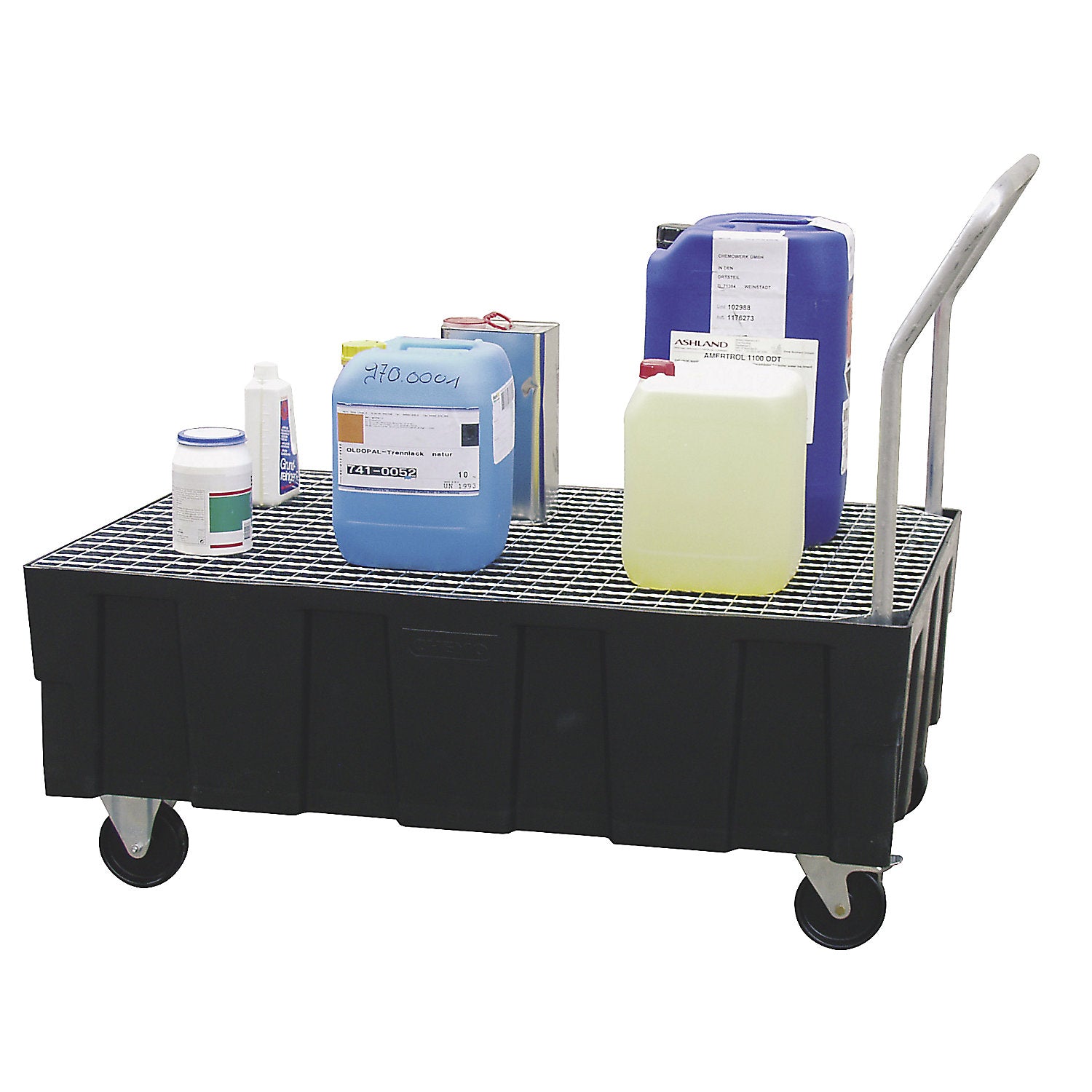

• With a grid, two 200-litre drums, six 60-litre drums or small containers can be stored
• This means the tray can be used as a classic drum tray or as a small container sump tray
• The mobile model features two swivel castors and two fixed castors with a diameter of 125 mm
• The push handle enables controlled movement even when the tray is loaded
• The platform height of 490 mm makes it easier to load and remove the containers
• At the same time, the design remains easy to handle for internal transport routes
• The Euro pallet dimensions support integration into existing storage and logistics processes
• Standard pallet collars can be fitted
• This allows the storage area to be adapted to different containers and workflows
• The general technical approval provides additional safety for commercial use
• The PE sump tray helps to reliably collect escaping liquids
• This protects floors, traffic areas and adjacent working areas from contamination
• This product is ideal for mobile drum storage and for the safe storage of aggressive media such as acids, alkalis and oils
• Max. load max. 600 kg (distributed load)
• Without grid for 1 x 200-litre drum or small containers
• With grid for 2 x 200-litre drums, 6 x 60-litre drums or small containers
• With push handle
• Platform height 490 mm. 2 swivel and 2 fixed castors, wheel Ø 125 mm.
