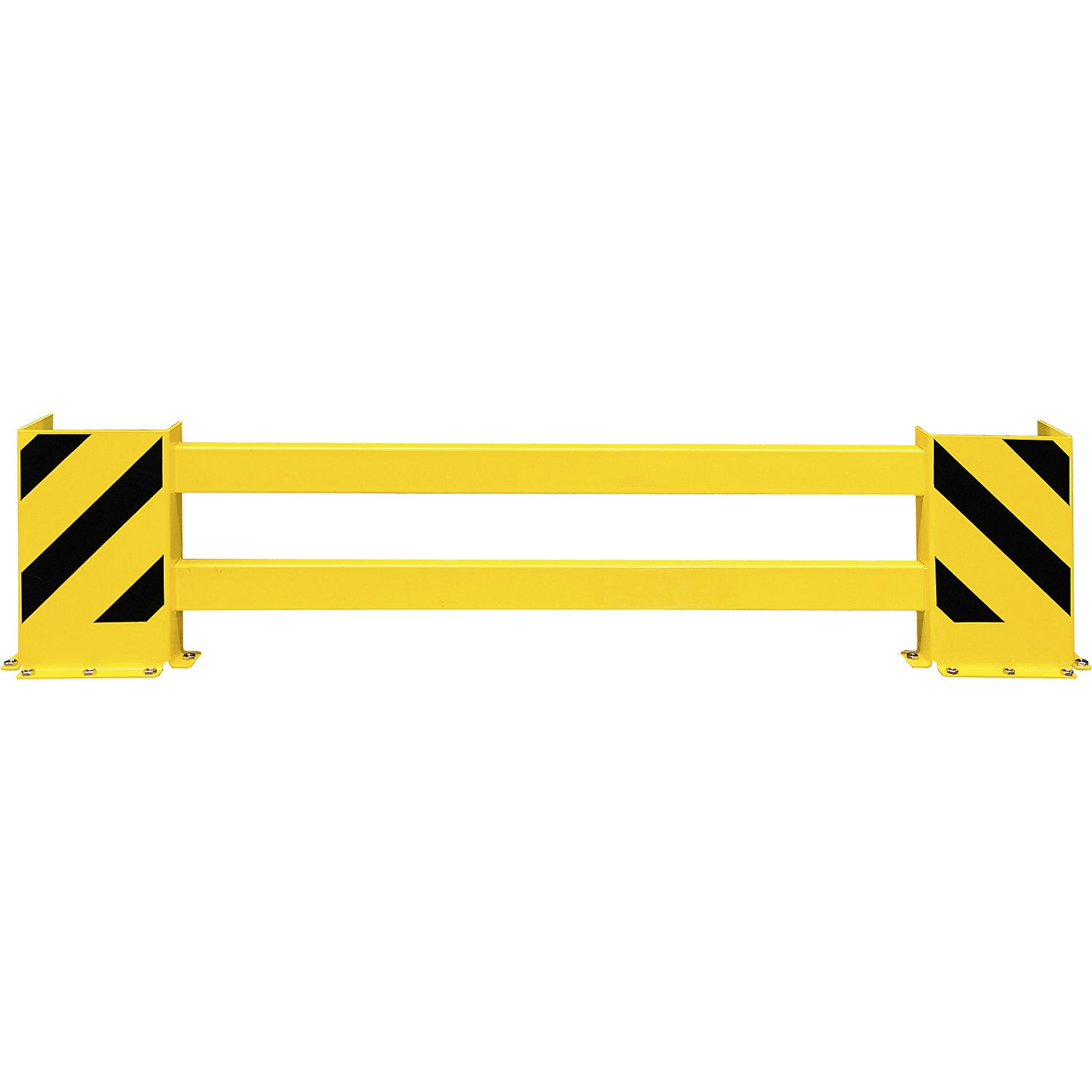

Rack protection guard rail set, with corner guards, for double sided shelving, width 1700 - 2100 mm.

Estimated delivery: 36 days

Rack protection guard rail set, with corner guards, for double sided shelving, width 1700 - 2100 mm

• Supplied = flat pack
• Type of mounting = for bolting in place
• Model = for double sided shelf unit
• Length = 2100 mm
• Width = 2100 mm
• Height = 500 mm
• Colour = traffic yellow RAL 1023, jet black RAL 9005
• Material = steel
• Finish = plastic coated
• Panel thickness = 3 mm
• Place of use = indoor use
• Retracted length = 1700 mm
• Height above ground = 500 mm
• Product type = collision protection
• Customs tariff number = 73089098
• Country of origin = DEU
• Gross weight = 56 kg
• Weight = 40 kg
• Sustainability = CO 2 footprint calculated
• TÜV-TESTED in accordance with DGUV 208-061
• For indoor use
• Protects shelving units against collision damage
• Shelf unit uprights protected on multiple sides
• Yellow / black plastic coating for effective visual warning
• Adjustable to fit all standard shelf unit widths, for single and double sided shelving rows

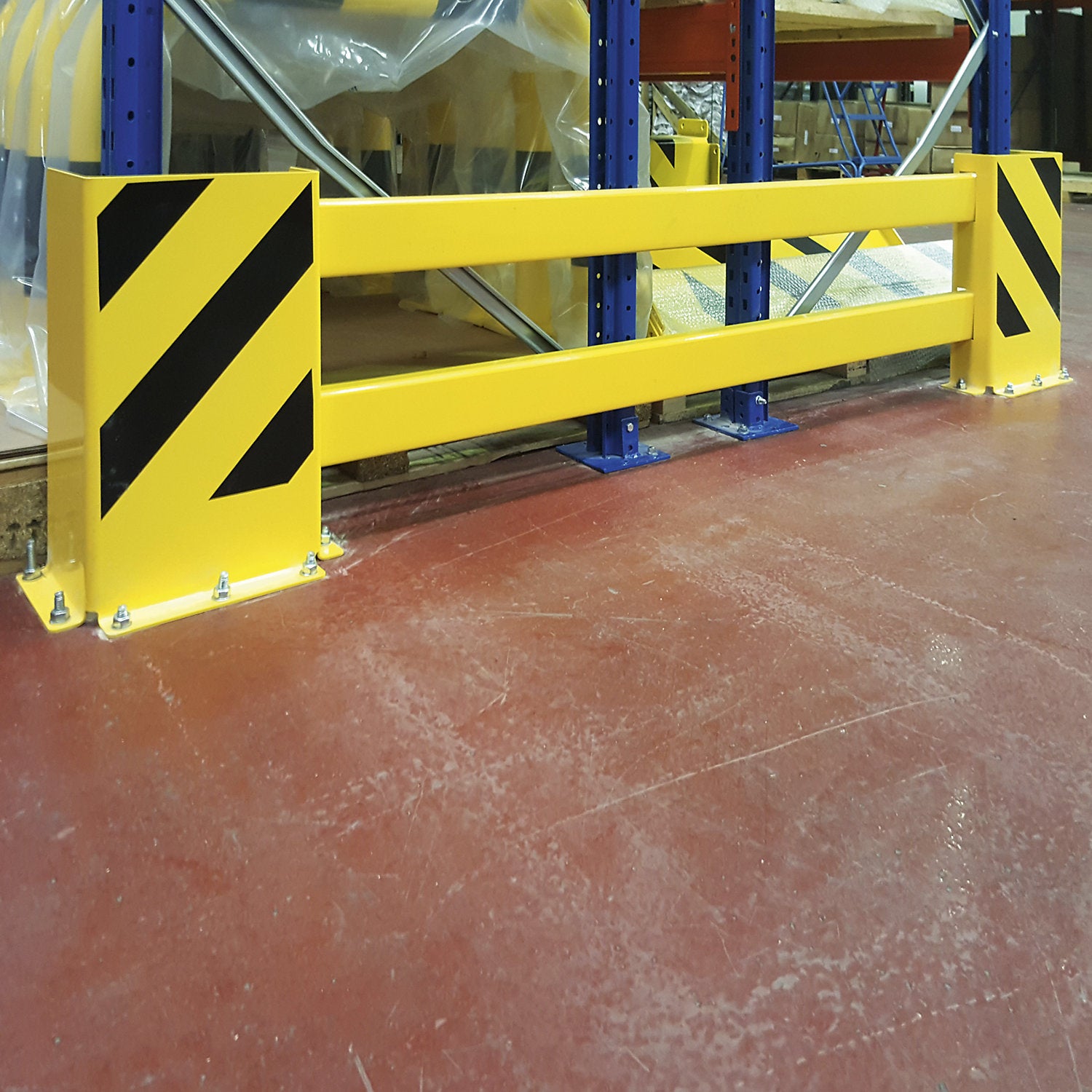

• The rack guard rail set has been specially developed to protect racks from frontal impact damage caused by forklift and manoeuvring traffic

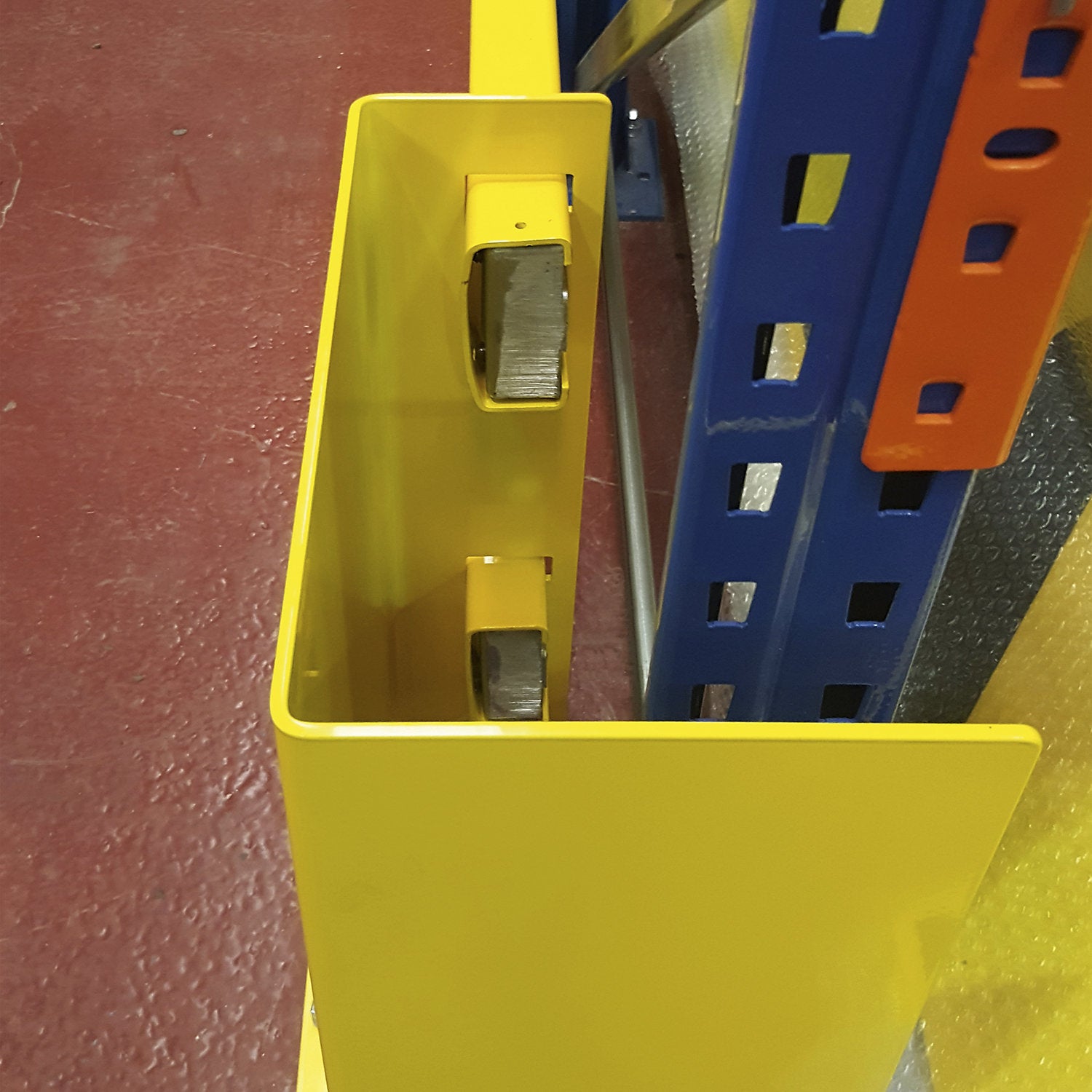

• The impact protection corners are shaped so that two steel guard rails with a C-profile can be slid in from the side
• The 300 mm wide protection corners allow the guard rails to be moved by up to 200 mm per corner
• This means each guard rail set can be individually adjusted in width by up to 400 mm
• Scope of delivery One set consists of two impact protection corners for bolting down and two guard rails with a C-profile for horizontal installation
• Screws and dowels for floor mounting are not included in the scope of delivery
• Wall thickness: 3 mm guard rail and 4 mm corner
• Total height 500 mm
• Very easy assembly - Bolt first crash guard to floor - Insert rails - Position second crash guard and bolt in place - Fix rails with clamping jaws
