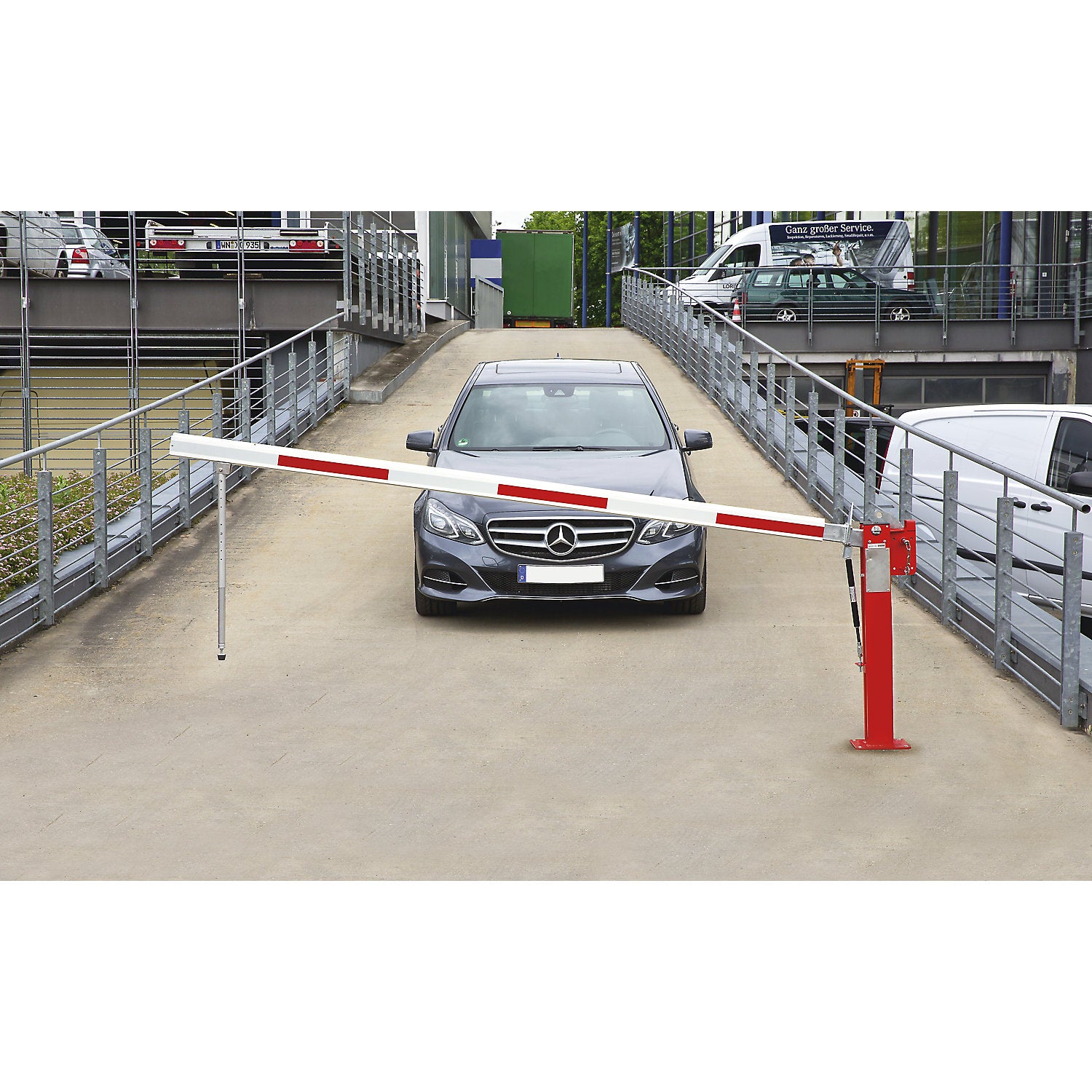

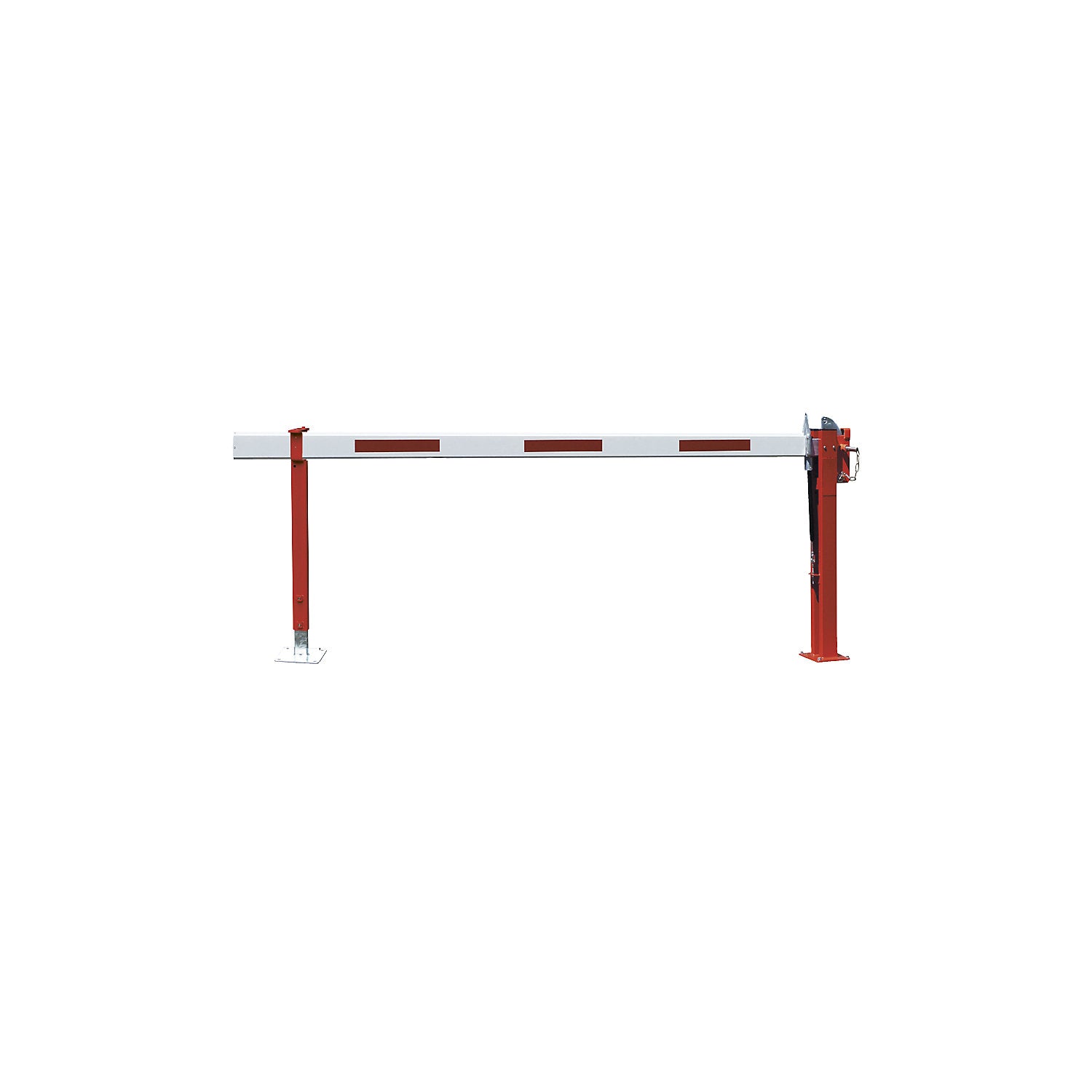

Manual barrier, fixed support arm, barrier beam length 5.5 m.

Estimated delivery: 41 days

Manual barrier, fixed support arm, barrier beam length 5.5 m

• Supplied = flat pack
• Width = 5700 mm
• Barrier beam length = 5500 mm
• Barrier clearance length = 5660 mm
• Material = tubular steel
• Colour = traffic red RAL 3020, pure white RAL 9010
• Type of mounting = for bolting in place
• Model = with fixed support arm
• Lock type = fittings for padlock
• Weight = 61.5 kg
• Finish = hot dip galvanised, additionally powder coated
• Barrier boom profile = 108x46 mm
• Method of operation = manual
• Product type = boom gates
• Customs tariff number = 73089098
• Country of origin = DEU
• Gross weight = 70.5 kg
• Weight = 61.5 kg
• Sustainability = CO 2 footprint calculated
• With fixed support
• With gas pressure spring without protruding counterweight
• Reflective red/white film on both sides
• Barrier beam with sit-proof saddle
• Lockable - as standard with padlock
• All steel parts hot dip galvanised and double powder coated in traffic red RAL 3020
• One-piece barrier beam made of rectangular steel tubing, HxW 108 x 46 mm (height incl. 15 mm sit-proof saddle)
• Powder coated, pure white RAL 9010, and both sides with red/white reflective film
• Main post to bolt in place, made of two steel pipes, 120 x 40 x 3 mm
• Barrier beam can be adjusted vertically by ±5%
• Stainless steel bolts for locking with padlock (not included)
• Made of tubular steel, 70 x 40 x 3 mm, to bolt in place
• Height adjustable from -100 / +150 mm
• Available on request - Profile cylinder and triangular locks (can be fitted and exchanged at any time) - Lock holders on support arms - Floor anchor for setting in concrete (foundation work to be performed by customer)
