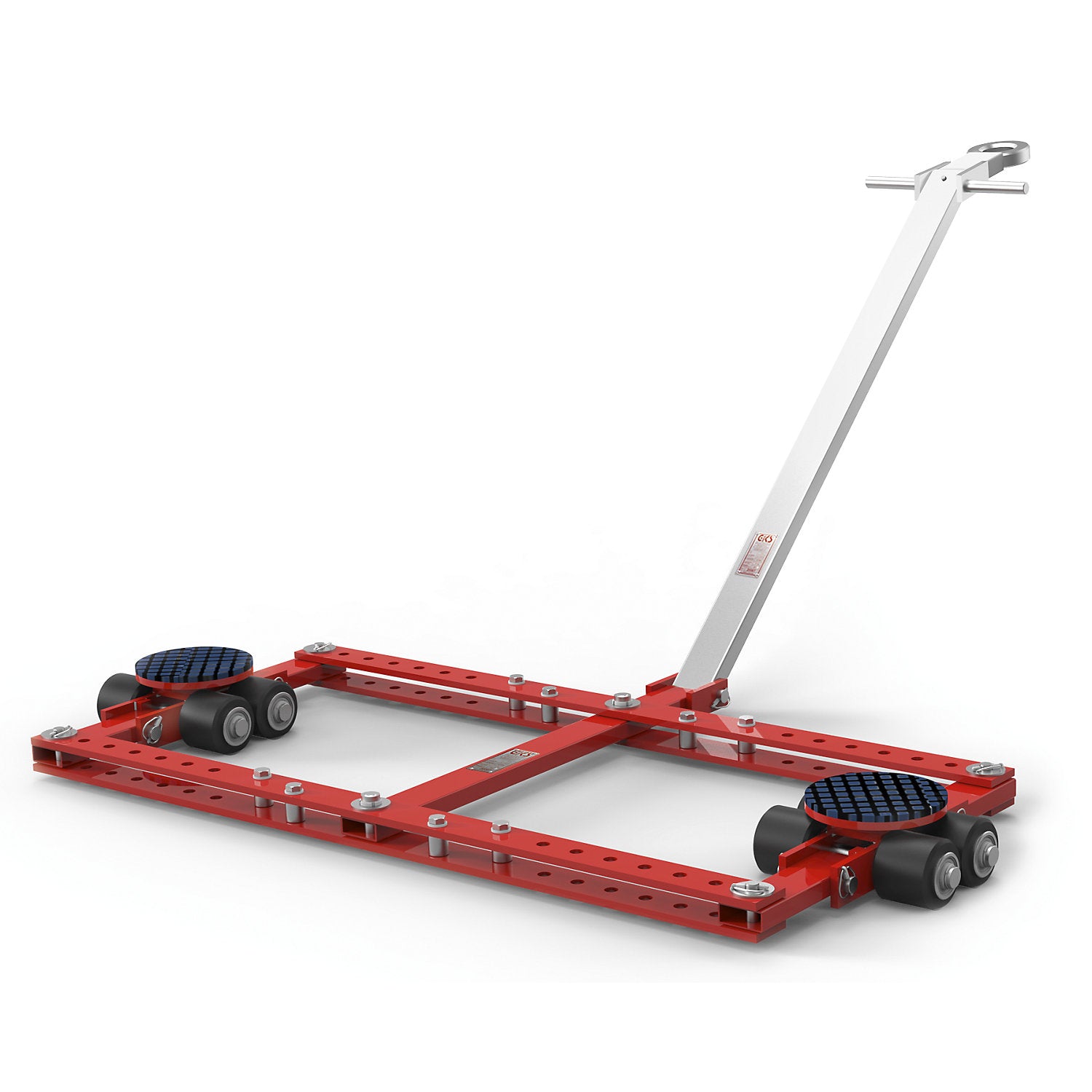

Tandem chassis, 7 adjustment settings, max. load 6000 kg.

Estimated delivery: 34 days

Tandem chassis, 7 adjustment settings, max. load 6000 kg

• Supplied = assembled
• Max. load = 6000 kg
• Number of wheels = 8 pcs
• Wheel material = nylon
• Castor width = 85 mm
• Castor diameter = 85 mm
• Loading height = 110 mm
• Height = 110 mm
• Length = 1420 mm
• Width = 760 mm
• Platform material = rubber
• Platform diameter = 170 mm
• Adjustment range = 500 - 1150 mm
• Platform colour = black
• Colour = red, silver grey
• Fittings = non-slip support base, drawbar
• Application = diverse
• Product type = transport dollies
• Customs tariff number = 87168000
• Country of origin = DEU
• Gross weight = 62 kg
• Weight = 54 kg
• Sustainability = CO 2 footprint calculated
• Very low installation height of 110 mm, perfect for positioning under low-lying goods
• Ideal for loads that require a four point bearing
• Comprising two steerable chassis (Ø 170 mm) that can also be used individually
• Ideally suited for transporting long and bulky loads safely
• The modular system allows different chassis that can be combined for use
• Steering rod 960 mm
• Steering angle ± 50°.
