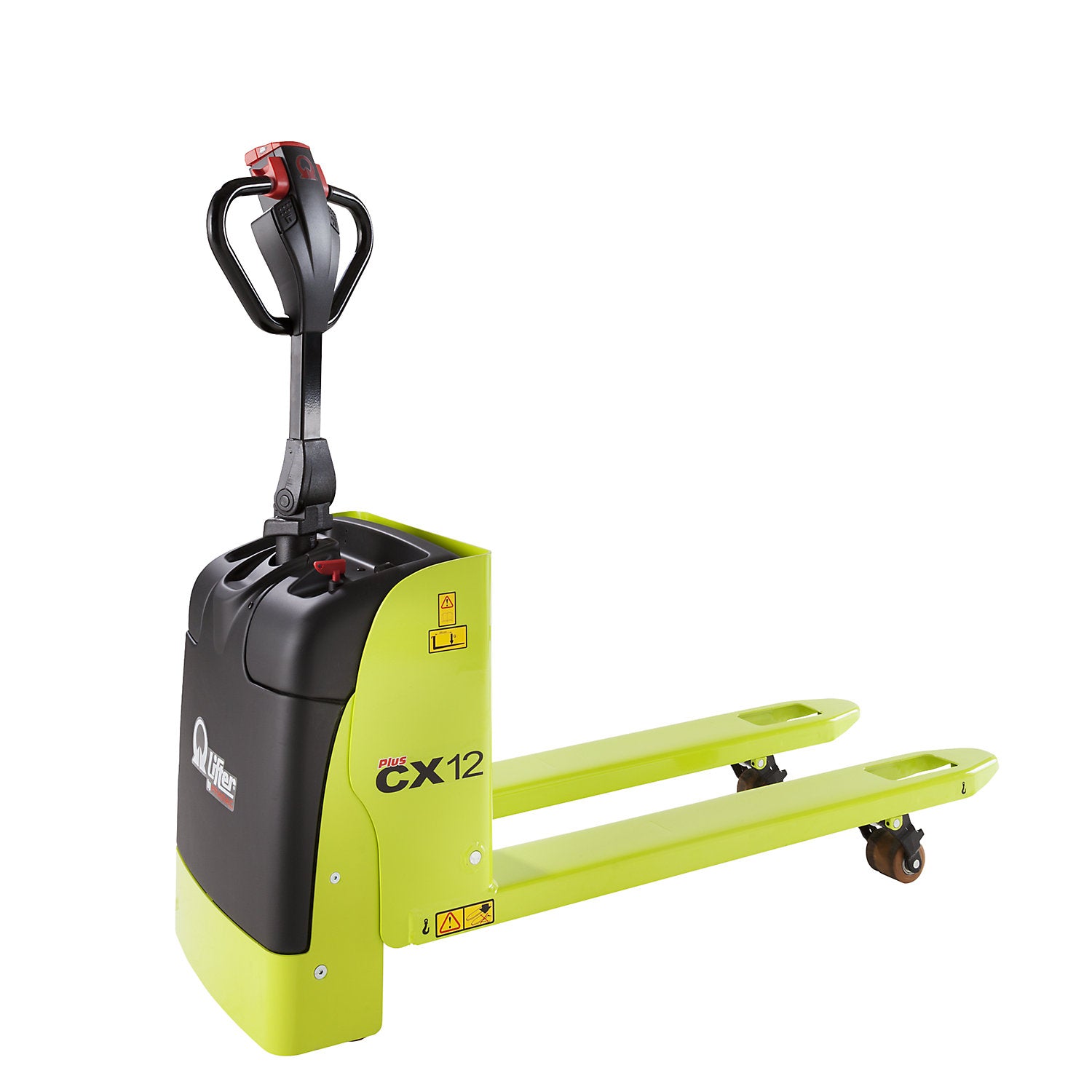

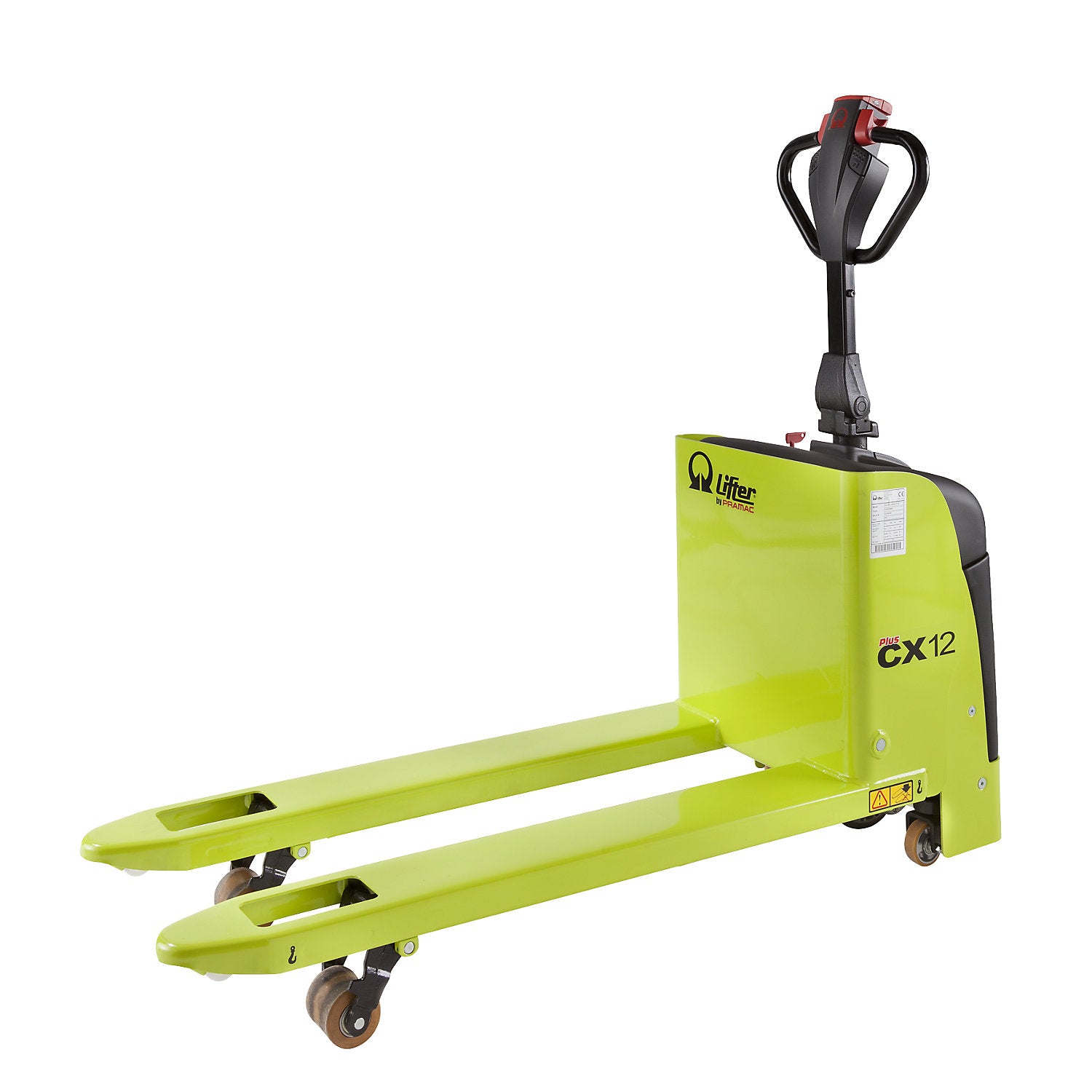

Electric lifting trolley, max. load 1200 kg, fork dimensions LxW 1150 x 520 mm.

Estimated delivery: 41 days

Electric lifting trolley, max. load 1200 kg, fork dimensions LxW 1150 x 520 mm

• Supplied = assembled
• Lifting range = 85 - 200 mm
• Fork length = 1150 mm
• Fork width = 150 mm
• Distance across forks = 520 mm
• Length = 1510 mm
• Width = 520 mm
• Overall height = 1345 mm
• Min. lifting speed = 0.03 m/s
• Max. lifting speed = 0.04 m/s
• Min. driving speed = 4.3 km/h
• Max. driving speed = 4.8 km/h
• Climbing performance with load = 10 %
• Climbing performance without load = 25 %
• Turning radius = 1268 mm
• Thickness of fork prong = 55 mm
• Battery = 2x12 V / 60 Ah
• Battery charger = 8 A impulse charger
• Working gangway for pallet length = 2120 mm
• Roller material = polyurethane
• Fork roller version = single
• Fork roller diameter = 82 mm
• Fork roller width = 82 mm
• Steering wheel width = 50 mm
• Steering wheel diameter = 186 mm
• Customs tariff number = 84279000
• Country of origin = ITA
• Gross weight = 148.5 kg
• Weight = 148 kg
• Sustainability = CO 2 footprint calculated
• European product with high quality standard
• Maintenance free AGM batteries
• Operates for approx 2 - 3 hours
• For easy use in tight spaces
• Especially easy to handle
• Smaller turning radius and dimensions comparable with a pallet truck
• Spring loaded rollers at the side
• Energy saving MOS-FET drive control with proportional speed regulation
• Creep speed possible with drawbar in upright position
• With horn, emergency stop switch and all-round foot protection
• Maintenance free AGM batteries ensure operation for 2 - 3 hours or a multiple service life compared to standard batteries
• Safety steering unit with ergonomic controls Direction controller in butterfly design for sensitive, stepless start-up and stop
• Raising and lowering activated on the drawbar handle
• LED display for battery status
• Button for horn
• Security key to protect the driver
• Changes direction when counterpressure is applied
• Other lifting trolleys on request - Fork lengths 800 or 1000 mm - Lifting truck with scales - Larger models - also with operator platform - Inverter charger for trucks
