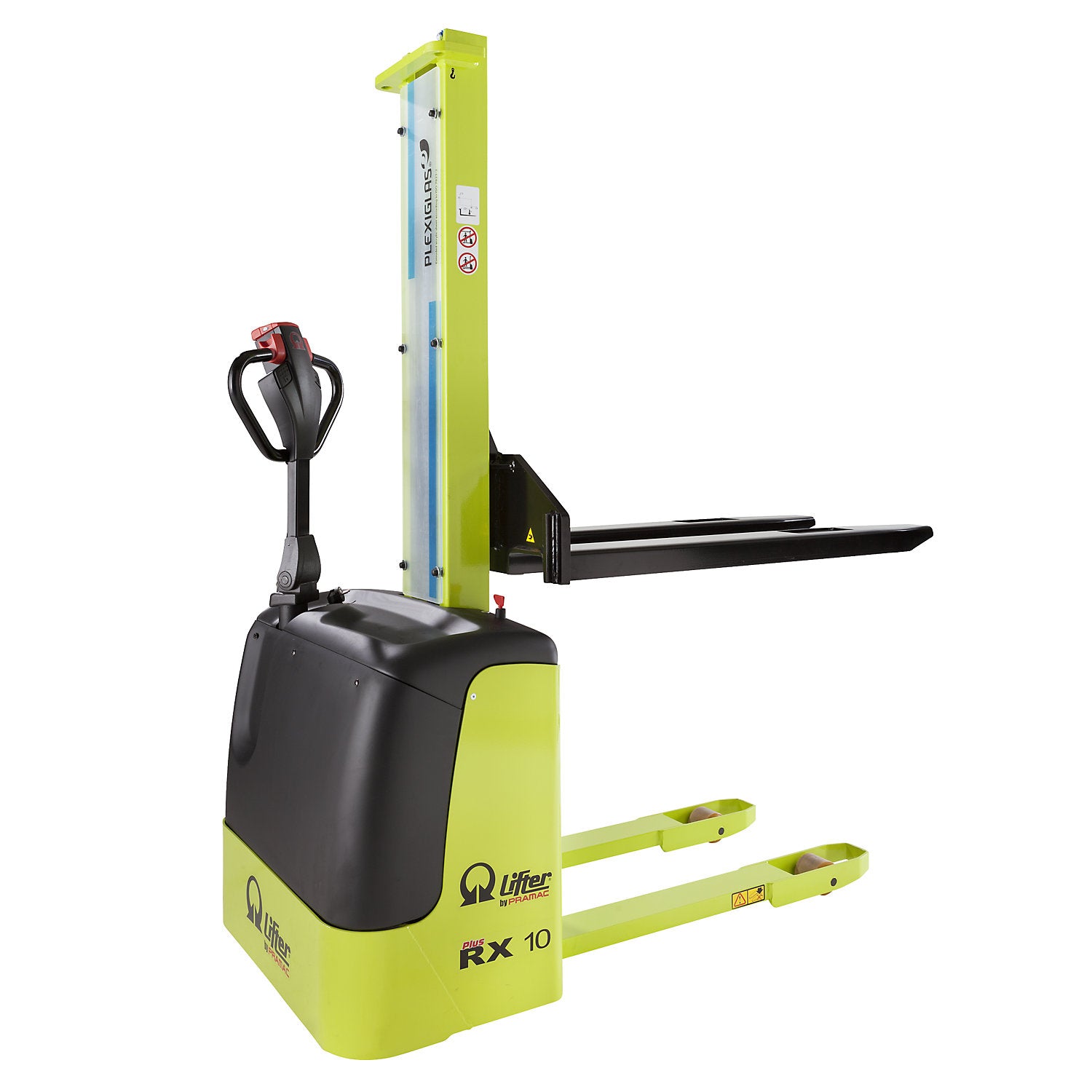

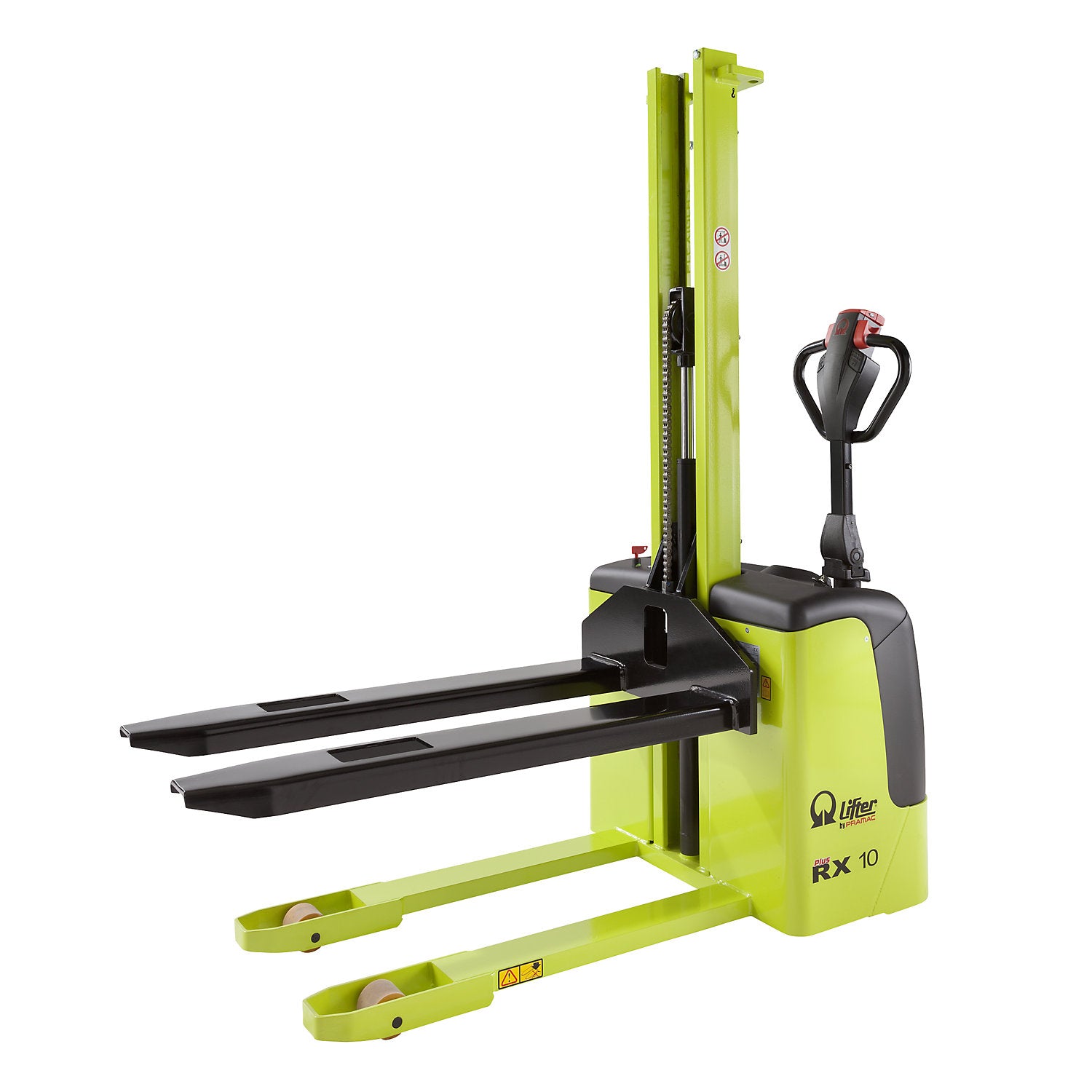

Electric drawbar stacker, max. load 1000 kg, fork dimensions LxW 1153 x 150 mm.

Estimated delivery: 41 days

Electric drawbar stacker, max. load 1000 kg, fork dimensions LxW 1153 x 150 mm

• Supplied = assembled
• Max. load = 1000 kg
• Lifting range = 90 - 1600 mm
• Fork length = 1153 mm
• Fork width = 150 mm
• Distance across forks = 560 mm
• Length = 1675 mm
• Width = 794 mm
• Overall height = 1970 mm
• Min. lifting speed = 110 mm/s
• Max. lifting speed = 180 mm/s
• Min. driving speed = 3.7 km/h
• Max. driving speed = 4.3 km/h
• Climbing performance with load = 9 %
• Climbing performance without load = 25 %
• Design of mast = single mast
• Turning radius = 1344 mm
• Thickness of fork prong = 60 mm
• Battery = 2x12 V / 70 Ah
• Battery charger = 8 A impulse charger
• Working gangway for pallet length = 2120 mm
• Roller material = polyurethane
• Fork roller version = single
• Fork roller diameter = 82 mm
• Fork roller width = 70 mm
• Steering wheel width = 50 mm
• Customs tariff number = 84279000
• Country of origin = ITA
• Gross weight = 371.5 kg
• Weight = 371 kg
• Sustainability = CO 2 footprint calculated
• Electric drive - electro-hydraulic lifting
• Maintenance free AGM batteries
• Operates for approx 2 hours. 0.35 kW drive motor and 2.2 kW DC lifting motor
• Energy saving MOS-FET drive control with proportional speed regulation
• Creep speed possible with drawbar in upright position when space is tight
• Drive unit with robust sheet steel frame
• The devices are fully compliant with the requirements of directive 2006/42/EC
• CE conformity
• With horn, emergency stop switch and all-round foot protection
• Maintenance free AGM batteries ensure operation for approx. 2 hours
• Safety steering unit with ergonomic controls Direction controller in butterfly design for sensitive, stepless start-up and stop
• Raising and lowering activated on the drawbar handle
• LED display for battery status
• Button for horn
• Security key to protect the driver
• Changes direction when counterpressure is applied

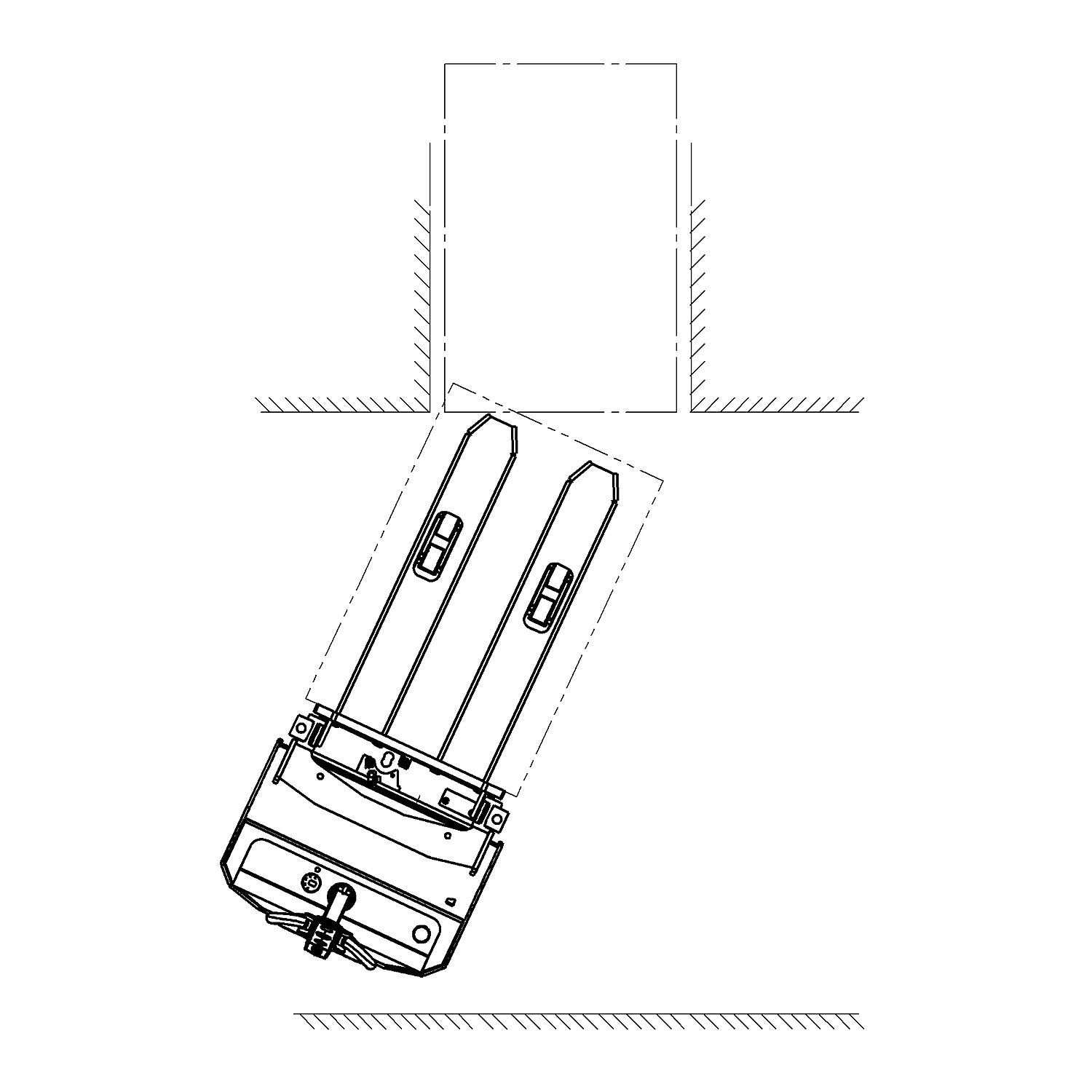

• Can be used in passageways with a width of 2120 mm with 800 x 1200 mm, lengthwise
• On request - Max. load up to 1600 kg - Lifting height up to 5000 mm - Wide gauge chassis possible
