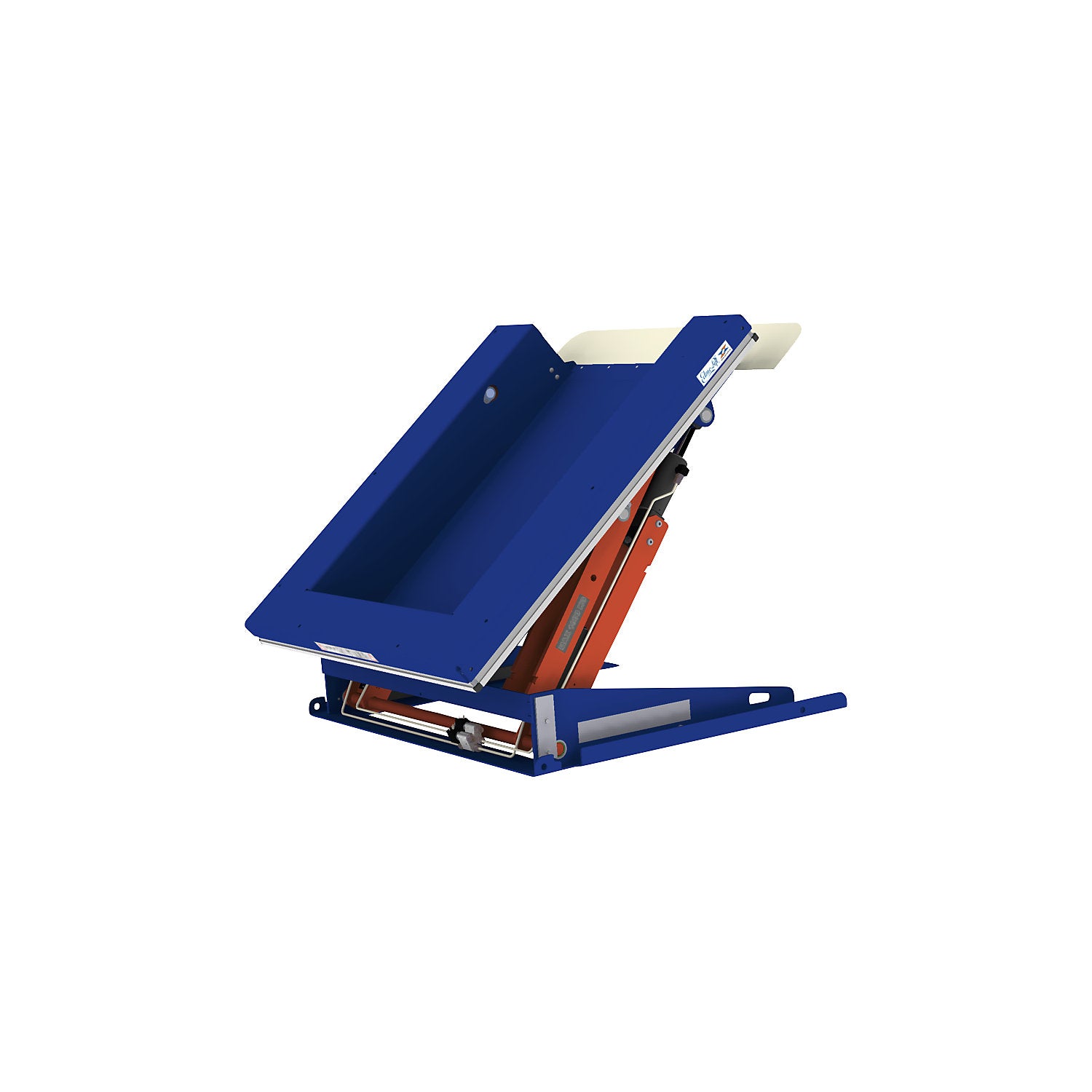

Lifting/tilting platform, U platform, tilts to short side, width 850 mm, for pallet truck.

Estimated delivery: 71 days

Lifting/tilting platform, U platform, tilts to short side, width 850 mm, for pallet truck

• Supplied = flat pack
• Max. load = 1500 kg
• Lifting range = 6 - 826 mm
• Platform design = U-shaped
• Lifting time = 16 sec
• Power = 0.75 kW
• Operating voltage = 400 V
• Control voltage = 24 V
• Platform colour = ultramarine blue RAL 5002
• Material = steel
• Finish = powder coated
• Frame colour = signal orange RAL 2010
• Lifting capacity at full load in 1 shift operations = 6 - 7 cycles per hour
• Platform width = 850 mm
• Platform length = 1200 mm
• Feature = stationary, electro-hydraulic
• Customs tariff number = 84289090
• Country of origin = SWE
• Gross weight = 404 kg
• Weight = 385 kg
• Sustainability = CO 2 footprint calculated
• Lifts and tilts the goods in the employee's direction
• Perfect for deep crates or mesh pallets
• Reduces physical effort required
• Reduces the physical effort of stretching, bending and twisting
• Makes work easier, more productive and safer.
