Euro mesh pallet turner, max. load 450 kg, gentian blue.

Estimated delivery: 36 days

Euro mesh pallet turner, max. load 450 kg, gentian blue

• Supplied = assembled
• Colour = gentian blue RAL 5010
• Height = 595 mm
• Length = 1640 mm
• Width = 800 mm
• Max. load = 450 kg
• Weight = 90 kg
• Material = steel
• Product type = mesh pallet turners
• Customs tariff number = 84312000
• Country of origin = DEU
• Gross weight = 115 kg
• Weight = 90 kg
• Sustainability = CO 2 footprint calculated
• Makes emptying Euro mesh pallets easier using the forklift truck in compliance with DIN 15155, UIC standard 435-3
• Mechanical-only operation
• Robust, with no hydraulics
• Max. load 450 kg
• LxWxH 1640 x 800 x 595 mm
• One forklift pocket 388 x 48 mm
• Colour gentian blue RAL 5010
• Attached to the stacker using chain restraint

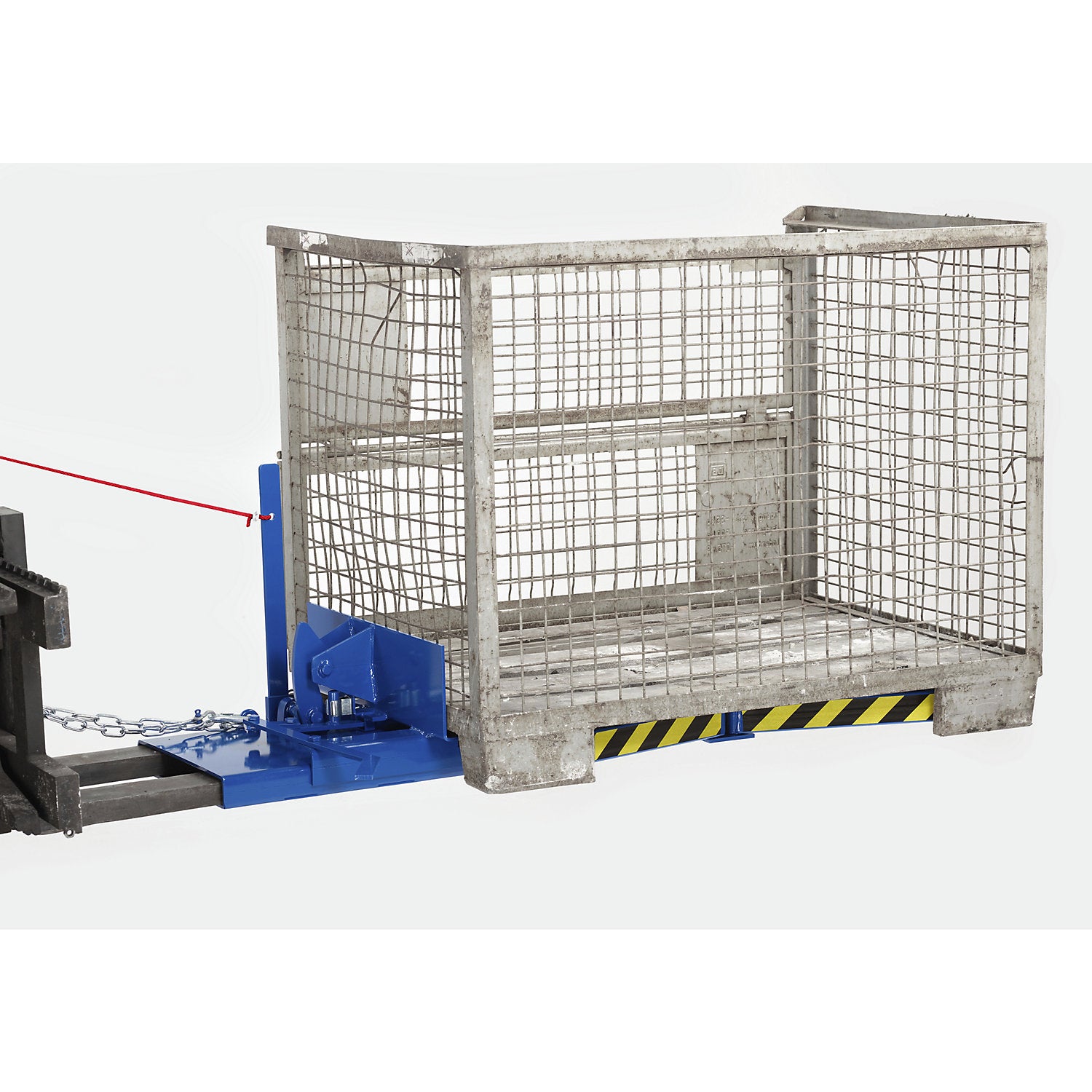

• It is moved under the mesh pallet and locked in place
• Unlocked using a cable pull from the driver's seat

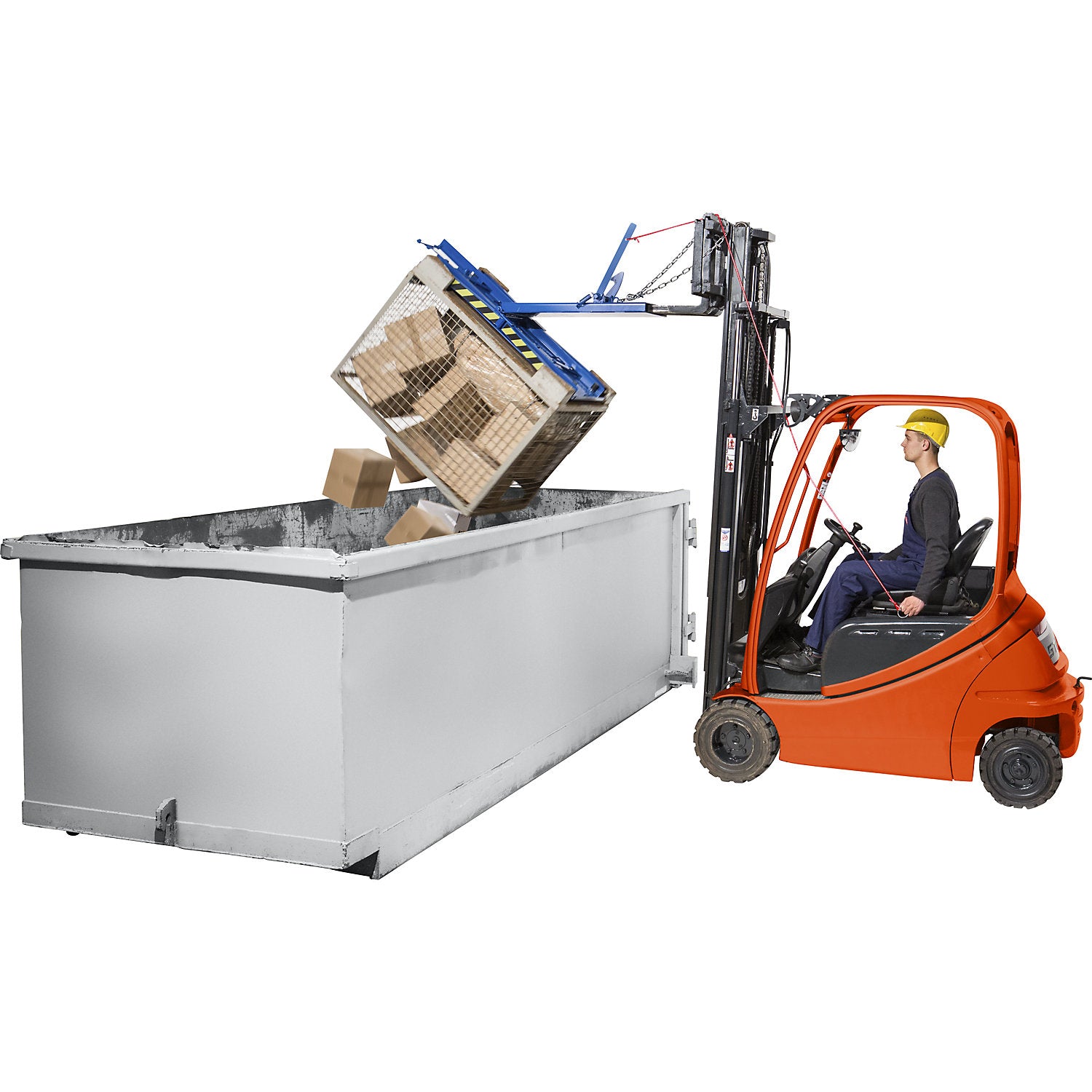

• The mesh pallet is emptied
• The mesh pallet is returned to its initial position by lowering the forks and reversing
• Note Please observe the diagram showing max. forklift truck loads.
