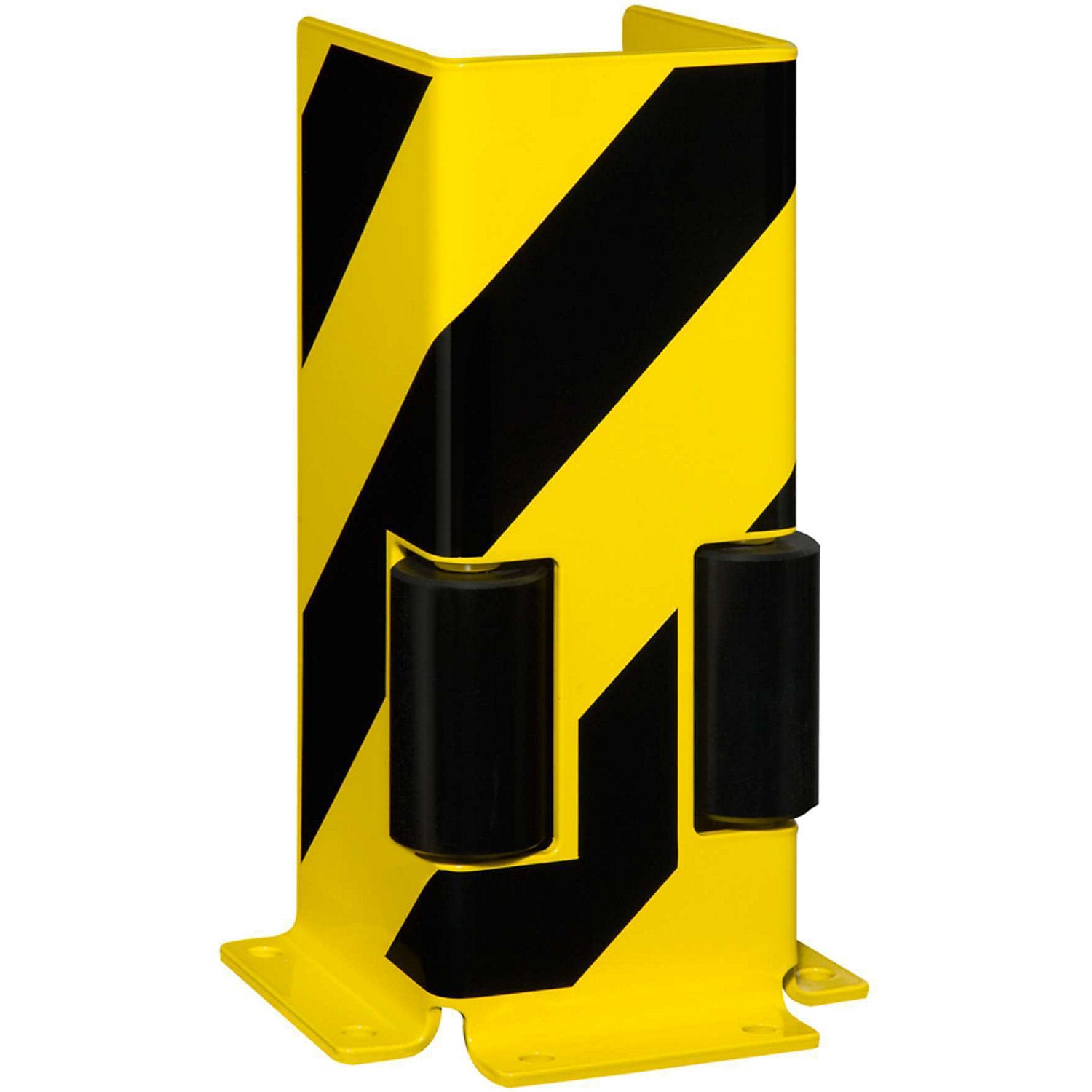

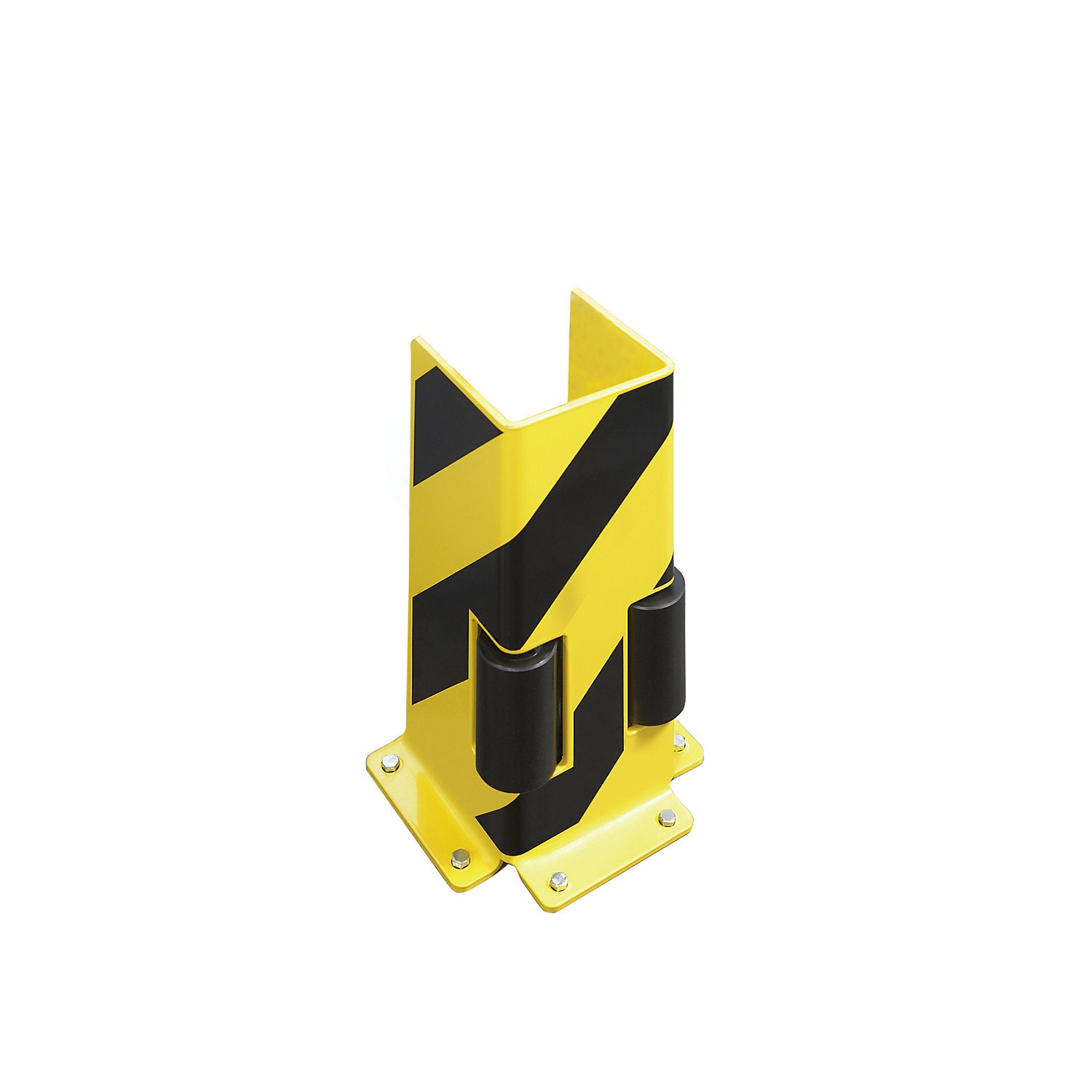

Shelf unit crash protection guard with guide rollers, U profile, black / yellow.

Estimated delivery: 31 days

Shelf unit crash protection guard with guide rollers, U profile, black / yellow

• Supplied = assembled
• Shape = U-shaped
• Type of mounting = for bolting in place

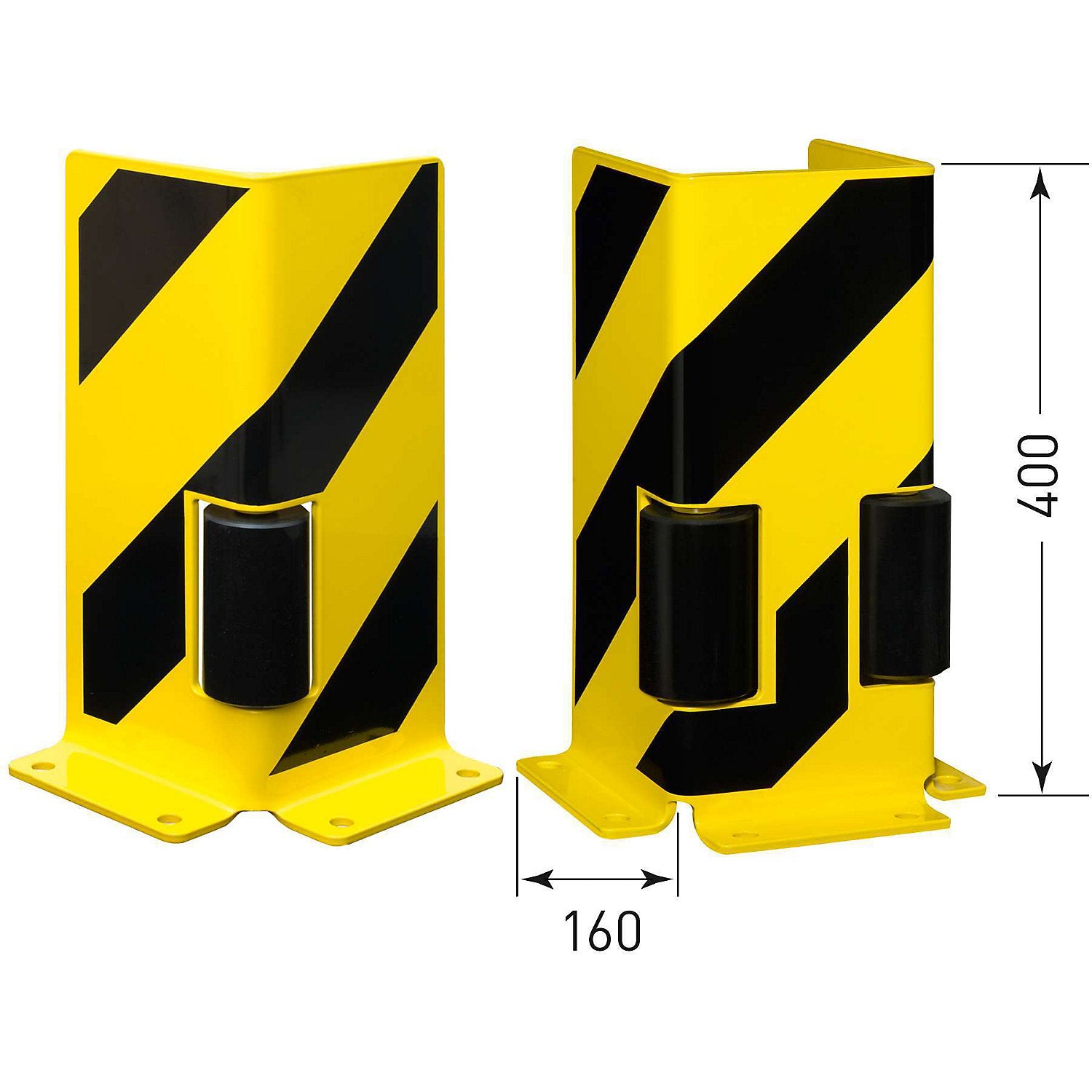

• Height = 400 mm
• Width = 160 mm
• Depth = 160 mm
• Colour = traffic yellow RAL 1023, jet black RAL 9005
• Material = steel
• Panel thickness = 6 mm
• Internal width = 148 mm
• Place of use = indoor use
• Product type = collision protection
• Customs tariff number = 73089098
• Country of origin = DEU
• Gross weight = 13 kg
• Weight = 12.5 kg
• Sustainability = CO 2 footprint calculated
• Optimum protection against damage to shelving units and logistics equipment
• The guide rollers deflect most of the forces resulting from an impact
• Guide rollers increase the service life of the impact protection element
• Eye-catching yellow and black warning marking
• Crash protection made of high-quality steel
• The racking corner protector with guide rollers reliably protects against collision damage and impresses with its integrated guide rollers, which specifically deflect lateral forces
• These well-designed impact protection elements ensure greater safety and reduce downtime in warehouse operations
• Made from 6 mm thick high-grade steel, the rack protector offers high resistance in daily use
• The yellow plastic coating in traffic yellow RAL 1023 with warning stripes in jet black RAL 9005 increases visibility and aids orientation in the working environment
• Installation is simple by bolting it to the floor and ensures a stable hold even under heavy use
• A central element of these impact protection elements are vertically fixed guide rollers made of black nylon
• They absorb a large part of the lateral impact forces and deflect them in a controlled manner
• As a result, impacts are significantly cushioned and the load on the post protector is reduced
• This contributes to the longer service life of the rack protector and minimises maintenance effort
• The racking corner protector is particularly suitable for corner and thoroughfare areas in warehouses, as well as for zones with high delivery traffic
• Here, the impact protection elements reliably protect sensitive rack uprights from damage by forklift trucks and other transport vehicles
• Guide roller made of nylon: height 110 mm, Ø 60 mm Mounting height of the guide roller: 75 mm above floor level Collision protection is required for stationary shelving in conjunction with industrial trucks, unless they are rail-guided
• Design in accordance with the DGUV-Regel 208-061 safety guideline and ASR A1.3/5.2.
