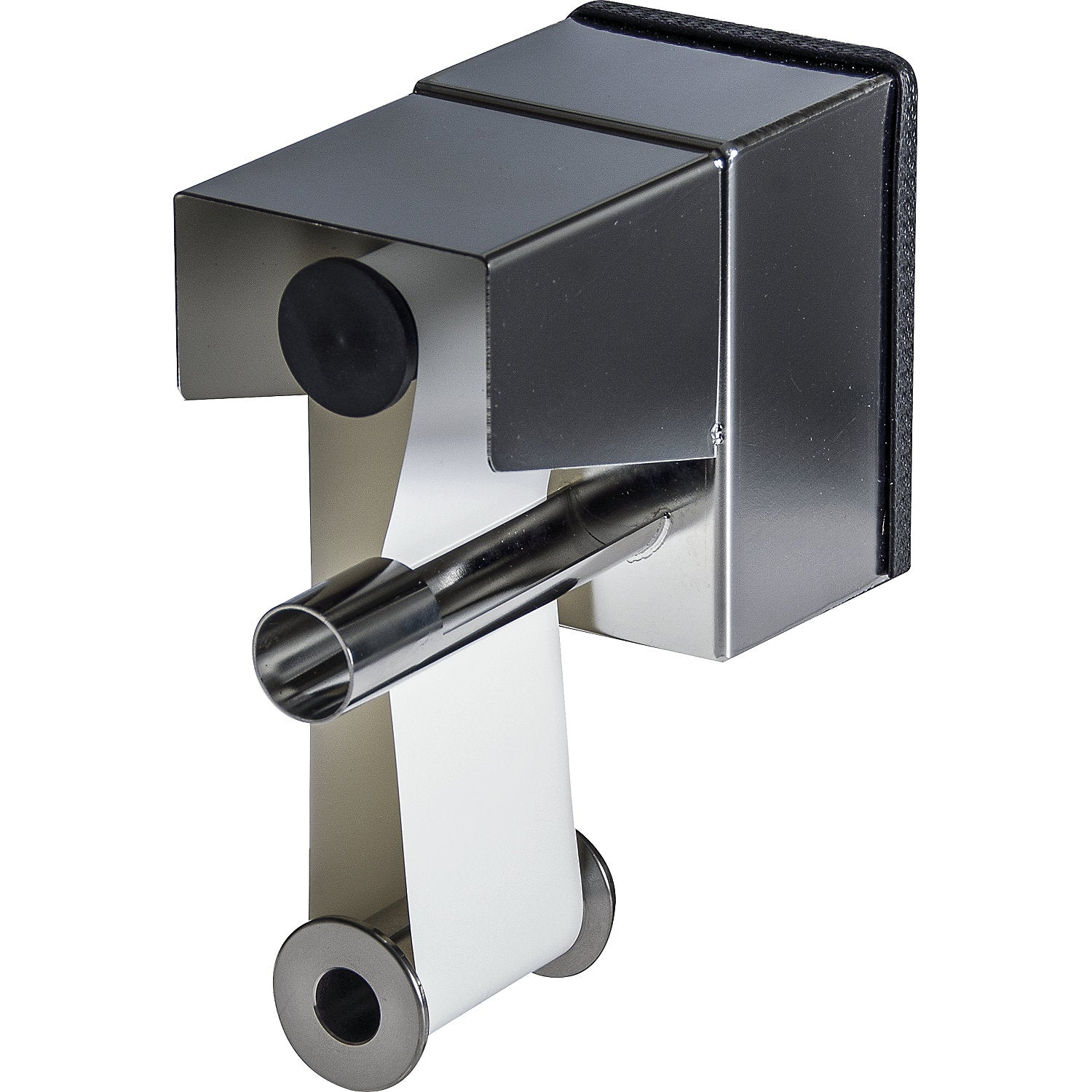

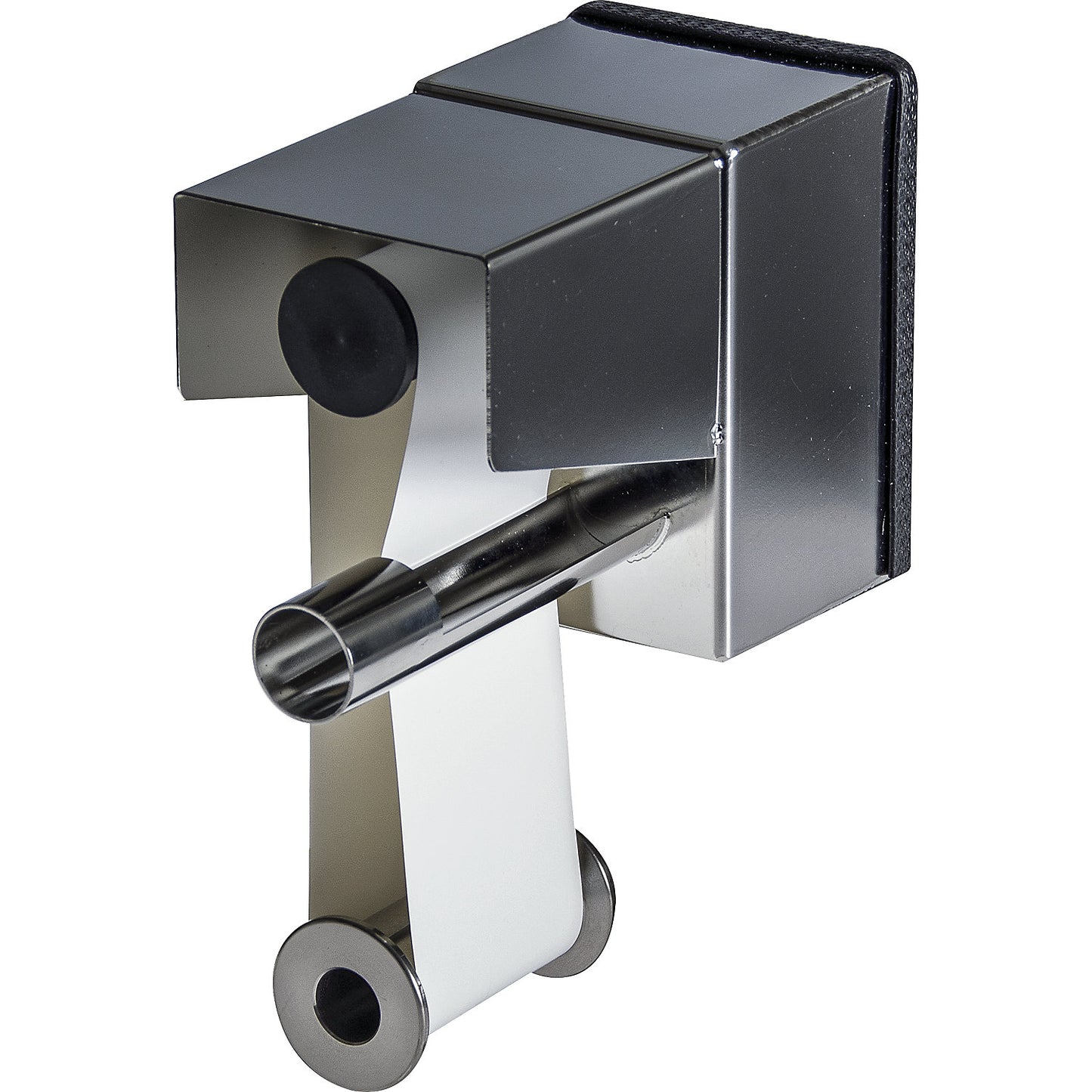

Belt oil skimmer, LxWxH 180 x 110 x 85 mm, belt width 60 mm.

Estimated delivery: 34 days

Belt oil skimmer, LxWxH 180 x 110 x 85 mm, belt width 60 mm

• Supplied = assembled
• Belt width = 60 mm
• Length = 180 mm
• Width = 110 mm
• Height = 85 mm
• Model = oil
• Oil pumping capacity = 6 l/h
• Situation = prevention of tramp oils / surface oils
• Max. bath temperature = 90 °C. pH working range = 5 - 10
• Feature = cleaning
• Frequency of use = multiple
• Place of use = indoor use
• Application = normal
• Product type = belt skimmers
• Customs tariff number = 84212100
• Country of origin = DNK
• Gross weight = 1.8 kg
• Weight = 1.5 kg
• Sustainability = CO 2 footprint calculated
• Belt skimmers allow the contamination of emulsions/dispersions by tramp oils to be reduced significantly while retaining the high cooling effect
• The use of belt skimmers reduces disposal costs (due to longer cooling lubricant service lives) and extends the service life of machines and filter systems
• The growth of bacteria in lubricants is avoided - this extends the service life of cooling lubricants, reduces the risk of skin conditions and decreases the development of smells and vapours
• Belt skimmers can be used in industrial processing technology for treating cooling lubricants and for separating oils in waste water treatment, and therefore make a corresponding contribution to implementation of the legal obligations to reduce waste
• High efficiency - 99% of all surface oils are removed
• Effective and efficient removal of tramp oils in cooling lubricant tanks, processing and chemical baths, industrial machinery, etc
• The belt skimmer has a powerful motor/drive unit, which ensures reliable operation for many years
• This reduces waste
• For the removal of tramp oil and surface oils in industrial baths, ultrasonic baths, industrial washing machines, parts washing systems, tanks and trays
• When the pH value differs from the specified corridor, the maximum temperature should be reduced by 10 °C
• Including 1 belt with loop length 400 mm
• Different loop lengths from 600 to 2000 mm (in 200 mm increments) available, please specify in the order text
• Skimmer belts can be supplied in standard belt loop lengths in increments of 200 mm

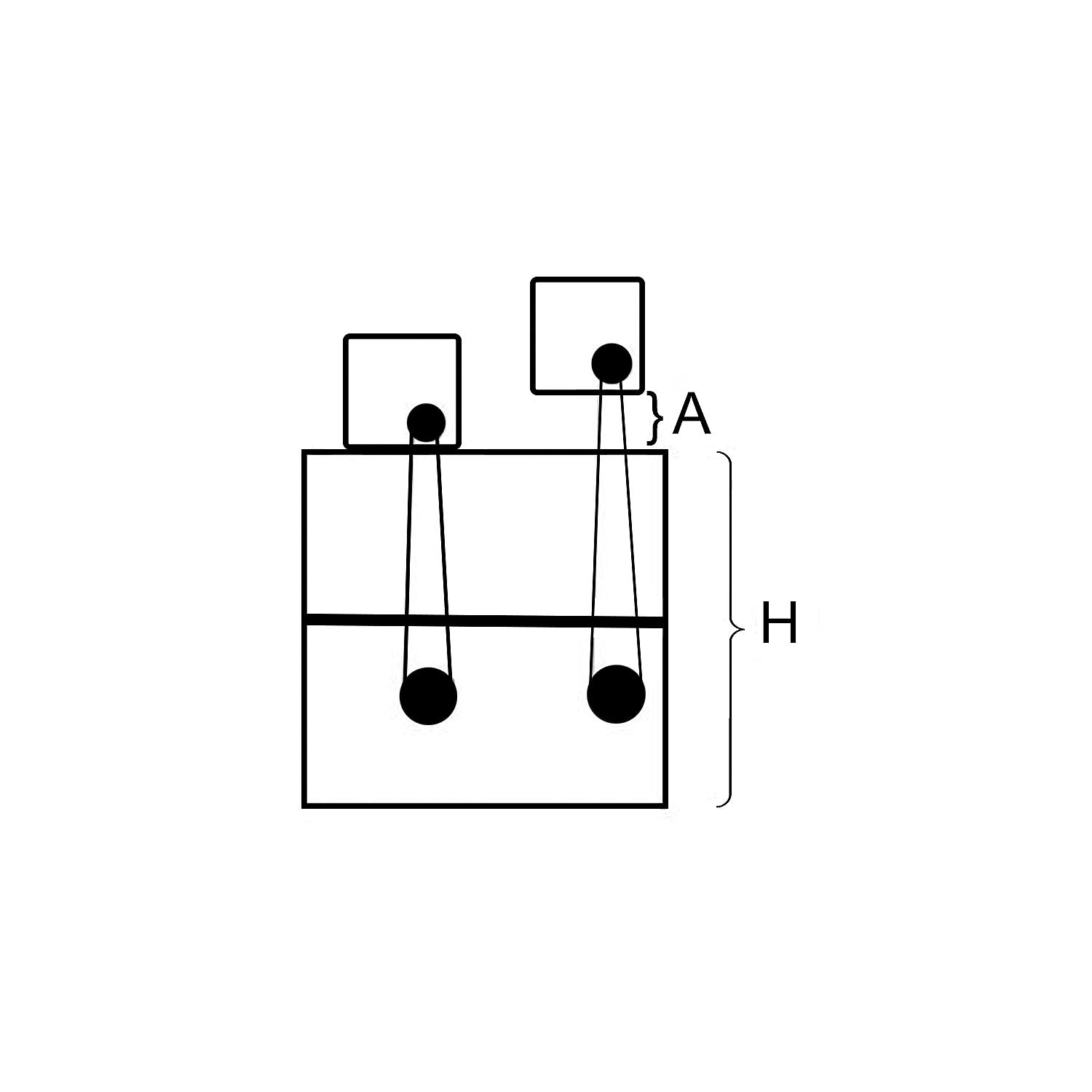

• Calculation of the suitable belt loop length (also see the illustration): (H + A) x 2 + 140 mm = belt loop length in mm H = height of tank (mm) A = interval between skimmer and tank (if necessary) Areas of application: - Tramp oils are effectively and efficiently removed from cooling lubricant tanks, process/chemical baths, etc. - Oils floating on the top of cleaning systems (ultrasonic baths, component washing systems, etc.) must be skimmed off for optimal cleaning of parts to be degreased - The removal of oils is legally required before used process water is disposed of from industrial systems - Removing oils before further work processes are carried out is necessary in steel processing plants and in food processing factories Custom lengths available on request.
