Belt oil skimmer, maxi, LxWxH 220 x 210 x 125 mm, belt width 100 mm.

Estimated delivery: 34 days

Belt oil skimmer, maxi, LxWxH 220 x 210 x 125 mm, belt width 100 mm

• Supplied = assembled
• Belt width = 100 mm
• Length = 220 mm
• Width = 210 mm
• Height = 125 mm
• Model = oil
• Oil pumping capacity = 21 l/h
• Situation = prevention of tramp oils / surface oils
• Max. bath temperature = 90 °C. pH working range = 0 - 14
• Feature = cleaning
• Frequency of use = multiple
• Place of use = indoor use
• Application = normal
• Product type = belt skimmers
• Customs tariff number = 84212100
• Country of origin = DNK
• Gross weight = 3.5 kg
• Weight = 3.2 kg
• Sustainability = CO 2 footprint calculated
• Belt skimmers allow the contamination of emulsions/dispersions by tramp oils to be reduced significantly while retaining the high cooling effect
• The use of belt skimmers reduces disposal costs (due to longer cooling lubricant service lives) and extends the service life of machines and filter systems
• The growth of bacteria in lubricants is avoided - this extends the service life of cooling lubricants, reduces the risk of skin conditions and decreases the development of smells and vapours
• Belt skimmers can be used in industrial processing technology for treating cooling lubricants and for separating oils in waste water treatment, and therefore make a corresponding contribution to implementation of the legal obligations to reduce waste
• High efficiency - 99% of all surface oils are removed
• Effective and efficient removal of tramp oils in cooling lubricant tanks, processing and chemical baths, industrial machinery, etc
• With an output of 21 litres/hour, the belt skimmer is a real powerhouse
• This skimmer can withstand bath temperatures of up to 90 °C, and strong acids or alkaline baths do not damage it
• These impressive features make this skimmer indispensable for every industrial enterprise that needs to remove larger quantities of surface oil
• Ideal for skimming larger quantities of surface oils in industrial washing machines, trays, pits in steel processing plants, in food processing factories etc
• When the pH value differs from the specified corridor, the maximum temperature should be reduced by 10 °C

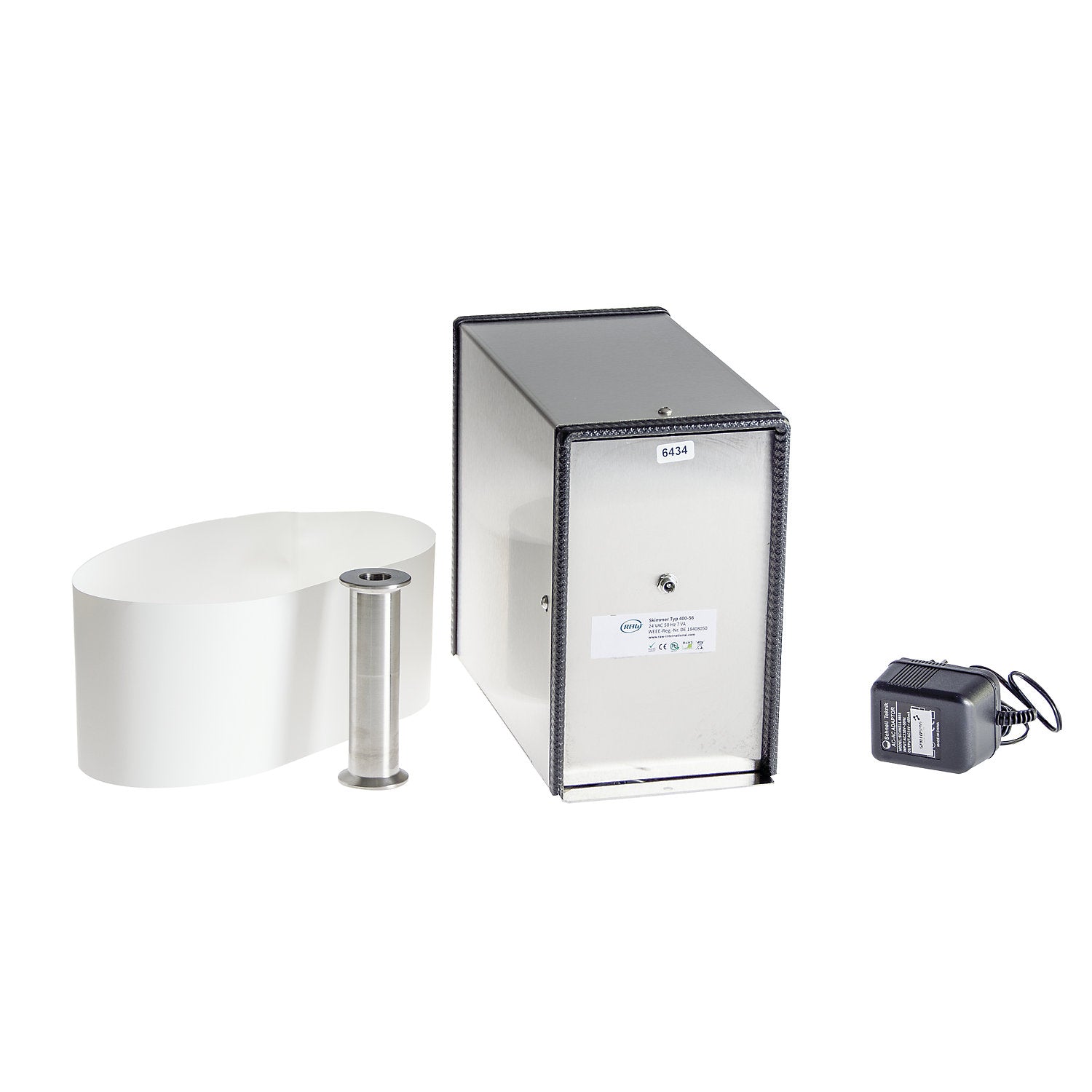

• Includes 1 belt with a loop length of 600 mm
• Different loop lengths from 800 to 2000 mm (in increments of 200 mm) can be supplied, please specify in the order text
• Skimmer belts can be supplied in standard belt loop lengths in increments of 200 mm

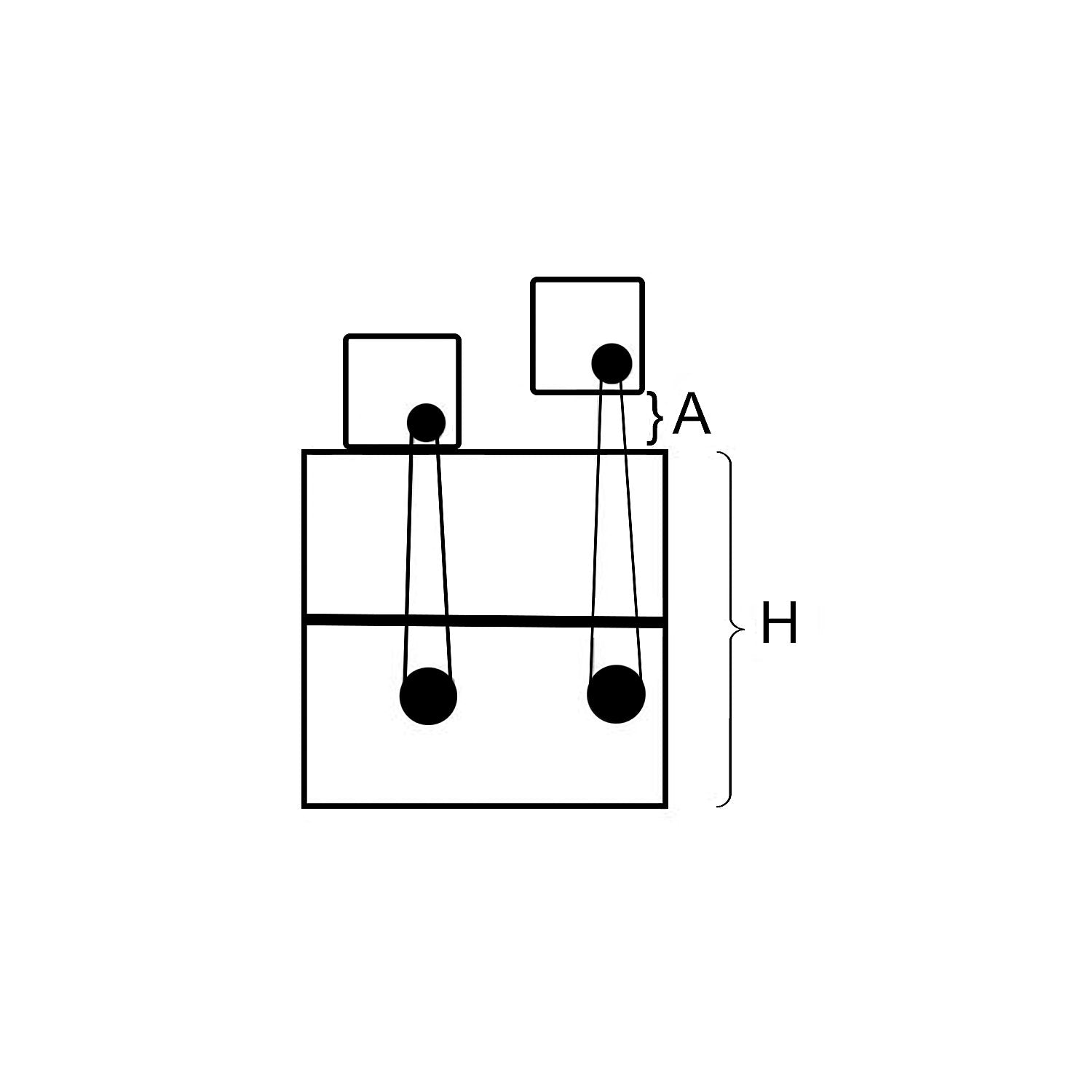

• Calculation of the suitable belt loop length (also see the illustration): (H + A) x 2 + 300 mm = belt loop length in mm H = height of tank (mm) A = interval between skimmer and tank (if necessary) Areas of application: - Tramp oils are effectively and efficiently removed from cooling lubricant tanks, process/chemical baths, etc. - Oils floating on the top of cleaning systems (ultrasonic baths, component washing systems, etc.) must be skimmed off for optimal cleaning of parts to be degreased - The removal of oils is legally required before used process water is disposed of from industrial systems - Removing oils before further work processes are carried out is necessary in steel processing plants and in food processing factories Custom lengths available on request.
