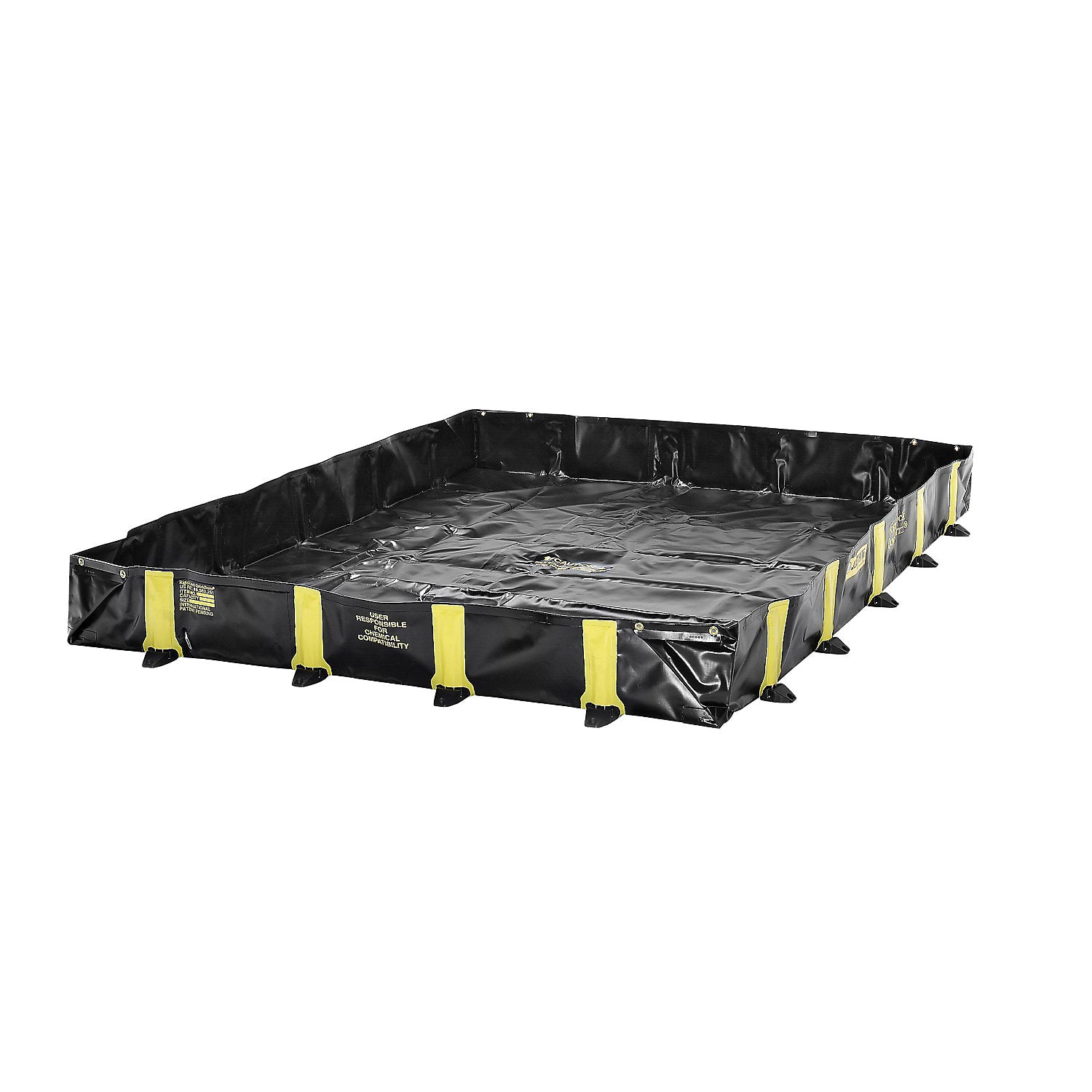

QuickBerm® rigid lock folding tray, for occasional traffic, LxW 2.4 x 1.8 m.

Estimated delivery: 35 days

QuickBerm® rigid lock folding tray, for occasional traffic, LxW 2.4 x 1.8 m

• Supplied = assembled
• Sump capacity = 1344 l
• Height = 305 mm
• Width = 1800 mm
• Depth = 2400 mm
• Material = PVC
• Weight = 15.42 kg
• Situation = reaction to leaks (emergency), leak prevention
• Feature = washable, folding, mobile, heavy duty
• Type of leakage = spilling, drip leaks
• Place of use = indoor and outdoor use
• Colour = black
• Product type = folding trays
• Customs tariff number = 73249000
• Country of origin = NLD
• Gross weight = 17.23 kg
• Weight = 15.42 kg
• Sustainability = CO 2 footprint calculated
• Leakproof sump trays for drums, tank containers, tank lorries, etc. which can be driven occasionally using a truck, stacker and drum truck
• Integrated mechanism keeps tray walls at a 90° position - pressing lightly erects the wall or bends it flat
• Safe, leakproof - highly resistant to aggressive media, abrasion and punctures
• Folds for space saving and easy transport and storage
• Fast, easy use - no assembly required, for indoor and outdoor use
• Brass eyelets for floor anchoring (floor anchors not included)
• Rigid-Lock QuickBerm® folding sump tray - robust emergency sump tray for rapid leak management The Rigid-Lock QuickBerm® folding sump tray enables rapid provision of retention capacity and supports effective leak management in the event of unexpected liquid spills
• Thanks to the integrated wall mechanism, the foldable sump tray is ready for use within a very short time - completely without assembly
• The liquid-tight emergency sump tray consists of an extremely robust, PVC-coated special tarpaulin with reinforced corners
• The material is resistant to aggressive media, abrasion and puncturing

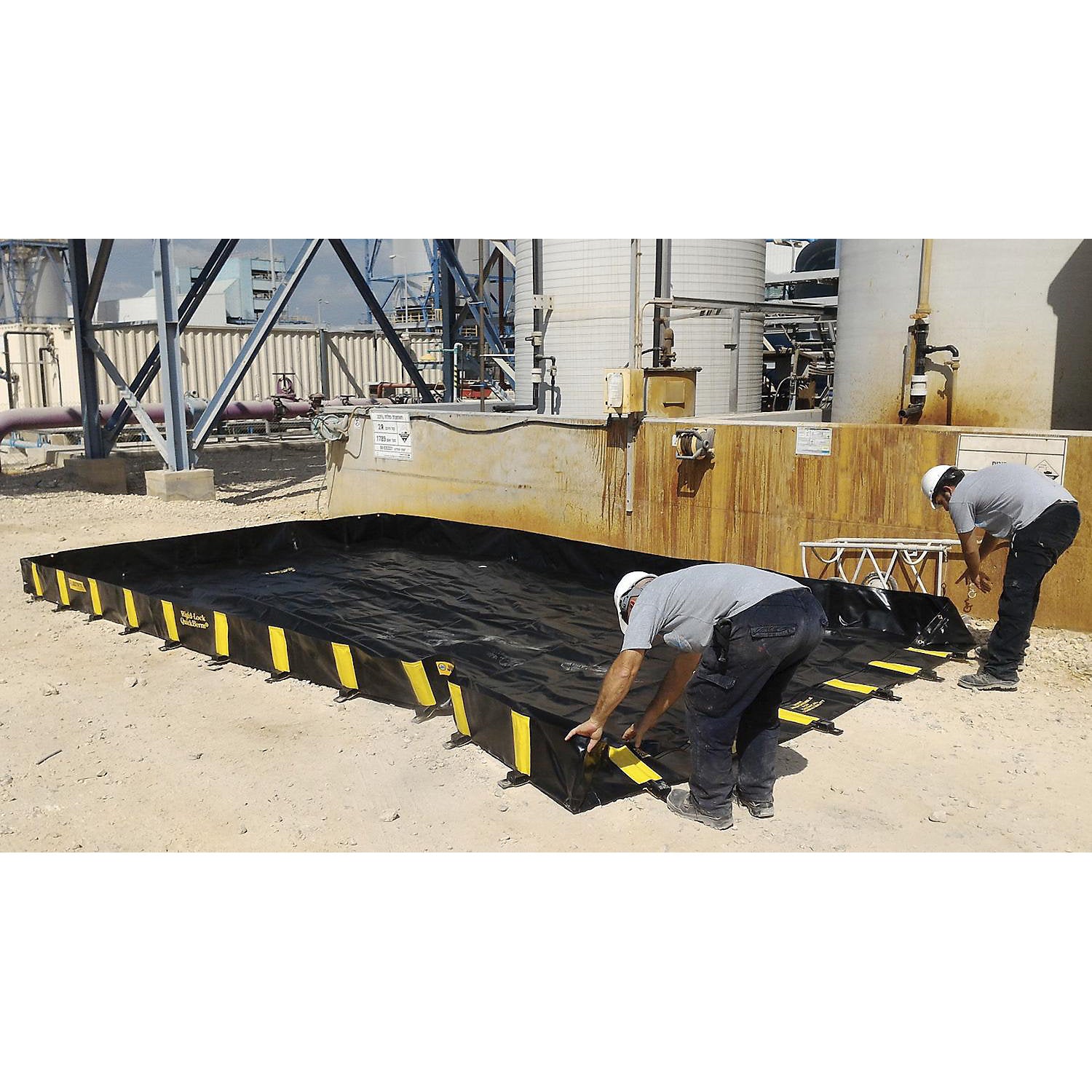

• This makes the retention solution suitable for demanding indoor and outdoor applications
• An integrated mechanism holds the walls securely in a 90° position
• With a gentle push, the side walls can be set up or folded down flat

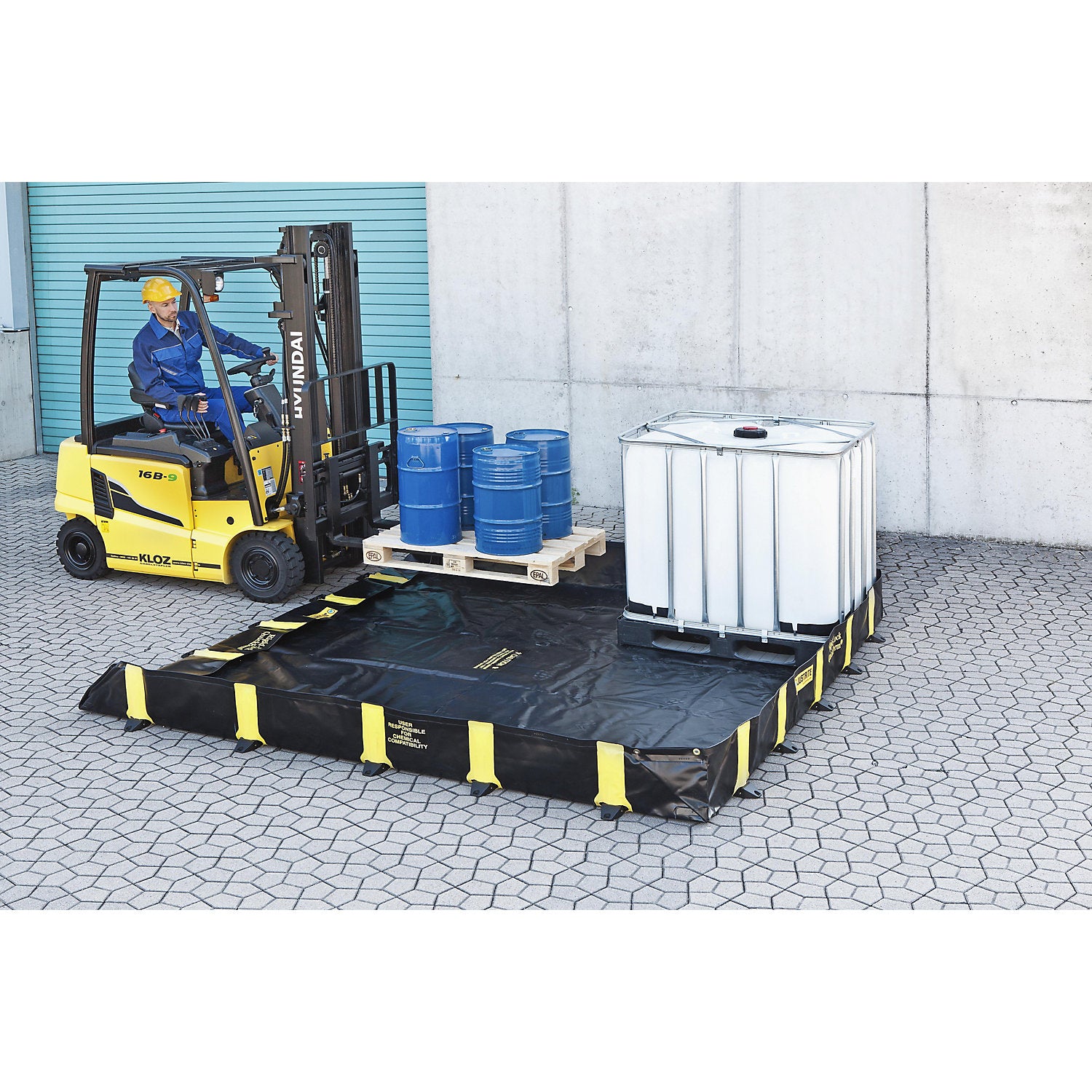

• This allows occasional driving over by truck, stacker or drum truck
• When driving over the folded-down wall mechanism, wheel loads of up to 5000 kg are possible
• The folding sump tray is therefore suitable for drums, tank containers, tank vehicles and other containers
• For flexible leak management, the tray can be folded up to save space and easily transported or stored
• If required, brass eyelets allow ground anchoring for additional stability (ground anchors not included)
• As a pallet sump tray, it supports the rapid containment of leaks and ensures safety during maintenance work, accidents or temporary storage and handling processes
• A protective tarpaulin under the tray extends the service life (accessories)
• For occasional crossing with vehicles
• Observe the following for tray dimensions Outside 203 mm for supports
• Inside 305 mm in entry/exit area for folded-out walls
• Please note: customer specific custom made models (individual dimensions, up to 26 x 6 m) can be produced with ease - please enquire.
