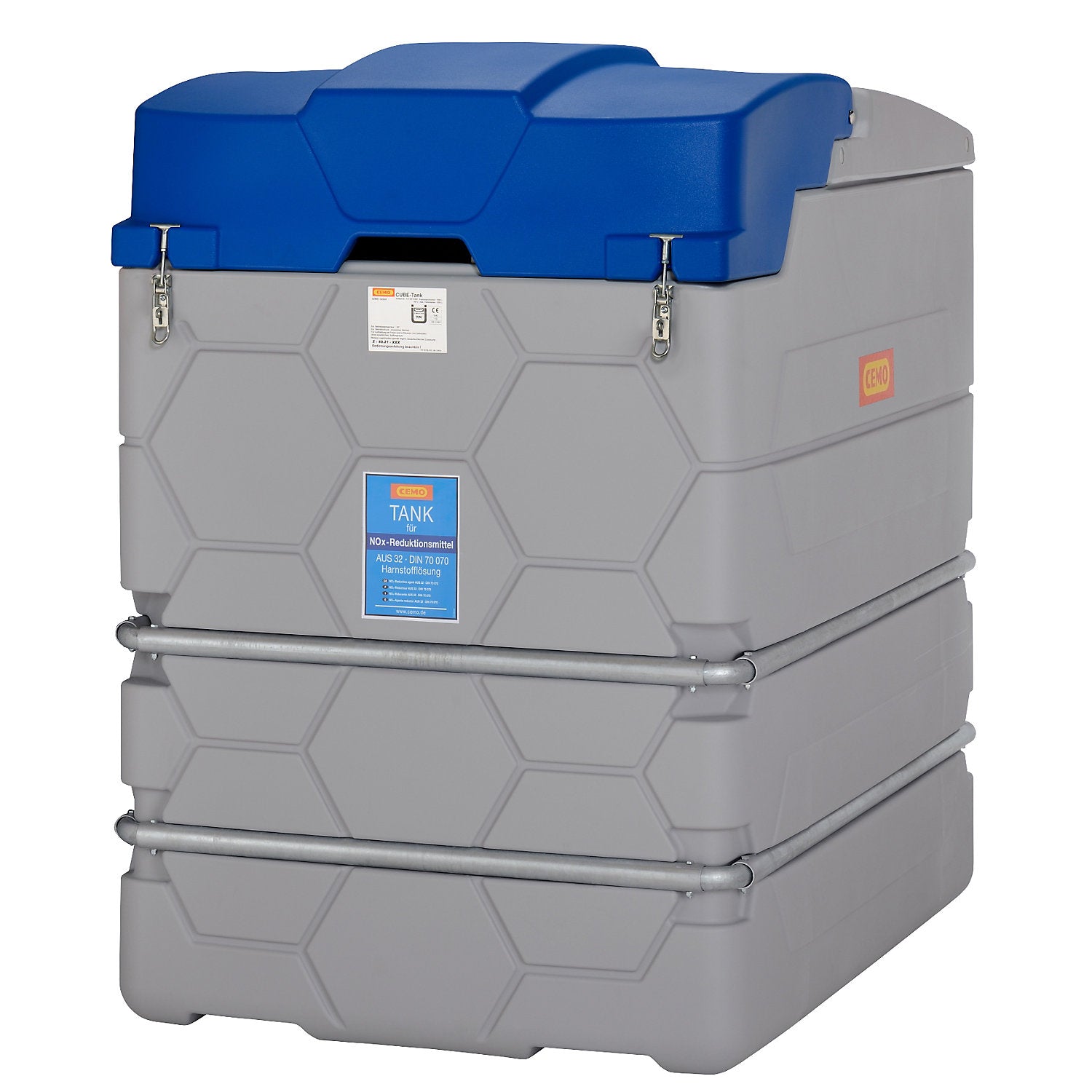

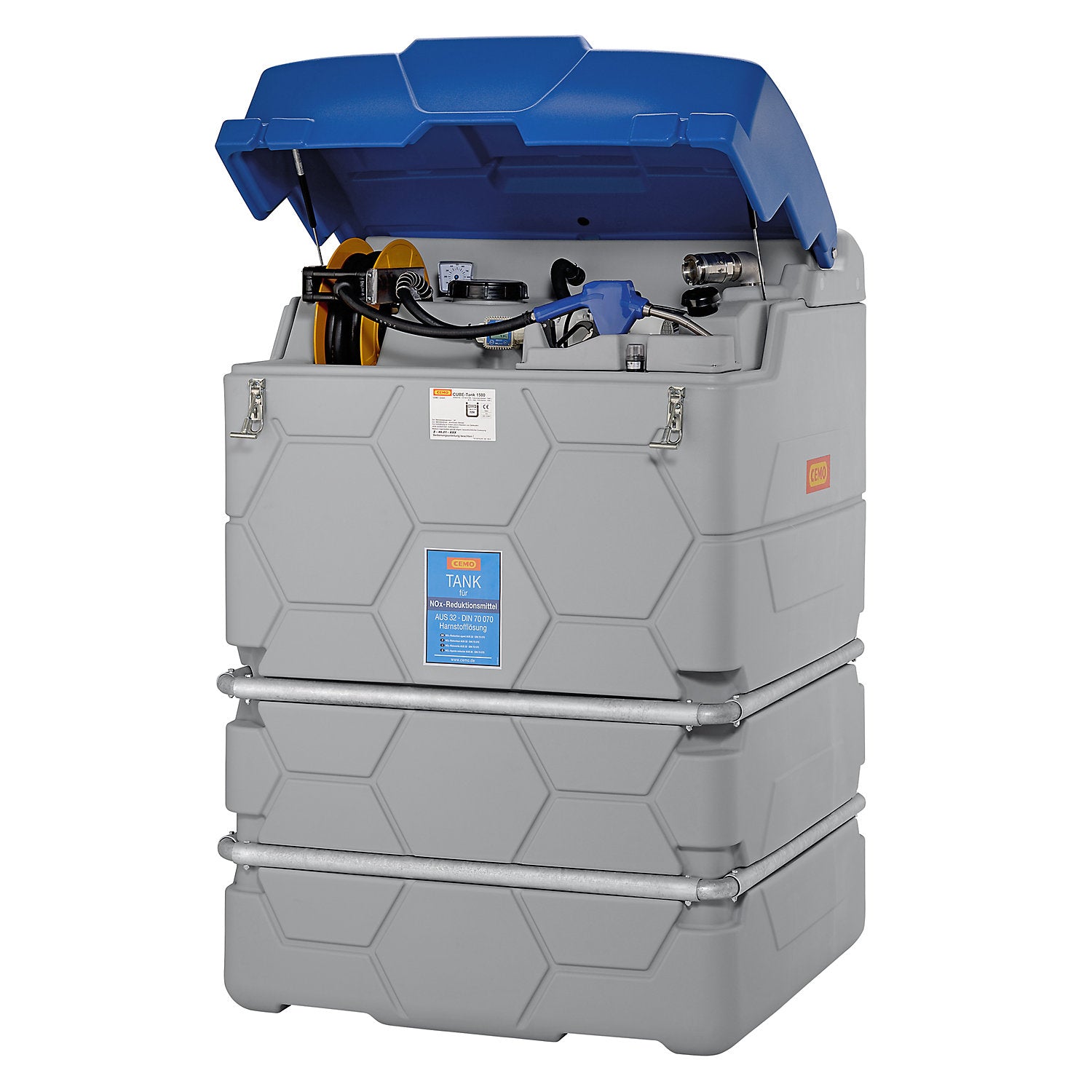

CUBE tank for AUS 32 (AdBlue®), Outdoor Basic, with hinged lid, height 1800 mm, capacity 2500 l.

Estimated delivery: 51 days

CUBE tank for AUS 32 (AdBlue®), Outdoor Basic, with hinged lid, height 1800 mm, capacity 2500 l

• Supplied = assembled
• Capacity = 2500 l
• Length = 1200 mm
• Width = 1800 mm
• Height = 1800 mm
• Weight = 250 kg
• Colour = grey
• Material = polyethylene
• Temperature resistance = up to +30 °C
• Cover = yes
• Model = with hinged lid
• Test symbol = Z-40.21-516
• For media = AUS32 (urea solution)
• Hose length = 6 m
• Place of use = indoor and outdoor use
• Product type = tank systems
• Customs tariff number = 39251000
• Country of origin = DEU
• Gross weight = 271.5 kg
• Weight = 250 kg
• Sustainability = CO 2 footprint calculated
• With hinged lid - approved for use in indoor and outdoor areas. 6 m filling hose
• Winter package: with 250 W fan heater for the valve area
• Electric pump 230 V, 35 l/min with volumetric flow meter and automatic pump pistol with pump pistol holster
• Hose reel with 8 m hose
• Filling connection with 2'' dry disconnect coupling
• Fan heater for valves and controls (winter)
• Overflow protection
• All devices wired ready for connection
• Complete with accessories installed
• With general certification Z-40.21-510
• CUBE tank for AUS 32 (AdBlue®) - complete system for the safe storage and dispensing of urea solution The CUBE tank for AUS 32 (AdBlue®) combines storage, delivery and filling in a well-thought-out complete system
• The integrated design reliably protects all components and ensures convenient handling in daily operation
• The storage tank has an integrated sump tray, a visual leakage indicator and an easy-to-read level indicator
• A vent cap and the integrated overfill prevention device support the safe handling of AUS 32 (AdBlue®)
• Thanks to the general national technical approval Z-40.21-510, the system meets important requirements for the storage of urea solution

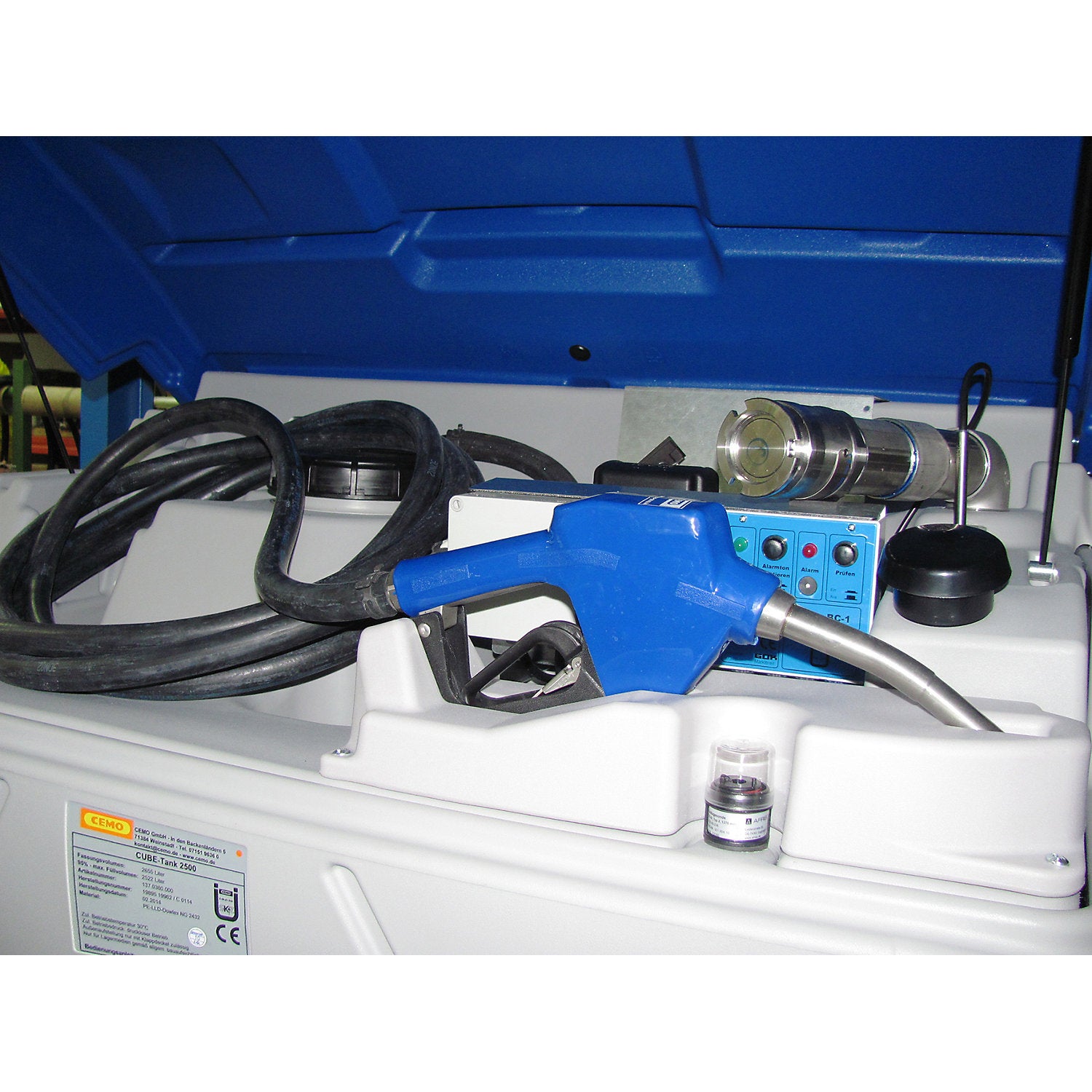

• The tank system is equipped with a powerful pump for efficient refuelling
• The electric pump with 230 V and a delivery rate of 35 l/min has a flow meter and an automatic nozzle with a practical holder
• A hose reel with 8 m of hose provides a generous reach and supports a clean workflow
• The filling connection with a 2'' dry coupling enables safe filling
• The integrated fitting fan heater protects the technology in the cold season
• All components are wired ready for connection and already completely assembled with accessories
• This significantly reduces the installation effort and the system is quickly ready for use
• All components are optimally integrated and protected
• No protruding, obstructive parts - optimum handling.
