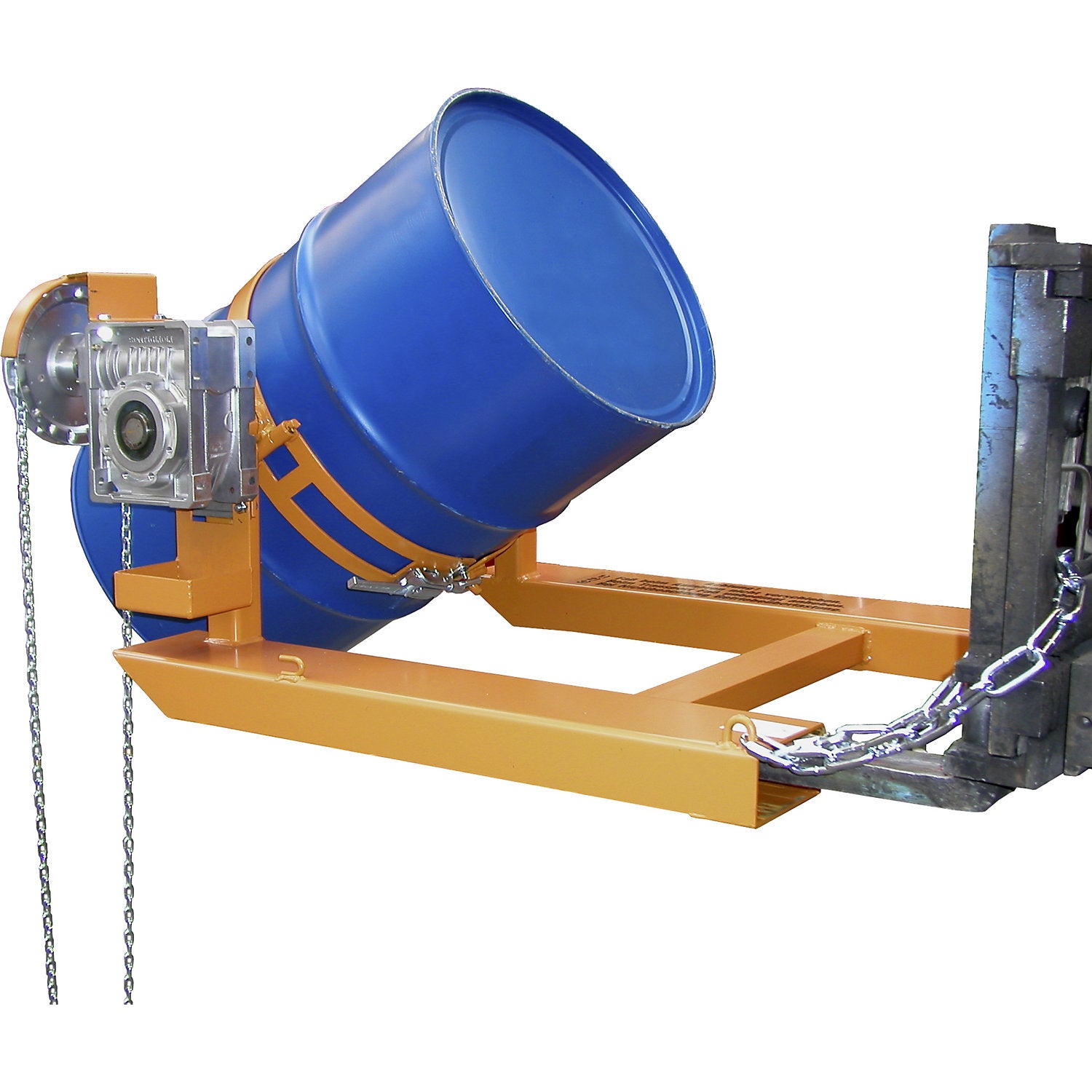

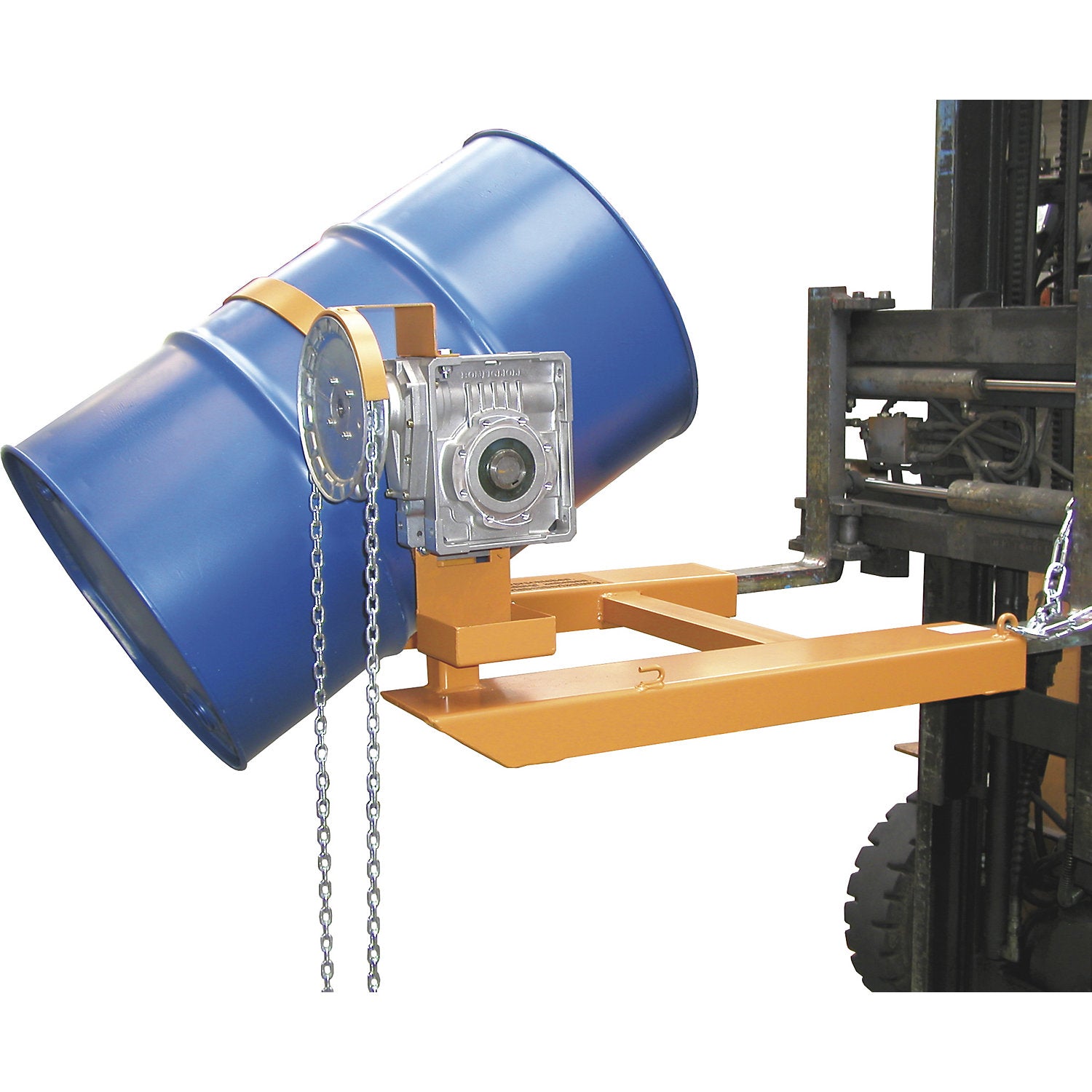

Drum tilting unit, for forklift operation, with chain loop, painted yellow orange.

Estimated delivery: 61 days

Drum tilting unit, for forklift operation, with chain loop, painted yellow orange

• Supplied = assembled
• Model = for forklift operation
• Drum holder = 200 l rolling hoop drums or channel drums, Ø 560 mm (+10/-25 mm)
• Finish = painted
• Colour = yellow orange RAL 2000
• Max. fork cross section = 150x60 mm
• Distance across forks = 650 mm
• Height = 610 mm
• Length = 1250 mm
• Width = 1000 mm
• Max. load = 360 kg
• Forklift pocket spacing = 650 mm
• Fork pocket dimensions = 170x75 mm
• Material = steel
• Weight = 76 kg
• Product type = drum tippers
• Customs tariff number = 84312000
• Country of origin = ---
• Gross weight = 76 kg
• Weight = 76 kg
• Sustainability = CO 2 footprint calculated. 360° rotation range
• Drum holder with rotary mechanism
• Tipping process via endless chain
• Self-locking gearbox
• Drum holder with eccentric lock
• For 200 l steel drums
• Drum tipper for forklift attachment for picking up, transporting and metered emptying of 200 l steel bung drums and steel lidded drums
• For drum Ø 590 mm (+10/-25 mm)
• Sturdy base frame, secured against unintentional slipping.
