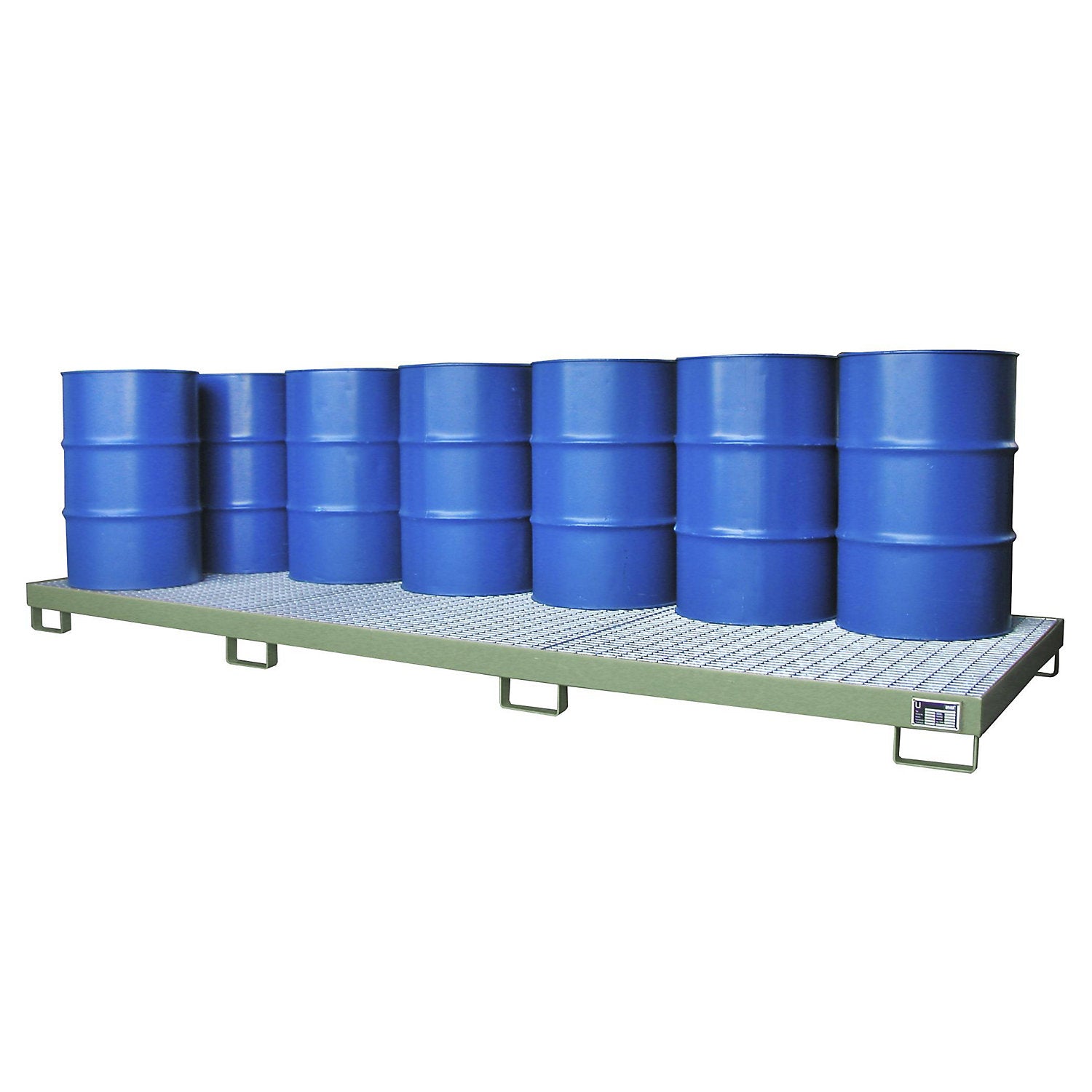

Steel sump tray, sump capacity 333 l, for 12 x 200 l drums, green.

Estimated delivery: 54 days

Steel sump tray, sump capacity 333 l, for 12 x 200 l drums, green

• Supplied = assembled
• Type of grate = with zinc plated grate
• Sump capacity = 333 l
• Drum capacity = 12x200 l
• Length = 3850 mm
• Width = 1300 mm
• Height = 200 mm
• Colour = reseda green RAL 6011
• Material = sheet steel
• Finish = painted
• Max. load = 1000 kg/m²
• Clearance height = 100 mm
• Test symbol = manufacturers declaration of conformity in accordance with StawaR
• Material thickness = 3 mm
• For media = flammable and water hazardous liquids
• Hazard class = for flammable liquids in GHS categories 1 - 3, for water hazardous liquids in GHS categories 1 - 4 and for corrosive liquids in GHS category 1
• Distributed load = 1000 kg/m²
• Customs tariff number = 73090059
• Country of origin = DEU
• Gross weight = 260 kg
• Weight = 260 kg
• Sustainability = CO 2 footprint calculated
• For the regulation compliant storage of larger numbers of 200 litre drums
• Fork guides for safe transport with pallet truck or forklift, floor clearance 100 mm
• With ÜHP declaration of conformity in accordance with StawaR,
• Approved for flammable liquids of GHS categories 1 - 3
• Approved for water-hazardous liquids of GHS categories 1 - 4
• Steel sump tray for 200-litre drums The steel sump tray offers a heavy-duty solution for mobile area protection during storage and internal transport of larger drum quantities
• The robust construction made of 3 mm sheet steel and the hot dip galvanised grate ensure stable positioning and reliable collection of leaking liquids
• With a max. load of 1000 kg/m², the sump tray is suitable for the compliant storage of larger quantities of 200-litre drums
• The hot dip galvanised grate creates an elevated standing surface and enables a clear arrangement of the containers
• At the same time, leaked liquids remain controllable below the storage level
• The steel tray thereby protects floors and work areas from contamination
• Integrated fork pockets facilitate safe lifting with a stacker or pallet truck
• The ground clearance of 100 mm supports flexible relocation within the premises
• This allows the steel sump tray to be used exactly where temporary additional area protection is required
• Especially in goods-in and goods-out areas, this mobile model facilitates the safe organisation of hazardous substances
• The tray with a declaration of conformity (ÜHP) according to StawaR is approved for flammable liquids of GHS categories 1 to 3 as well as for water-hazardous liquids of GHS categories 1 to 4
• The hot dip galvanised surface of the grate supports durable use under regular load
• This product is ideal as mobile area protection wherever larger quantities of water-hazardous substances are stored or handled.
