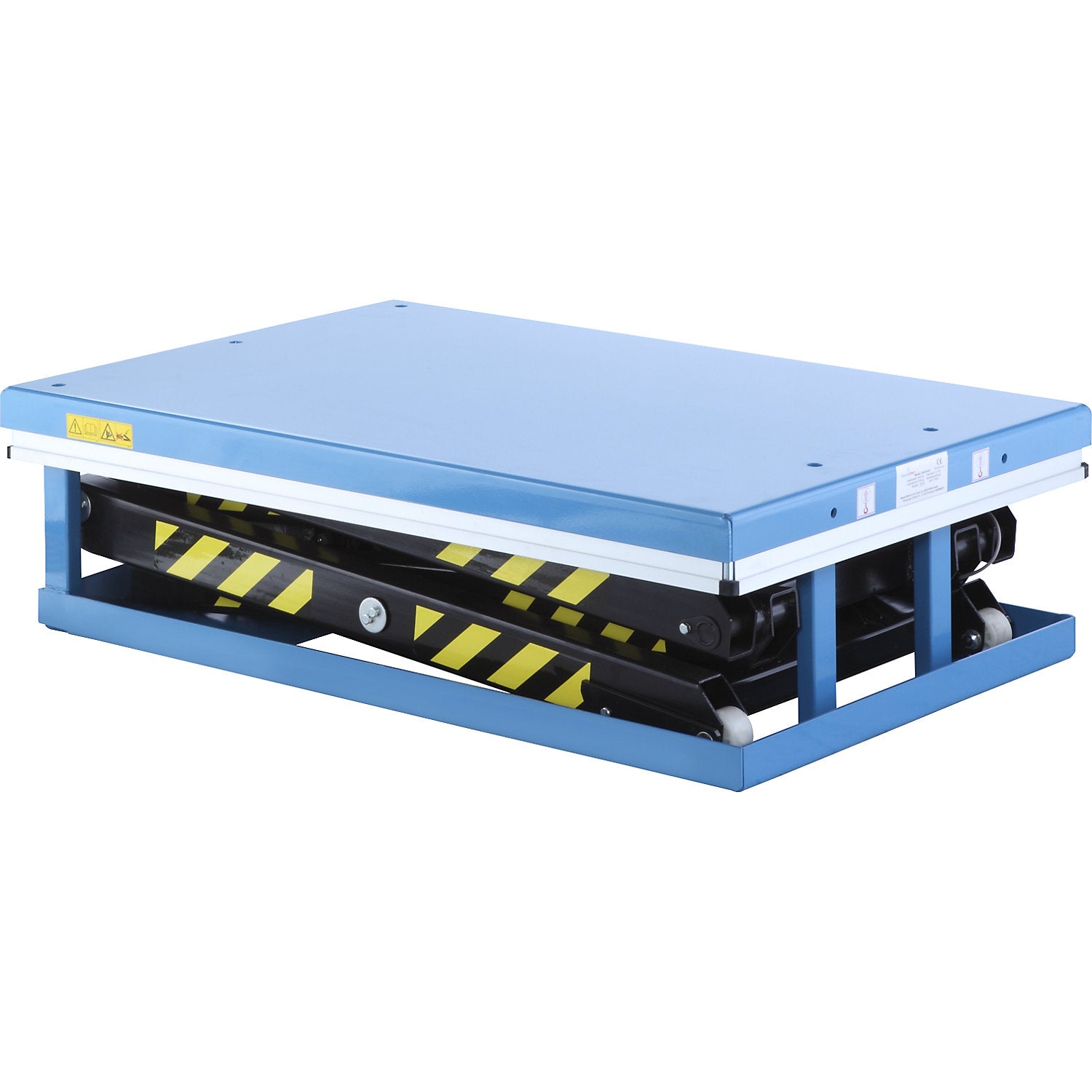

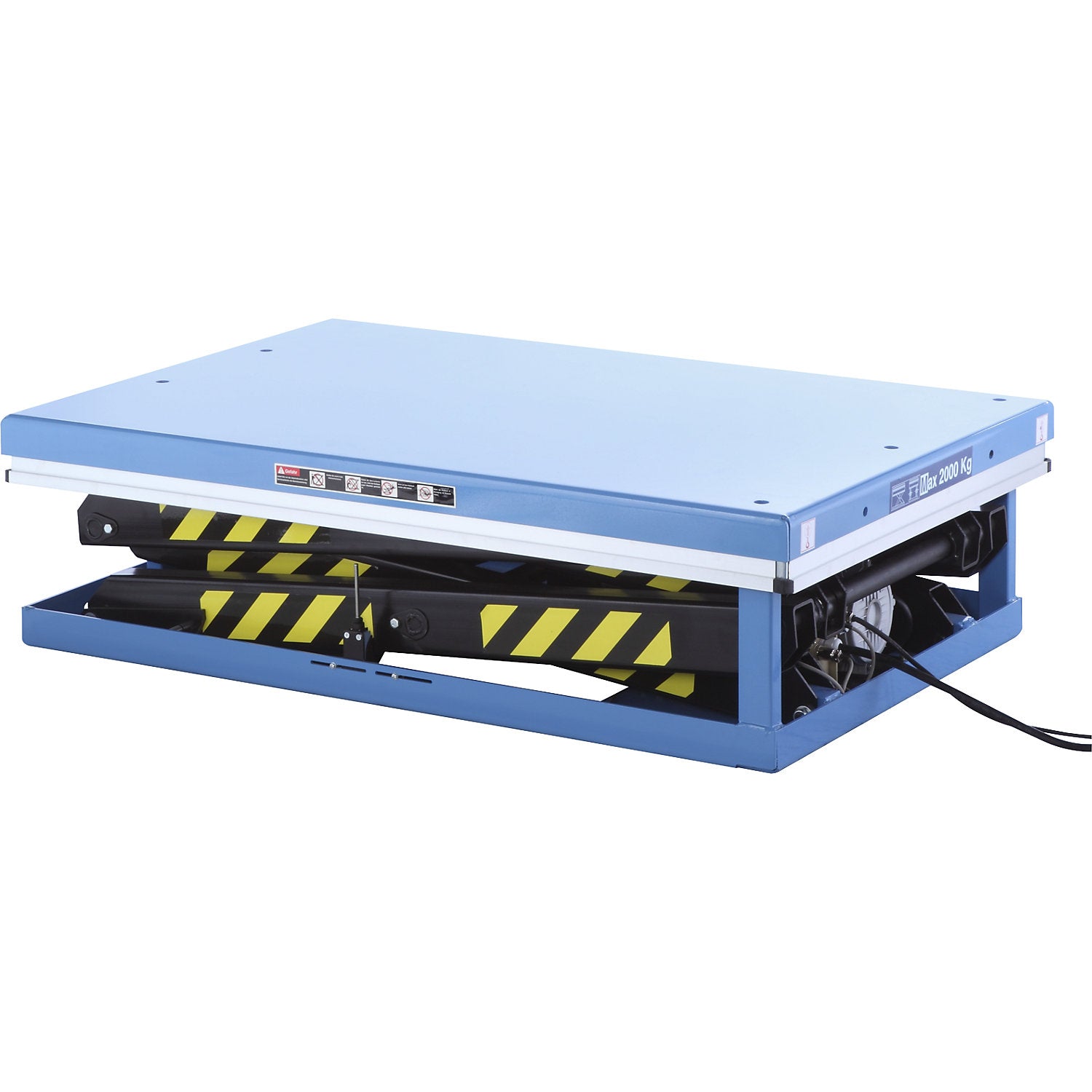

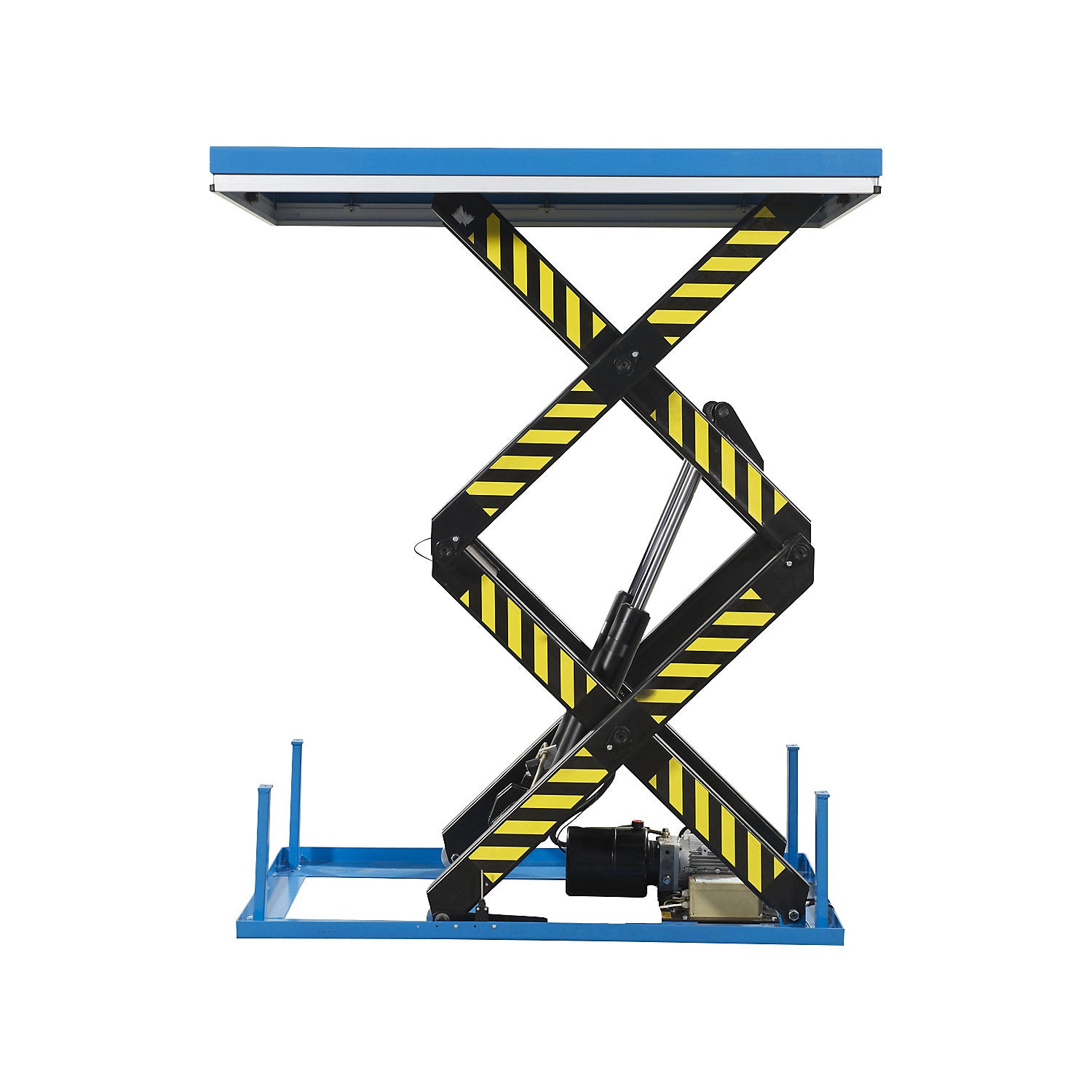

Double scissor lift platform, stationary, max. load 2000 kg, operating voltage 400 V.

Estimated delivery: 35 days

Double scissor lift platform, stationary, max. load 2000 kg, operating voltage 400 V

• Supplied = assembled
• Max. load = 2000 kg
• Lifting range = 360 - 1780 mm
• Platform design = closed
• Operating voltage = 400 V
• Control voltage = 24 V
• Lift drive = hydraulic
• Platform colour = light blue RAL 5012
• Platform material = steel, powder coated
• Material = steel
• Finish = powder coated
• Frame colour = jet black RAL 9005
• Fittings = with hand operated control unit
• Lifting capacity at full load in 1 shift operations = max. 12 cycles per hour
• Lifting time without load = 30 sec
• Lifting time with full load = 35 sec
• Platform width = 820 mm
• Platform length = 1300 mm
• Feature = stationary, electro-hydraulic
• Customs tariff number = 84254200
• Country of origin = CHN
• Gross weight = 301 kg
• Weight = 295 kg
• Sustainability = CO 2 footprint calculated
• Lifting height up to 2 m
• Free standing
• Infinite, hydraulic height adjustment
• Robust scissor support struts
• Overload valve for a long service life, end stop on top and bottom positions
• High quality powder coating
• Platform and frame in light blue RAL 5012, scissor mechanism in black RAL 9005
• Operated via hand key with 2.6 m cable
• Key switch
• Emergency off switch
• Control voltage 24 V The double scissor lift platforms are fitted with safety rails and safety valves, and comply with EN 1570-1 as well as VDE requirements.
