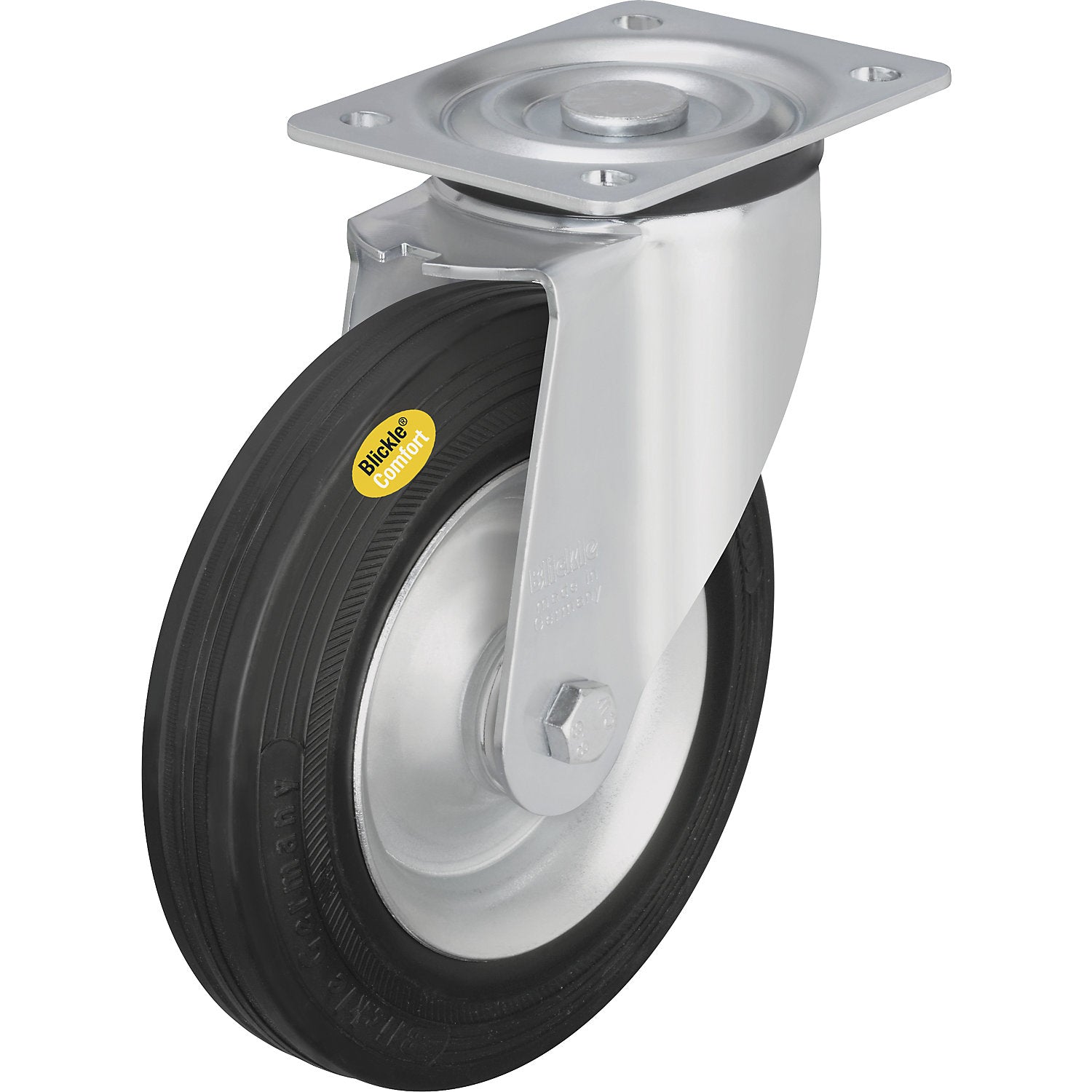

Two component solid rubber tyre, wheel Ø x width 140 x 37.5 mm, swivel castor.

Estimated delivery: 29 days

Two component solid rubber tyre, wheel Ø x width 140 x 37.5 mm, swivel castor

• Supplied = assembled
• Wheel diameter = 140 mm
• Structure = swivel castor
• Wheel material = rubber - solid rubber - semi-elastic
• Material of rim = sheet steel, galvanised
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 175 kg
• Wheel width = 37.5 mm
• Overall height = 170 mm
• Wheel bearing = roller bearing
• Temperature resistance = -25 °C to +80 °C
• Swivel castor offset = 50 mm
• Screw hole diameter = 11 mm
• Hub length = 45 mm
• Hub bore = 15 mm
• Model = smooth running castors
• Fixed castor plate dimensions = 140x110 mm
• Swivel castor plate dimensions = 140x110 mm
• Screw hole spacing = 105x75 - 80 mm
• Housing surface = zinc plated blue passivated
• Shore hardness = 65 A
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 4.61 kg
• Weight = 1.71 kg
• Sustainability = CO 2 footprint calculated
• On sheet steel rims
• Very smooth running
• Non-marking
• Hardness 65 Shore A
• Temperature resistant from -25 °C to +80 °C
• Tyres made of two-component solid rubber with hard tyre bed and highly elastic running surface, black
• In comparison to solid rubber, increased load capacity and smoother run with less rolling resistance
• Swivel bearing with double ball race, smooth rolling with a minimum of play.
