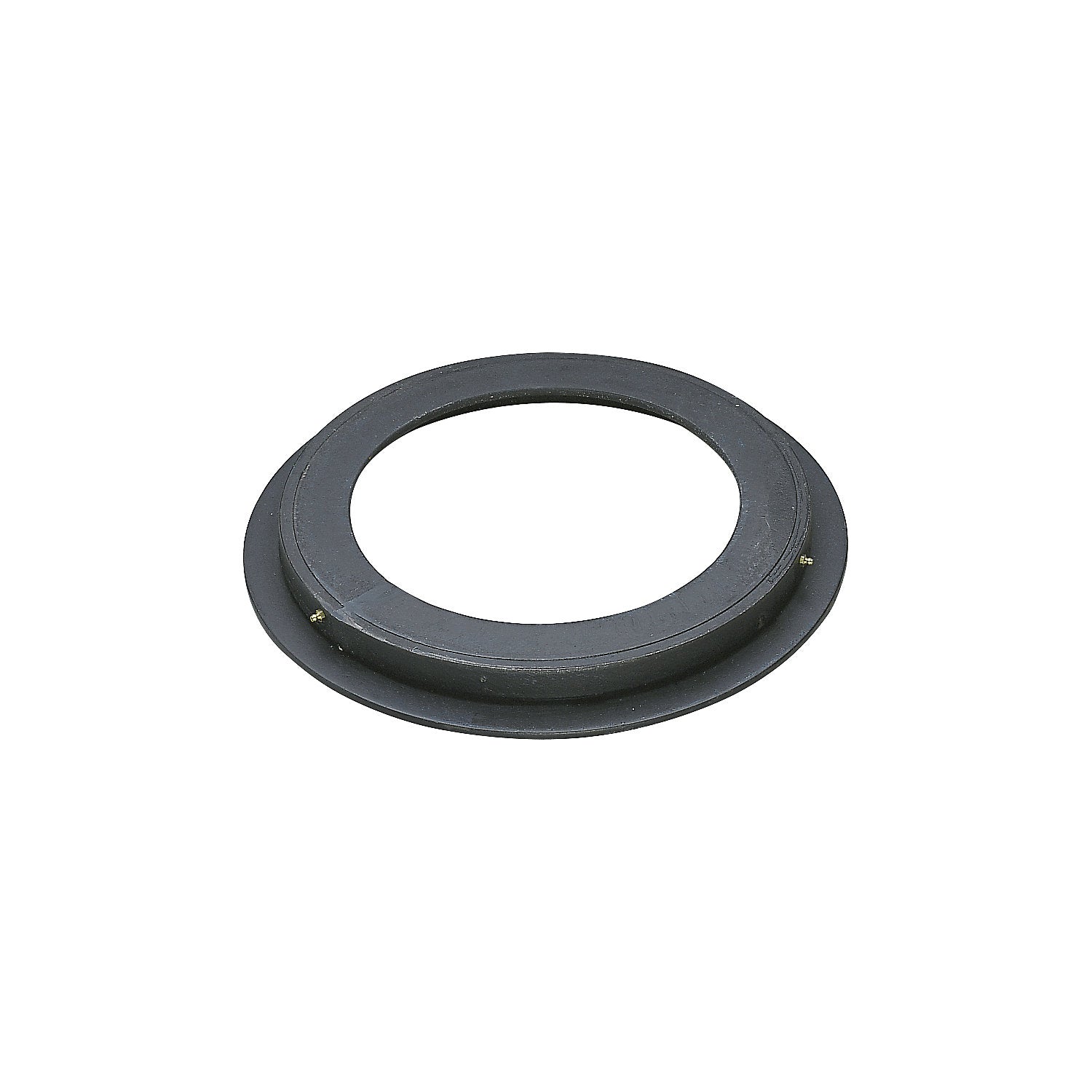

Ball bearing race for turntable steering, for transport equipment up to 30 km/h, max. load 1500 kg.

Estimated delivery: 29 days

Ball bearing race for turntable steering, for transport equipment up to 30 km/h, max. load 1500 kg

• Supplied = assembled

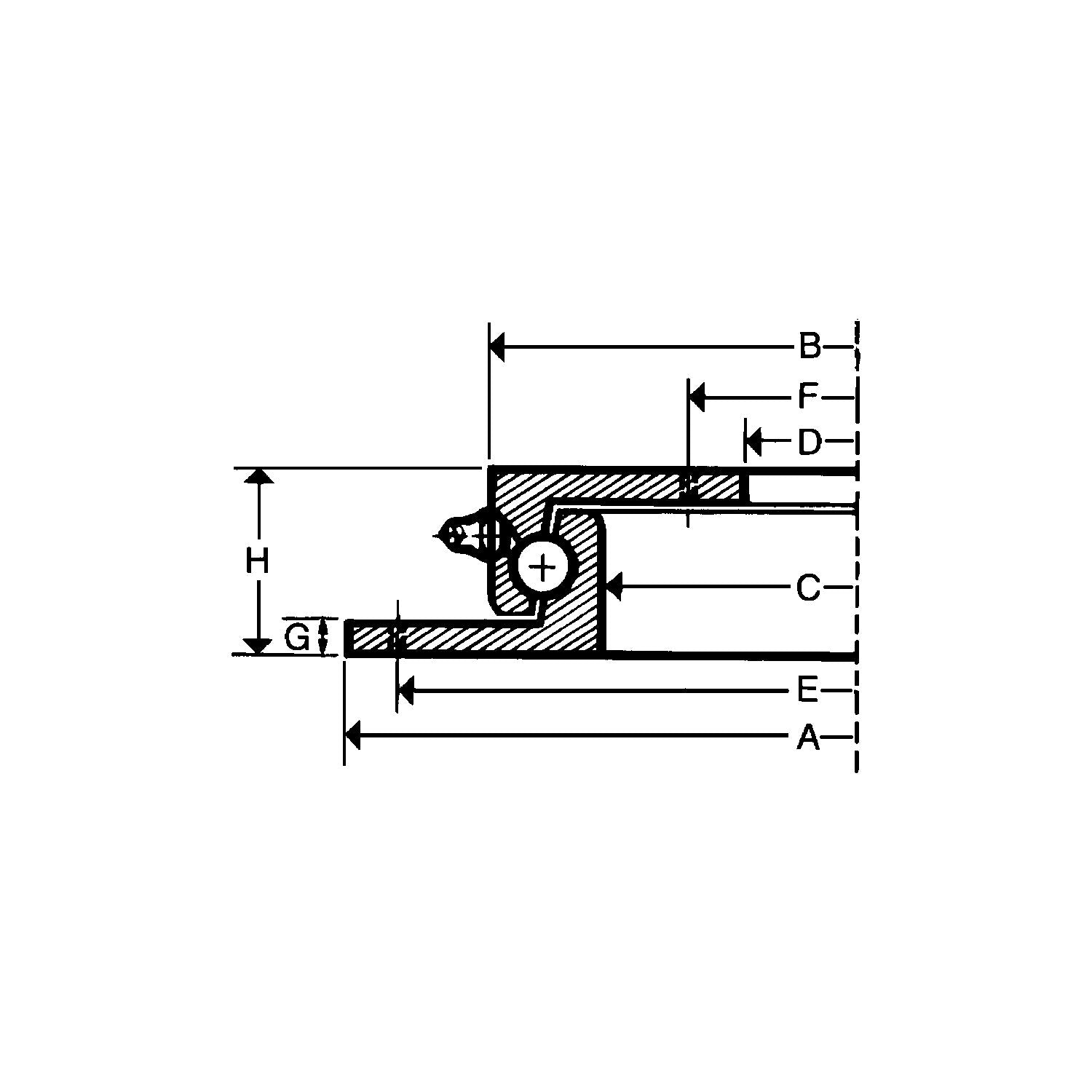

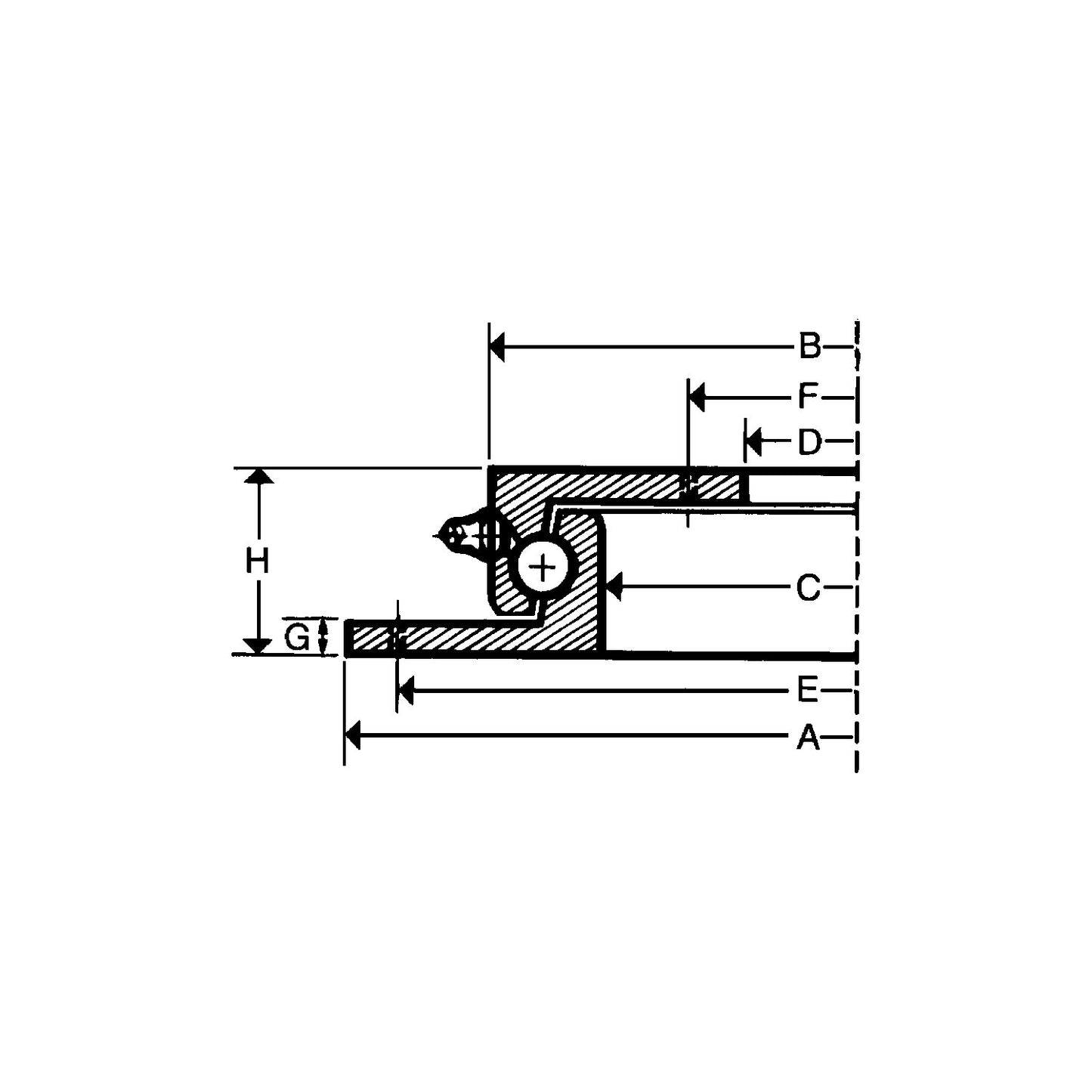

• Flange diameter = 650 mm
• Max. load axial = 1500 kg
• Outer diameter upper ring = 592 mm
• Inner diameter lower ring = 542 mm
• Inner diameter upper ring = 480 mm
• Hole circle diameter, lower ring = 625 mm
• Hole circle diameter, upper ring = 510 mm
• Overall height = 45 mm
• Material = steel
• Colour = black
• Product type = ball bearing races
• Customs tariff number = 84821090
• Country of origin = HUN
• Gross weight = 20 kg
• Weight = 20 kg
• Sustainability = CO 2 footprint calculated
• For transport equipment up to 30 km/h
• For turntable steering. 2 steel rings with ball bearing races
• Precision steel ball bearings
• Lubrication nipple
• Black primed surface
• For flange Ø up to 500 mm, we recommend 4 - 6 bolts, for larger Ø at least 8 bolts
• All M 10 - M 12, rigidity class 8.8
• Both flange rings without bore holes
• Caution! Dimension D (inner top ring Ø) is subject to manufacturing tolerances of +2 mm / -15 mm
• For dim
• A, manufacturing tolerances of 0 to +5 mm
• Check tolerances to ensure smooth running fit
• Holes to be drilled by customer as required.
