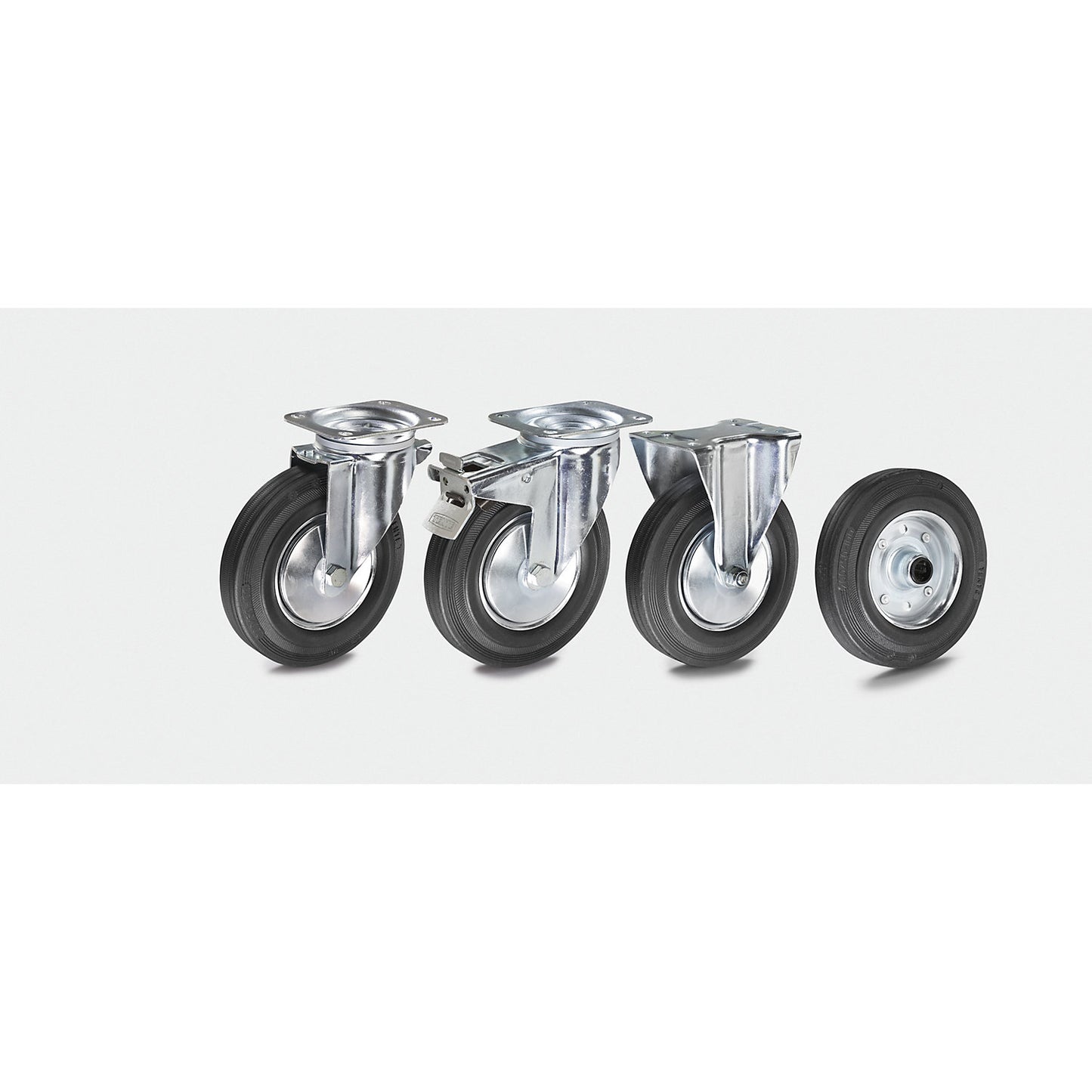

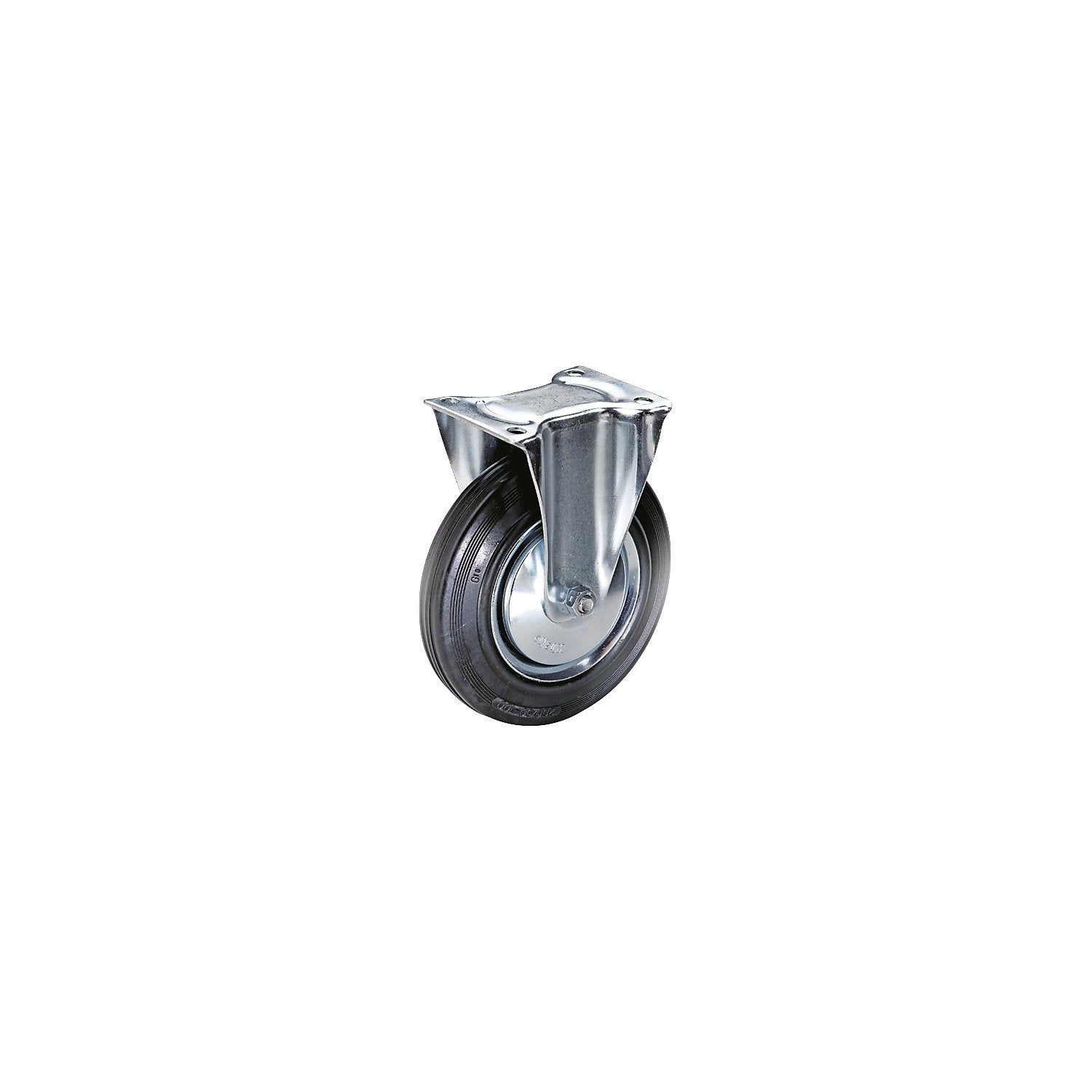

Solid rubber tyre on sheet steel rim, wheel Ø x width 280 x 70 mm, fixed castor.

Estimated delivery: 29 days

Solid rubber tyre on sheet steel rim, wheel Ø x width 280 x 70 mm, fixed castor

• Supplied = assembled
• Wheel diameter = 280 mm
• Structure = fixed castor
• Wheel material = rubber - solid rubber
• Material of rim = sheet steel, bright zinc plated
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 385 kg
• Wheel width = 70 mm
• Overall height = 320 mm
• Wheel bearing = roller bearing
• Temperature resistance = -5 °C to +60 °C
• Screw hole diameter = 15 mm
• Hub length = 75 mm
• Hub bore = 25 mm
• Model = transport castors
• Fixed castor plate dimensions = 220x120 mm
• Swivel castor plate dimensions = 175x175 mm
• Screw hole spacing = 190x75 mm
• Housing surface = zinc plated blue passivated
• Shore hardness = 85 A
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 7.67 kg
• Weight = 7.21 kg
• On sheet steel rim
• For light to medium duty requirements
• Very quiet on hard floors
• Hardness 85 Shore A
• Temperature resistant from -5 °C to +60 °C
• Swivel bearing with double ball race, swivel bearing protection
• Also available as electrically conductive models on request.
