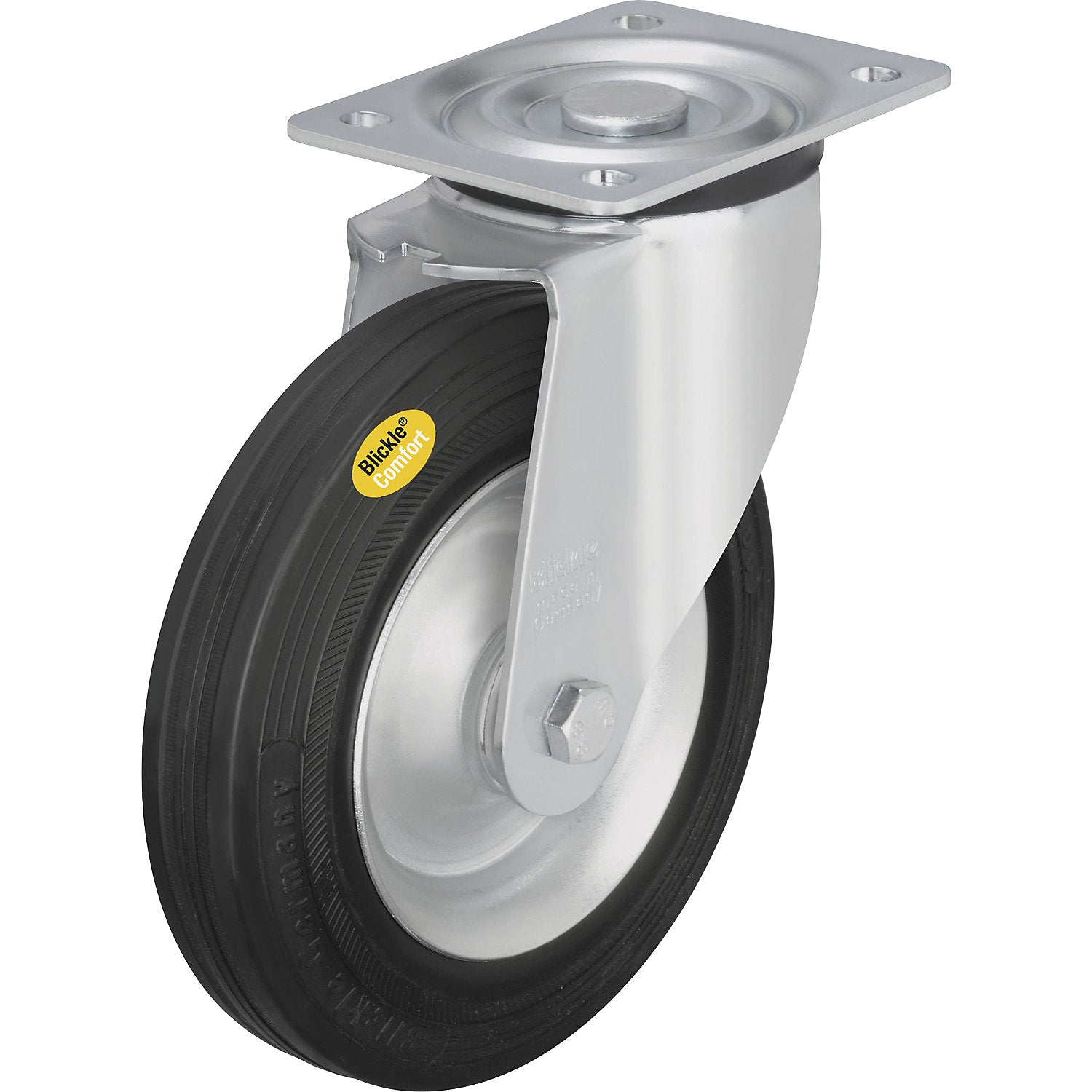

Two component solid rubber tyre, wheel Ø x width 180 x 50 mm, swivel castor.

Estimated delivery: 29 days

Two component solid rubber tyre, wheel Ø x width 180 x 50 mm, swivel castor

• Supplied = assembled
• Wheel diameter = 180 mm
• Structure = swivel castor
• Wheel material = rubber - solid rubber - semi-elastic
• Material of rim = sheet steel, galvanised
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 300 kg
• Wheel width = 50 mm
• Overall height = 215 mm
• Wheel bearing = roller bearing
• Temperature resistance = -25 °C to +80 °C
• Swivel castor offset = 60 mm
• Screw hole diameter = 11 mm
• Hub length = 60 mm
• Hub bore = 20 mm
• Model = smooth running castors
• Fixed castor plate dimensions = 140x110 mm
• Swivel castor plate dimensions = 140x110 mm
• Screw hole spacing = 105x75 - 80 mm
• Housing surface = zinc plated blue passivated
• Shore hardness = 65 A
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 3.27 kg
• Weight = 2.91 kg
• Sustainability = CO 2 footprint calculated
• On sheet steel rims
• Very smooth running
• Non-marking
• Hardness 65 Shore A
• Temperature resistant from -25 °C to +80 °C
• Tyres made of two-component solid rubber with hard tyre bed and highly elastic running surface, black
• In comparison to solid rubber, increased load capacity and smoother run with less rolling resistance
• Swivel bearing with double ball race, smooth rolling with a minimum of play.
