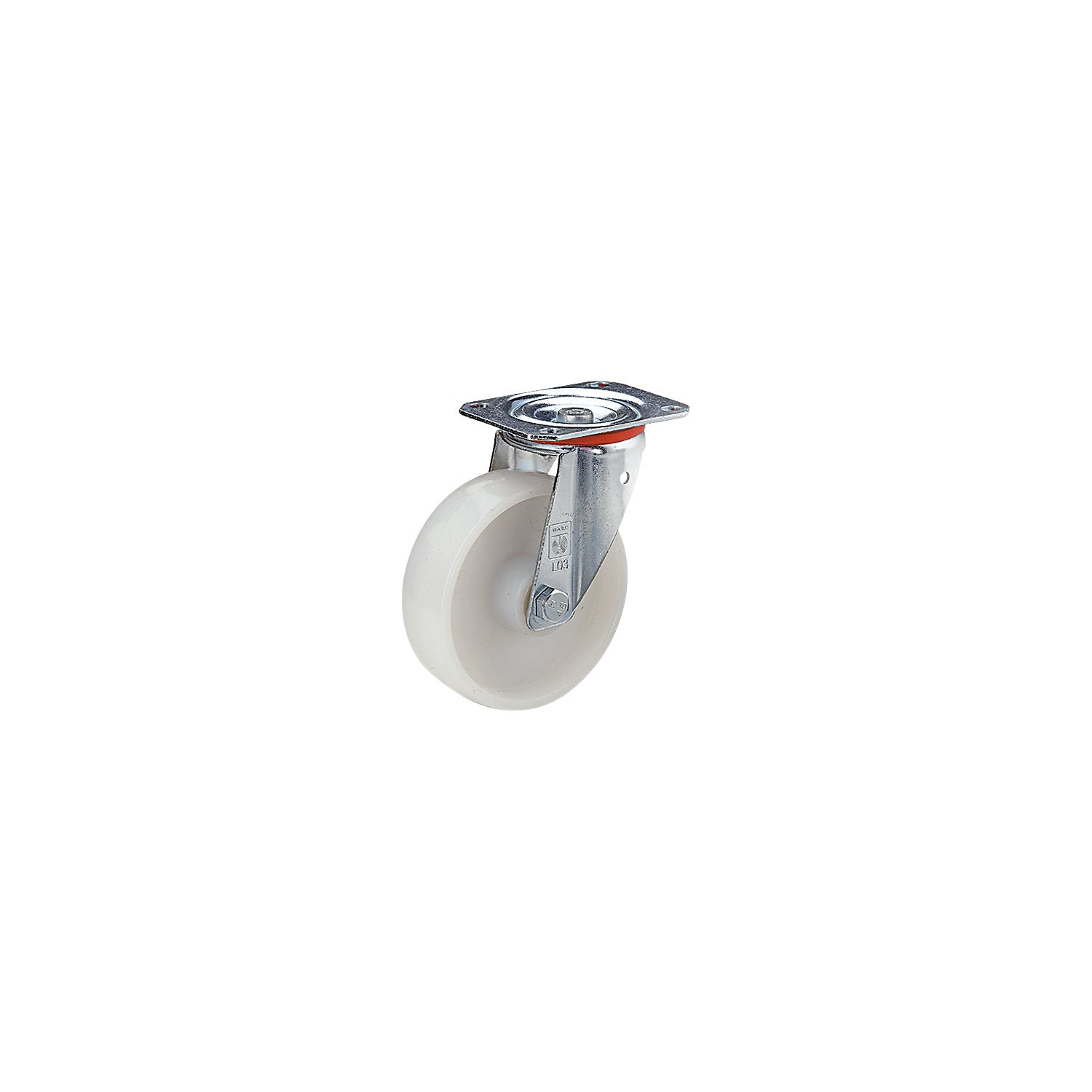

Nylon wheel, sheet steel housing, wheel Ø x width 65 x 30 mm, swivel castor, plain bearings.

Estimated delivery: 29 days

Nylon wheel, sheet steel housing, wheel Ø x width 65 x 30 mm, swivel castor, plain bearings

• Supplied = assembled
• Wheel diameter = 65 mm
• Structure = swivel castor
• Wheel material = plastic - nylon
• Material of rim = nylon
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 100 kg
• Wheel width = 30 mm
• Overall height = 93 mm
• Wheel bearing = plain bearing
• Temperature resistance = -20 °C to +80 °C
• Swivel castor offset = 36 mm
• Screw hole diameter = 9 mm
• Hub length = 40 mm
• Hub bore = 12 mm
• Model = transport castors
• Fixed castor plate dimensions = 100x70 mm
• Swivel castor plate dimensions = 100x70 mm
• Screw hole spacing = 75x45 mm
• Housing surface = galvanised and chrome-plated
• Shore hardness = D 70
• Customs tariff number = 87169090
• Country of origin = CHN
• Gross weight = 0.67 kg
• Weight = 0.43 kg
• Sustainability = CO 2 footprint calculated
• Maintenance free, smooth running
• Hardwearing
• Largely resistant against many thinned acid and alkaline solutions
• Temperature resistant from -20 °C to +80 °C
• Swivel bearing with double ball race, swivel bearing protection.
