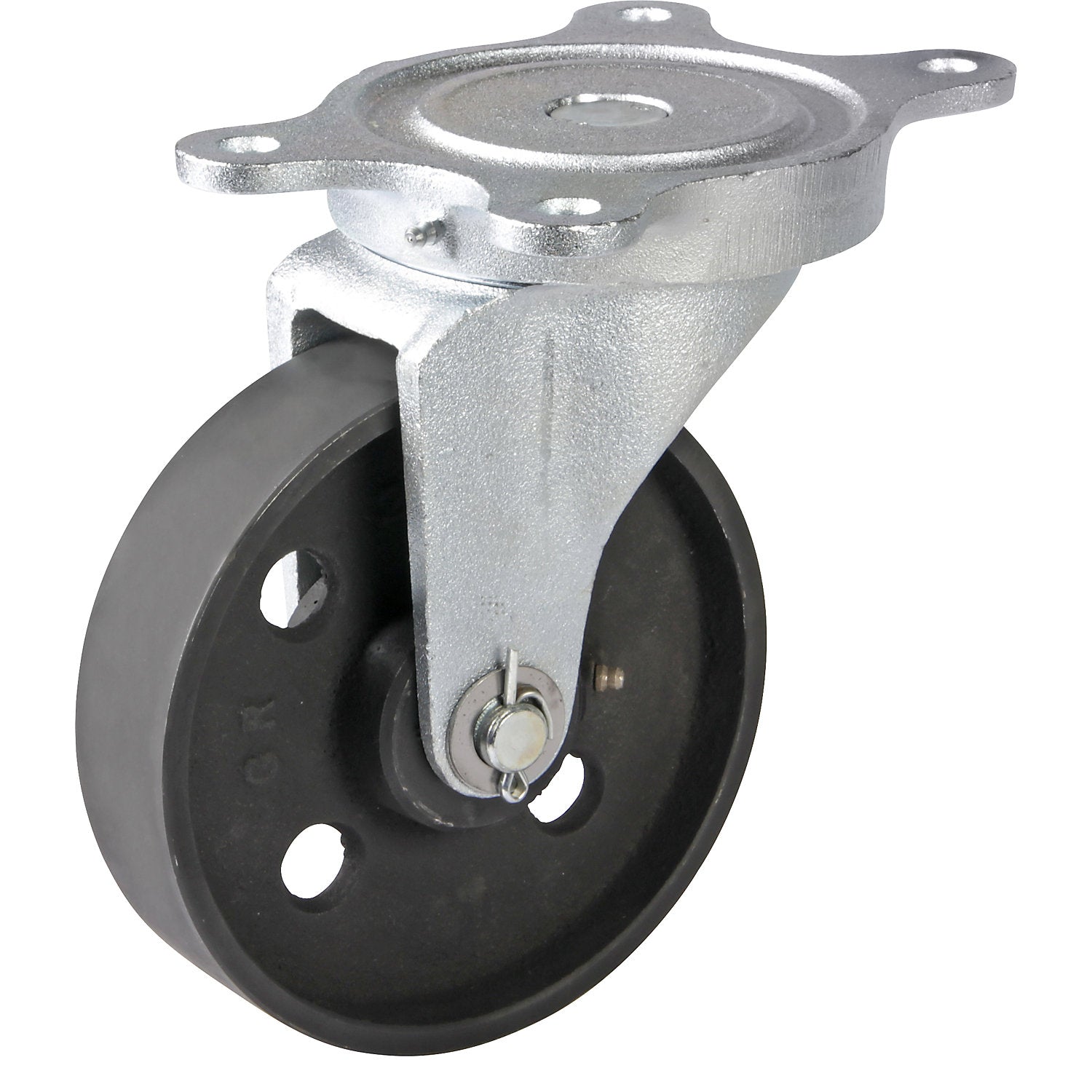

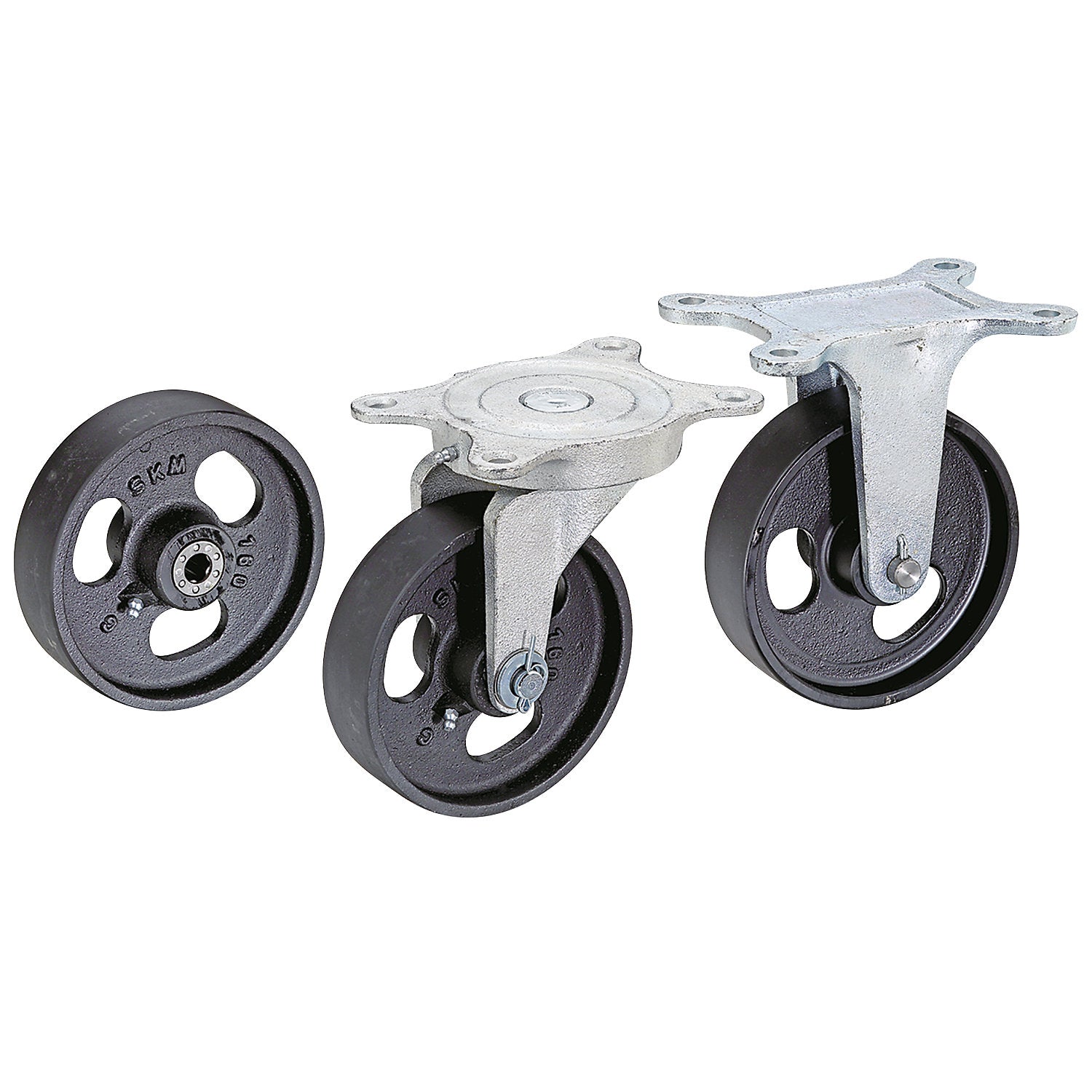

Grey cast iron wheel, annealed cast iron housing, wheel Ø x width 200 x 50 mm, swivel castor with roller bearings.

Estimated delivery: 29 days

Grey cast iron wheel, annealed cast iron housing, wheel Ø x width 200 x 50 mm, swivel castor with roller bearings

• Supplied = assembled
• Wheel diameter = 200 mm
• Structure = swivel castor
• Wheel material = metal - cast
• Material of rim = grey cast iron, GG 20 to GG 25
• Type of mounting = with top plate
• Housing material = annealed cast iron
• Max. load at 4 km/h = 1000 kg
• Wheel width = 50 mm
• Overall height = 260 mm
• Wheel bearing = roller bearing
• Temperature resistance = up to +100 °C
• Swivel castor offset = 60 mm
• Screw hole diameter = 14 mm
• Hub length = 59 mm
• Hub bore = 20 mm
• Model = heavy duty castors
• Fixed castor plate dimensions = 225x145 mm
• Swivel castor plate dimensions = 225x145 mm
• Screw hole spacing = 185x105 mm
• Customs tariff number = 84821090
• Country of origin = CHN
• Gross weight = 10 kg
• Weight = 10 kg
• Sustainability = CO 2 footprint calculated
• With annealed cast iron housing
• Very robust and durable
• For use in harsh environments
• Virtually maintenance free
• Wheel body made of high quality GG 20/25 grey cast iron, painted black
• Slightly convex running surface
• Annealed cast iron housing, swivel housing with double ball bearing race, can be lubricated
• Protected against dust and spray water under certain conditions
• Temperature resistant to +100 °C, and up to +300 °C when bearing is lubricated with special grease
• All specified dimensions are approximate.
