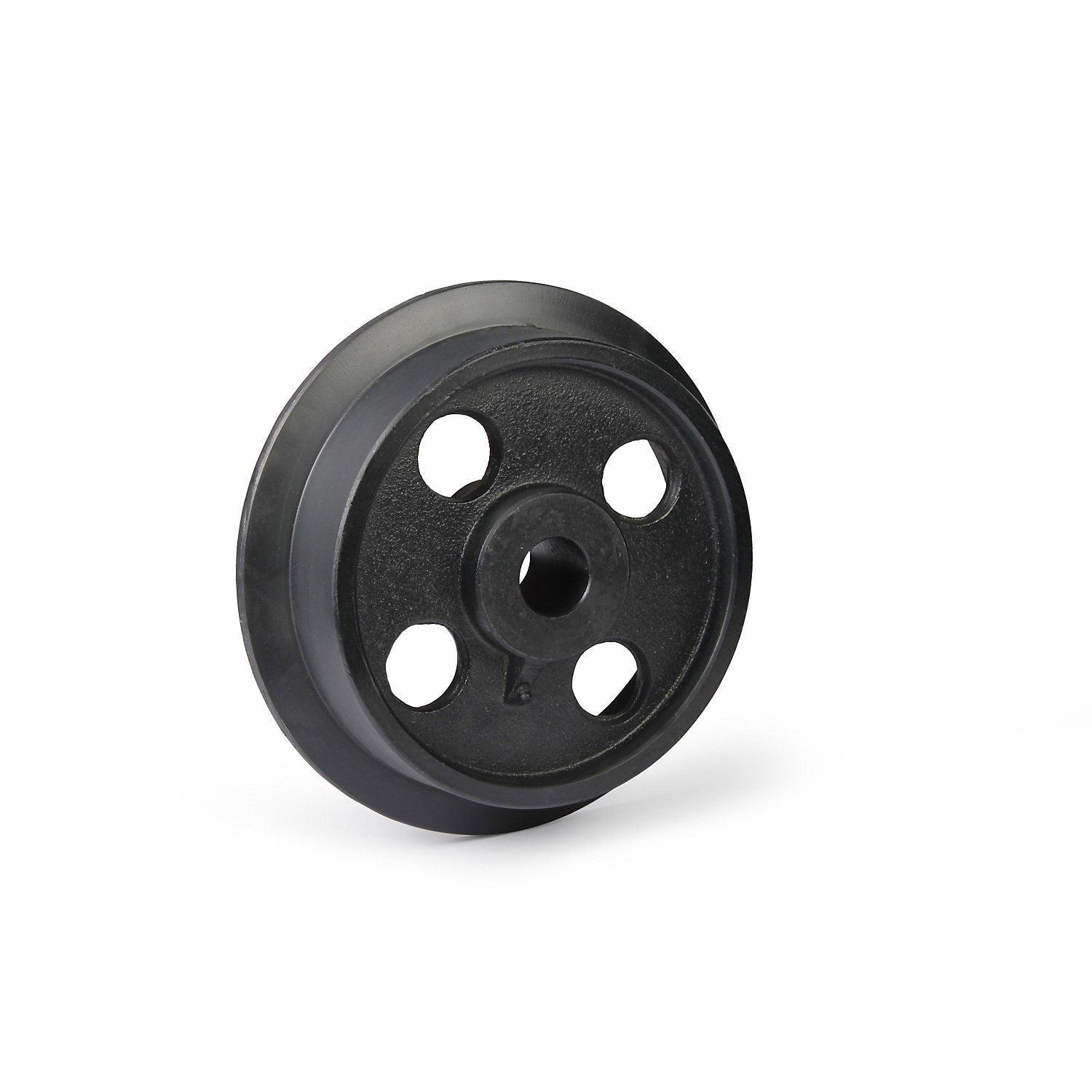

Grey cast iron wheel with flange, plain bearings, wheel Ø with flange 300 mm.

Estimated delivery: 29 days

Grey cast iron wheel with flange, plain bearings, wheel Ø with flange 300 mm

• Supplied = assembled
• Structure = wheel
• Wheel material = grey cast iron, GG 20 to GG 25
• Material of rim = grey cast iron, GG 20 to GG 25
• Wheel diameter = 250 mm
• Max. load at 4 km/h = 2000 kg
• Wheel width = 50 mm
• Wheel width with wheel flange = 65 mm
• Wheel diameter with wheel flange = 300 mm
• Wheel bearing = plain bearing
• Hub length = 70 mm
• Hub diameter = 90 mm
• Axle diameter = 40 mm
• Temperature resistance = up to +100 °C
• Product type = wheels
• Customs tariff number = 84821090
• Country of origin = CHN
• Gross weight = 13.5 kg
• Weight = 13.5 kg
• Sustainability = CO 2 footprint calculated
• With flange
• Very high max. load
• Impact resistant
• High temperature resistance
• Wheel body made of high quality GG-20/25 grey cast iron, painted black
• Precision-turned wheel flange and running surface
• Running surface tilted 3° toward outside

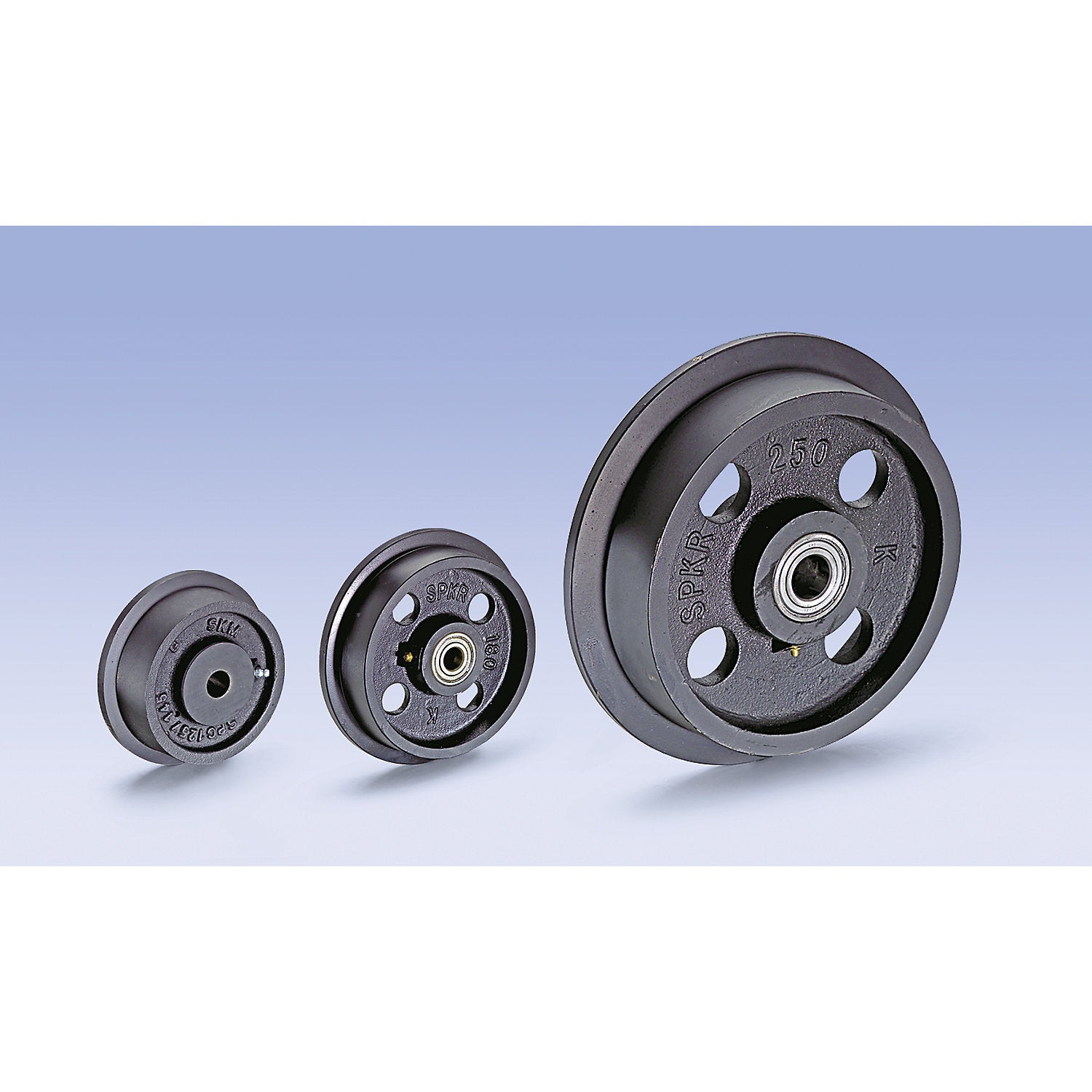

• Starting with wheel Ø 150 / 175 mm, wheel bodies are notched out to reduce weight
• Starting with wheel Ø 125 / 145 mm, with lubrication nipple
• Temperature resistant to +100 °C
• Up to +300 °C when bearing is lubricated with special grease
• Special oven bearings/ball bearings for resistance up to 350 °C on request
• All specified dimensions are approximate.
