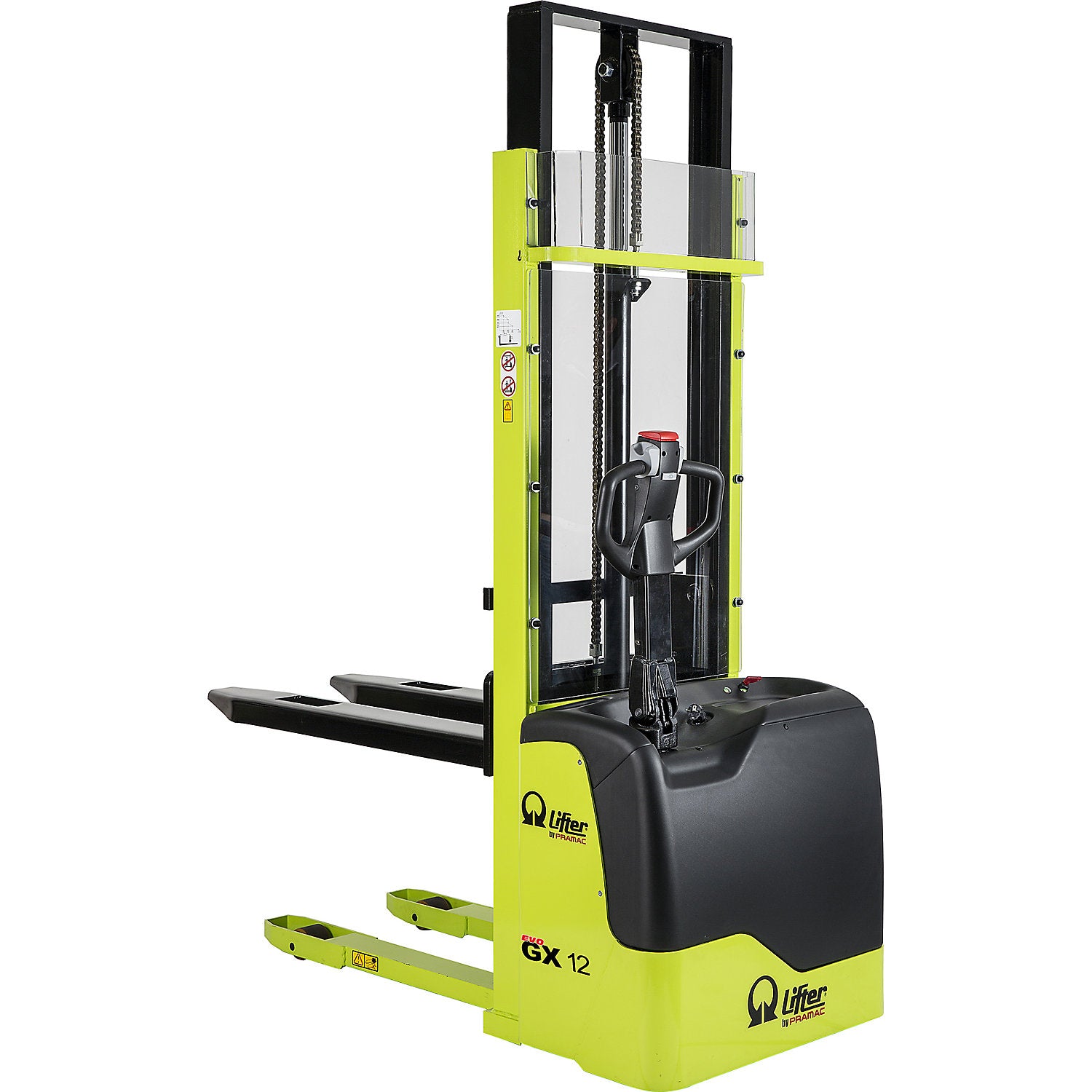

Drawbar stacker, telescopic mast, max. load 1200 kg, lifting range 90 - 2900 mm.

Estimated delivery: 41 days

Drawbar stacker, telescopic mast, max. load 1200 kg, lifting range 90 - 2900 mm

• Supplied = assembled
• Max. load = 1200 kg
• Lifting range = 90 - 2900 mm
• Fork length = 1150 mm
• Fork width = 150 mm
• Distance across forks = 560 mm
• Length = 1760 mm
• Width = 800 mm
• Overall height = 1987 mm
• Min. lifting speed = 110 mm/s
• Max. lifting speed = 190 mm/s
• Min. driving speed = 4.7 km/h
• Max. driving speed = 5.2 km/h
• Climbing performance with load = 5 %
• Climbing performance without load = 10 %
• Design of mast = telescopic mast
• Turning radius = 1430 mm
• Thickness of fork prong = 70 mm
• Battery = 2x12 V / 110 Ah
• Battery charger = 1.5 A impulse charger
• Working gangway for pallet length = 2210 mm
• Roller material = polyurethane
• Fork roller version = single
• Fork roller diameter = 82 mm
• Fork roller width = 70 mm
• Customs tariff number = 84279000
• Country of origin = ITA
• Gross weight = 585.6 kg
• Weight = 585 kg
• Sustainability = CO 2 footprint calculated
• Stacker with equivalent to pallet width of 800 mm - ideal for narrow aisles and passageways in pallet racks
• Completely new generation of devices
• Developed for a long lifespan with moderate maintenance costs
• Energy saving MOS-FET drive control with proportional speed regulation
• Creep speed possible with drawbar in upright position when space is tight
• Solid steel frame all round for protection in the event of collisions
• Drive unit easily accessible from above after raising the ABS plastic housing
• The machine does not have to be raised
• Multifunction display for operating hours, battery status and charge indicator
• The devices are fully compliant with the requirements of directive 2006/42/EC
• CE compliant
• With horn, emergency stop switch and all-round foot protection
• Maintenance free AGM batteries ensure operation for up to 3 hours

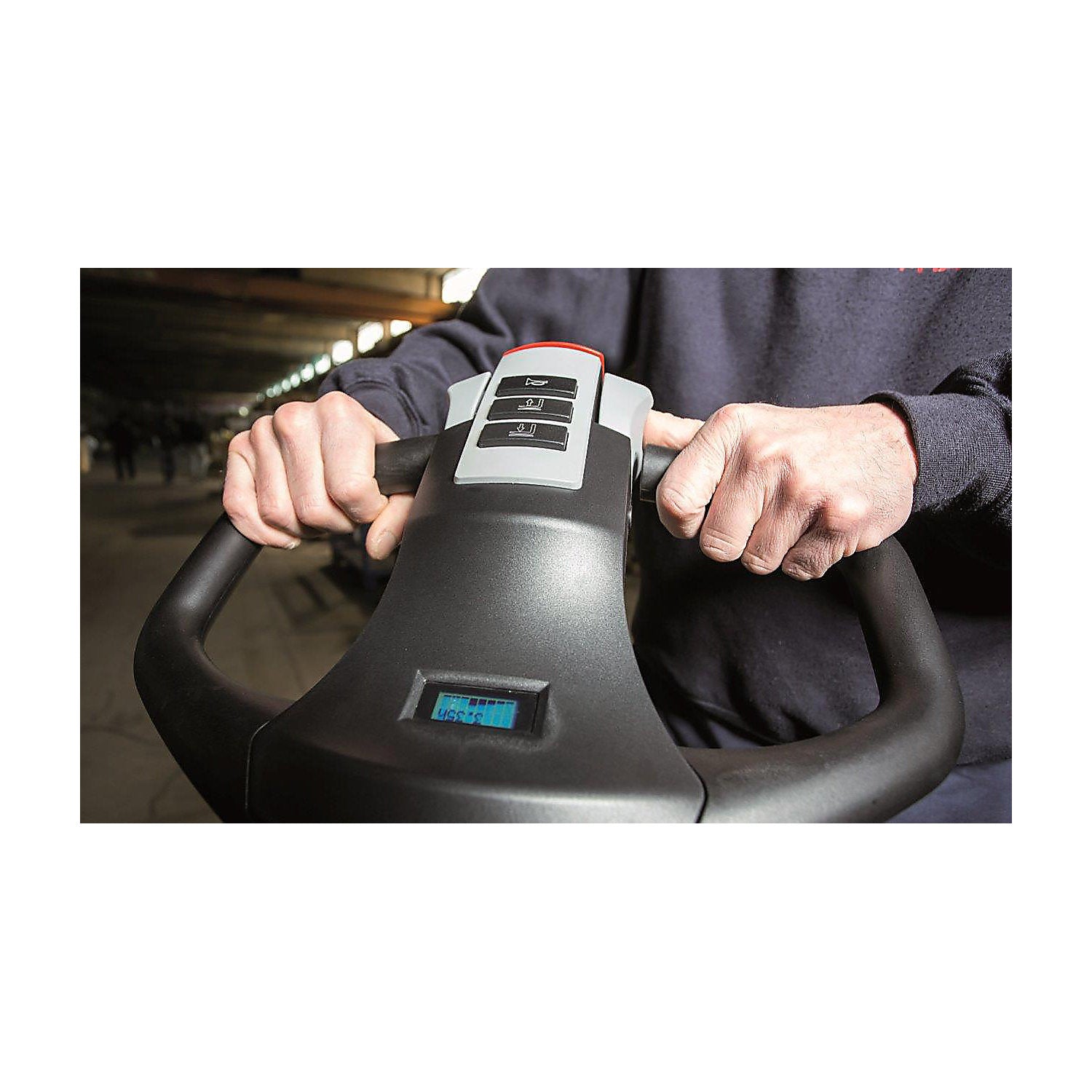

• Safety steering unit with ergonomic controls All functions can be controlled from the steering unit
• Precise, infinite speed control and braking
• Soft valve switch for smooth lifting and lowering when moving
• Horn button
• Safety switch to protect the driver
• Activated by counter force from change in direction of travel
• Creep speed: Drive with drawbar in upright position at slower speeds
• Eccentric steering: For a clear view past the mast
• Practical in narrow aisles
• Brakes automatically when the drawbar is released
• Symmetrical traversing gear: DC motor
• Constant speed proportional to rotary wing movement
• High stability
• Electronic steering: Increased safety
• Energy saving MOS steering, starts, accelerates and brakes smoothly and precisely
• Load remains steady, no danger for the operator or the stacked goods
• Manoeuvres exactly to the millimetre
• Diagnostic system
• Polyurethane single fork rollers
• Available on request: - Greater lifting heights - Different fork lengths - Custom load support equipment and much more
