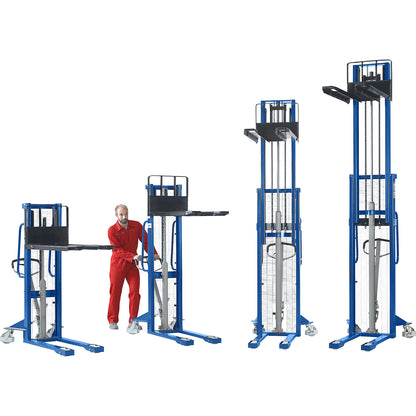

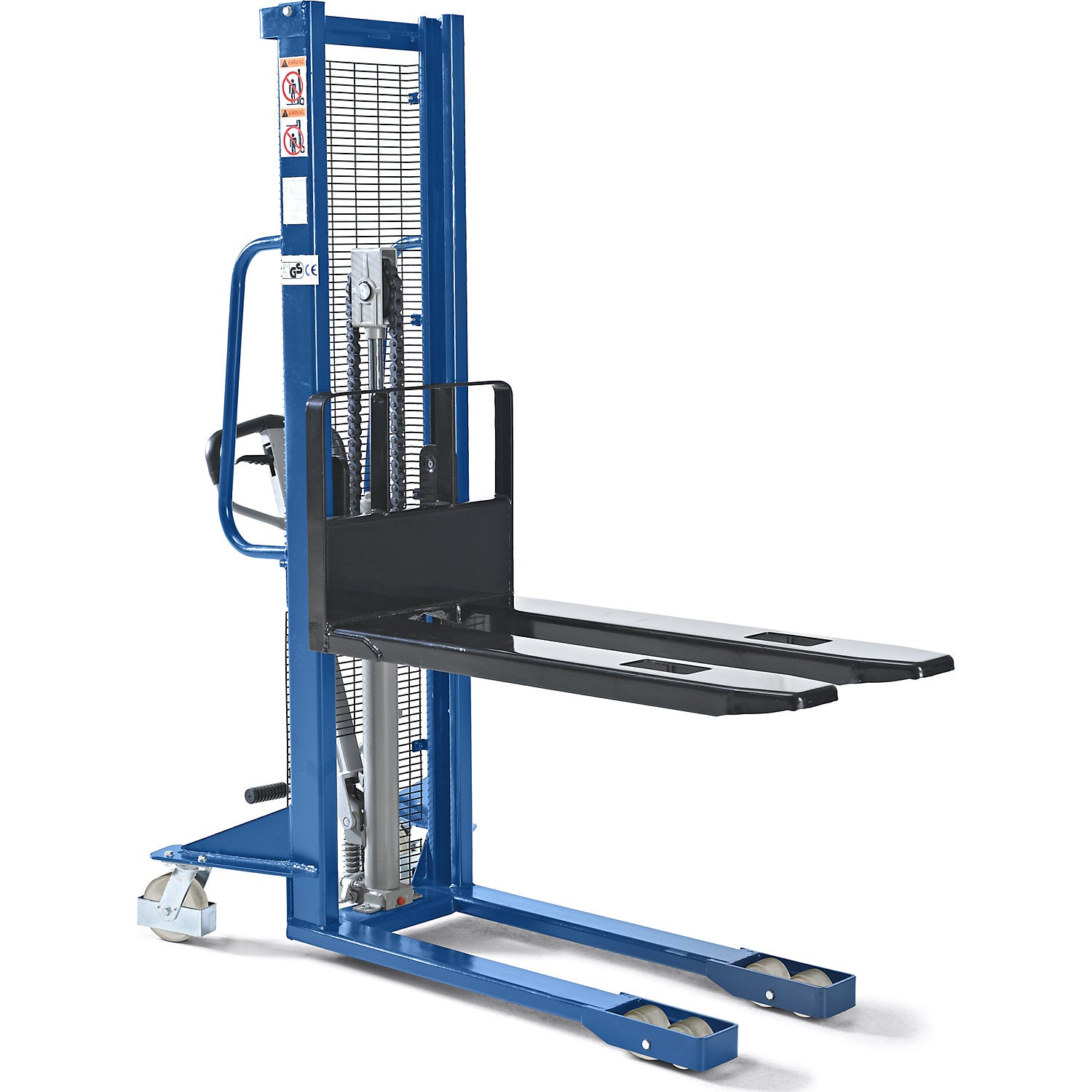

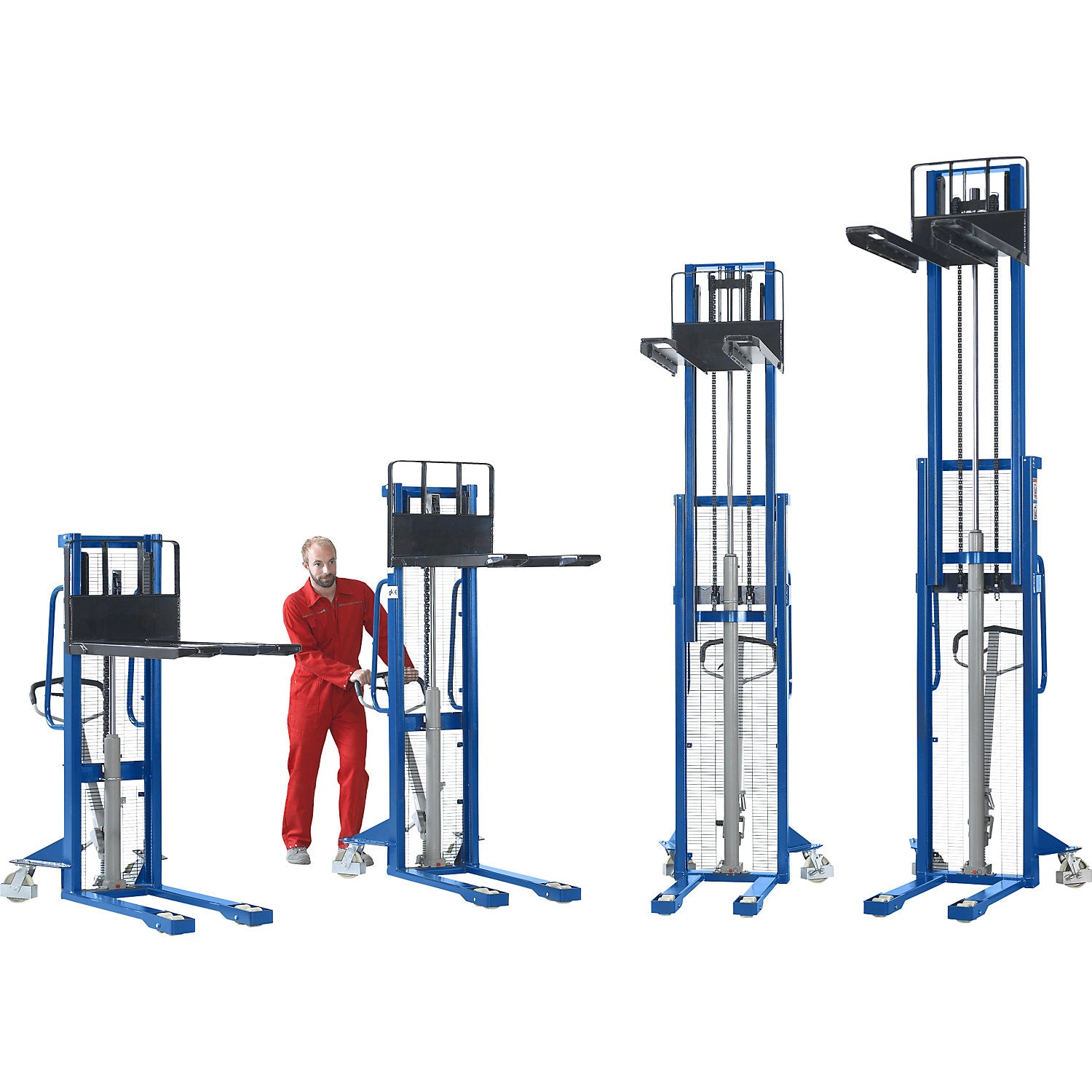

High lift stacker, lifting range 90 - 1600 mm, max. load 1100 kg, overall height 1980 mm.

Estimated delivery: 31 days

High lift stacker, lifting range 90 - 1600 mm, max. load 1100 kg, overall height 1980 mm

• Supplied = assembled
• Max. load = 1100 kg
• Load centre = 600 mm
• Lifting range = 90 - 1600 mm
• Fork length = 1150 mm
• Distance across forks = 550 mm
• Fork width = 170 mm
• Length = 1705 mm
• Width = 755 mm
• Overall height = 1980 mm
• Design of mast = single mast
• Lift per pump stroke = 20 mm
• Wheel fittings = 2 swivel castors with wheel stops
• Wheel material = nylon
• Castor diameter front / rear = 83 / 150 mm
• Steering wheel material = nylon
• Steering wheel width = 40 mm
• Fork roller version = tandem
• Roller material = nylon
• Fork roller width = 60 mm
• Finish = powder coated
• Colour = signal blue RAL 5005
• Customs tariff number = 84279000
• Country of origin = CHN
• Gross weight = 205.5 kg
• Weight = 204 kg
• Sustainability = CO 2 footprint calculated
• Fits through most doors
• Energy saving lifting using drawbar or pedal
• Compact design for narrow aisles and warehouses
• Smooth running due to nylon castors, even with a full load
• Increased floor clearance and tandem fork rollers for uneven floors
• Long service life due to safety overload pressure valve

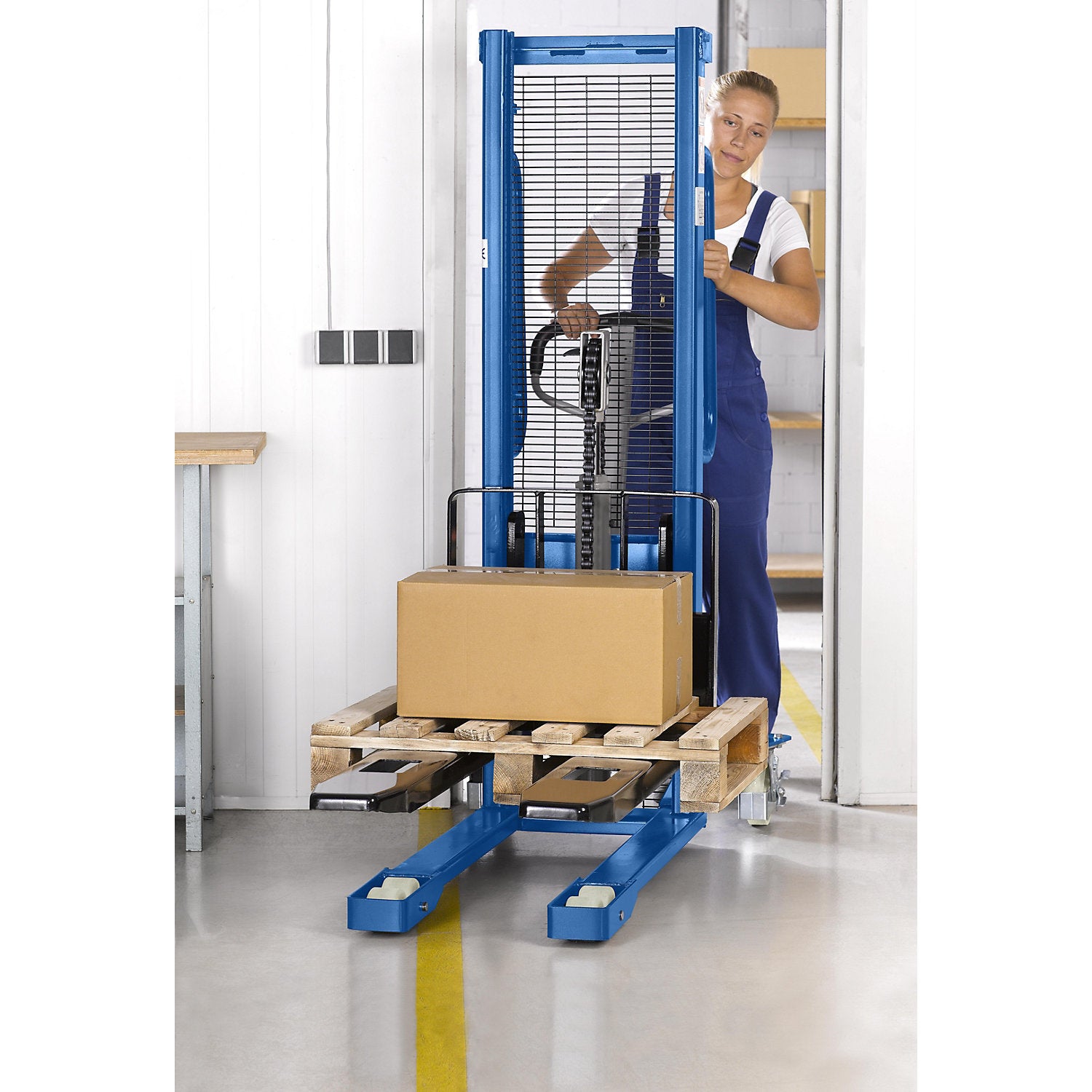

• The high lift stacker provides a practical combination that allows pallets and heavy loads to be lifted and moved in warehouse and production environments
• The drawbar stacker lifts loads precisely to the required height and is also ideal for intermediate levels of shelving units
• Lifting is effortless using the drawbar or the practical pedal
• Continuous lowering using the lowering lever on the ergonomically shaped drawbar ensures easy handling
• In addition, a safety overload valve provides protection from damage for a long stacker service life
• The robust workmanship with a reinforced mast profile and a chrome plated hydraulic piston make this high lift stacker particularly durable and reliable

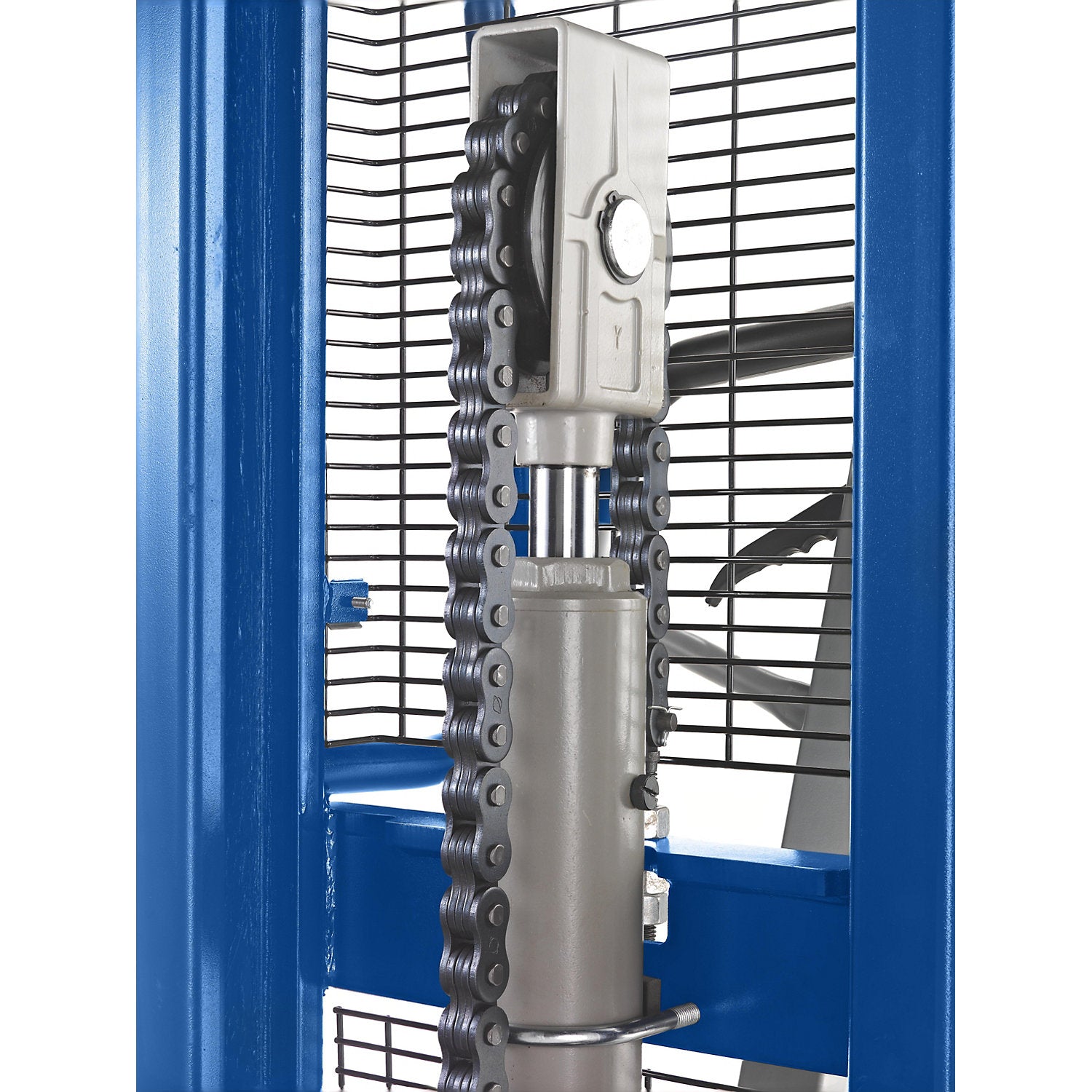

• The load chains and the lifting cylinder are secured by a guard screen, which provides protection from falling objects and allows a clear view in the direction of travel
• Large push handles provide a good grip for comfortable manoeuvring
• Brakes on the castor wheels ensure a safe stand
• The drawbar stacker fits through almost any door
• Nylon castors ensure smooth running, even when under full load
• The tandem fork rollers also make the high lift stacker suitable for uneven floors, while the increased floor clearance of 40 mm allows versatile use in a wide variety of environments
• A hardwearing powder coating protects the surface and ensures an attractive appearance
• This high lift stacker is particularly suitable for precise handling and positioning of pallets and loads - even in narrow rows of shelves and aisles.
