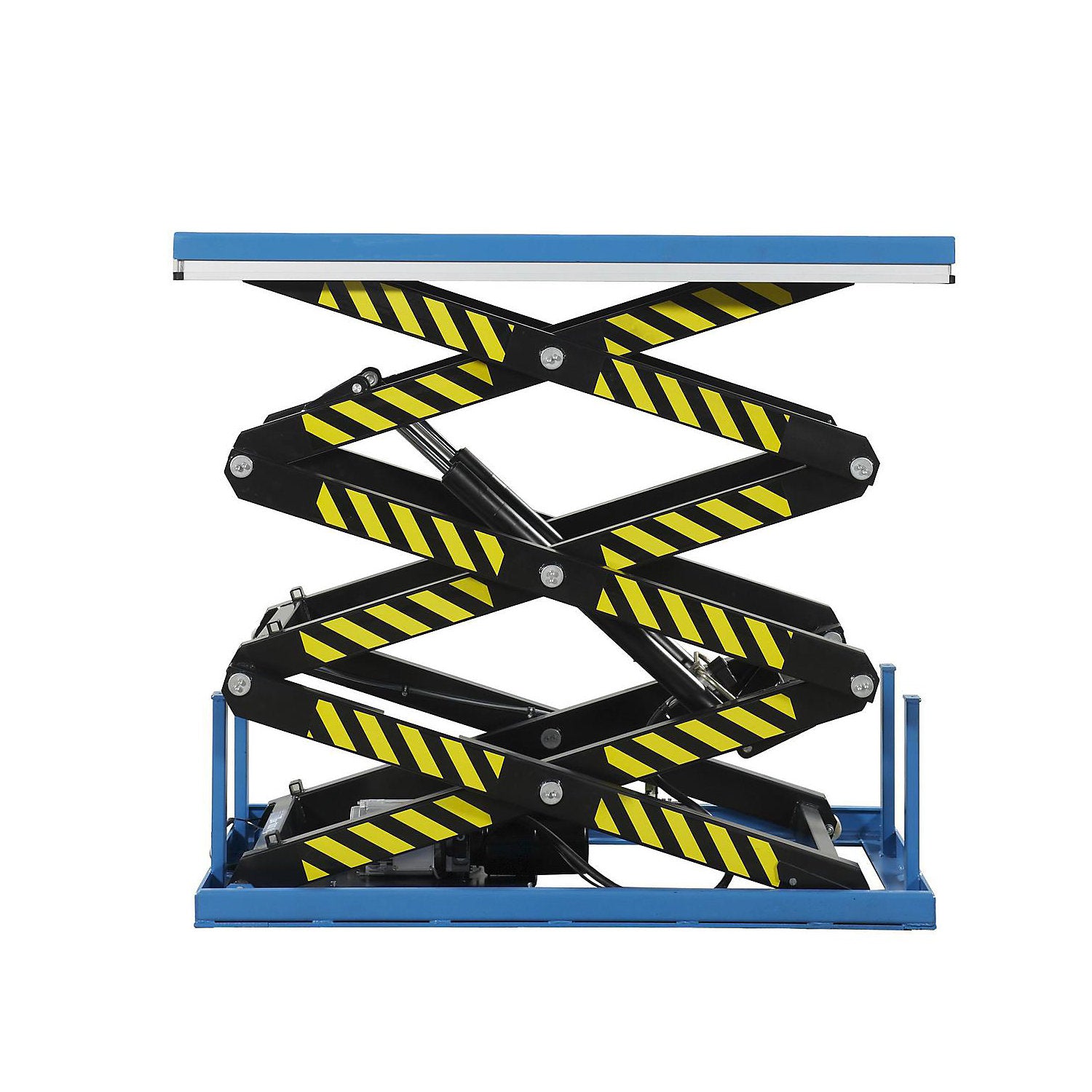

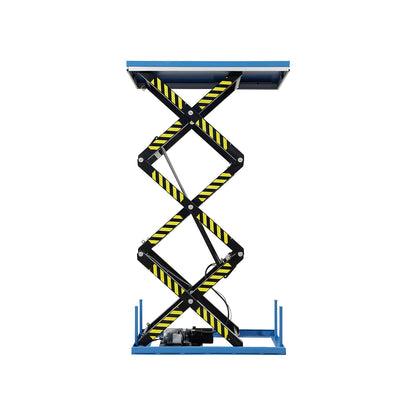

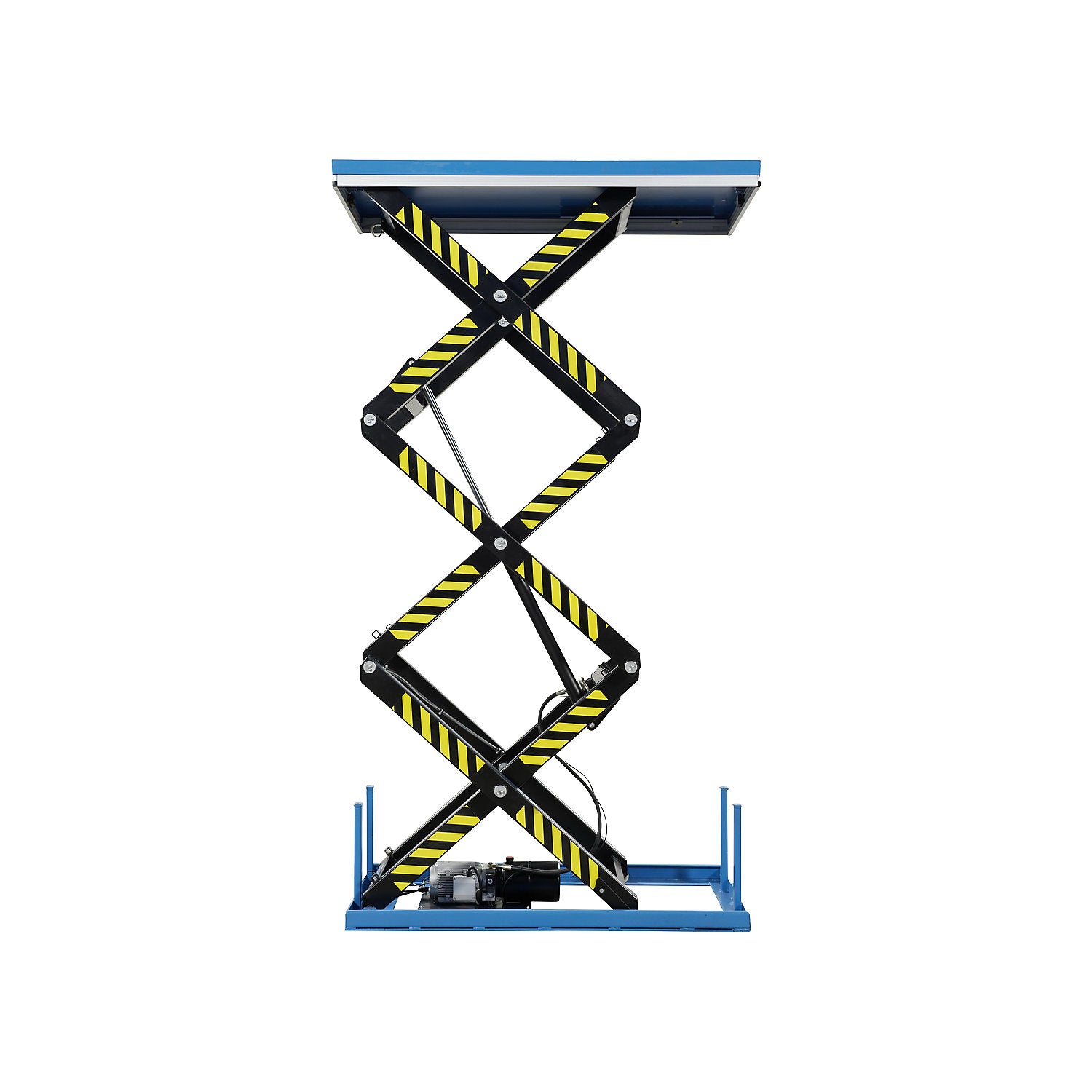

Triple scissor lift table, platform LxW 1700 x 1000 mm, max. load 2000 kg, operating voltage 400 V.

Estimated delivery: 35 days

Triple scissor lift table, platform LxW 1700 x 1000 mm, max. load 2000 kg, operating voltage 400 V

• Supplied = assembled
• Max. load = 2000 kg
• Lifting range = 560 - 3000 mm
• Platform design = closed
• Power = 2.2 kW
• Operating voltage = 400 V
• Control voltage = 24 V
• Lift drive = electro-hydraulic
• Platform colour = light blue RAL 5012
• Platform material = steel, powder coated
• Material = steel
• Finish = powder coated
• Frame colour = black, yellow
• Fittings = with hand operated control unit
• Lift = 2440 mm
• Lifting capacity at full load in 1 shift operations = max. 9 cycles per hour
• Lifting time without load = 57 sec
• Lifting time with full load = 61 sec
• Platform width = 1000 mm
• Platform length = 1700 mm
• Feature = stationary, electro-hydraulic
• Customs tariff number = 84254200
• Country of origin = CHN
• Gross weight = 756 kg
• Weight = 750 kg
• Sustainability = CO 2 footprint calculated
• Ergonomics in the workplace
• Stationary lift tables are mainly used for production lines and loading areas
• The lift table is a fixed part of production, enabling easier fitting of components
• However, height differences can also be compensated with the triple scissor lift table
• The special lifting height of 3000 mm makes the lift table ideal for spanning even larger height differences
• That's why this design is also often used in multi-storey warehouses or production lines with multiple levels
• The lift table can be anchored firmly to the floor

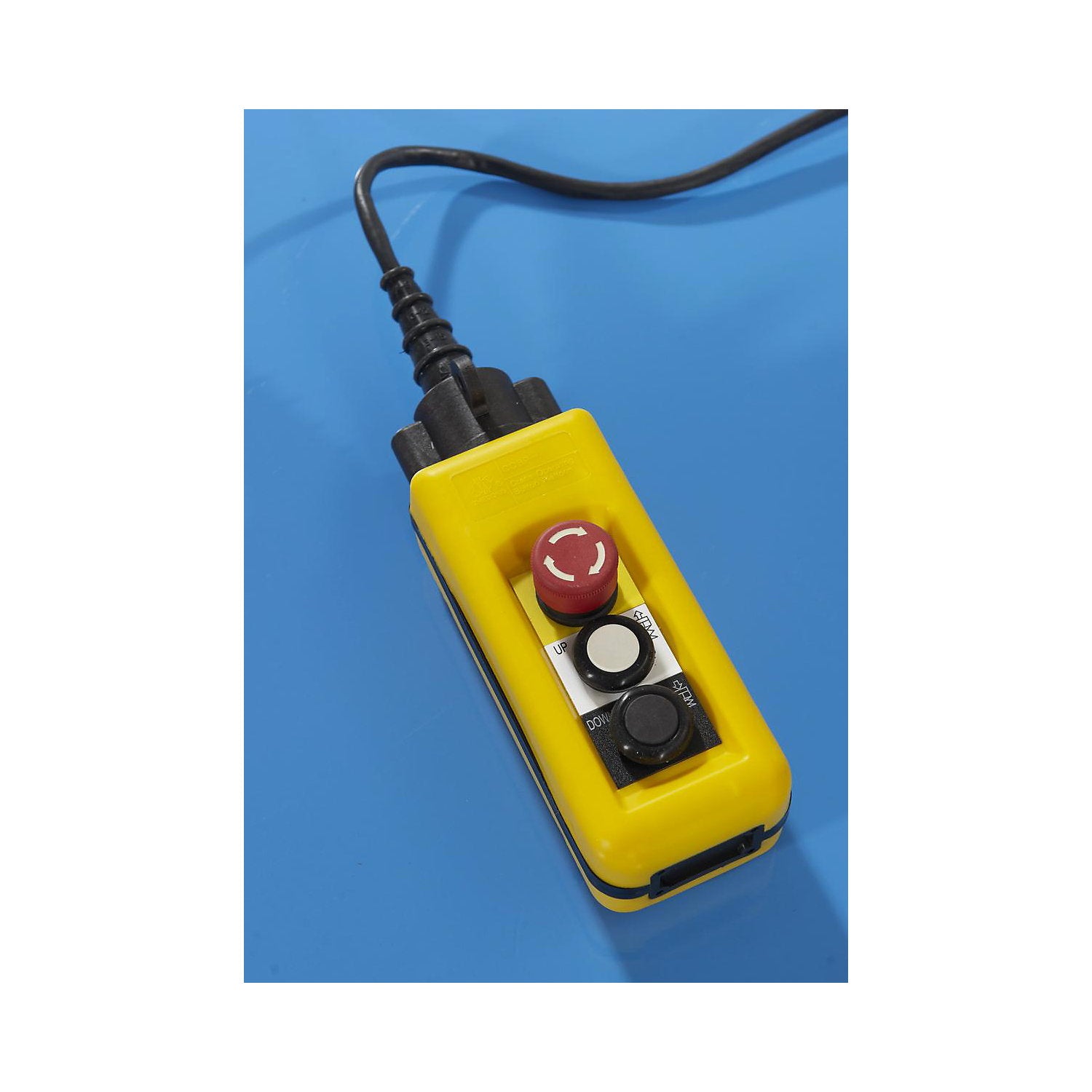

• A terminal with a 3 m long lead allows the device to be operated outside the danger area
• High quality powder coating prevents the lift table from being scratched
• Robust scissor support struts and high quality hydraulic pumps with pressure relief valve are included with the stationary lift table as standard features.
