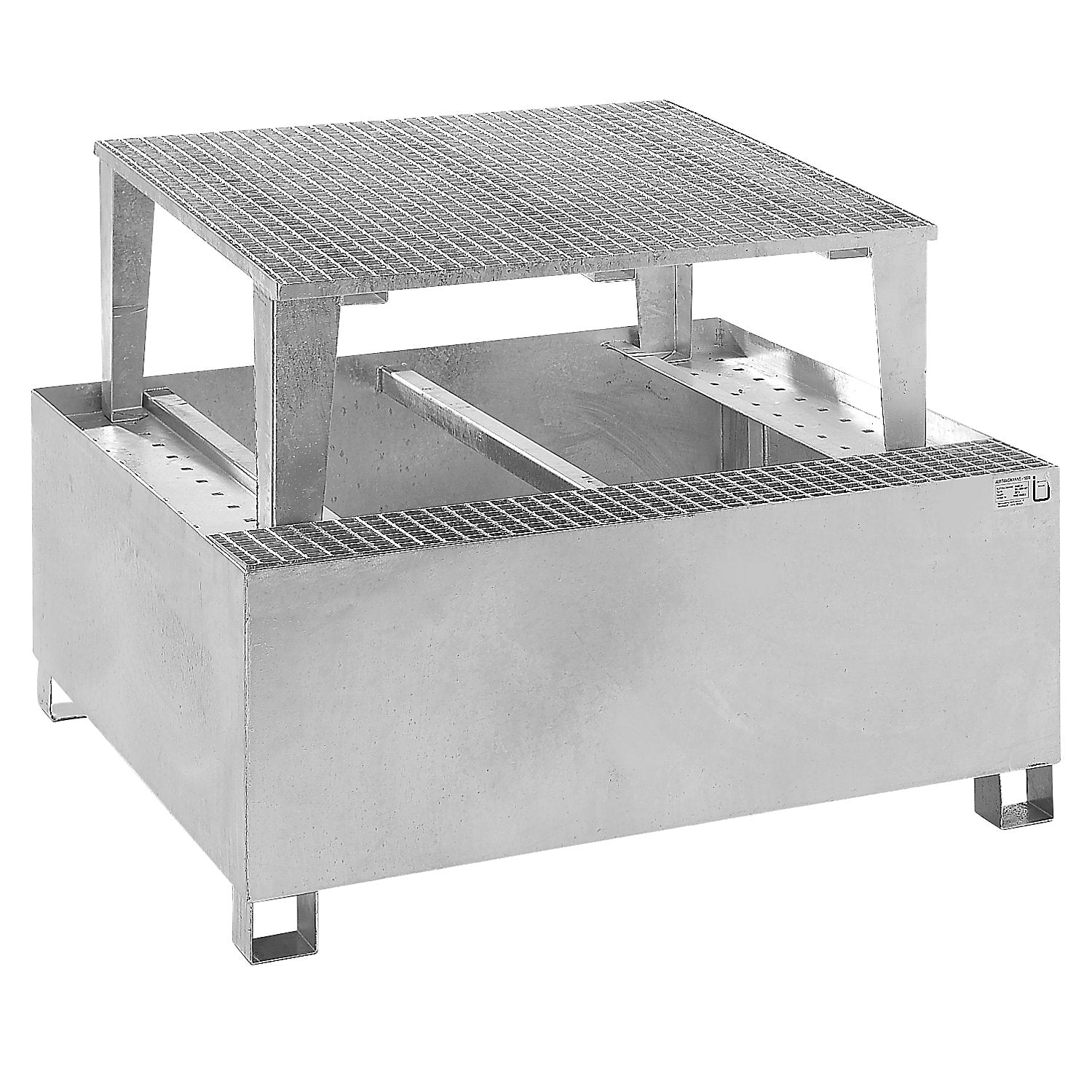

Steel sump tray for IBC/CTC tank containers, for 1 x 1000 l container, hot dip galvanised.

Estimated delivery: 31 days

Steel sump tray for IBC/CTC tank containers, for 1 x 1000 l container, hot dip galvanised

• Supplied = assembled
• Type of grate = with zinc plated grate
• Sump capacity = 1000 l
• Length = 1460 mm
• Width = 1460 mm
• Height = 1083 mm
• Filling attachment dimensions = 1250x1210x430 / 493 mm
• Quantity of filling attachments = 1 pcs
• Material = sheet steel
• Finish = hot dip galvanised
• Colour = hot dip galvanised. 1000 l container capacity = 1 pcs
• Design of sump tray = with 1 filling attachment
• Max. load = 1900 kg
• Clearance height = 100 mm
• Test symbol = manufacturers declaration of conformity in accordance with StawaR
• Material thickness = 3 mm
• For media = flammable and water hazardous liquids
• Hazard class = for flammable liquids in GHS categories 1 - 3 as well as water hazardous liquids in GHS categories 1 - 4
• Feature = clearance for forklift
• Customs tariff number = 94039910
• Country of origin = POL
• Gross weight = 159 kg
• Weight = 155 kg
• Sustainability = CO 2 footprint calculated
• Regulation compliant storage and filling of water hazardous and flammable liquids in tank containers
• With zinc plated filling attachment and storage shelf in front - for filling tank containers optimally
• Grates and filling attachments can be combined to allow individual positioning of the attachment on the tray
• Regulation compliant storage of tank containers, drums and small containers
• Robust trays with zinc plated grates
• Safety for flammable and water hazardous liquids
• Approved for GHS categories 1 - 3 and 1 - 4
• Ideal for use in indoor areas

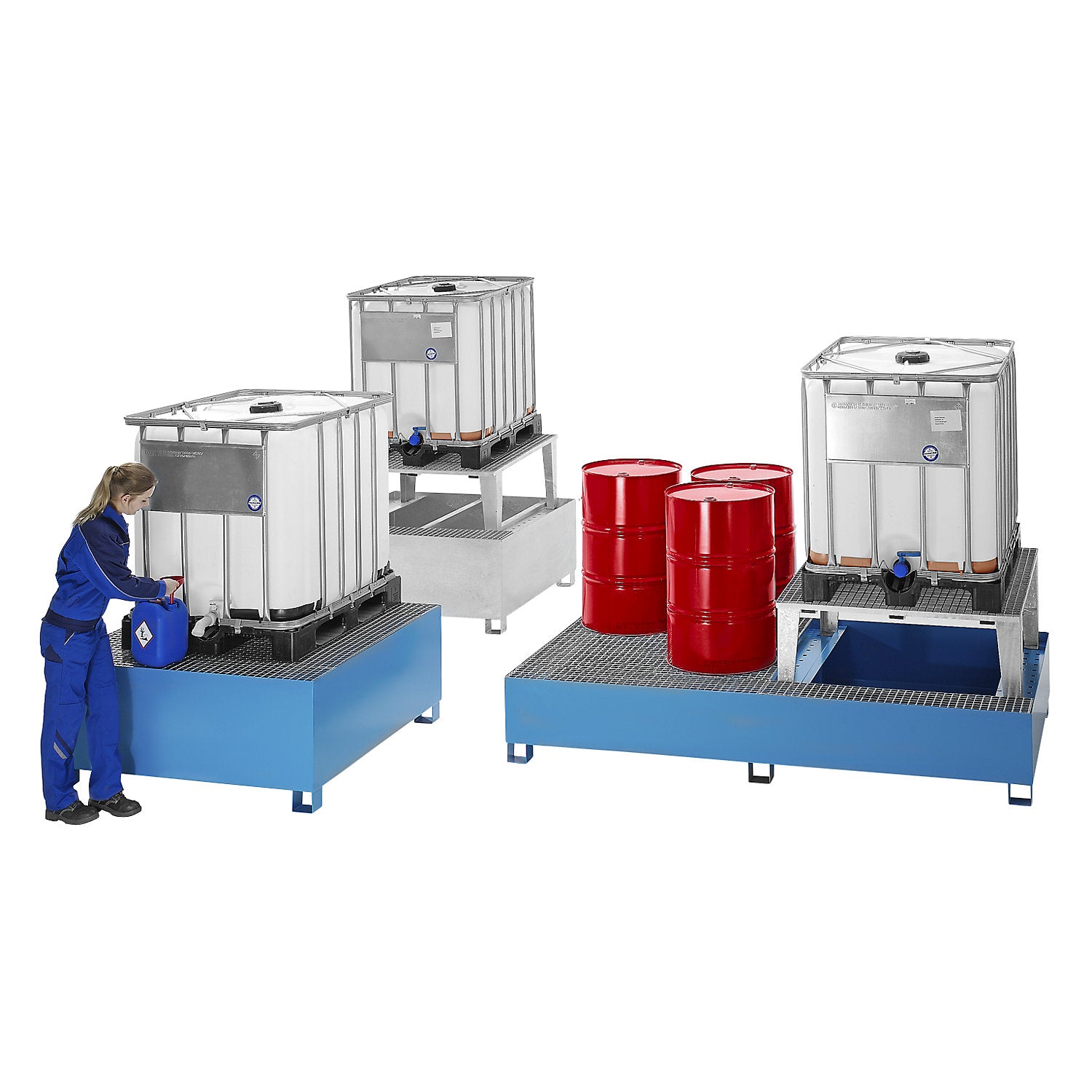

• Our steel sump trays for IBC/CTC tank containers are the ideal solution for the safe storage and refilling of flammable and water hazardous liquids
• The sump trays are made of seamlessly welded 3 mm sheet steel and meet the highest standards: they are certified in accordance with StawaR, with manufacturer's declaration of conformity, and approved for flammable liquids in GHS categories 1 - 3 and for water hazardous liquids in GHS categories 1 - 4
• Sump trays as powder coated models are only suitable for indoor use
• Dimensions per filling attachment Length x width 1250 x 1210 mm
• Height at front / rear 430 / 493 mm.
