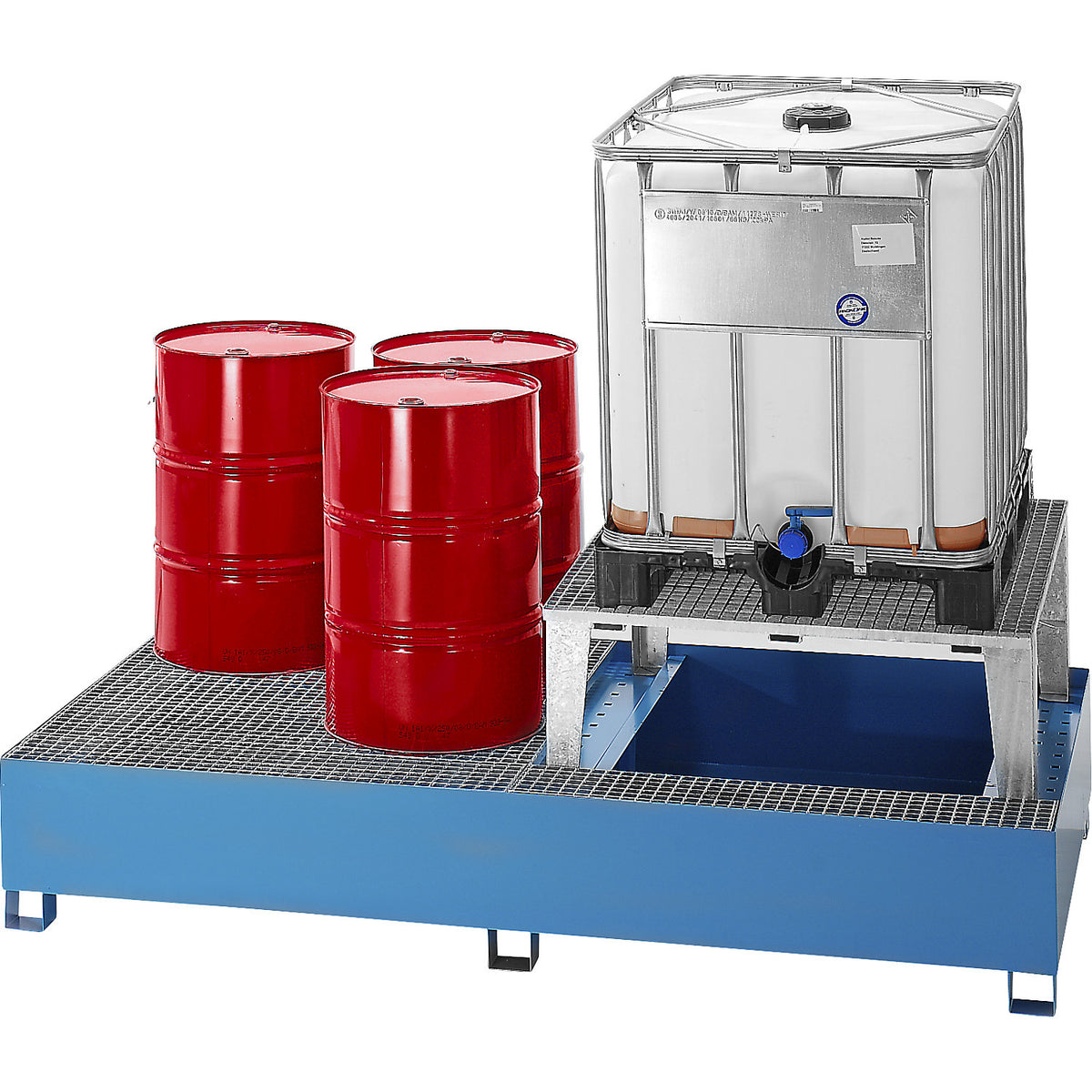

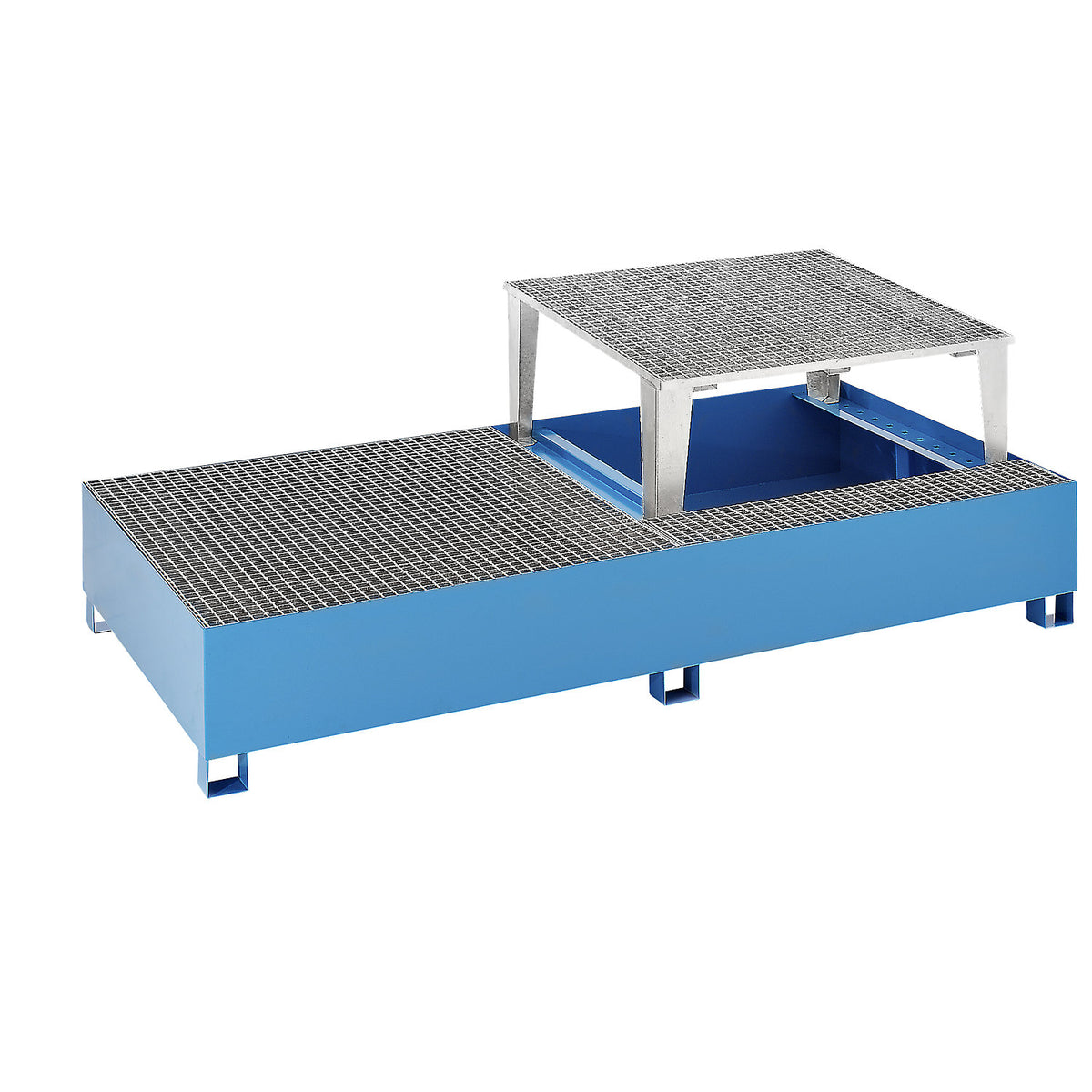

Steel sump tray for IBC/CTC tank containers, for 2 x 1000 l containers, 1 filling attachment, powder coated, blue RAL 5012.

Estimated delivery: 37 days

Steel sump tray for IBC/CTC tank containers, for 2 x 1000 l containers, 1 filling attachment, powder coated, blue RAL 5012

• Supplied = assembled
• Type of grate = with zinc plated grate
• Sump capacity = 1000 l
• Drum capacity = 4x200 l. 1000 l container capacity = 2 pcs
• Length = 2650 mm
• Width = 1460 mm
• Height = 863 mm
• Colour = light blue RAL 5012
• Filling attachment dimensions = 1250x1210x430 / 493 mm
• Quantity of filling attachments = 1 pcs
• Material = sheet steel
• Finish = powder coated
• Design of sump tray = with 1 filling attachment
• Max. load = 1900 kg
• Clearance height = 100 mm
• Test symbol = manufacturers declaration of conformity in accordance with StawaR
• Material thickness = 3 mm
• For media = flammable and water hazardous liquids
• Hazard class = for flammable liquids in GHS categories 1 - 3 as well as water hazardous liquids in GHS categories 1 - 4
• Feature = clearance for forklift
• Customs tariff number = 94039910
• Country of origin = POL
• Gross weight = 196 kg
• Weight = 190 kg
• Sustainability = CO 2 footprint calculated
• Regulation-compliant storage of tank containers, drums and small containers
• Robust trays with zinc plated grates
• Safety for flammable and water-hazardous liquids
• Approved for GHS categories 1 - 3 and 1 - 4
• Suitable for indoor use
• Regulation-compliant storage and filling of water-hazardous and flammable liquids in tank containers
• With zinc plated filling attachment and storage shelf in front - for optimal filling of tank containers
• Our steel sump tray for IBC/KTC tank containers is the ideal solution for safe storage and dispensing of flammable and water-hazardous liquids
• The sump trays are made of tightly welded 3 mm sheet steel and meet the highest standards: they are certified in accordance with the StawaR declaration of conformity (ÜHP) and approved for flammable liquids of GHS categories 1 - 3 as well as for water-hazardous liquids of GHS categories 1 - 4
• Sump trays in a powder coated model are only suitable for indoor use
• Dimensions per filling attachment length x width 1250 x 1210 mm. height front / rear 430 / 493 mm.
