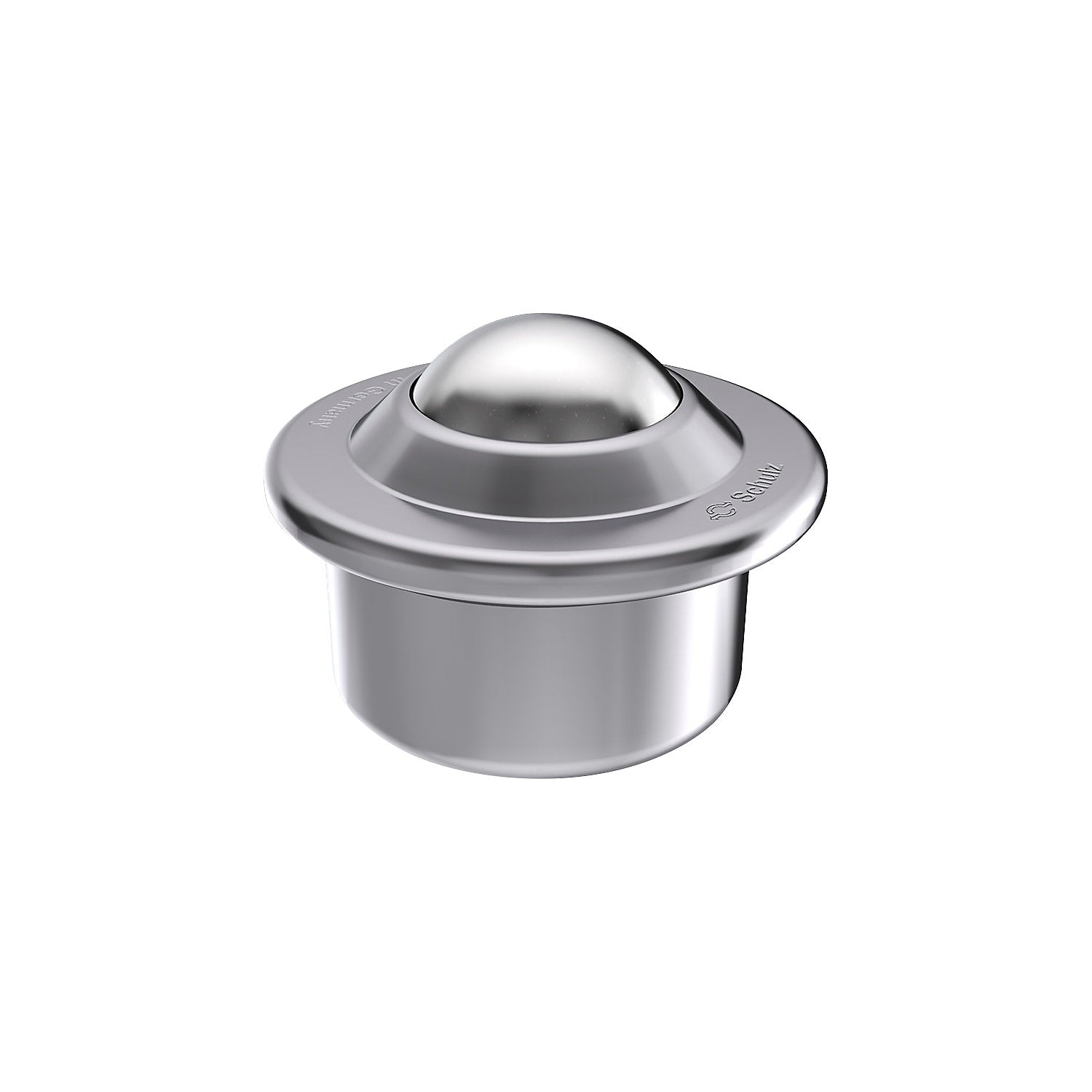

Ball unit, flange, steel, load bearing ball Ø 30 mm.

Estimated delivery: 29 days

Ball unit, flange, steel, load bearing ball Ø 30 mm

• Supplied = assembled
• Design of ball rollers = flange
• Ball diameter = 30 mm
• Effective load = 300 kg
• Roller material = steel (100Cr6)
• Housing material = sheet steel, electrolytically zinc plated
• Overall height = 37 mm
• Housing diameter = 45 mm
• Ball protrusion above table plane = 10.3 mm
• Max. speed = 2 m/s
• Flange diameter = 55 mm
• Installation height = 14 mm
• Product type = ball units
• Colour = silver
• Customs tariff number = 84829190
• Country of origin = DEU
• Gross weight = 0.455 kg
• Weight = 0.265 kg
• Sustainability = CO 2 footprint calculated
• For easy movement, rotation and positioning of loads with minimal effort
• Run smoothly with precise rolling characteristics
• Max. conveyor speed 3 m/s

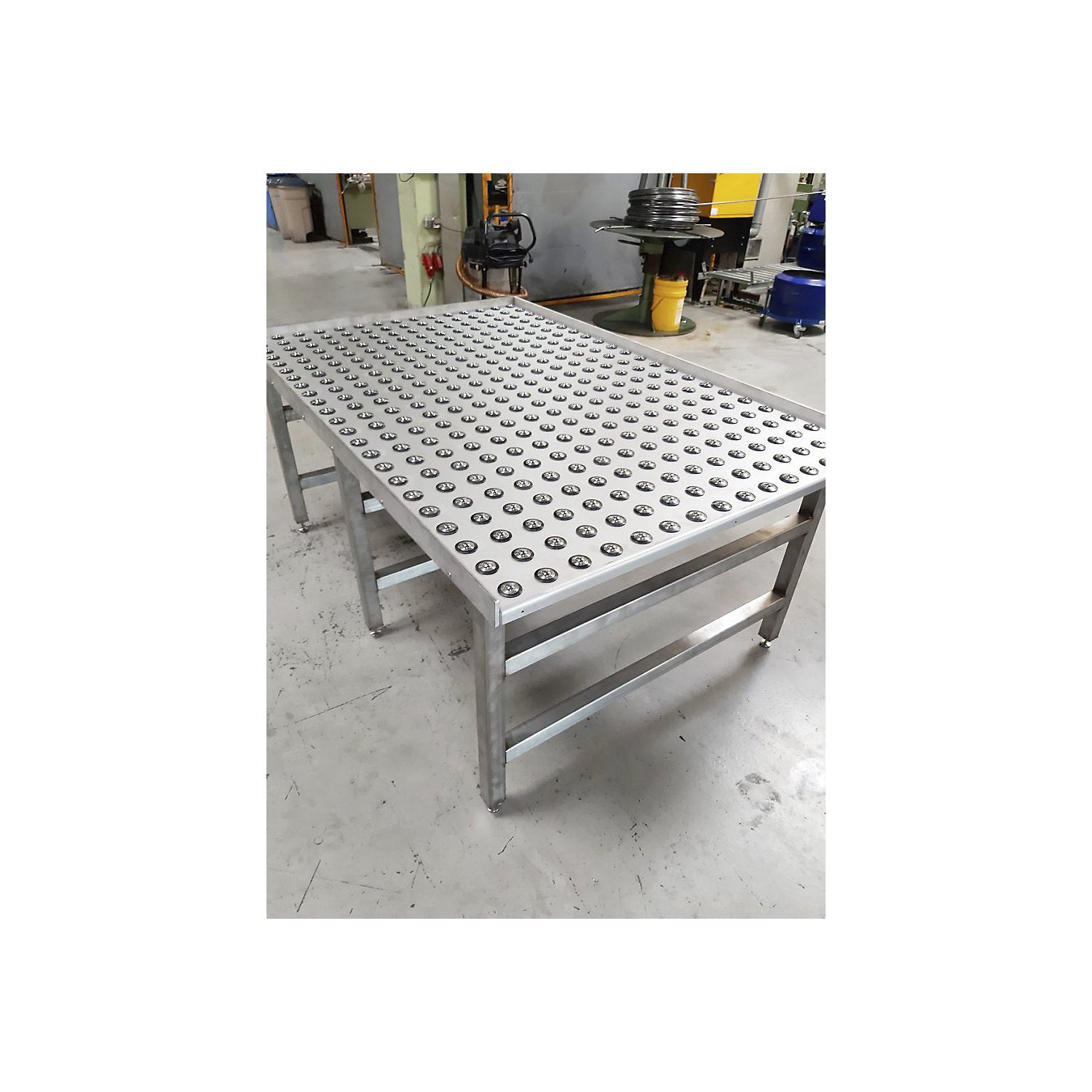

• These high quality ball units are suitable for transporting products and goods which require the option of being moved horizontally to all sides and being rotated around the vertical axis
• They guarantee low friction transport of materials on conveyor systems when a high load bearing capacity is required
• A change of direction can be realised quickly
• Our ball units are characterised by high temperature tolerance and impact resistance
• Ball unit with low overall height

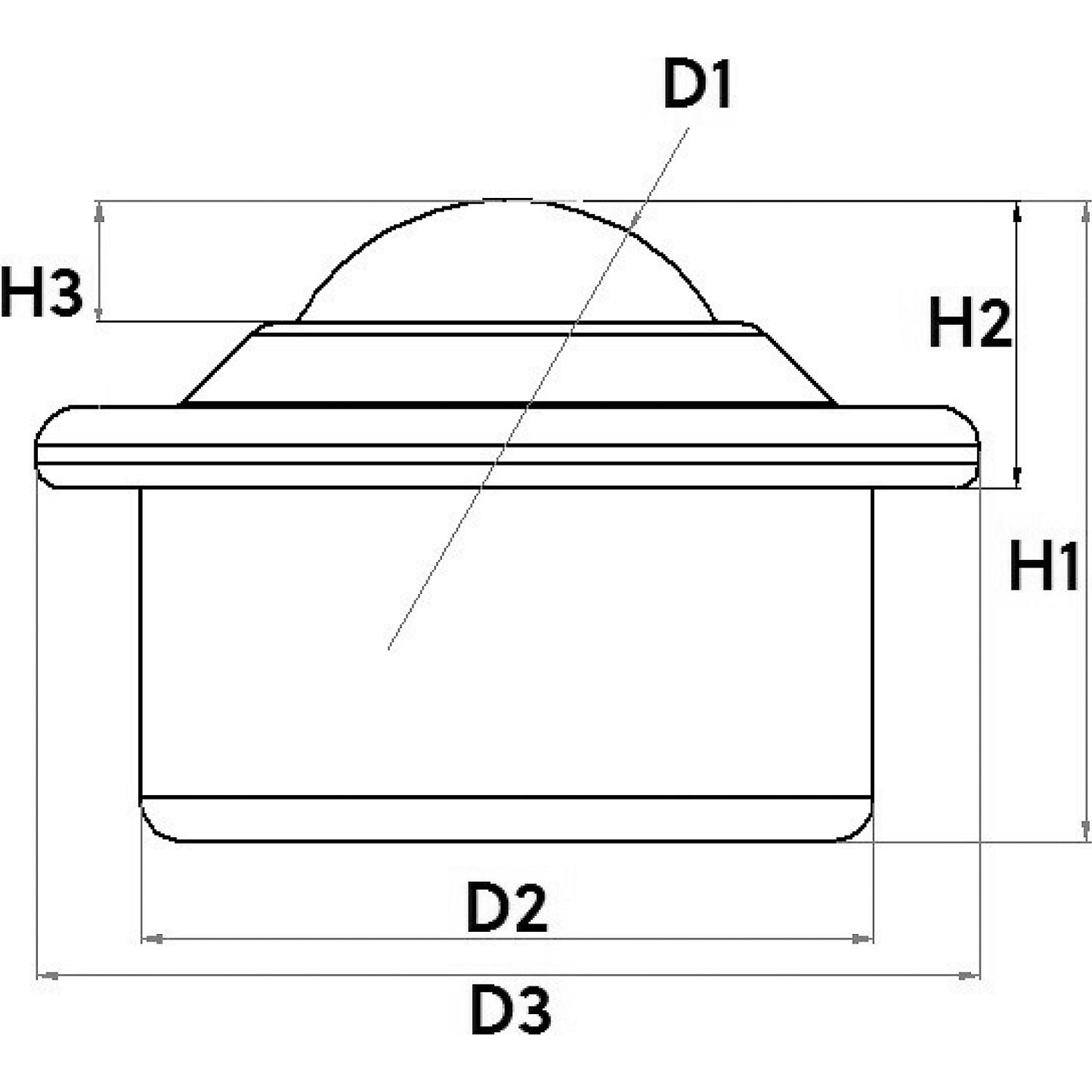

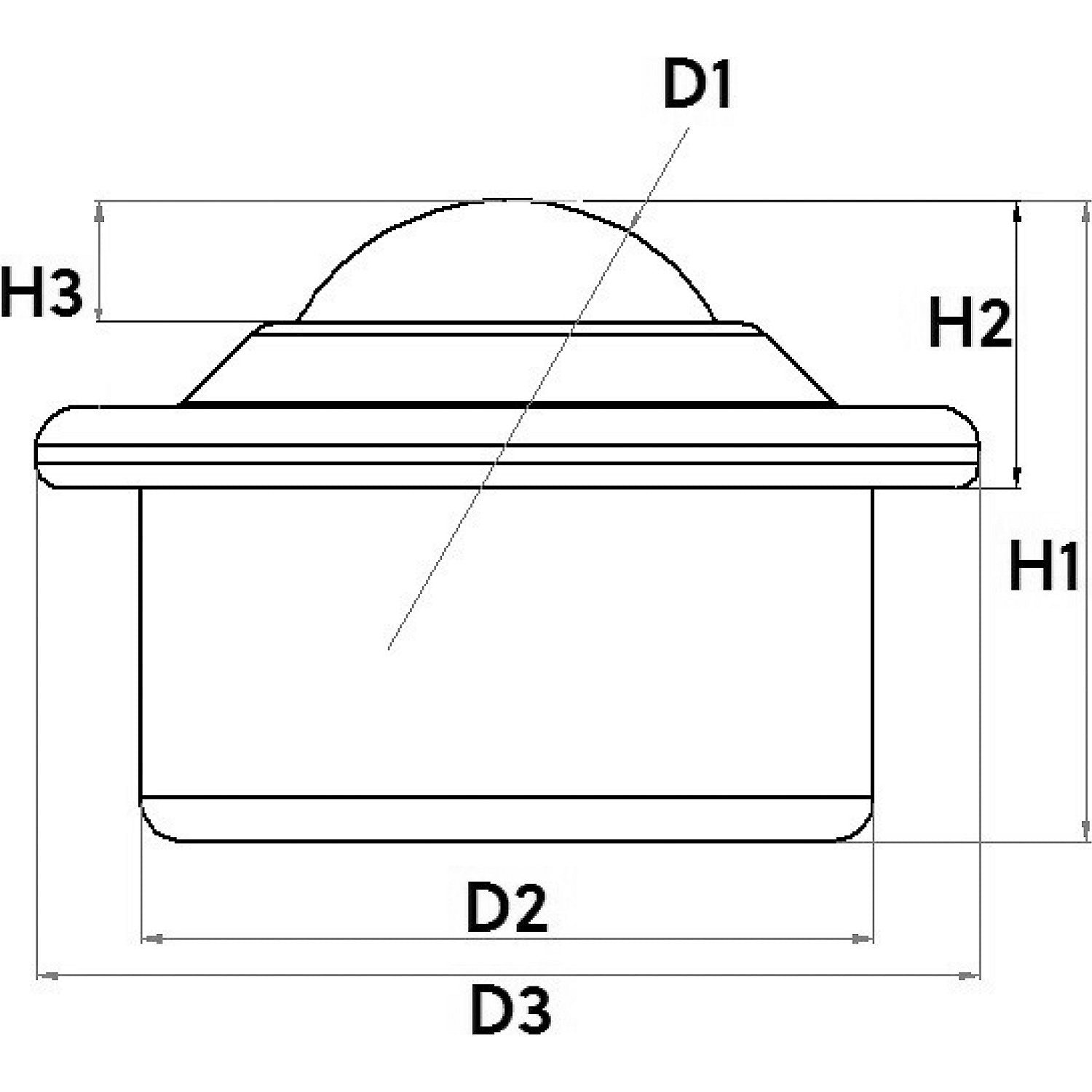

• D1= ball diameter D2= housing diameter D3= flange diameter H1= overall height H2= installation height H3= ball protrusion This is how to find the right ball unit to suit the load: Weight of the goods being conveyed / 3 = max. dynamic load of a ball unit Full stainless steel also available on request.
