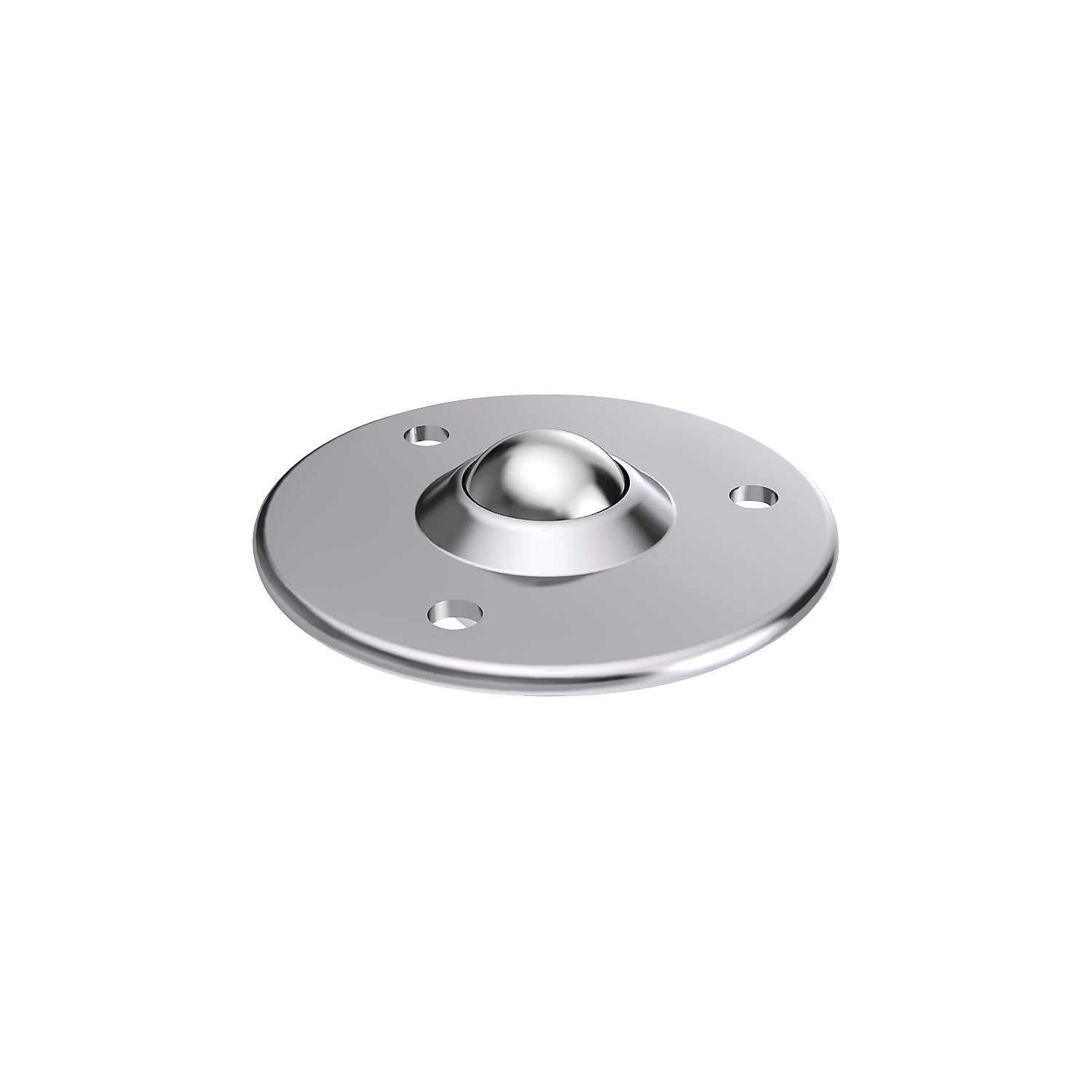

Ball unit, recessed, stainless steel, load bearing ball Ø 15 mm.

Estimated delivery: 44 days

Ball unit, recessed, stainless steel, load bearing ball Ø 15 mm

• Supplied = assembled
• Design of ball rollers = recessed
• Ball diameter = 15 mm
• Effective load = 12 kg
• Roller material = stainless steel (1.4430)
• Housing material = sheet steel, electrolytically zinc plated
• Overall height = 18.5 mm
• Housing diameter = 22.2 mm
• Max. speed = 2 m/s
• Circle of holes diameter = 30 mm
• Flange diameter = 41.3 mm
• Bore hole diameter = 3.5 mm
• Installation height = 10.2 mm
• Fastening drill holes = 2
• Product type = ball units
• Colour = silver
• Customs tariff number = 84829190
• Country of origin = DEU
• Gross weight = 0.17 kg
• Weight = 0.045 kg
• Sustainability = CO 2 footprint calculated
• For easy movement, rotation and positioning of loads with minimal effort
• Run smoothly with precise rolling characteristics
• Max. conveyor speed 3 m/s
• These high quality ball units are suitable for transporting products and goods which require the option of being moved horizontally to all sides and being rotated around the vertical axis
• They guarantee low friction transport of materials on conveyor systems when a high load bearing capacity is required
• A change of direction can be realised quickly
• Our ball units are characterised by high temperature tolerance and impact resistance
• Ball unit with low overall height

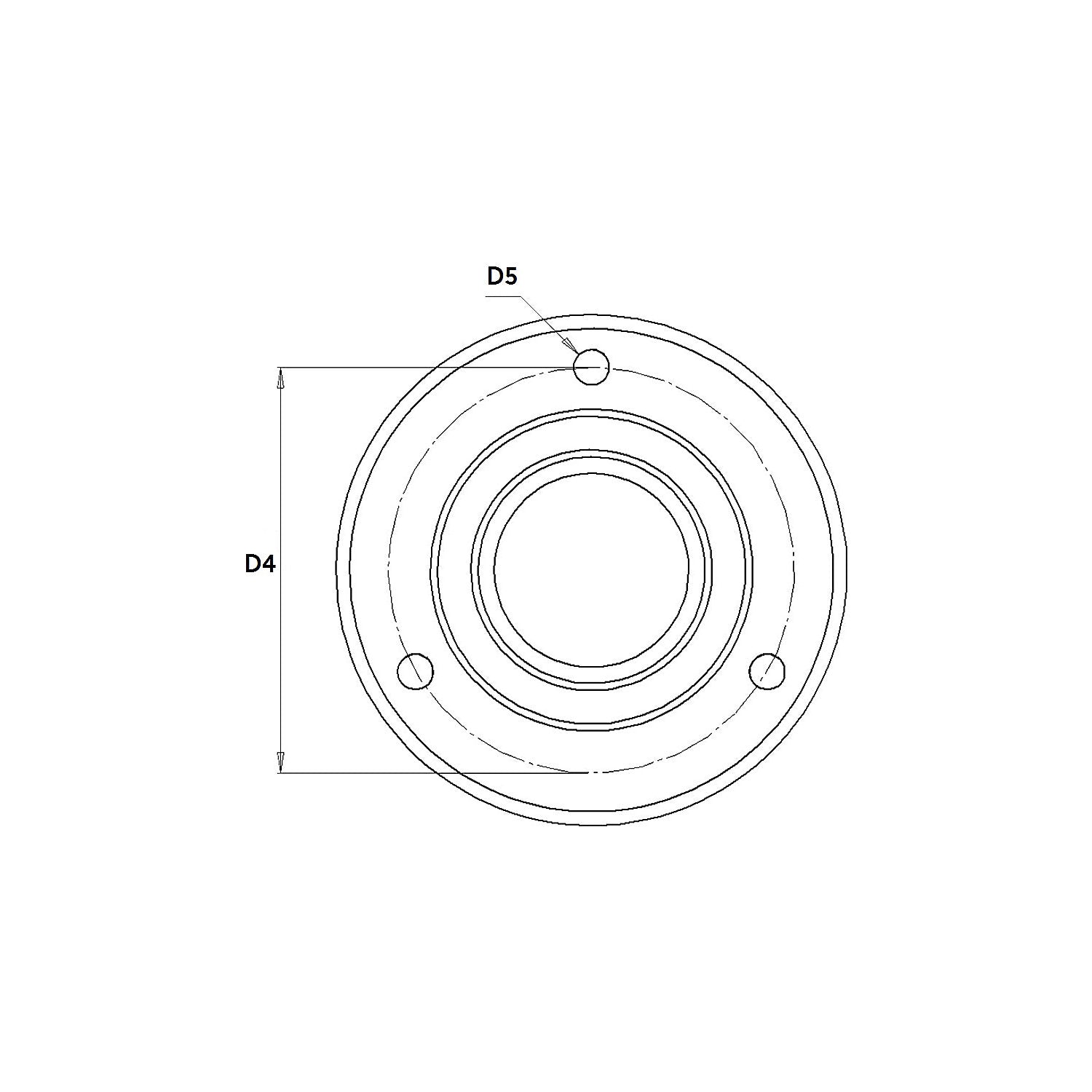

• D1= Ball diameter D2= Housing diameter D3= Flange diameter D4= Bolt circle diameter D5= Diameter of bores H1= overall height H2= Installation height This is how to find the right ball unit to suit the load: Weight of the goods being conveyed / 3 = max. dynamic load of a ball unit Full stainless steel also available on request.
