Ball roller table, overall height 70 mm, track width 600 mm, length 500 mm, spacing 75 mm.

Estimated delivery: 71 days

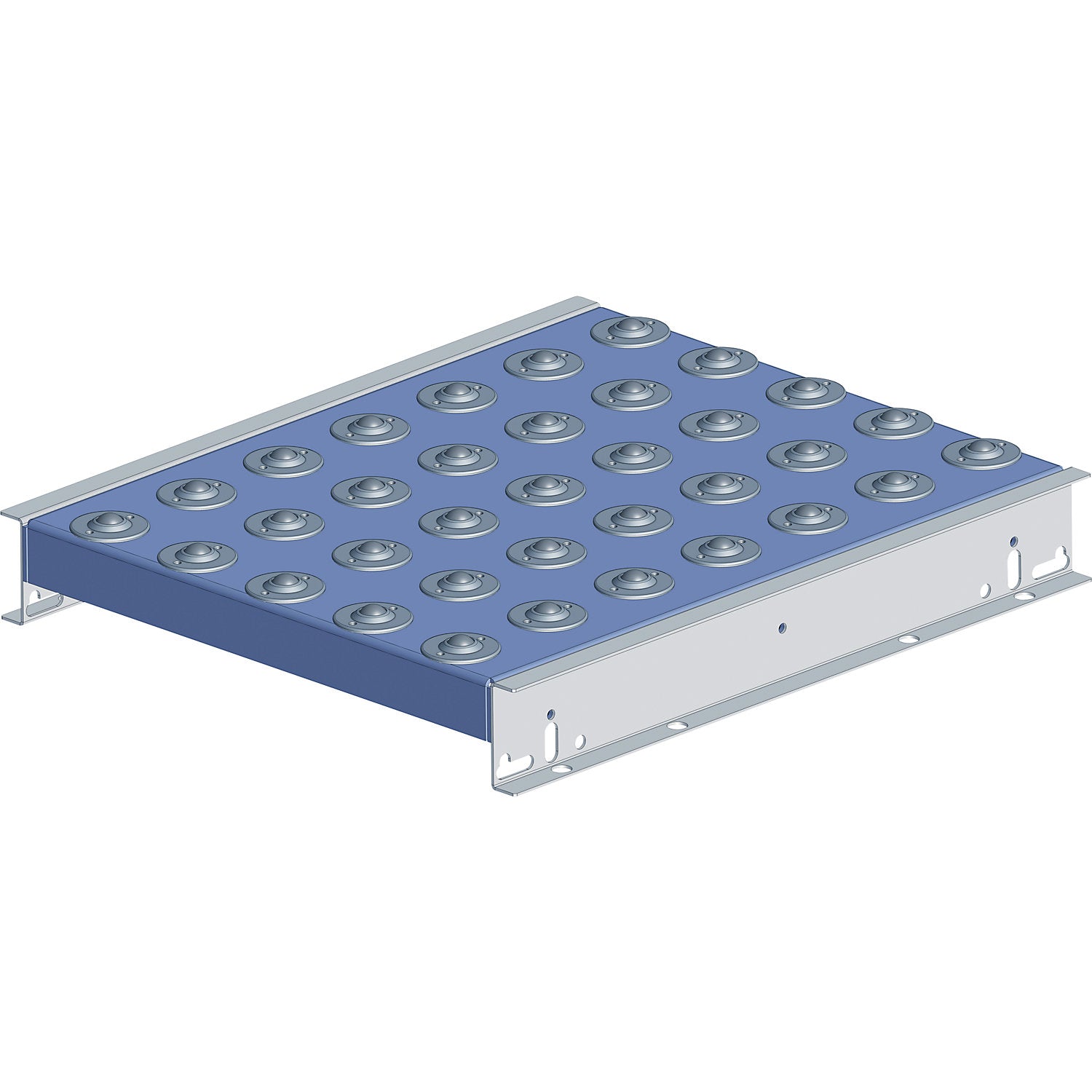

Ball roller table, overall height 70 mm, track width 600 mm, length 500 mm, spacing 75 mm

• Supplied = assembled
• Overall height = 70 mm
• Track width = 600 mm
• Length = 500 mm
• Spacing = 75 mm
• Ball diameter = 19 mm
• Width = 640 mm
• Effective load per ball = 30 kg
• Worktop material = sheet steel, galvanised
• Application = skate wheel and light-duty roller conveyors
• Product type = ball unit tables
• Colour = blue, silver
• Customs tariff number = 84289090
• Country of origin = DEU
• Gross weight = 15 kg
• Weight = 15 kg
• Sustainability = CO 2 footprint calculated
• Easy movement, heavy loads up to 200 kg can be effortlessly positioned
• Optimisation of the material flow in conveyor systems through ball transfer elements
• Suitable for solid and level floor surfaces for safe operation
• Use as an intersection element in gravity- and manually operated conveyor systems

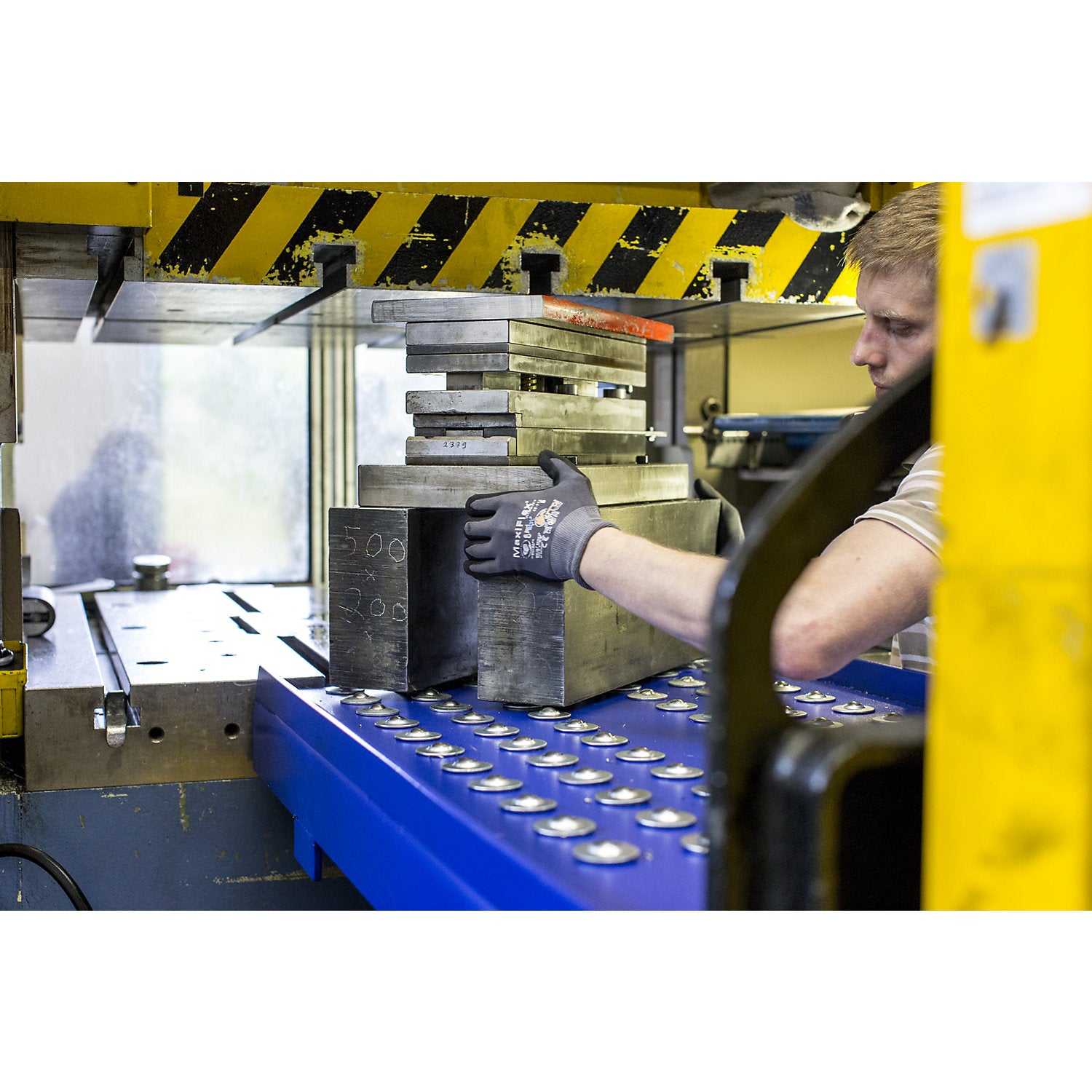

• Use as a work table with a zinc plated sheet steel tabletop for robustness
• Compact overall height 70 mm for space-saving integration
• The Schulz Stanztechnik ball transfer table, overall height 70 mm, is a compact work table and intersection element for gravity- and manually operated conveyor systems and carries loads up to 200 kg, making it a practical aid in conveyor systems and assembly areas
• Take advantage of the easy handling when moving, rotating and aligning heavy loads thanks to the ball rollers
• The table features a zinc plated sheet steel tabletop that offers robust support surfaces and supports suitability for solid, level floors
• Its use optimises the material flow in the conveying process and reduces the time required for repositioning
• The roller table is suitable for intralogistics, assembly workstations and areas with continuous material handling
• It enables a smooth transition between conveyor lines, minimises awkward lifting operations and relieves staff when aligning components
• Additional table widths, lengths and ball unit tables in special designs available on request.
