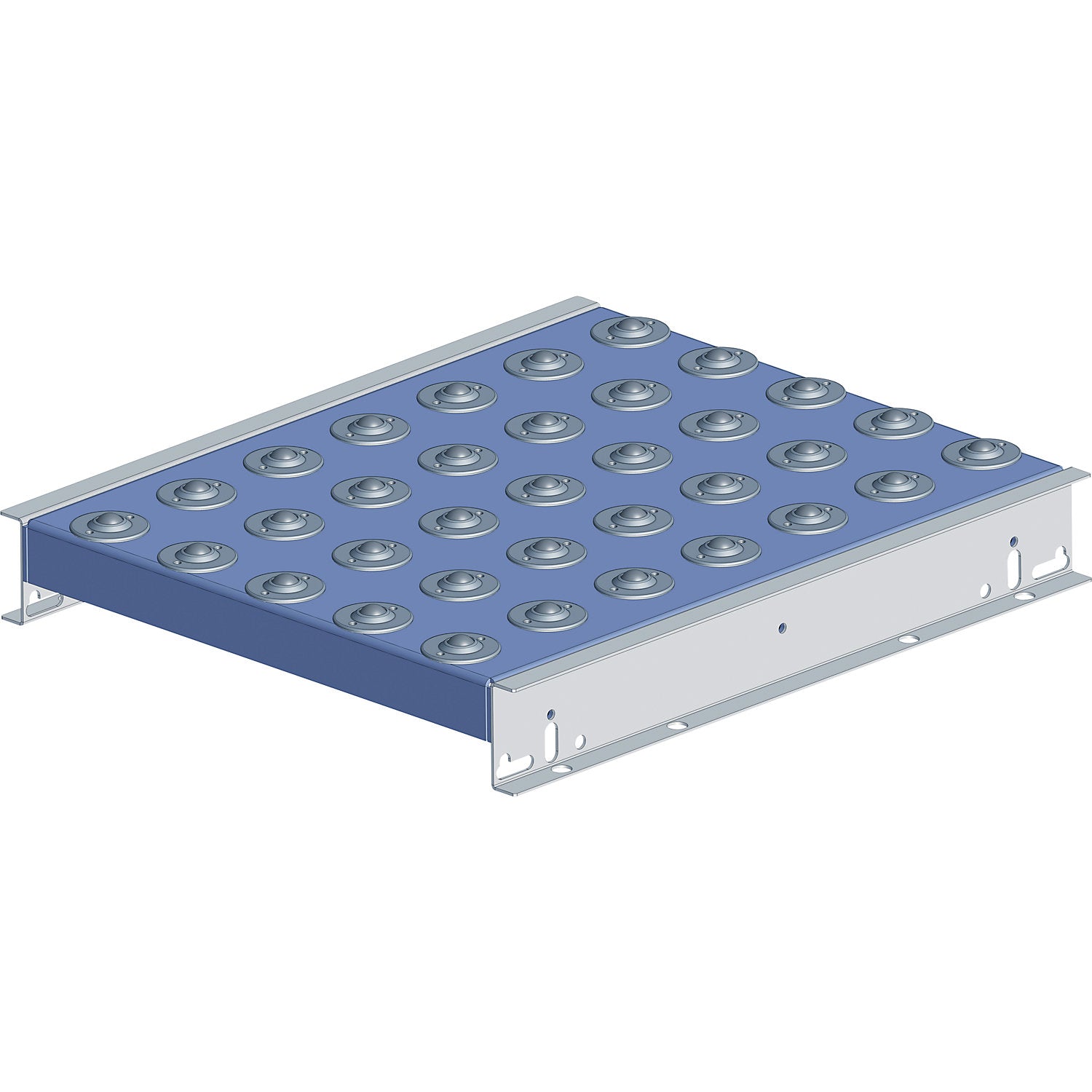

Ball roller table, overall height 70 mm, track width 750 mm, length 1000 mm, spacing 125 mm.

Estimated delivery: 66 days

Ball roller table, overall height 70 mm, track width 750 mm, length 1000 mm, spacing 125 mm

• Supplied = assembled
• Overall height = 70 mm
• Track width = 750 mm
• Length = 1000 mm
• Spacing = 125 mm
• Ball diameter = 19 mm
• Width = 790 mm
• Effective load per ball = 30 kg
• Worktop material = sheet steel, galvanised
• Application = heavy roller conveyors
• Product type = ball unit tables
• Colour = blue, silver
• Customs tariff number = 84289090
• Country of origin = DEU
• Gross weight = 31.5 kg
• Weight = 31.5 kg
• Sustainability = CO 2 footprint calculated
• Heavy loads are easy to move, rotate and align
• Optimally suited for solid and level floor surfaces
• Optimises the material flow in conveyor systems
• Ball unit tables are used as crossing elements for gravity conveyors and manually operated conveying systems

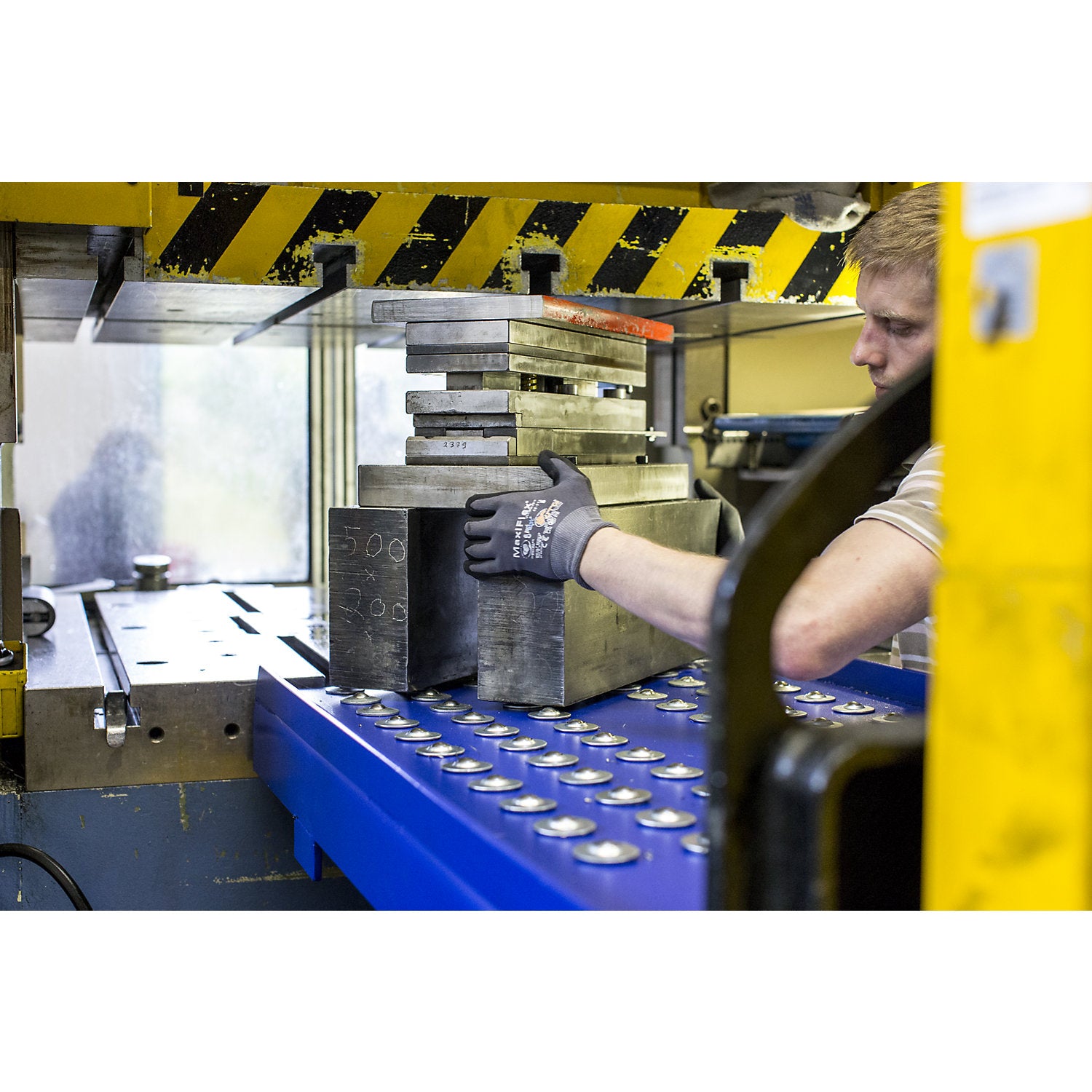

• Can also be used as a work table, the overall max. load totals 200 kg
• Additional table widths, lengths and ball unit tables in special designs available on request.
