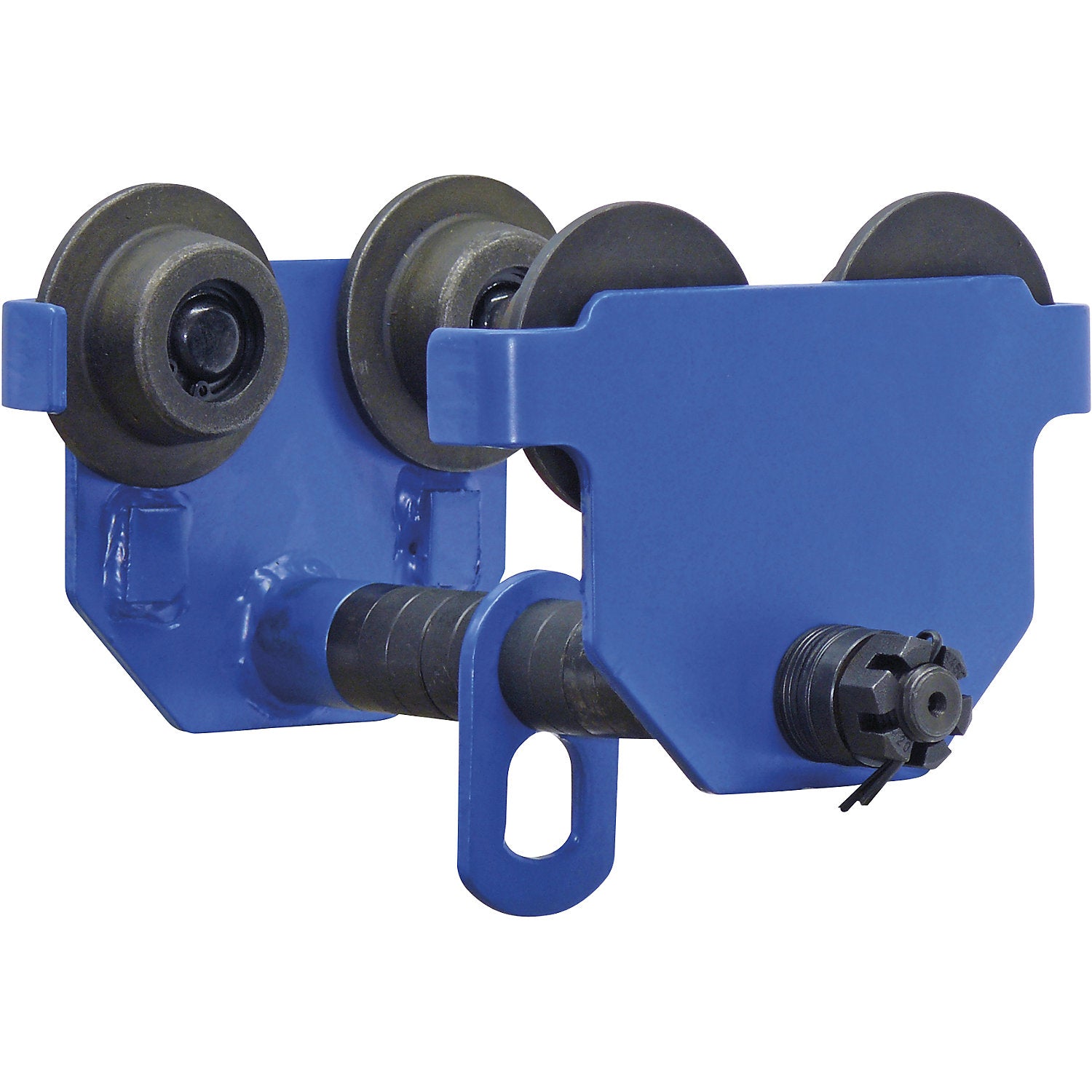

Manual beam trolley, adjustment width max. 203 mm, max. load 500 kg.

Estimated delivery: 41 days

Manual beam trolley, adjustment width max. 203 mm, max. load 500 kg

• Supplied = assembled
• Max. load = 500 kg
• Gripping range = 50 - 203 mm
• Weight = 7 kg
• Product type = manual drive dollies
• Colour = blue
• Material = steel
• Customs tariff number = 84311000
• Country of origin = CHN
• Gross weight = 8 kg
• Weight = 7 kg
• Sustainability = CO 2 footprint calculated
• For pulling or moving loads quickly
• Quiet running thanks to permanently lubricated quality ball bearings
• Balanced load distribution across four wheels
• Manual pulling and moving without a travel drive
• Quick installation by pushing onto the open beam
• Adjustment to various beams using spacer washers
• The manual beam trolley enables particularly smooth manual load transport along suitable beams
• This allows loads to be moved quickly and in a controlled manner to the desired location without an electric travel drive
• To move, the load is simply pushed or pulled
• The self-adjusting swinging movement around the pin axis distributes the weight evenly across four wheels
• As a result, the trolley runs stably on the beam and supports controlled movement
• Permanently lubricated quality ball bearings reduce rolling resistance while ensuring quiet, smooth running
• This facilitates frequent transport operations and reduces the physical effort required
• By repositioning the spacer washers, the manual beam trolley can be adjusted to different beam widths
• The maximum adjustment width is 203 mm
• For installation, the trolley is pushed onto the open beam and then adjusted to fit
• The trolley is suitable for workshops, production areas, warehouses and assembly workstations where loads must be moved regularly along a beam
• It handles transport tasks over short distances where a motorised drive is not required
• The simple adjustment also enables use on various suitable beam profiles.
