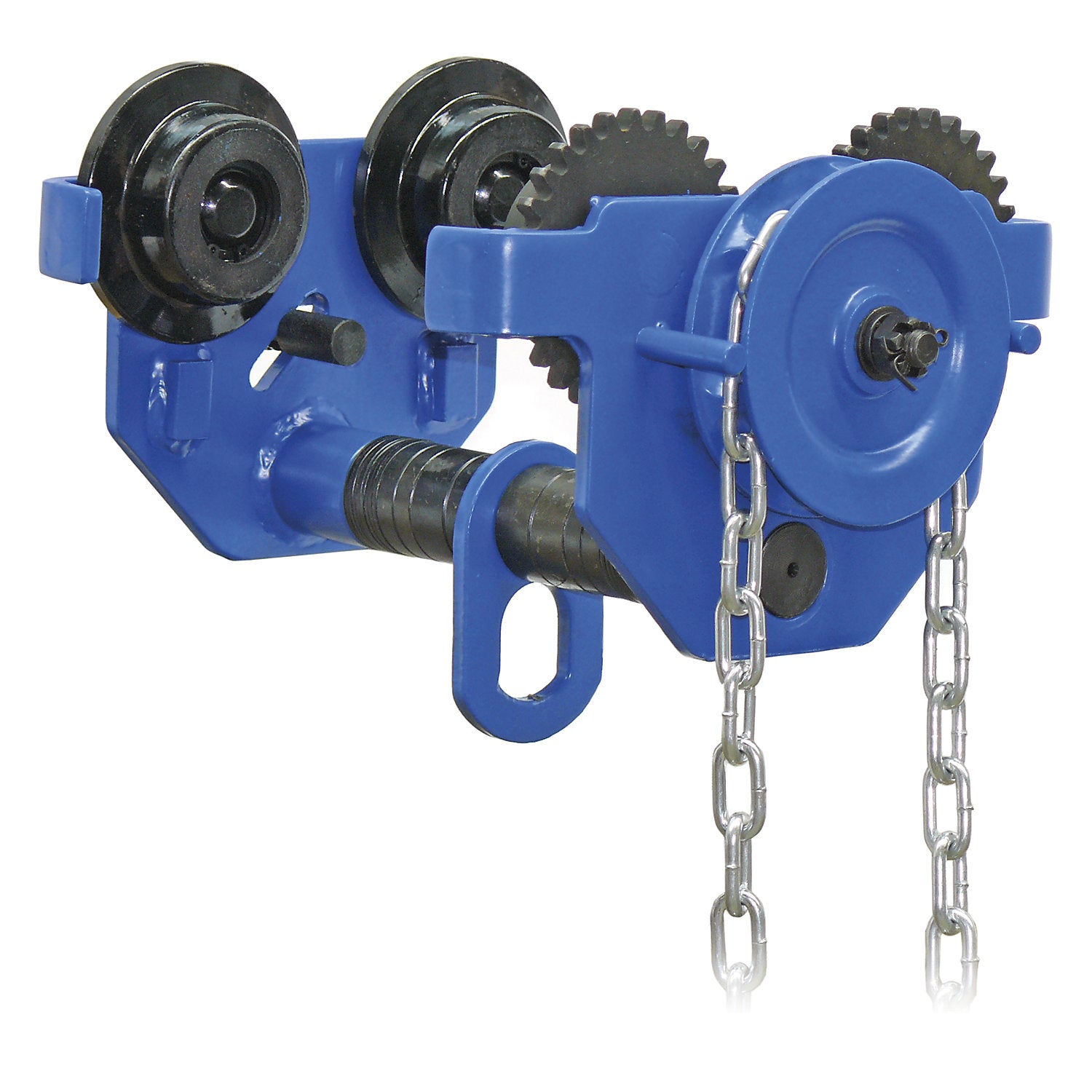

Chain hoist trolley, adjustment width max. 300 mm, max. load 500 kg.

Estimated delivery: 43 days

Chain hoist trolley, adjustment width max. 300 mm, max. load 500 kg

• Supplied = assembled
• Max. load = 500 kg
• Gripping range = 114 - 203 mm
• Weight = 46 kg
• Product type = chain hoist chassis
• Colour = blue
• Material = steel
• Customs tariff number = 84311000
• Country of origin = CHN
• Gross weight = 47 kg
• Weight = 46 kg
• Can be flexibly adapted to numerous beam widths
• Controlled pulling and moving of loads
• Easy installation on the open beam
• Smooth running on different beam profiles
• Anti-climb stop on both sides for increased operational safety
• Anti-drop protection and wheel breakage support
• The geared trolley combines smooth running with an adjustment range that can be flexibly adapted to different beams
• By changing the spacer washers, the trolley can be adjusted to numerous beam widths
• This facilitates use at different workstations and reduces the need for multiple trolleys
• Installation is straightforward by sliding it onto the open beam
• The hand chain then enables controlled pulling and moving of suspended loads along the beam track
• For the required operational safety, the geared trolley is equipped with an anti-climb stop on both sides
• This counteracts the rollers climbing up onto the beam
• Angled side plates additionally serve as anti-drop protection
• A standard integrated wheel breakage support increases safety if a roller is damaged
• The high-quality construction is designed for recurring daily operational tasks and ensures smooth, safe running on different beam profiles
• The trolley is suitable for workshops, production areas, warehouses and assembly workstations
• There, it supports the precise positioning of heavy loads and facilitates in-house transport and lifting operations in confined spaces.
