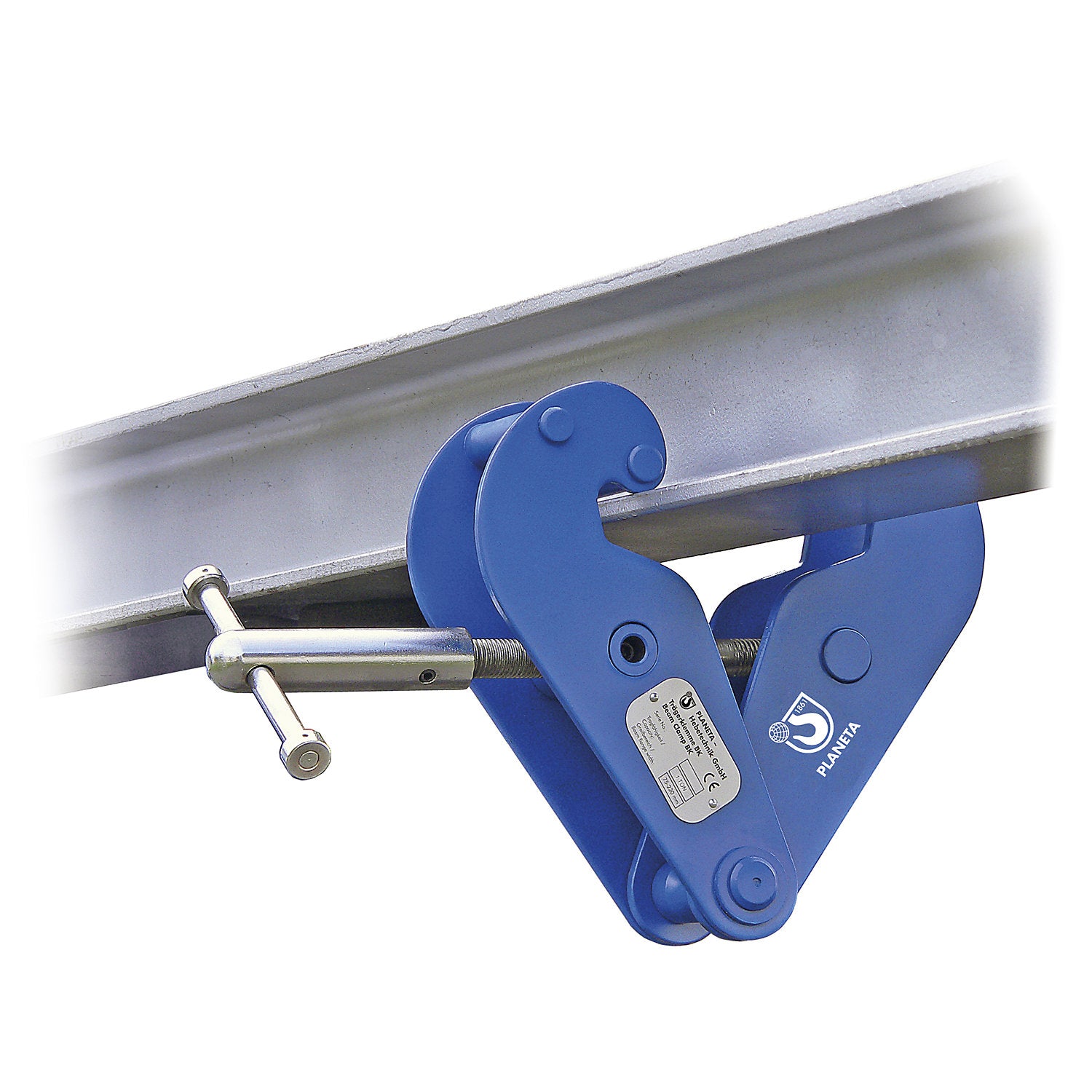

Girder clamp, clamping range 75 - 230 mm, max. load 2000 kg.

Estimated delivery: 43 days

Girder clamp, clamping range 75 - 230 mm, max. load 2000 kg

• Supplied = assembled
• Max. load = 2000 kg
• Gripping range = 75 - 230 mm
• Weight = 5 kg
• Product type = clamps
• Colour = blue
• Material = steel
• Customs tariff number = 84311000
• Country of origin = CHN
• Gross weight = 6 kg
• Weight = 5 kg
• Sustainability = CO 2 footprint calculated
• Flexible clamping ranges for different girders
• Short set-up times for assembly and repair work
• Easy adjustment to the required girder dimension
• Secure fixing to the bottom flange of the girder
• Attachment point for hoisting equipment and return pulleys
• Solid steel construction with zinc plated spindle
• The girder clamp quickly and securely creates a load-bearing attachment point on different girders
• This allows urgent assembly and repair work to be prepared with short set-up times
• Installation is deliberately kept simple
• First, the spindle is adjusted to the required girder dimension
• The girder clamp is then positioned on the bottom flange and screwed tight
• The flexible clamping range enables adaptation to different girder dimensions, thereby facilitating varied applications in the facility
• Hoisting equipment or return pulleys can then be attached at the intended attachment point
• This ensures a suitable fixing option is available even where no permanently installed attachment point exists
• The solid steel construction is designed for demanding working conditions
• A zinc plated spindle protects the heavily stressed component from corrosion and supports reliable operation
• At the same time, the uncomplicated operation reduces the time required for set-up and facilitates a swift change between different locations of use
• The anchor clamp is particularly suitable for workshops, production areas, construction sites and maintenance departments
• It supports skilled personnel during time-critical assembly tasks, repairs and temporary lifting jobs whenever a flexible attachment point on an existing girder is required.
