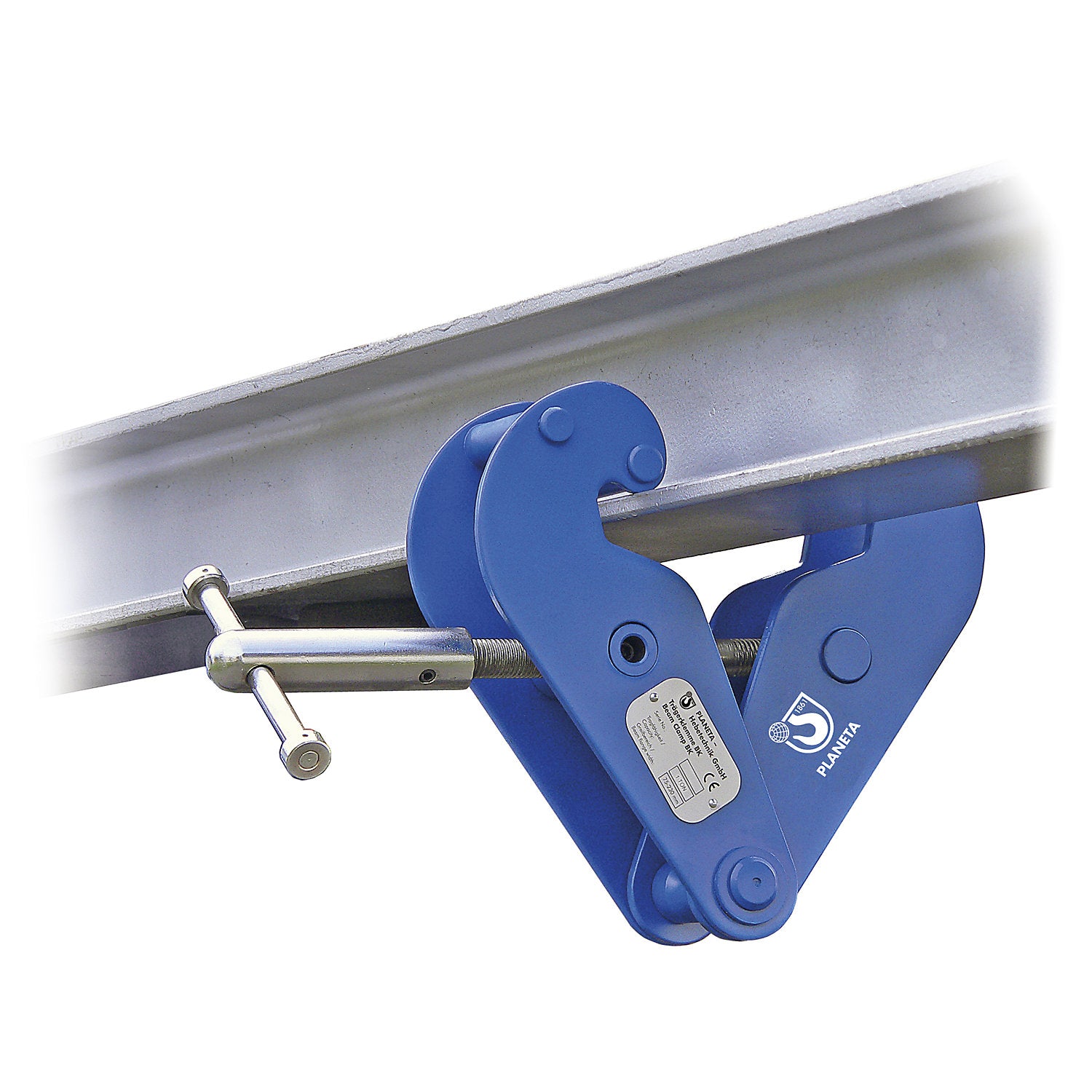

Girder clamp, clamping range 90 - 320 mm, max. load 5000 kg.

Estimated delivery: 36 days

Girder clamp, clamping range 90 - 320 mm, max. load 5000 kg

• Supplied = assembled
• Max. load = 5000 kg
• Gripping range = 90 - 320 mm
• Weight = 11 kg
• Product type = clamps
• Colour = blue
• Material = steel
• Customs tariff number = 84311000
• Country of origin = CHN
• Gross weight = 12 kg
• Weight = 11 kg
• Sustainability = CO 2 footprint calculated
• Attachment points for holding hoists and deflection pulleys on different girders by means of flexible clamping ranges
• Short set-up time for assembly and repair work
• Solid steel construction and zinc plated spindle
• The straightforward and safe solution for urgent tasks as well as assembly jobs
• Simple screw the spindle onto the beam clamp, attach it to the bottom flange of the beam and screw it tight.
