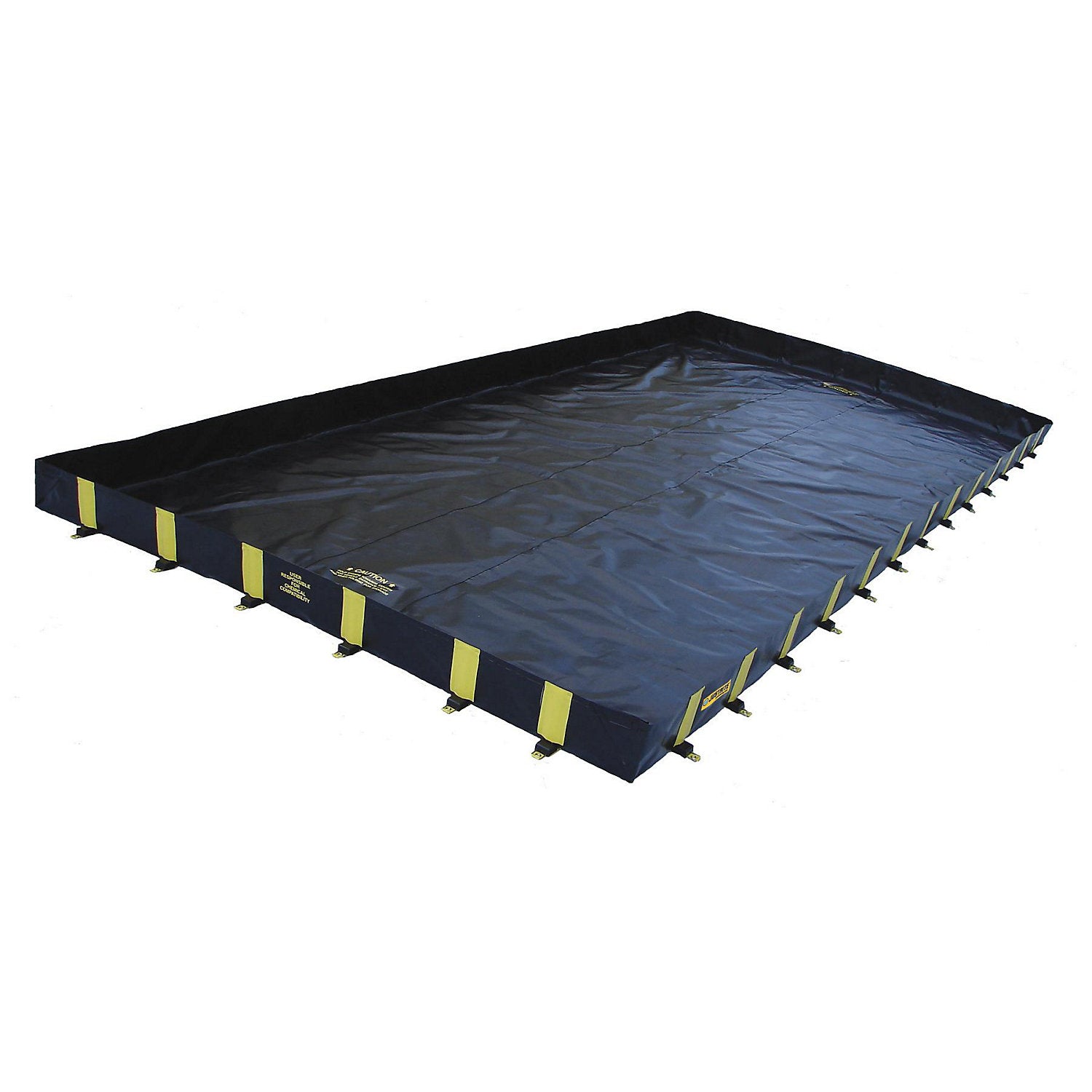

QuickBerm® XT rigid lock folding tray, for frequent traffic, LxW 17.1 x 4.3 m.

Estimated delivery: 35 days

QuickBerm® XT rigid lock folding tray, for frequent traffic, LxW 17.1 x 4.3 m

• Supplied = assembled
• Sump capacity = 22183 l
• Height = 305 mm
• Width = 4300 mm
• Depth = 17100 mm
• Material = PVC
• Weight = 145.9 kg
• Situation = reaction to leaks (emergency), leak prevention
• Feature = washable, folding, mobile, heavy duty
• Type of leakage = spilling, drip leaks
• Place of use = indoor and outdoor use
• Colour = black
• Product type = folding trays
• Customs tariff number = 73249000
• Country of origin = NLD
• Gross weight = 167.67 kg
• Weight = 145.9 kg
• Sustainability = CO 2 footprint calculated

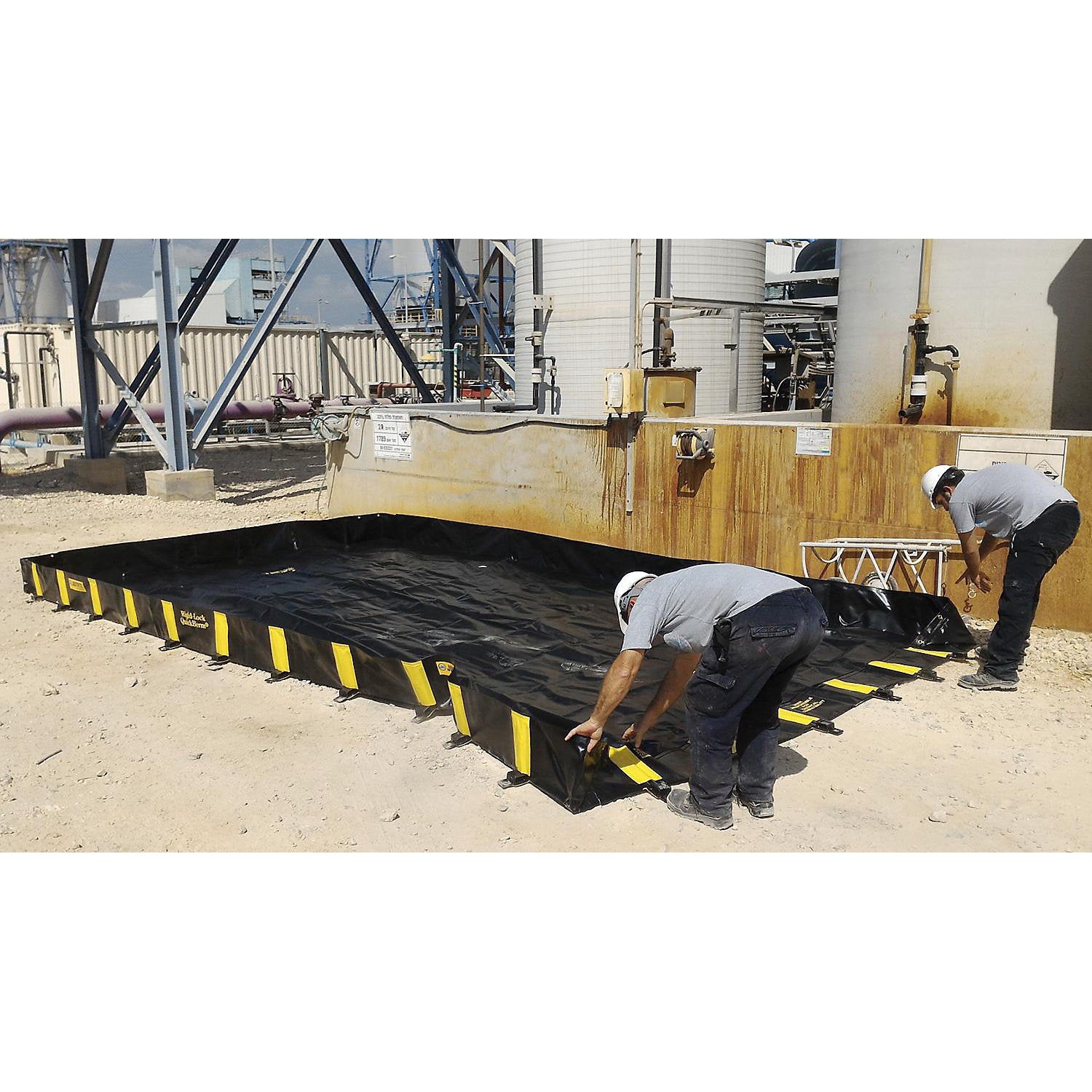

• Leakproof sump trays for drums, tank containers, tank lorries, etc. which can be driven frequently using a truck, stacker and drum truck
• Integrated mechanism keeps tray walls at a 90° position - pressing lightly erects the wall or bends it flat
• Reinforced, extremely robust, highly resistant to aggressive media, wear and punctures - safe, leakproof
• Folds for space saving and easy transport and storage
• Fast, easy use - no assembly required, for indoor and outdoor use
• Brass eyelets for floor anchoring (floor anchors not included)
• Rigid-Lock QuickBerm® XT folding sump tray - robust emergency sump tray for fast leakage management The Rigid-Lock QuickBerm® XT folding sump tray enables quick provision of containment capacity and supports effective leakage management in the event of unexpected liquid leaks
• Thanks to the integrated wall mechanism, the folding sump tray is ready for use within a very short time - entirely without assembly
• The liquid-tight emergency sump tray consists of an extremely robust, PVC-coated special tarpaulin with reinforced corners
• The material is resistant to aggressive media, abrasion and puncturing
• This makes the containment solution suitable for demanding indoor and outdoor applications
• An integrated mechanism keeps the walls securely in a 90° position
• The side walls can be raised or folded flat by pressing lightly
• In the reinforced, extremely robust Rigid-Lock QuickBerm® XT model, this allows the special tarpaulin to be driven over frequently by trucks, stackers or drum trucks
• When driving over the folded-down wall mechanism, wheel loads of up to 5000 kg are possible
• The folding sump tray is therefore suitable for drums, tank containers, tankers and other containers
• For flexible leakage management, the tray can be folded up to save space and easily transported or stored
• Brass eyelets allow ground anchoring for additional stability if required (ground anchors not included in delivery)
• As a pallet sump tray, it supports the rapid containment of leaks and provides safety during maintenance work, accidents or temporary storage and handling processes
• A protective tarpaulin under the tray extends the service life (accessories)
• Reinforced, extremely robust special tarps
• For frequent crossing with vehicles
• Observe the following for tray dimensions Outside 203 mm for supports
• Inside 305 mm in entry/exit area for folded-out walls
• Please note: customer specific custom made models (individual dimensions, up to 26 x 10 m) can be produced with ease - please enquire.
