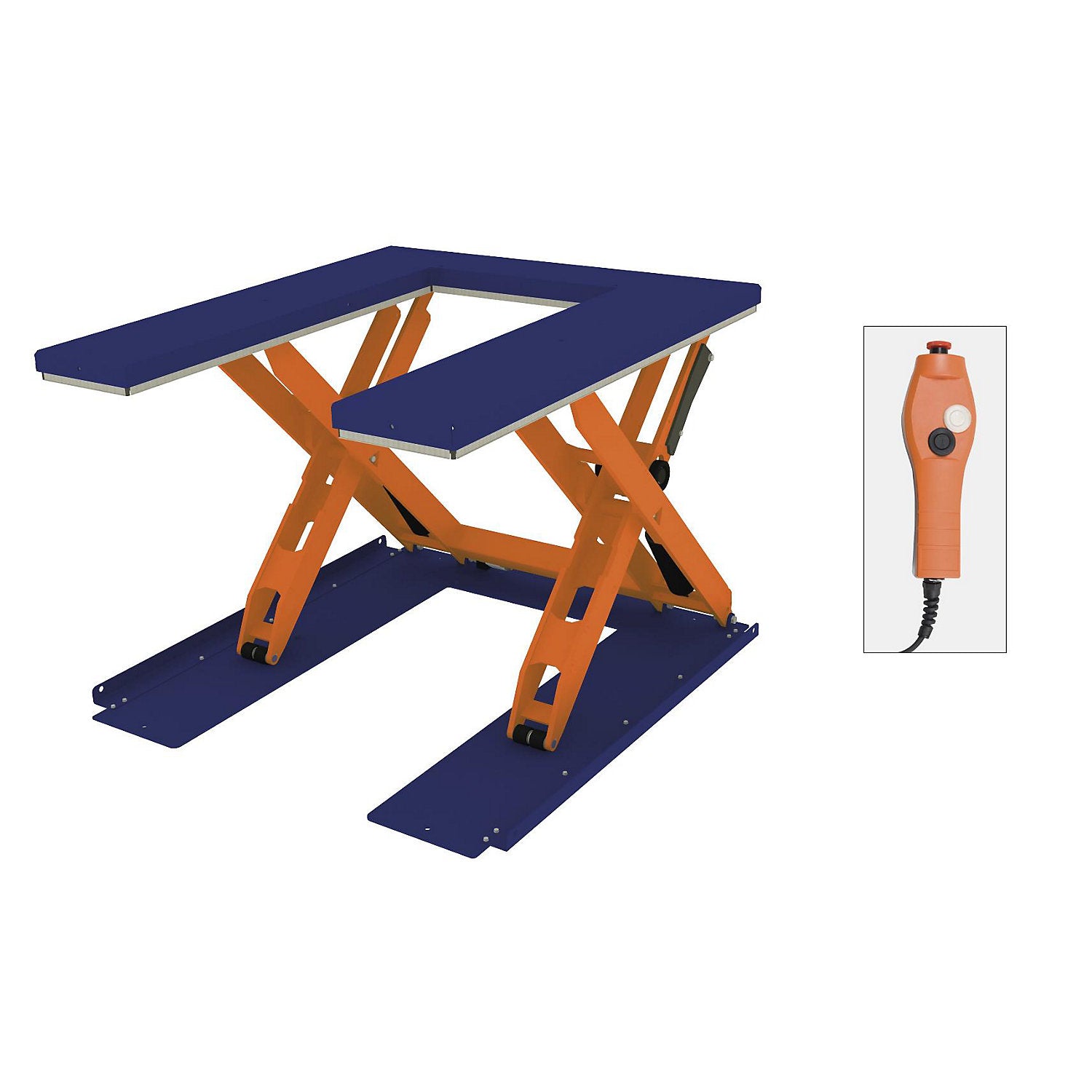

Low profile lift table, U-shape, platform width 1180 mm, manual control unit.

Estimated delivery: 71 days

Low profile lift table, U-shape, platform width 1180 mm, manual control unit

• Supplied = partially assembled
• Max. load = 2000 kg
• Lifting range = 100 - 920 mm
• Platform design = U-shaped
• Lifting time = 24 sec
• Power = 0.75 kW
• Operating voltage = 400 V
• Control voltage = 24 V
• Lift drive = electro-hydraulic
• Platform colour = ultramarine blue RAL 5002
• Platform material = sheet metal
• Material = steel
• Finish = powder coated
• Frame colour = signal orange RAL 2010
• Fittings = with hand operated control unit
• Internal width = 585 mm
• Lifting capacity at full load in 1 shift operations = 5 - 6 cycles per hour
• Lifting capacity at full load in multiple-shift operations = 5 - 6 cycles per hour
• Lifting time without load = 24 sec
• Lifting time with full load = 24 sec
• Platform width = 1180 mm
• Platform length = 1350 mm
• Feature = stationary, electro-hydraulic
• Customs tariff number = 84289090
• Country of origin = SWE
• Gross weight = 350 kg
• Weight = 330 kg
• Sustainability = CO 2 footprint calculated
• Increased lift range from a shorter platform
• No pit required
• Lifting eyelets in the base frame for problem free transport and installation
• Overload protection
• Maintenance free bearings
• The lift tables are only 100 mm high when lowered, so that no pit is required
• This increases the flexibility in terms of potential areas of use, and lowers installation costs
• These low profile lift tables ensure that the operating personnel always have the items at the right working height
• This contributes to making the workplace ergonomic
• All lift tables are fitted with safety rails and safety valves, and comply with EN 1570-1 as well as VDE requirements.
