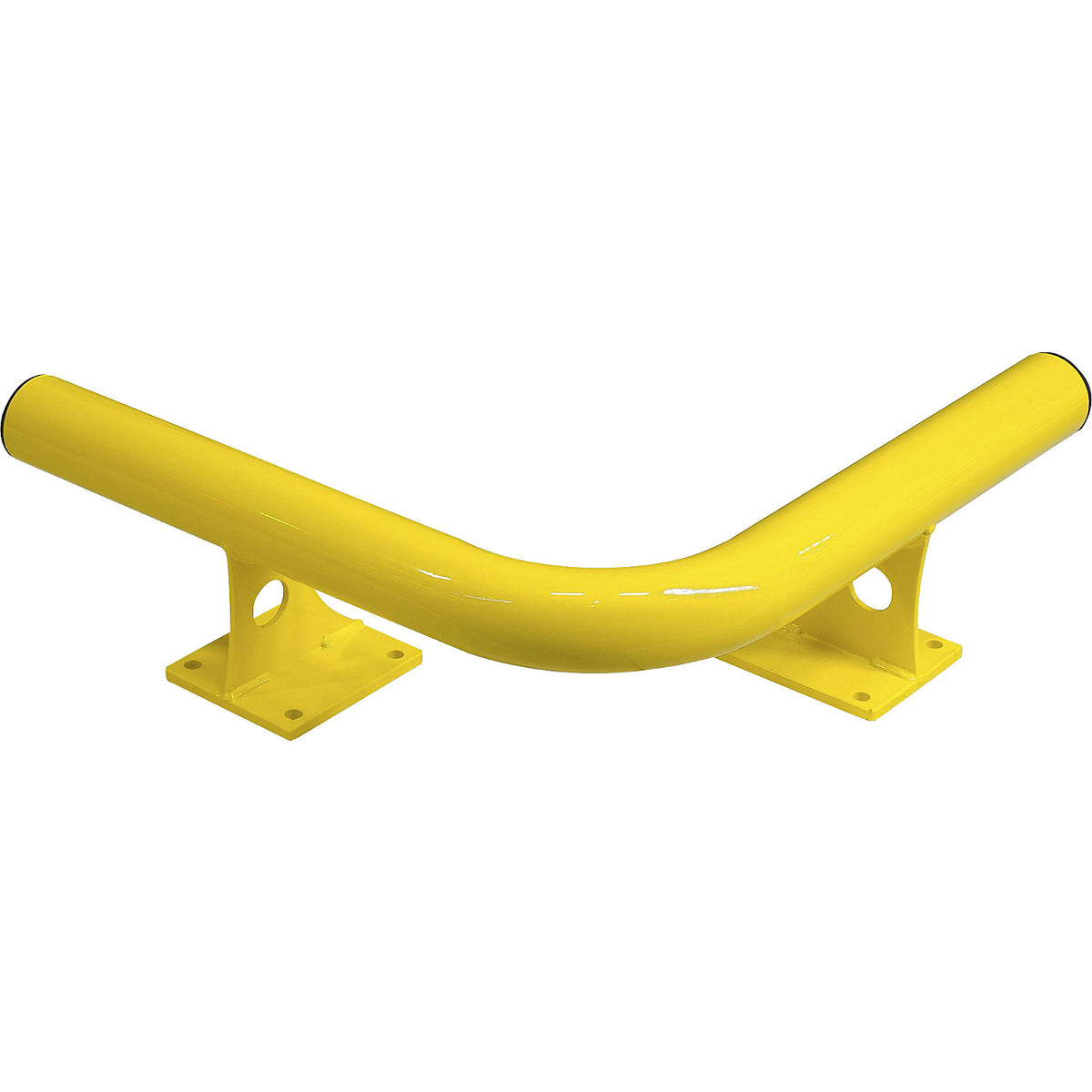

Impact protection barrier, to bolt in place, outside corner.

Estimated delivery: 40 days

Impact protection barrier, to bolt in place, outside corner

• Supplied = assembled
• Type of mounting = with base plate for bolting in place
• Model = outside corner

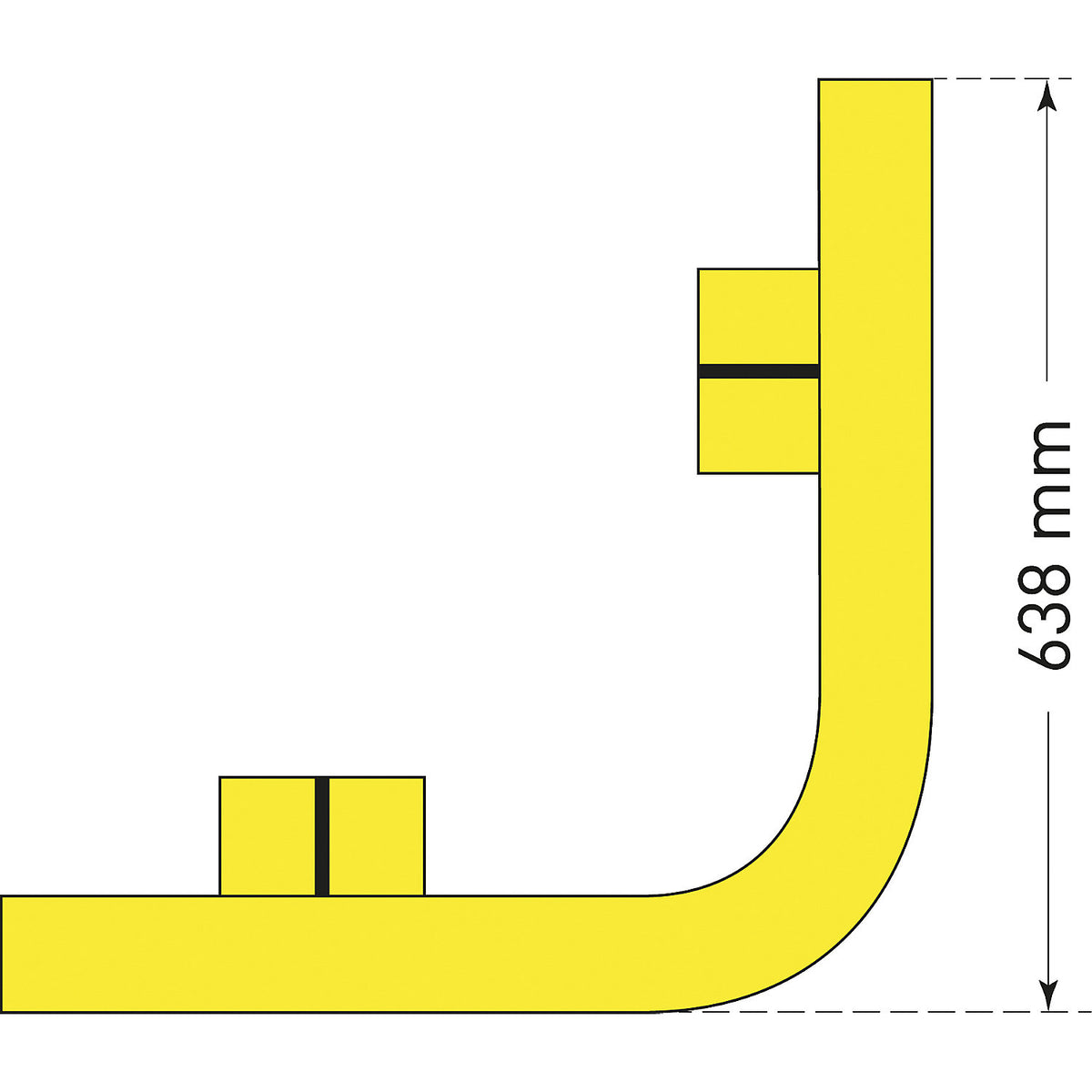

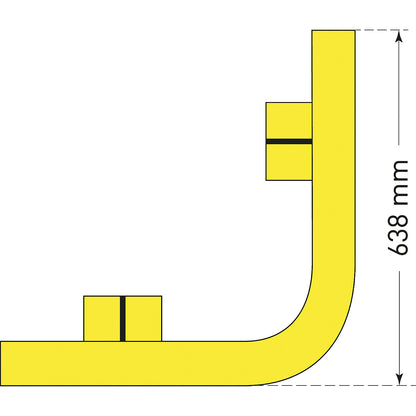

• Length = 638 mm
• Width = 638 mm
• Height = 200 mm
• Colour = yellow
• Material = steel
• Finish = plastic coated
• Base plate length = 160 mm
• Base plate width = 140 mm
• Panel thickness = 3 mm
• Tube diameter = 76 mm
• Base plate height = 10 mm
• Place of use = indoor use
• Height above ground = 200 mm
• Product type = ram protection beams
• Customs tariff number = 73089098
• Country of origin = DEU
• Gross weight = 19.2 kg
• Weight = 11 kg
• Sustainability = CO 2 footprint calculated
• Safe delineation and protection for traffic routes and inventory
• With cable guide - to protect cables and lines
• Robust steel construction
• Manufactured in accordance with DIN EN 1461, EN 1090-2 and ISO/TR 15608
• End-to-end installation possible with an adapter
• The newly developed guidance system made of steel separates traffic routes and protects machines, technical equipment, work areas and walkways
• The thick-walled steel tube is connected to solid base plates by metal webs
• Finished at the sides with black plastic caps (available further down under Accessories )

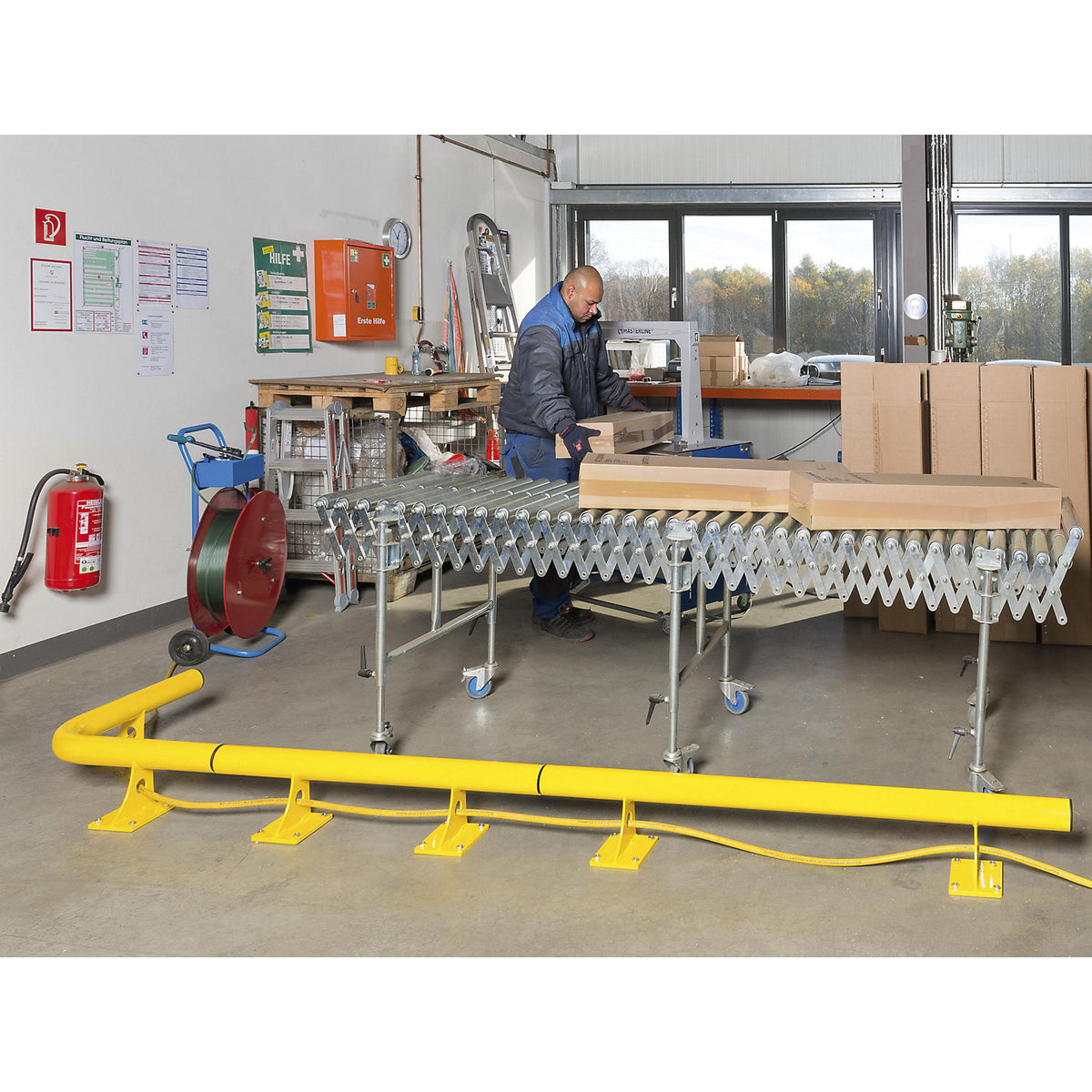

• There are two types of application: As a single barrier or in a continuous construction using an adapter that connects the tubes to each other
• Additionally with cable routing : Protects cables, pressure hoses and lines up to Ø 48 mm, which can be fed through the cut-outs in the webs
• Available in various lengths as well as an external or internal corner
• Dimensions: Wall thickness: 3 mm Tube diameter: 76 mm Base plates: L x W x H 160 x 140 x 10 mm
