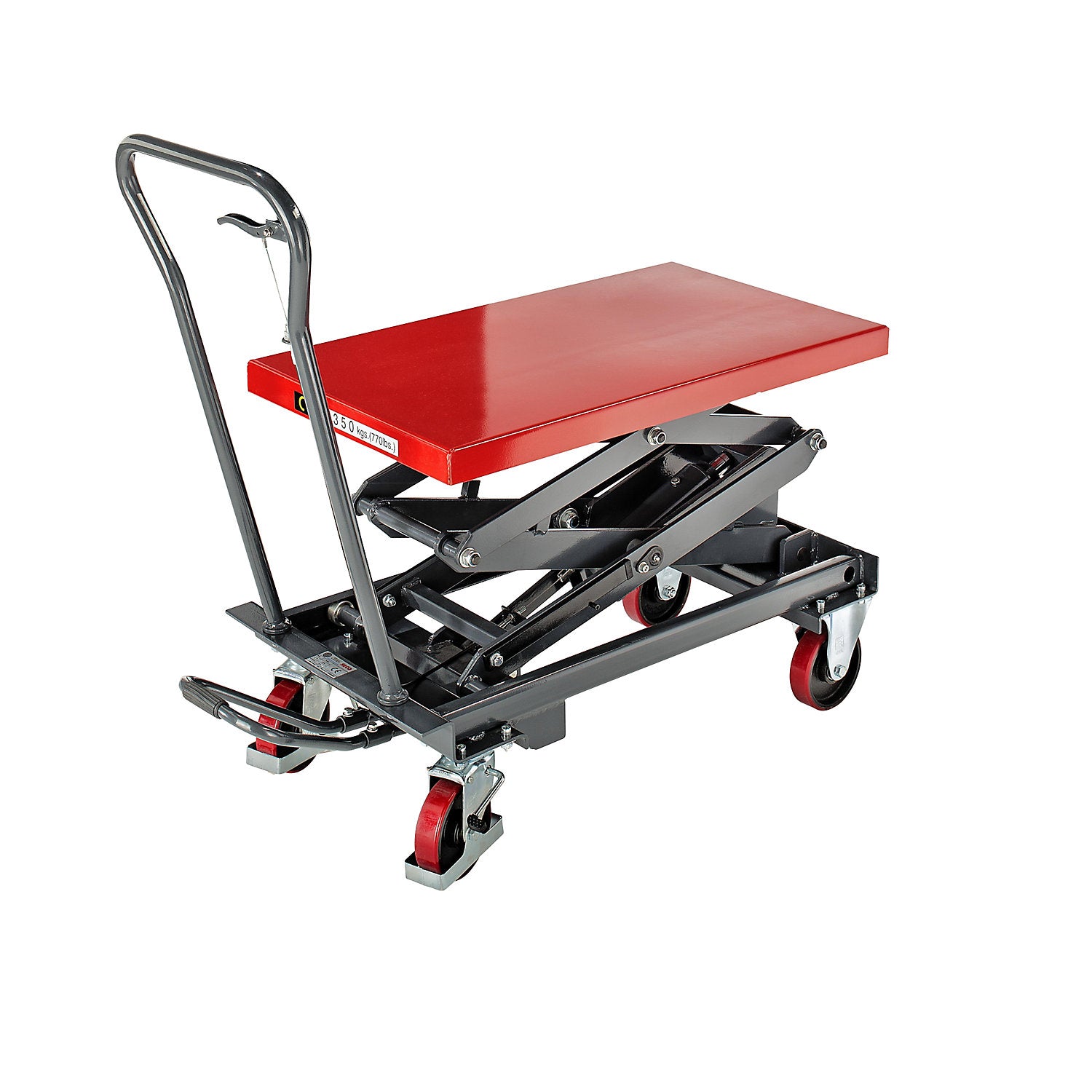

Lifting platform trolley, lifting range 435 - 1500 mm, max. load 350 kg.

Estimated delivery: 31 days

Lifting platform trolley, lifting range 435 - 1500 mm, max. load 350 kg

• Supplied = partially assembled
• Max. load = 350 kg
• Lifting range = 435 - 1500 mm
• Wheel material = polyurethane
• Feature = mobile, manual
• Platform length = 920 mm
• Platform width = 520 mm
• Length = 1170 mm
• Width = 520 mm
• Platform material = steel, powder coated
• Platform colour = signal red RAL 3001
• Lift per pedal stroke = 15.2 mm
• Frame colour = basalt grey RAL 7012
• Frame material = steel, powder coated
• Pedal strokes to max. lift = 70 pcs
• Lift drive = pedal hydraulics
• Wheel fittings = 2 swivel castors with foot protection and wheel stops, 2 fixed castors
• Wheel diameter = 150 mm
• Wheel bearing = ball bearing
• Customs tariff number = 84279000
• Country of origin = CHN
• Gross weight = 130 kg
• Weight = 125 kg
• Sustainability = CO 2 footprint calculated
• With double scissor mechanism
• Standard units in reliable quality
• Lift, lower, transport
• Ergonomic work at the right working height

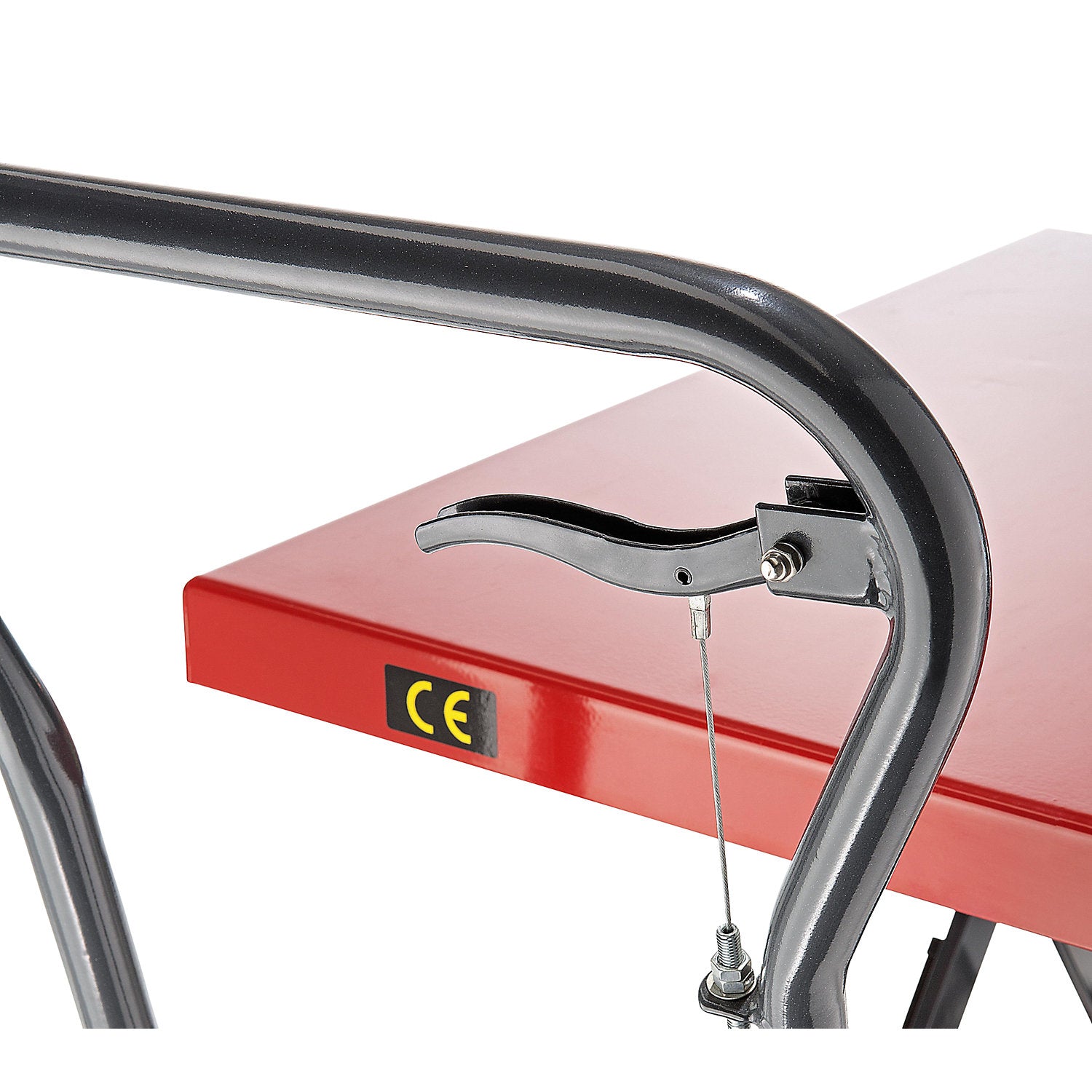

• Lift with pump pedal, precise manual control of lowering
• Durable and sophisticated devices
• Service-friendly, with inspection supports
• Powder coated in basalt grey RAL 7012 and signal red RAL 3001
• Wheels 2 swivel castors with foot protection and wheel stop and 2 fixed castors
• All castors with non-marking polyurethane tyres
• Model with extra large lifting height.
