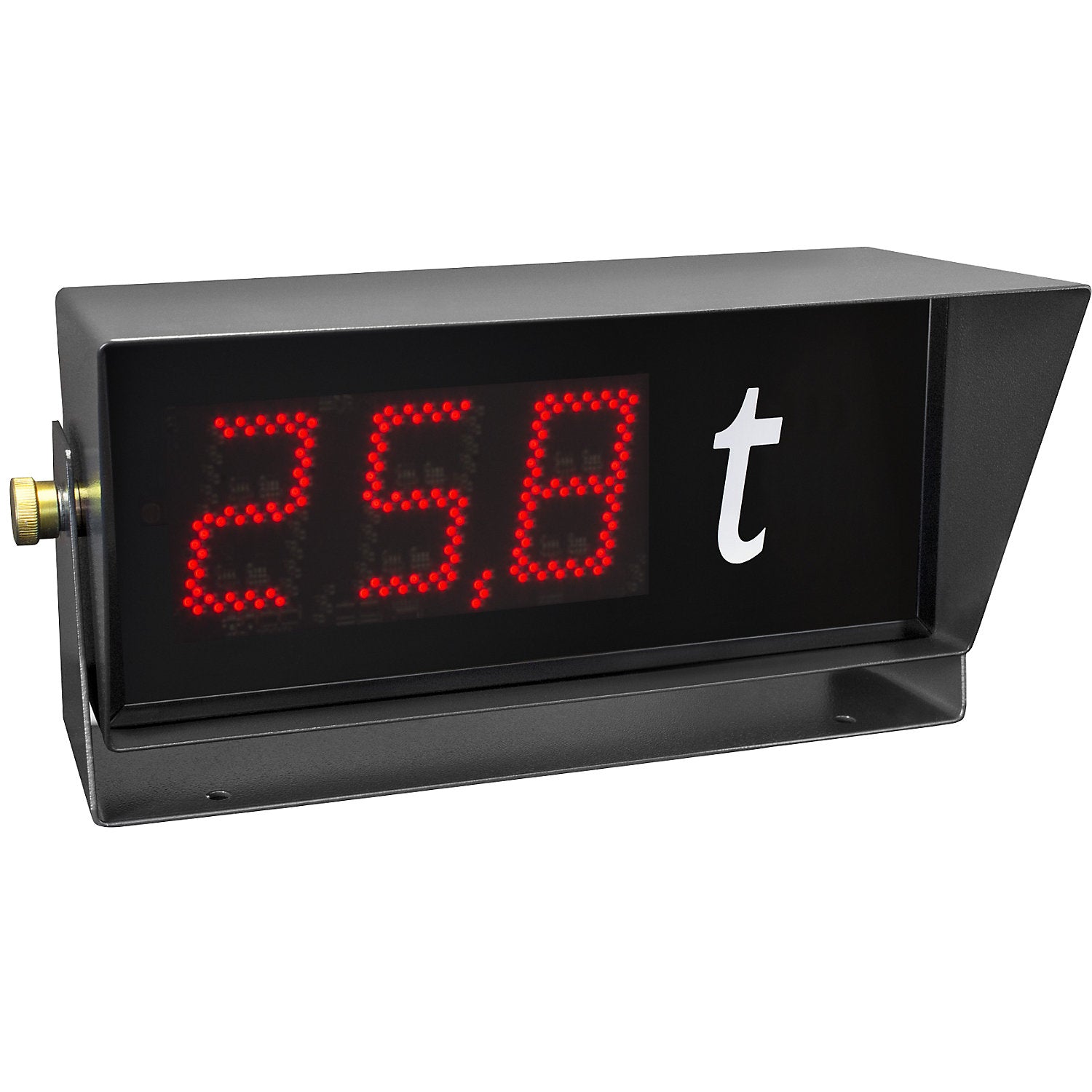

LED industry display NDI 100/3, HxWxD 220 x 513 x 210 mm, 3 digits, black.

Estimated delivery: 66 days

LED industry display NDI 100/3, HxWxD 220 x 513 x 210 mm, 3 digits, black

• Supplied = assembled
• Width = 513 mm
• Height = 220 mm
• Depth = 210 mm
• Colour = black
• Housing material = sheet steel, galvanised
• Product type = industrial displays for indoors
• Customs tariff number = 85312020
• Country of origin = CZE
• Gross weight = 14.1 kg
• Weight = 12.5 kg
• Ultra-bright LED display with a reading distance of approx. 40 m
• Housing made of zinc-plated, double-walled sheet steel with protection class IP65
• Shock-mounted electronics
• Analogue interface 4x20 mA. 3-character display with fixed labelling and unit selection
• Non-reflective front screen for outdoor use
• The LED industrial display NDI 100/3 is a robust 1-line industrial display with a 100 mm character height and an ultra-bright 7-segment LED display, designed for outdoor use
• The display offers a large reading distance of approx. 40 m and is therefore also well suited for distant measuring points
• Use the buffered electronics for stable operation under demanding conditions
• The housing made of zinc plated, double-walled sheet steel with a powder coated surface in black protects the electronics and ensures a resistant outer skin
• The anti-reflective front screen improves legibility in varying light conditions
• The display has an analogue interface 4 x 20 mA and an input connector for the mains cable, so that it can be integrated into existing measuring and control systems
• The model H offers special adaptations to outdoor light conditions and an appliance class of IP65
• The power supply is 230 VAC / 50/60 Hz
• The display is particularly suitable for businesses that need to display measured values visibly and permanently, for example weighing technology or process visualisation
• It offers three characters plus a fixed label in a selectable unit (g, kg or t)
• The robust design and the buffered electronics minimise failures caused by environmental influences and vibrations
• The compact, single-line display facilitates quick visual checks from a distance
• Due to the standardised interface, the device is easy for integrators and technical operators to integrate.
