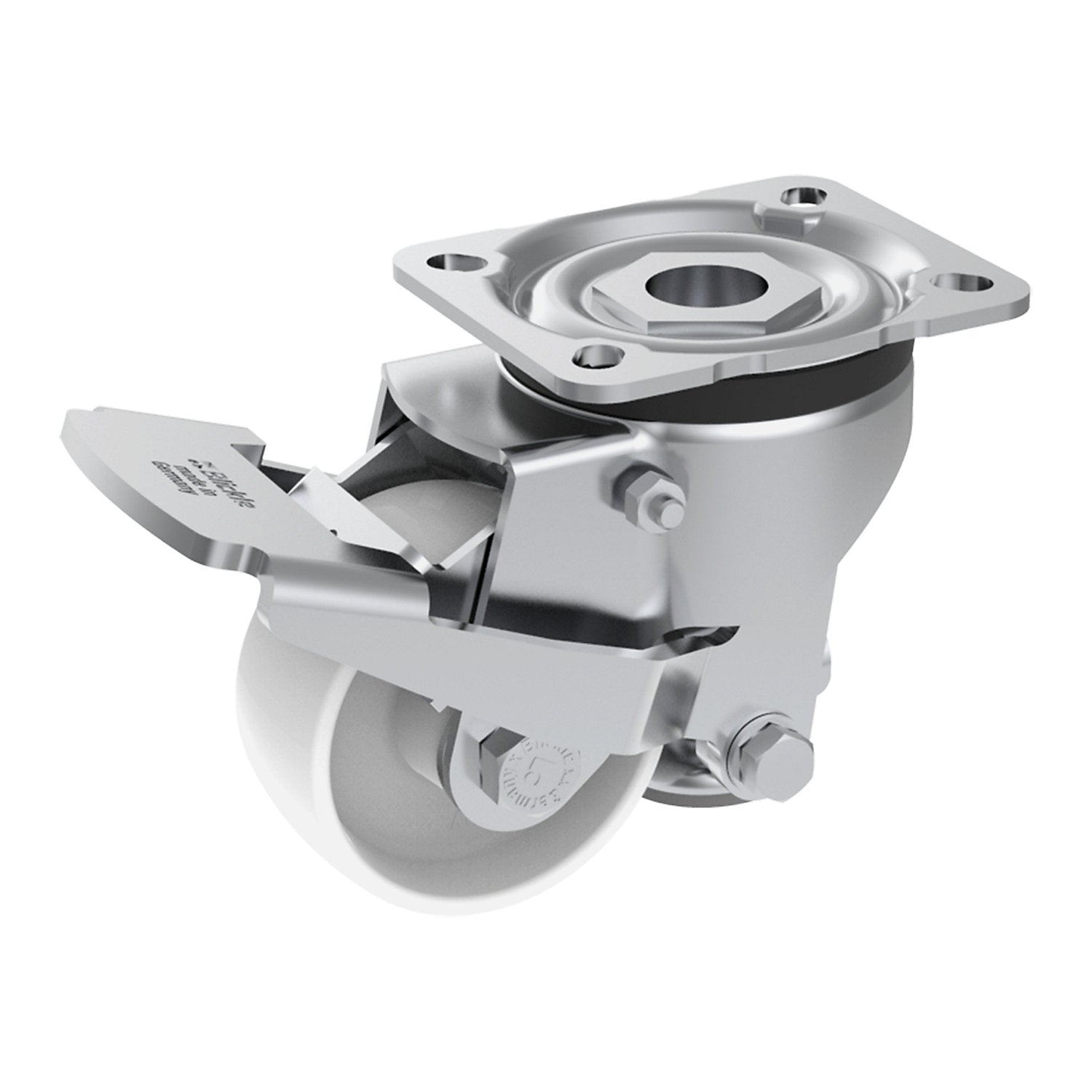

Levelling swivel castor, height adjustable locking foot, nylon, max. load 230 kg, Ø x W 80 x 37 mm.

Estimated delivery: 35 days

Levelling swivel castor, height adjustable locking foot, nylon, max. load 230 kg, Ø x W 80 x 37 mm

• Supplied = assembled
• Wheel diameter = 80 mm
• Structure = swivel castor
• Wheel material = plastic - nylon
• Material of rim = nylon
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 230 kg
• Wheel width = 37 mm
• Overall height = 121 mm
• Wheel bearing = plain bearing
• Temperature resistance = -25 °C to +80 °C
• Swivel castor offset = 56 mm
• Screw hole diameter = 9 mm
• Model = levelling castors
• Swivel castor plate dimensions = 100x85 mm
• Screw hole spacing = 80x60 mm
• Housing surface = zinc plated
• Shore hardness = 70 D
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 2.205 kg
• Weight = 1.85 kg
• Sustainability = CO 2 footprint calculated
• Primarily for mobile use
• Height adjustable locking foot, fixed wheel
• Mobility with height adjustment
• Very stable
• Rotating activation lever
• Housing made of electrolytically zinc plated sheet steel, blue passivated, with dual ball bearings in the live ring, with live ring seal
• Locking foot made of steel
• Stable footing due to integrated, height adjustable locking foot
• The height of the locking foot is adjusted using rotating activation and release lever.
