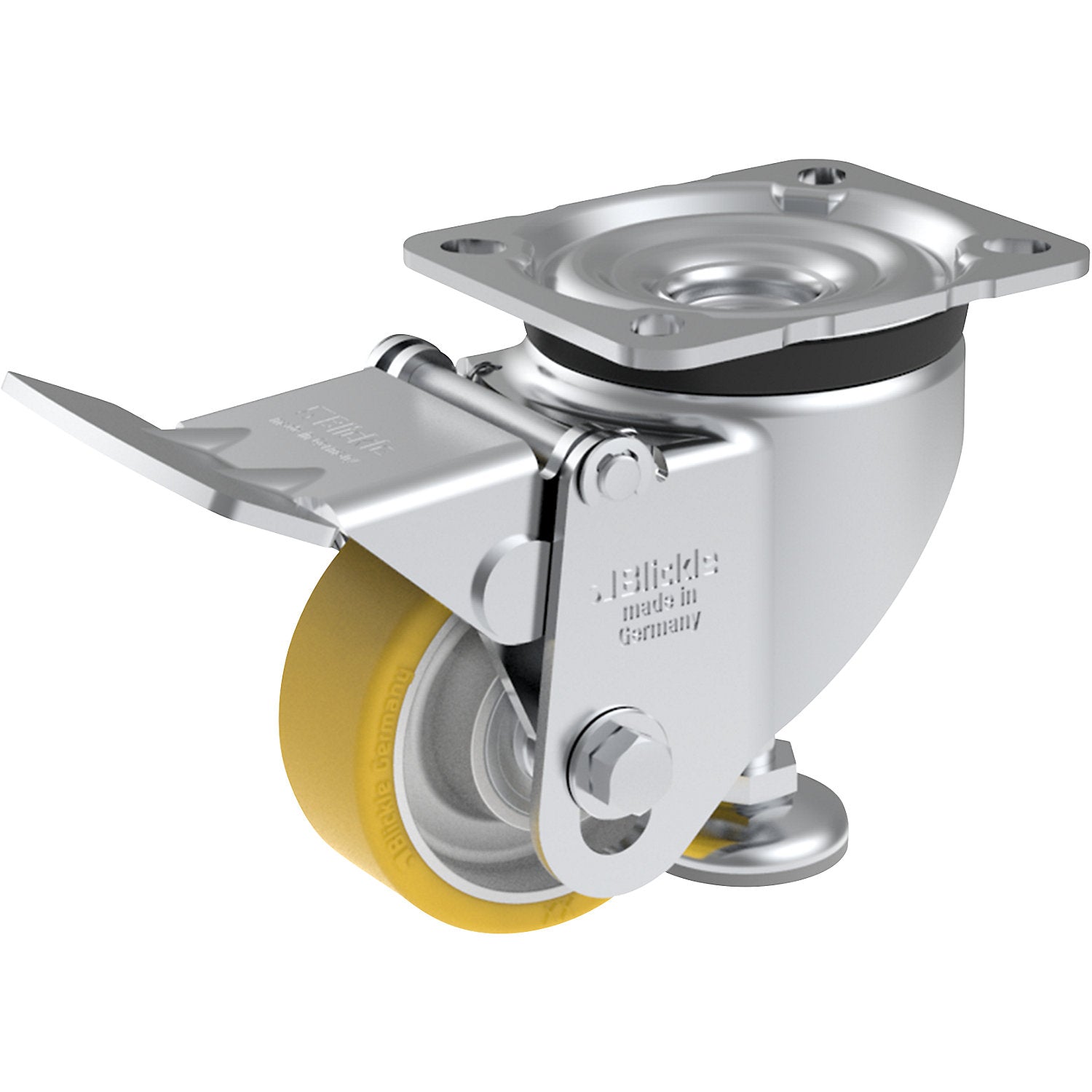

Levelling swivel castor, height adjustable wheel, polyurethane, max. load 150 kg, Ø x W 80 x 30 mm.

Estimated delivery: 35 days

Levelling swivel castor, height adjustable wheel, polyurethane, max. load 150 kg, Ø x W 80 x 30 mm

• Supplied = assembled
• Wheel diameter = 80 mm
• Structure = swivel castor
• Wheel material = polyurethane (PU)
• Material of rim = cast aluminium
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 150 kg
• Wheel width = 30 mm
• Overall height = 122 mm
• Wheel bearing = ball bearing
• Temperature resistance = -25 °C to +70 °C
• Swivel castor offset = 52 mm
• Screw hole diameter = 9 mm
• Model = levelling castors
• Swivel castor plate dimensions = 100x85 mm
• Screw hole spacing = 80x60 mm
• Housing surface = zinc plated
• Shore hardness = 92 A
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 2.005 kg
• Weight = 1.65 kg
• Sustainability = CO 2 footprint calculated
• Primarily for stationary use
• Height adjustable wheel, fixed locking foot
• Mobility with height adjustment
• Very stable
• Rotating activation lever
• Housing made of electrolytically zinc plated sheet steel, blue passivated, with dual ball bearings in the live ring, with live ring seal
• Locking foot made of steel
• Stable footing due to fixed locking foot
• Mobility provided by height adjustment of the wheel using the rotating activation lever.
