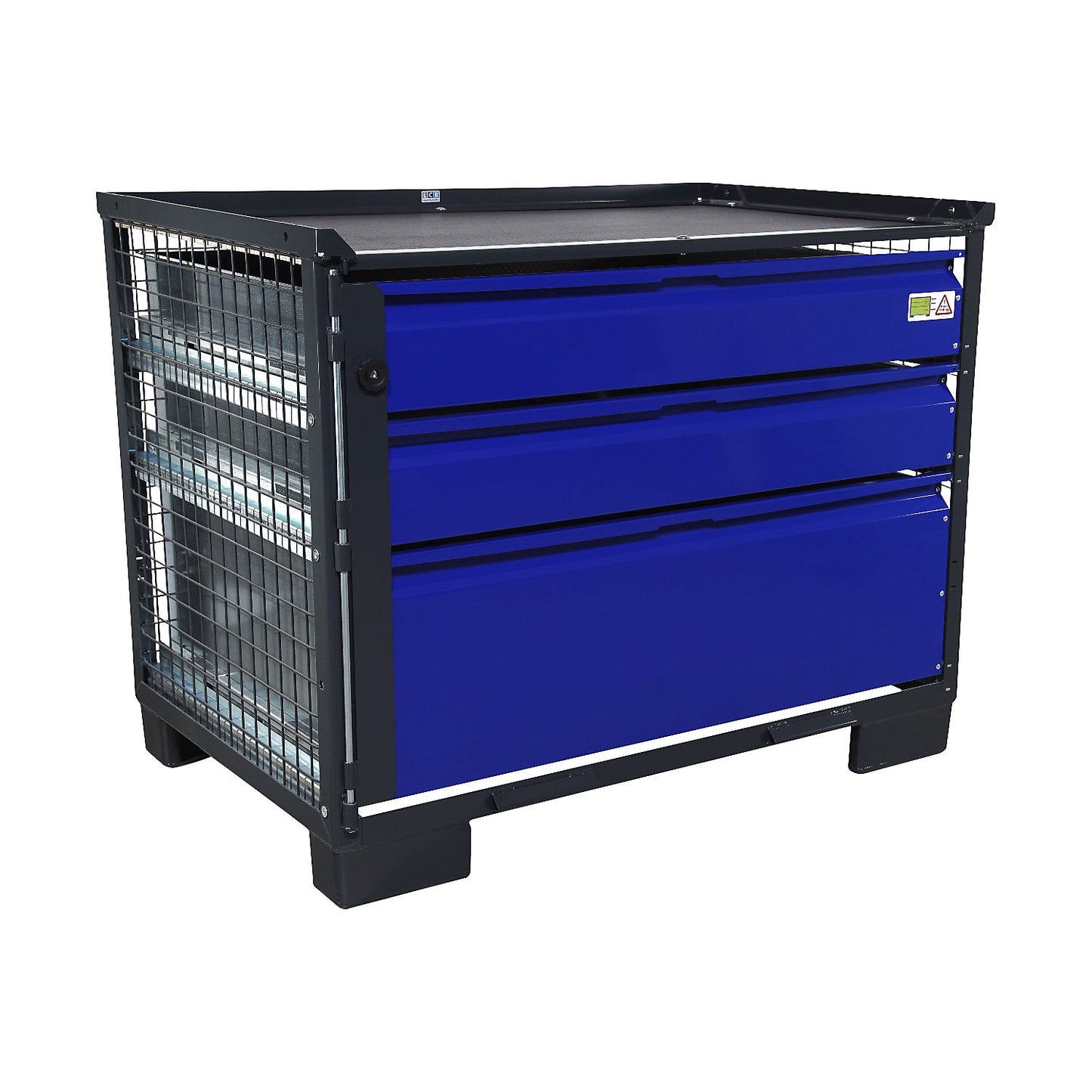

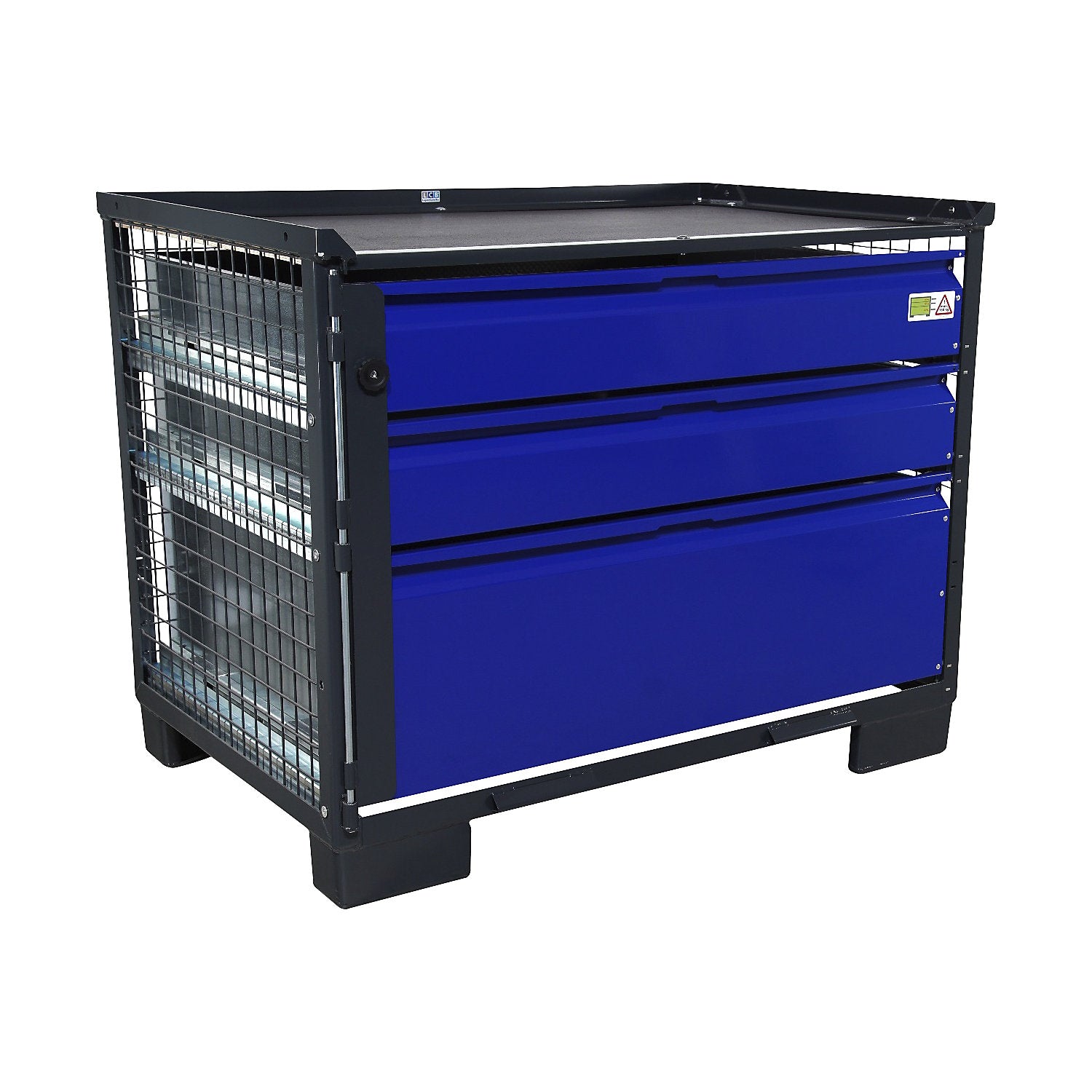

LCB mesh pallet, with 3 lockable drawers, made of zinc plated sheet metal, blue fronts.

Estimated delivery: 41 days

LCB mesh pallet, with 3 lockable drawers, made of zinc plated sheet metal, blue fronts

• Supplied = assembled
• Length = 1240 mm
• Width = 835 mm
• Filling height = 170 - 360 mm
• Height = 980 mm
• Colour = charcoal, ultramarine blue RAL 5002
• Material = steel
• Weight = 151 kg
• Max. load = 480 kg
• Stacking load = 5000 kg
• Stacking height = 5000 mm
• Finish = zinc plated and powder coated
• Clearance height = 100 mm
• Forklift access width short side = 570 mm
• Forklift access width long side = 760 mm
• Design of stacking containers = with drawers made of zinc plated sheet metal
• Mesh size = 50 mm
• Feature = stackable
• Number of drawers = 3 pcs
• Internal drawer dimensions = 2x 1090x790x170 mm 1x 1090x790x360 mm
• Product type = stacking containers
• Customs tariff number = 73269040
• Country of origin = DEU
• Gross weight = 151 kg
• Weight = 151 kg
• Sustainability = CO 2 footprint calculated

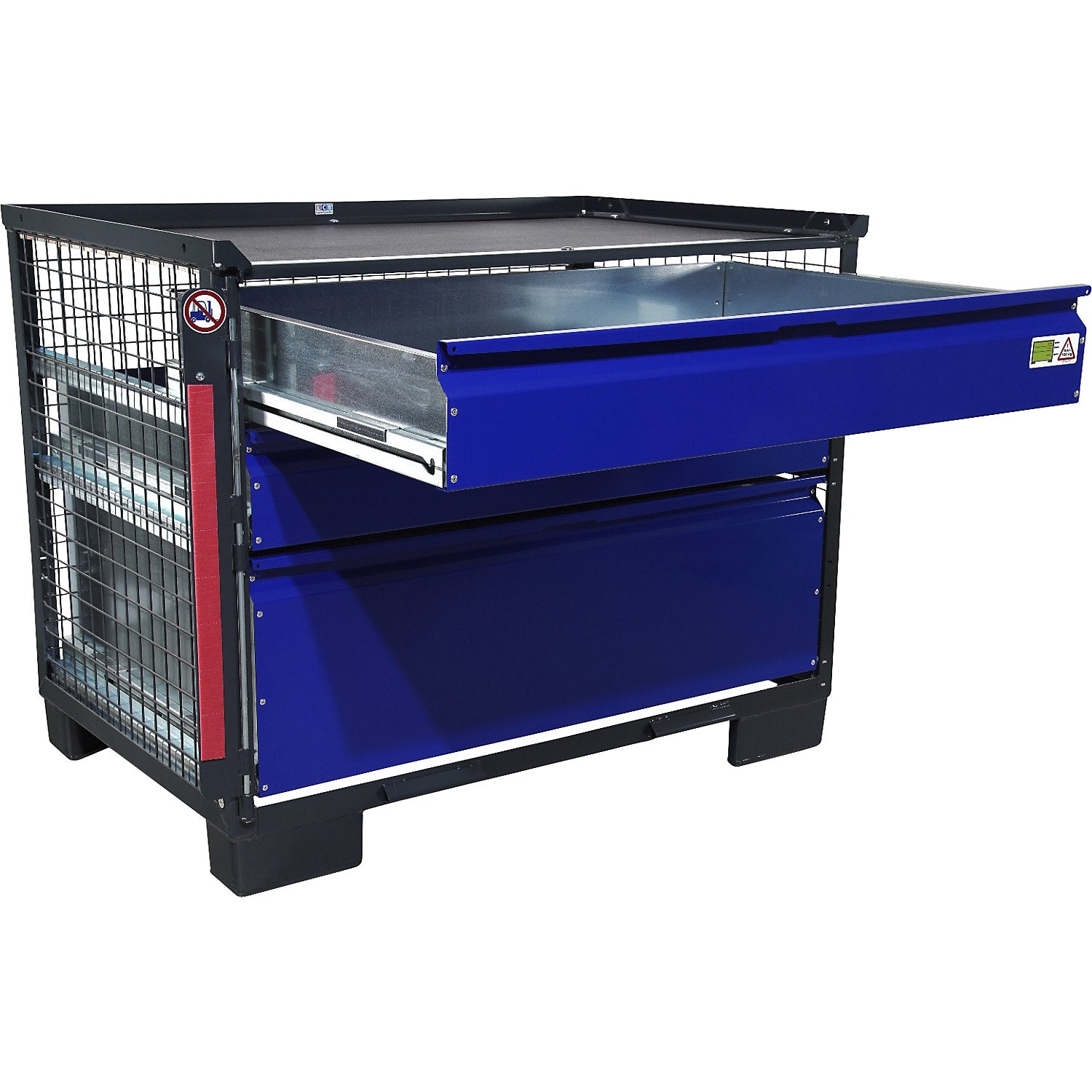

• Easy removal of the contents using drawers
• Stackable and lockable

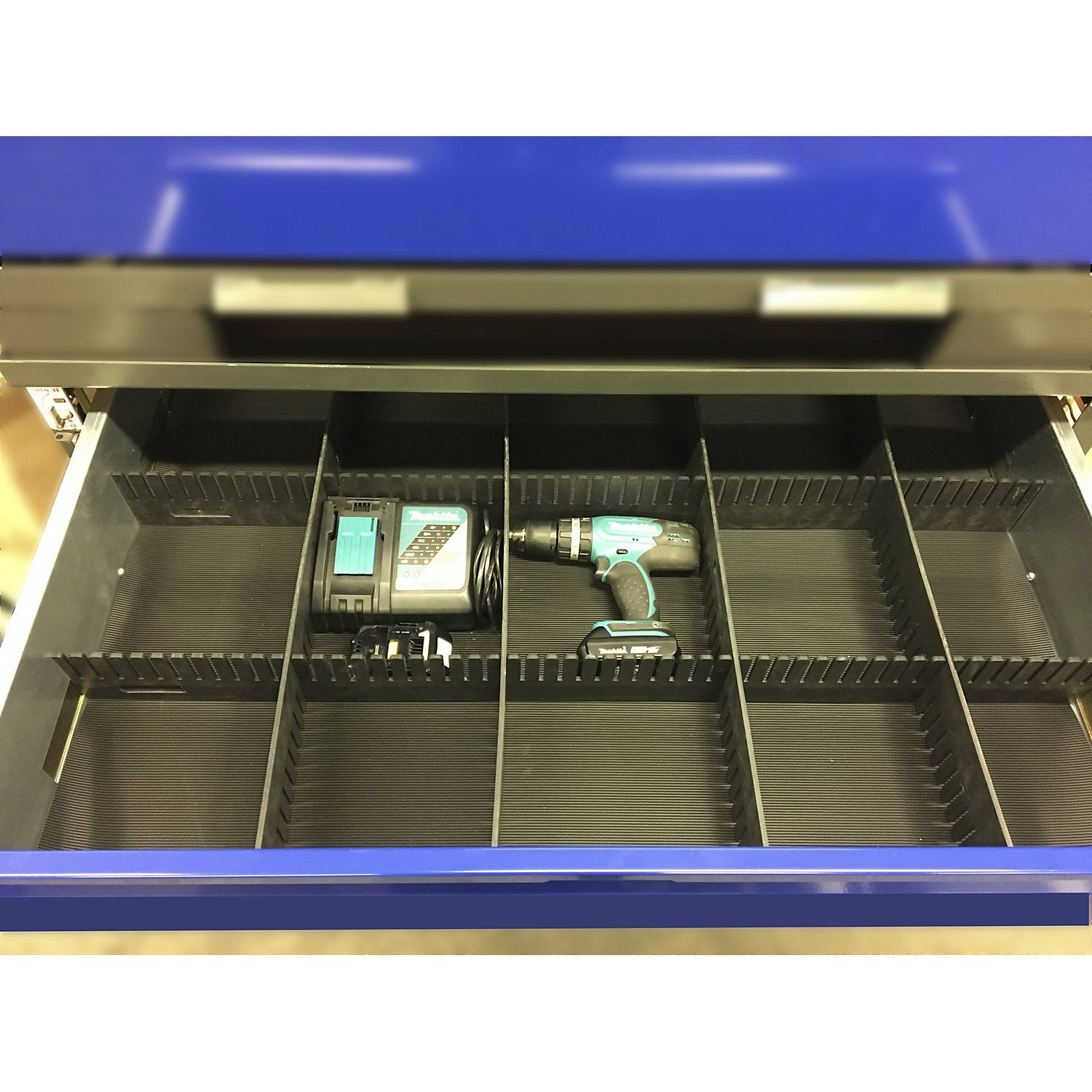

• Drawers can be divided individually
• This innovative load carrier, based on the Euro mesh pallet, offers a wide range of usage options in production logistics, maintenance or assembly
• This mesh pallet provides an ideal alternative to special load carriers, JIS racks or tool cupboards
• Tradesmen value the lockable mesh pallet as a mobile and robust workbench at construction sites
• The 12 mm thick phenolic plywood, which provides the upper cover, is optimally suited for use as an additional storage and work surface
• With basic dimensions of 1200 x 800 mm, the mesh pallet is compatible with all conventional conveyor devices, roller conveyors and means of transport
• Custom made models are available on request
• Available with a flap lock instead of with an indexing plunger.
