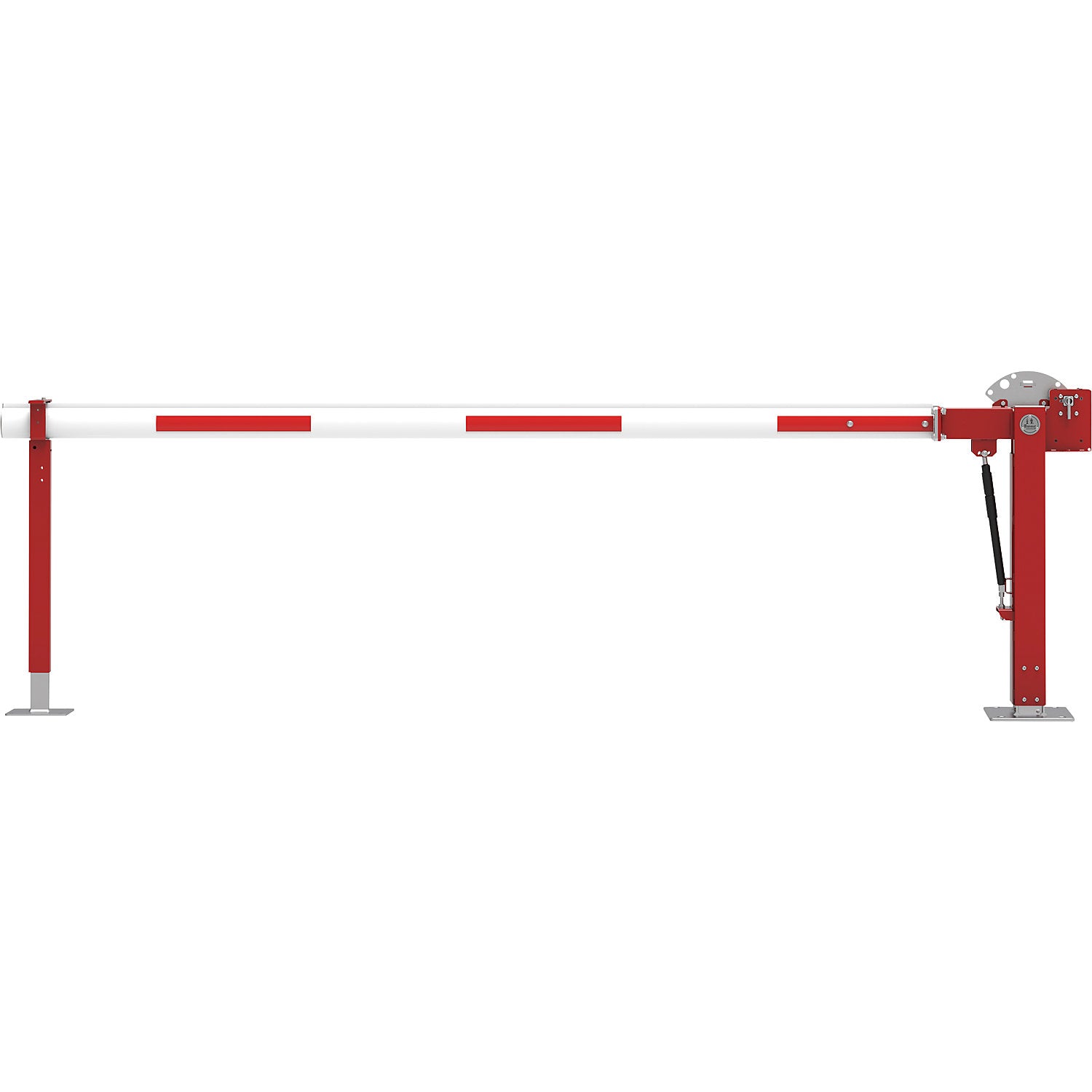

Roadblock, barrier, with gas pressure spring and fixed support arm, barrier beam length 7.5 m.

Estimated delivery: 41 days

Roadblock, barrier, with gas pressure spring and fixed support arm, barrier beam length 7.5 m

• Supplied = pre-assembled, final assembly by customer
• Width = 8000 mm
• Barrier beam length = 7500 mm
• Barrier clearance length = 7424 mm
• Material = steel
• Colour = red, white
• Type of mounting = for bolting in place
• Uprights = with fixed support arm
• Model = with gas pressure spring
• Lock type = locking bolt with handle and anti-freeze coating
• Weight = 98 kg
• Finish = powder coated
• Barrier boom profile = oval, 115x82 mm
• Method of operation = manual
• Product type = boom gates
• Customs tariff number = 73089098
• Country of origin = DEU
• Gross weight = 100 kg
• Weight = 98 kg
• Sustainability = CO 2 footprint calculated

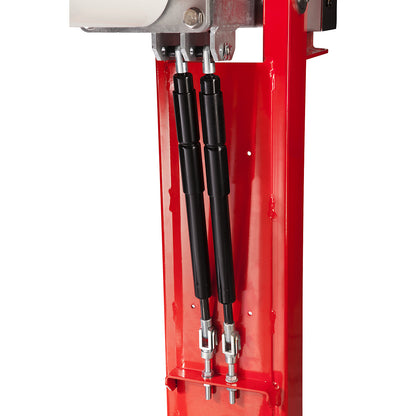

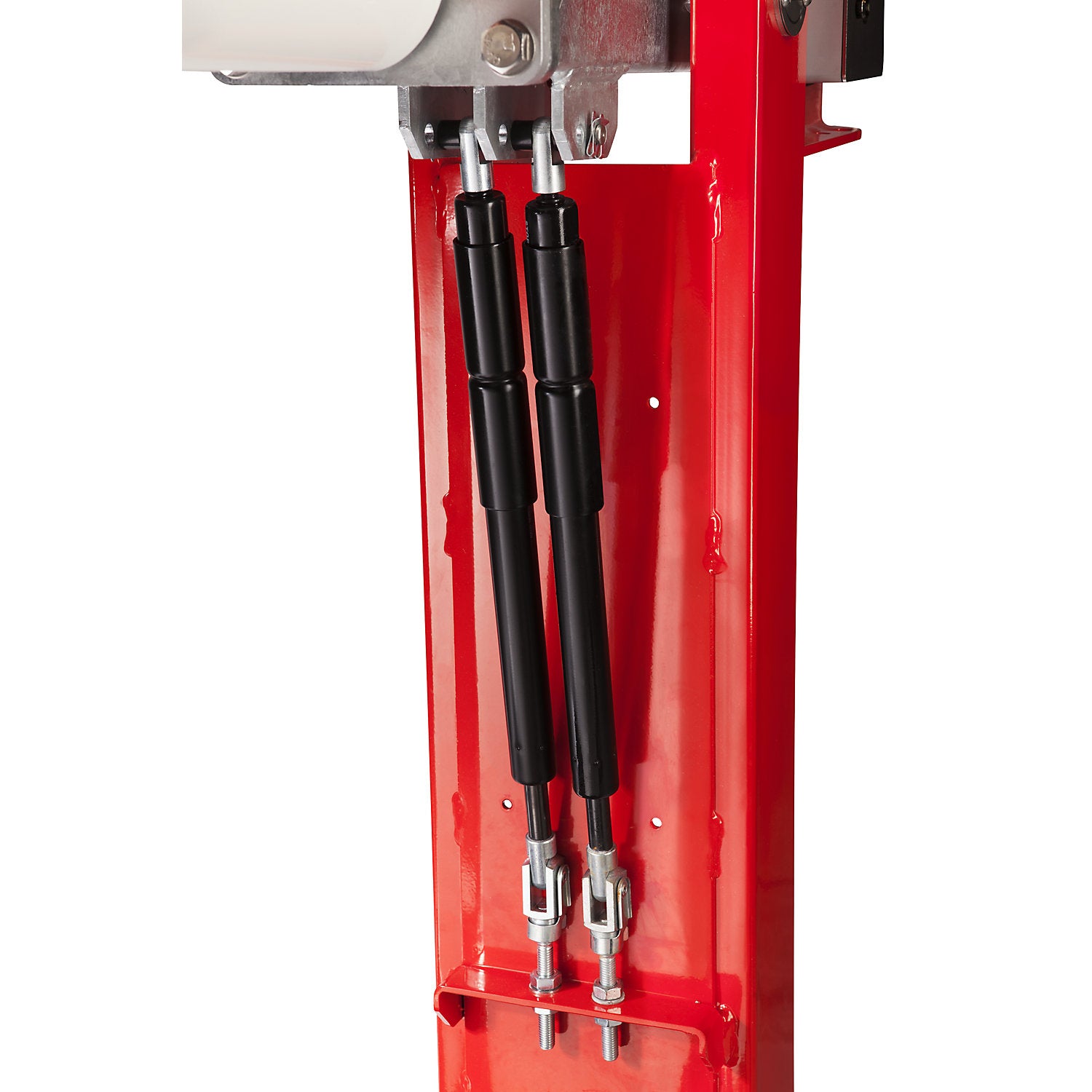

• With counterbalance weight or gas pressure spring (double stroke) for easy manual operation
• Automatic end position locking when opened or closed when using lock housing
• Height adjustable for optimum adaptation to ground conditions
• With gas pressure spring for easy operation by hand
• Barrier beam Aluminium oval tubing, single-section, 102 x 82 mm
• Anti-sitting protection
• Powder coated in pure white RAL 9010
• Reflective film application on both sides

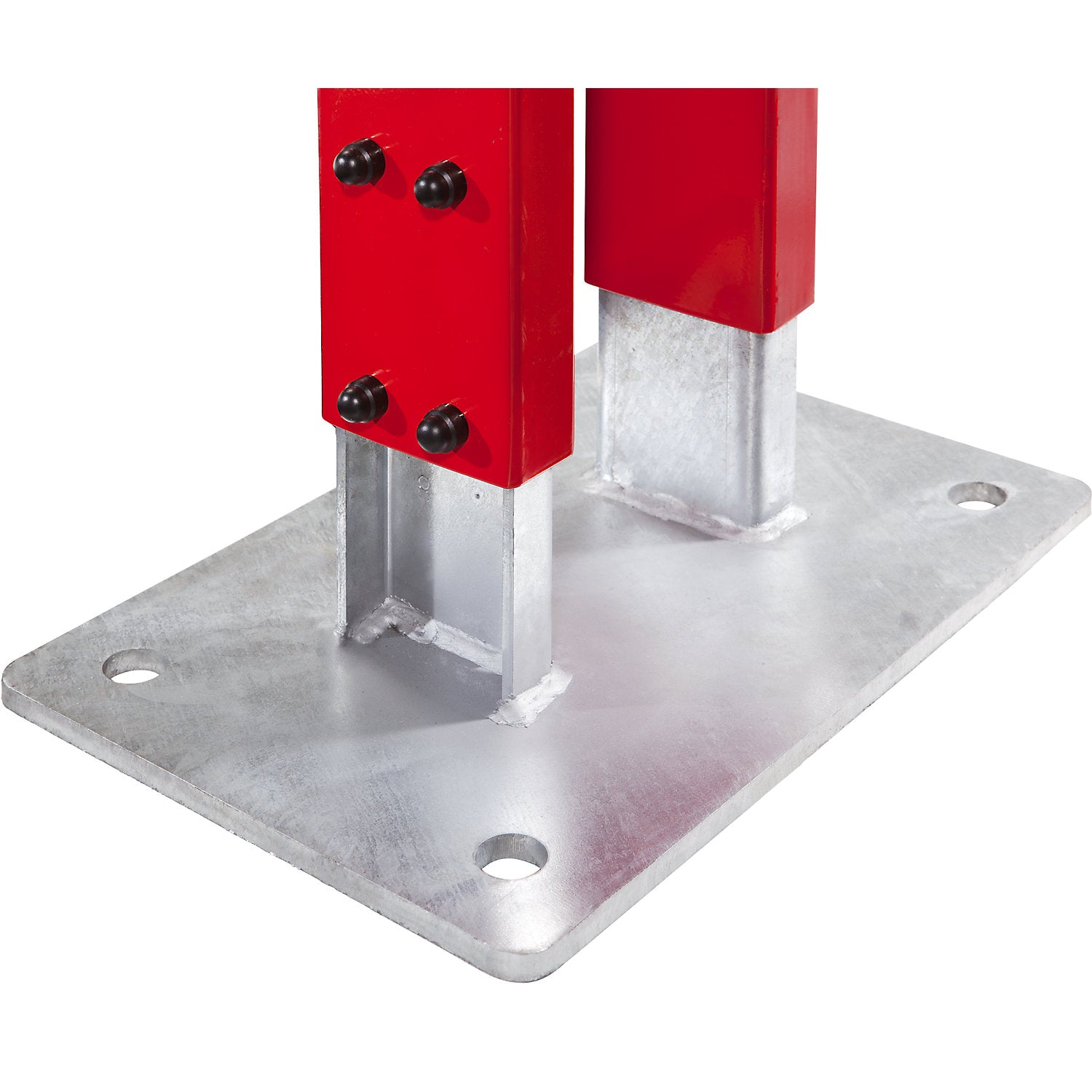

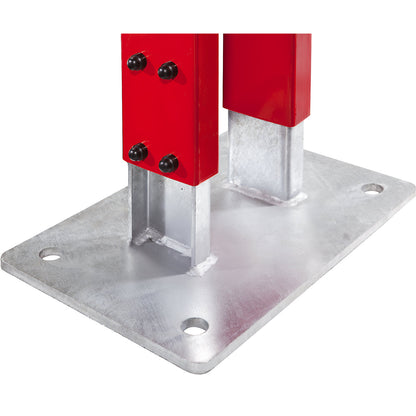

• From a length of 5,5 m, the barriers are equipped with a tension cable reinforcement. main post for bolting down All steel parts hot dip galvanised or made of stainless steel
• Powder coated in traffic red RAL 3020. resting support for bolting down All steel parts hot dip galvanised or made of stainless steel
• Powder coated in traffic red RAL 3020. locking with optional lock box Barrier with profile cylinder lock, 3 keys incl. nesting post with device for a padlock to be provided on site
• Foundation work must be carried out on site
• Supplied without fixing material
• Barriers for setting in concrete, in alternative lengths and colours are available on request.
