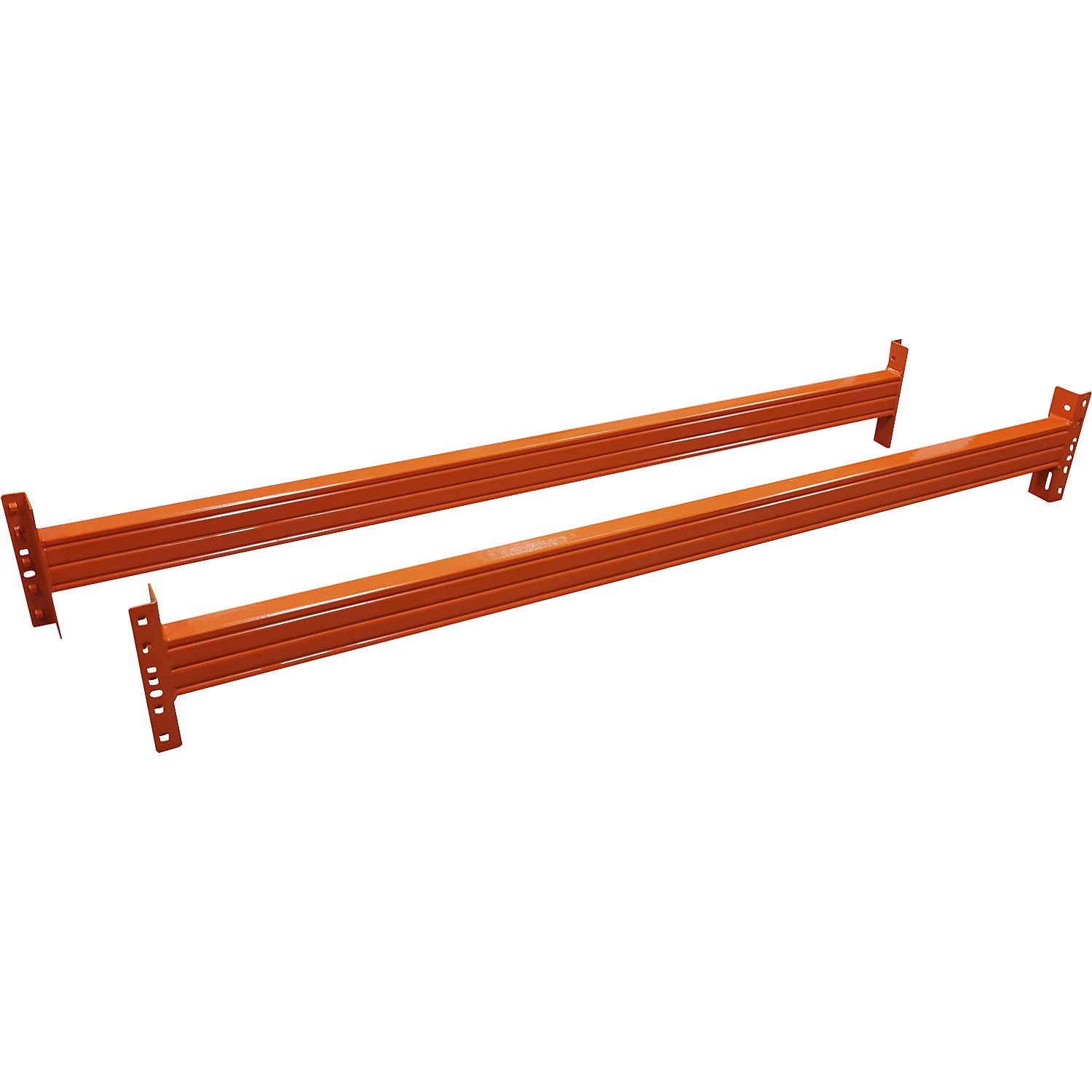

Support beams, 1 pair, pure orange RAL 2004, length 2225 mm, profile type 120 / 50 x 1.5 mm.

Estimated delivery: 36 days

Support beams, 1 pair, pure orange RAL 2004, length 2225 mm, profile type 120 / 50 x 1.5 mm

• Supplied = flat pack
• Cross beam length = 2225 mm
• Max. load per pair = 3077 kg
• Cross beam width = 50 mm
• Cross beam height = 120 mm
• Profile dimensions = 120 / 50x1,5 mm
• Material = steel
• Colour = pure orange RAL 2004

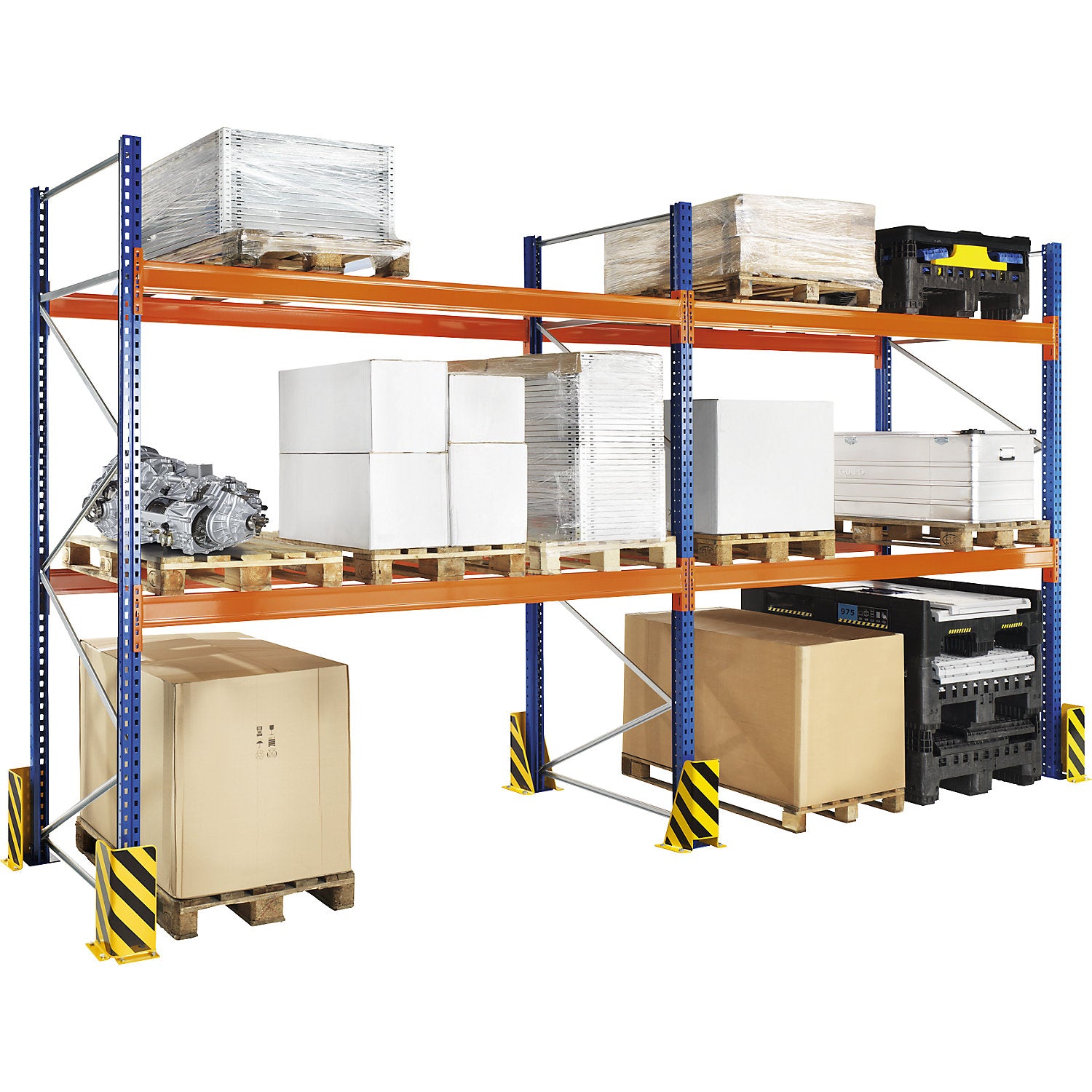

• Product type = pallet racking support beams
• Customs tariff number = 73089098
• Country of origin = ESP
• Gross weight = 21.996 kg
• Weight = 17.93 kg
• Sustainability = CO 2 footprint calculated
• Individual components for individual requirements
• Structural analysis in accordance with DIN standard EN 15512:2022
• Faster assembly due to plug-in beams (50 mm beam adjustment grid)
• Box-shaped, cold-formed profiles with welded clasps
• Each clasp has 5 robust hooks, so that the load is optimally distributed
• Powder coated in pure orange RAL 2004
• Supplied in pairs, incl. 4 securing pins
• The max. load per pair is for an evenly distributed load
• All specified max. loads apply with uniform load distribution.
