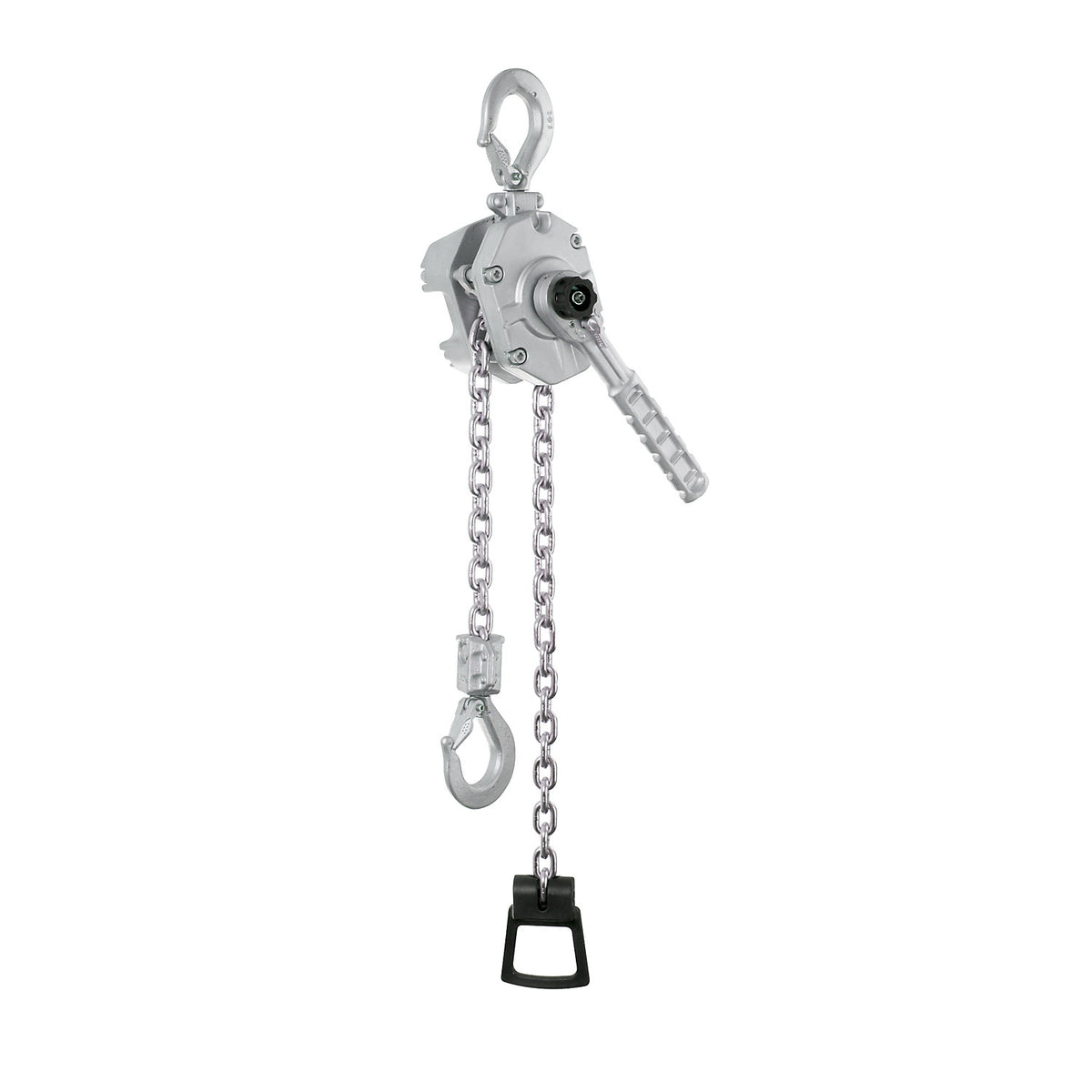

AH ratchet chain hoist, standard lifting height 1.5 m, max. load 1600 kg.

Estimated delivery: 49 days

AH ratchet chain hoist, standard lifting height 1.5 m, max. load 1600 kg

• Supplied = assembled
• Max. load = 1600 kg
• Lift = 1.5 m
• Number of chain strands = 1 pcs
• Overall height (between device hook / load hook inner edges) = 355 mm
• Power required at full load = 25
• Housing material = aluminium
• Product type = ratchet chain hoists
• Colour = silver
• Customs tariff number = 84251900
• Country of origin = CHN
• Gross weight = 7.9 kg
• Weight = 7.6 kg
• Sustainability = CO 2 footprint calculated
• Small and lightweight design made of aluminium for handy use
• Enclosed die-cast housing to protect the internal components
• Can be used at ambient temperatures from -20 °C to +60 °C
• Robust chain stop for a reliable chain hold
• Two robust safety latches for increased operational safety
• Free-wheeling lever for quickly pulling through the unloaded chain
• The AH lever hoist is a compact aluminium lever hoist with an exceptionally small and lightweight design, making it suitable for industry and service applications where handy and heavy-duty lifting tools are required
• The enclosed die-cast housing protects the internal components from dirt and weather
• Use the temperature-resistant design from -20 °C to +60 °C for variable operating conditions
• The lever hoist features two robust safety latches for safe working and a reinforced chain stop that prevents the chain from slipping through
• A free-wheeling lever also enables the chain to be pulled through quickly when no load is applied
• The lifting device is suitable for workshops, assembly lines and service teams requiring a lightweight yet resilient hoist
• The protection provided by the die-cast housing reduces failure risks caused by environmental influences, while the hook and chain solutions ensure a reliable hold during recurring lifting tasks.
