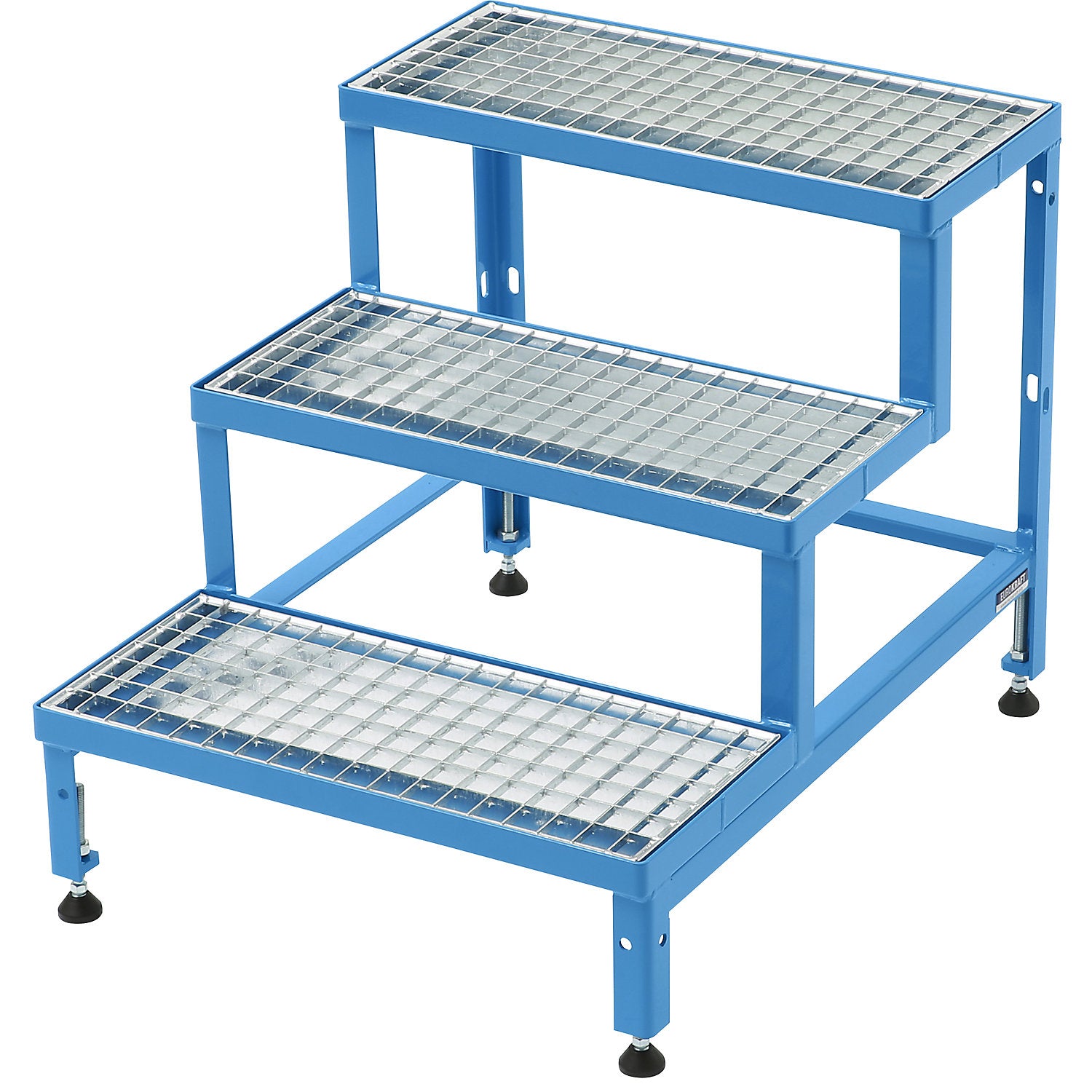

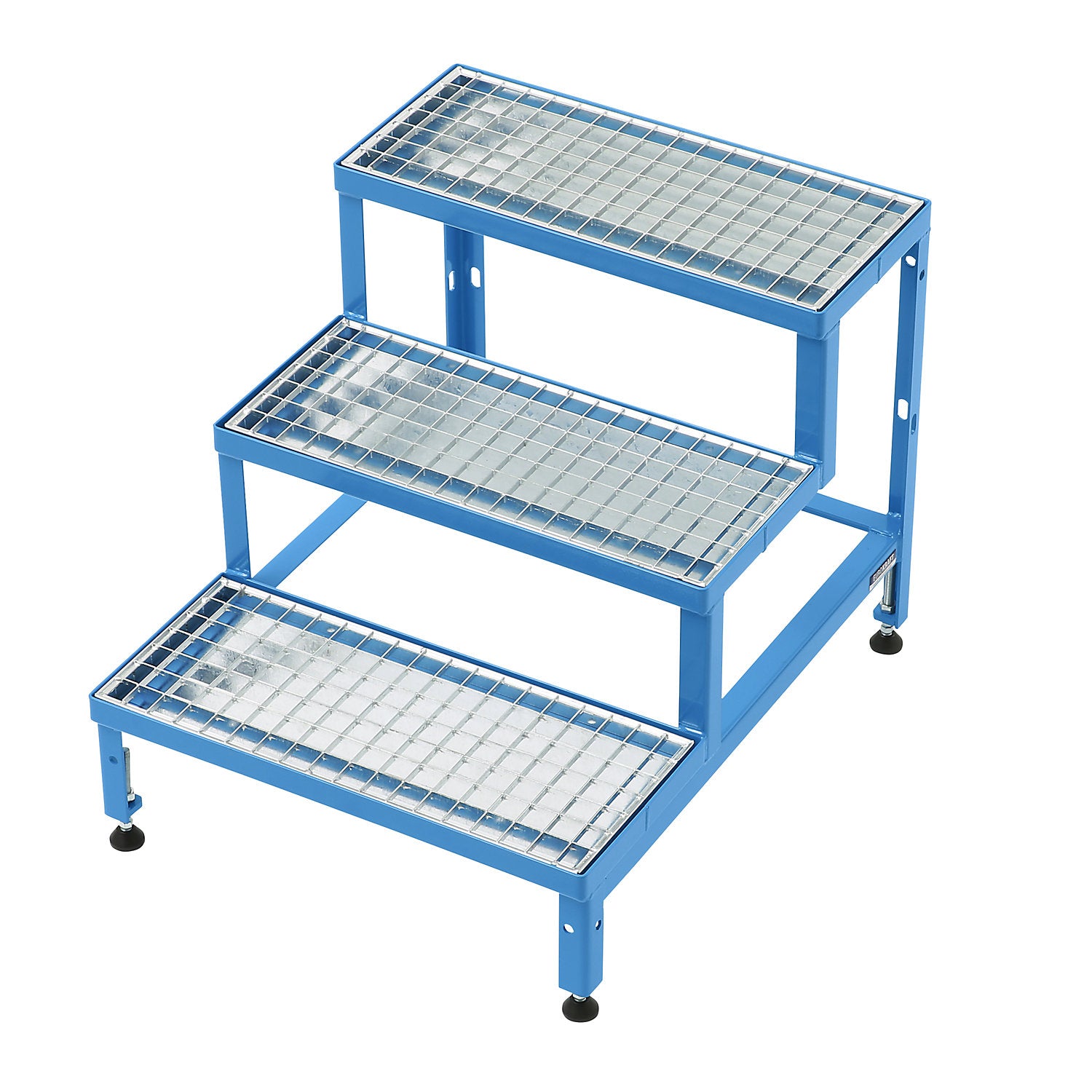

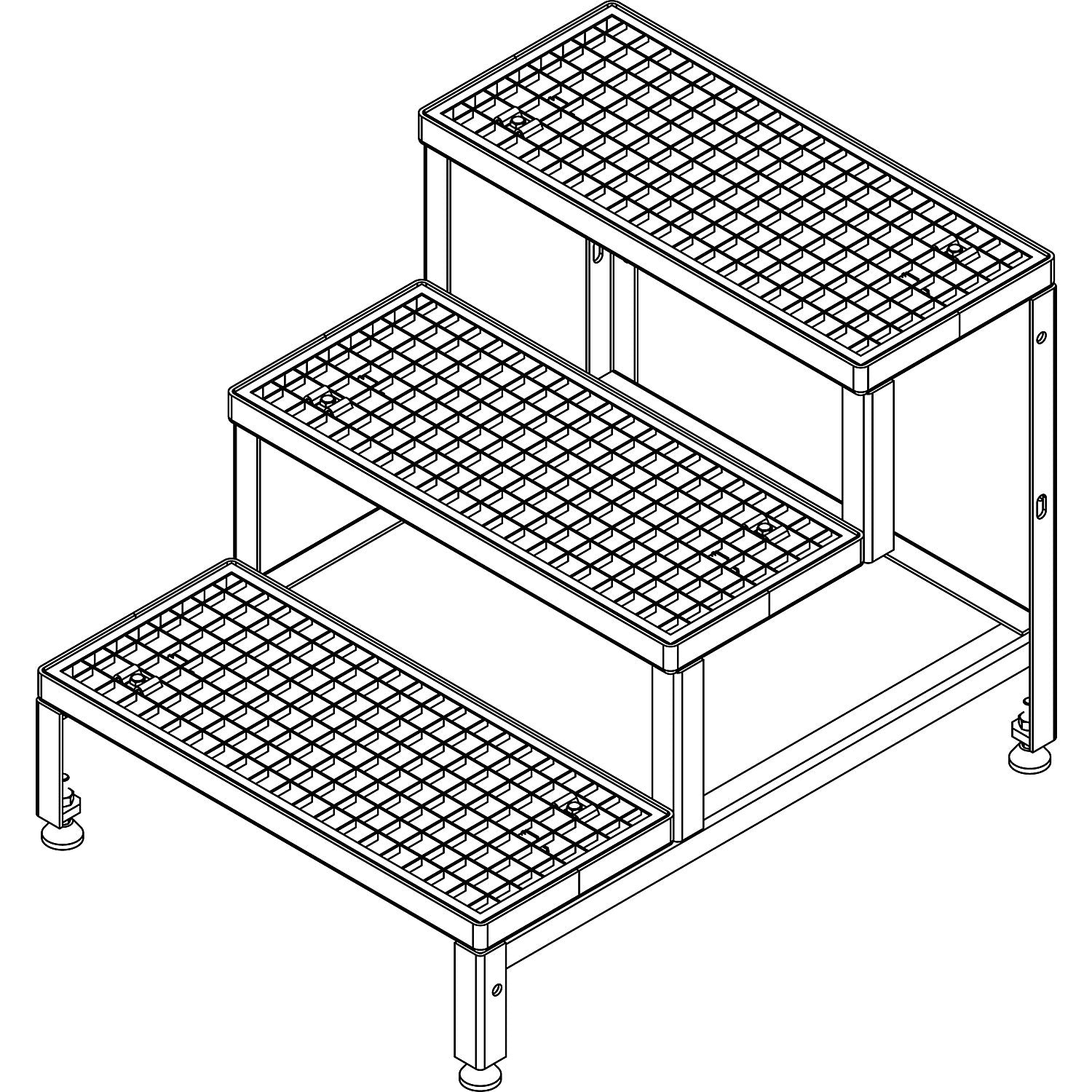

Stairway for modular platform system, with mesh treads, 3 steps.

Estimated delivery: 31 days

Stairway for modular platform system, with mesh treads, 3 steps

• Supplied = partially assembled
• Platform length = 270 mm
• Platform width = 610 mm
• Platform height = 600 mm
• Frame material = metal
• Frame colour = light blue RAL 5012
• Weight = 34.5 kg
• Max. load = 150 kg
• Access = single sided
• Steps incl. platform = 3 pcs
• Material of treads = grate, hot dip galvanised
• Length = 790 mm
• Width = 610 mm
• Height = 600 mm
• Working height = 2600 mm
• Product type = modular work platforms
• Customs tariff number = 73269030
• Country of origin = DEU
• Gross weight = 36.5 kg
• Weight = 34.5 kg
• Sustainability = CO 2 footprint calculated
• These robust stairways can be used individually as steps or stairs, or as part of a modular platform system

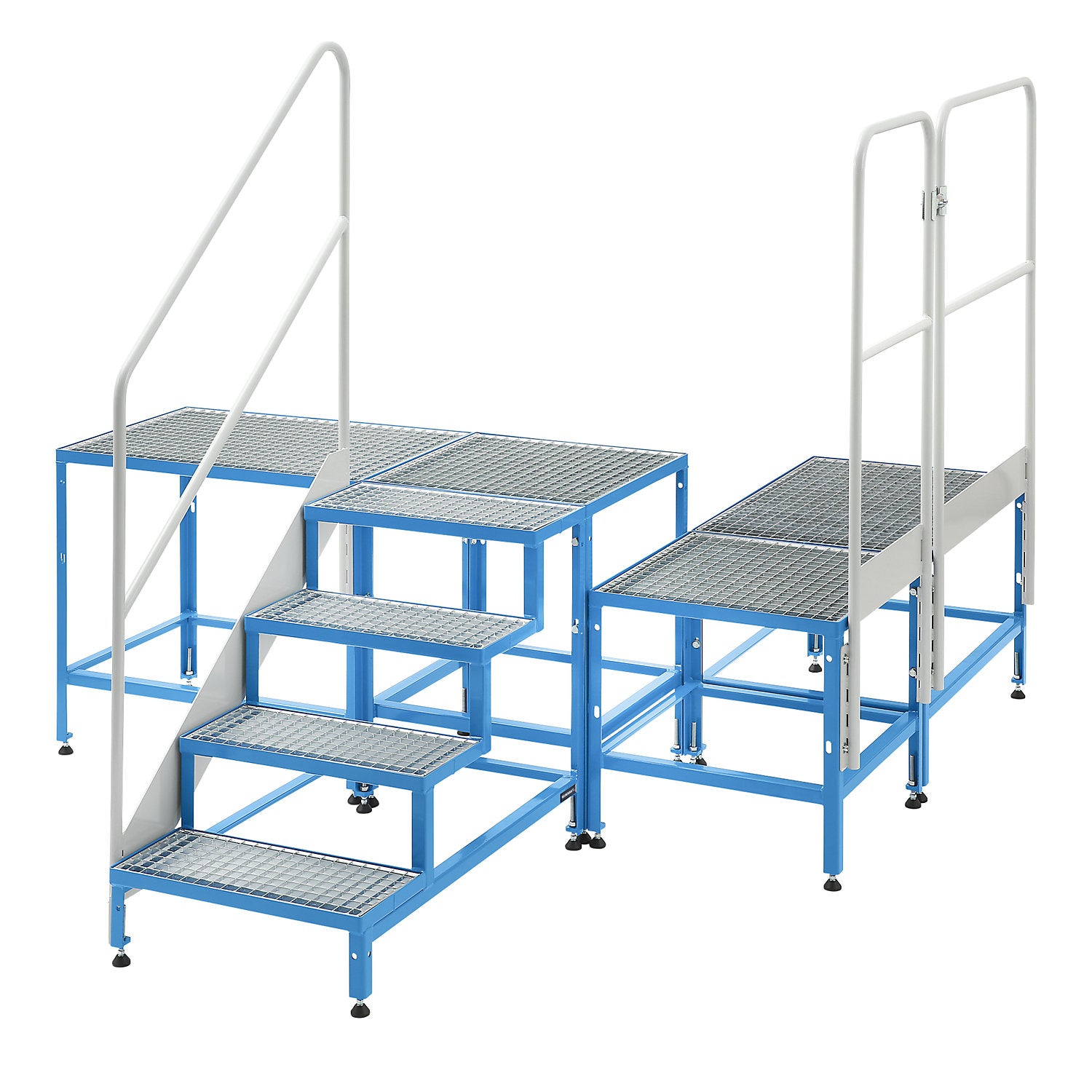

• In conjunction with platforms, individual solutions for every requirement can be put together (see combinations)
• Hand rails for both sides to ensure safe ascent, and a transport aid for easy transport are optionally available (see accessories). 12 modules suitable for combining, levelling using articulated feet, manufactured and tested in accordance with EN 14122, comfortable 38° climb angle
• Supplied flat pack - easy self-assembly.
