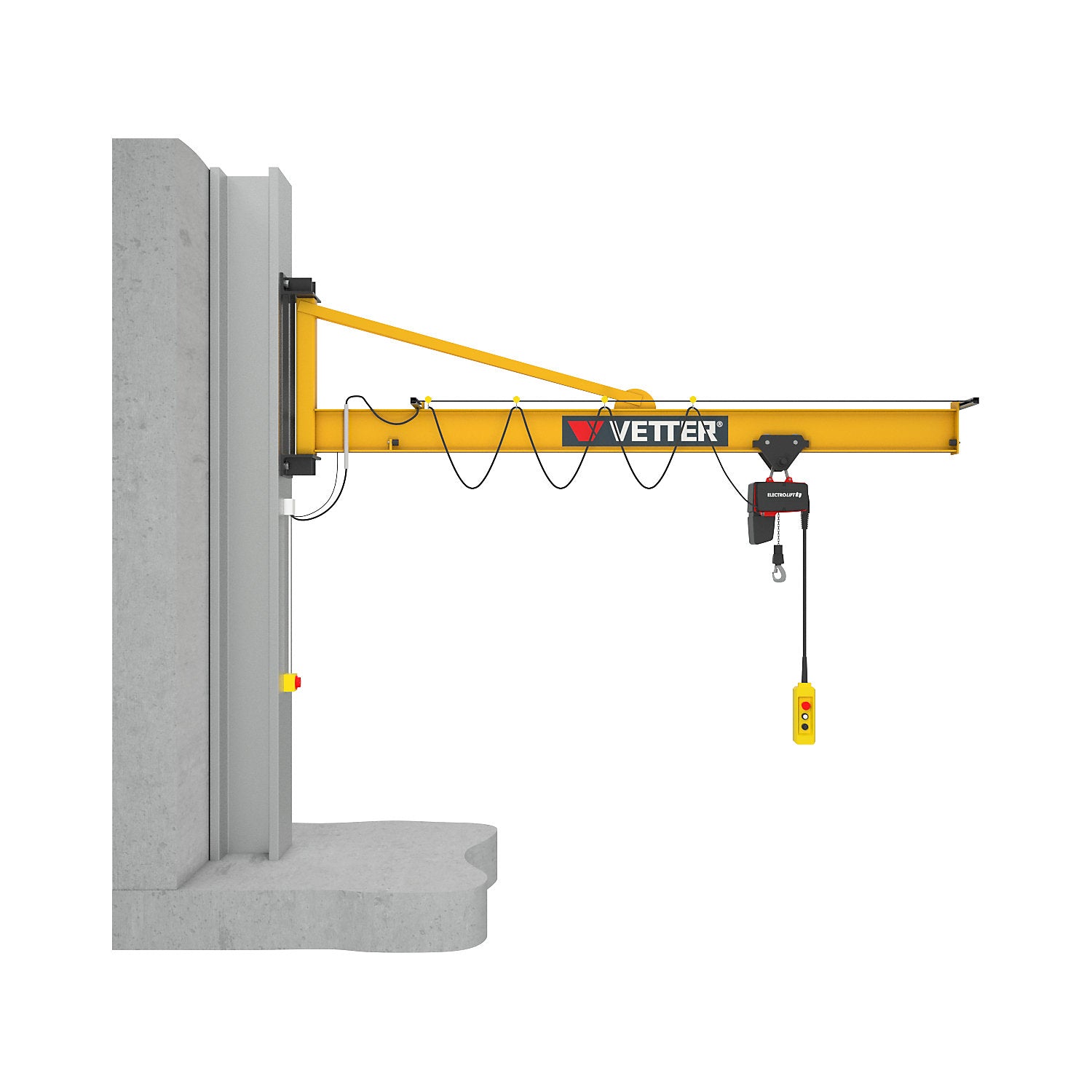

PRAKTIKUS PW wall mounted jib crane, without electric chain hoist, max. load 1000 kg, reach 3 m.

Estimated delivery: 52 days

PRAKTIKUS PW wall mounted jib crane, without electric chain hoist, max. load 1000 kg, reach 3 m

• Supplied = flat pack
• Max. load = 1000 kg
• Operating voltage = 400 V / 50 Hz
• Swivel range = 180°
• Design of rotary crane = crane without electric chain hoist
• Flange width = 100 mm
• Overall height = 940 mm
• Height of lifting gear = 552 mm
• Reach = 3000 mm
• Horizontal force max. = 48 kN
• Vertical force max. = 12 kN
• Bracket module = A
• Control voltage = 24 V
• Colour = daffodil yellow RAL 1007
• Material = steel
• Product type = wall mounted jib cranes
• Customs tariff number = 84261100
• Country of origin = DEU
• Gross weight = 437 kg
• Weight = 404 kg
• Sustainability = CO 2 footprint calculated
• Low empty weight of the stabilising arm and therefore easy to swivel
• High quality paintwork allows use outdoors
• Stabilising arm length can be adapted to the space available
• The PRAKTIKUS PW wall mounted jib crane is ideal for smaller jobs in the workshop
• The braced design and the low weight of the stabiliser arm makes it easy to swivel
• The high quality paintwork allows use both in the factory and outdoors
• Does not include chassis and electric chain hoist
• This related product is also available as a post mounted jib crane from us
• The technical specifications for these cranes makes it necessary to manufacture them to order - no right of return.
